· Every components are made in China

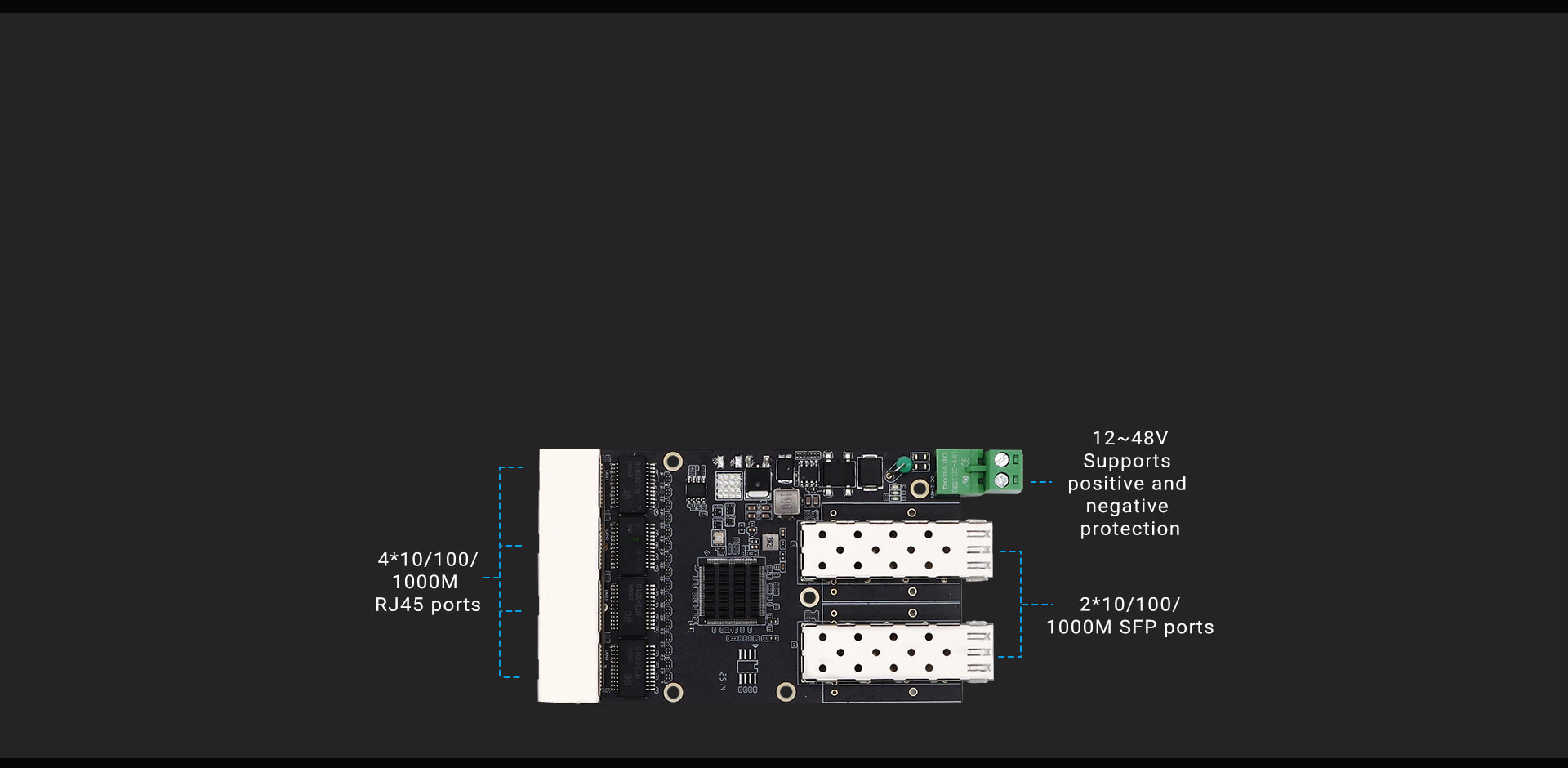

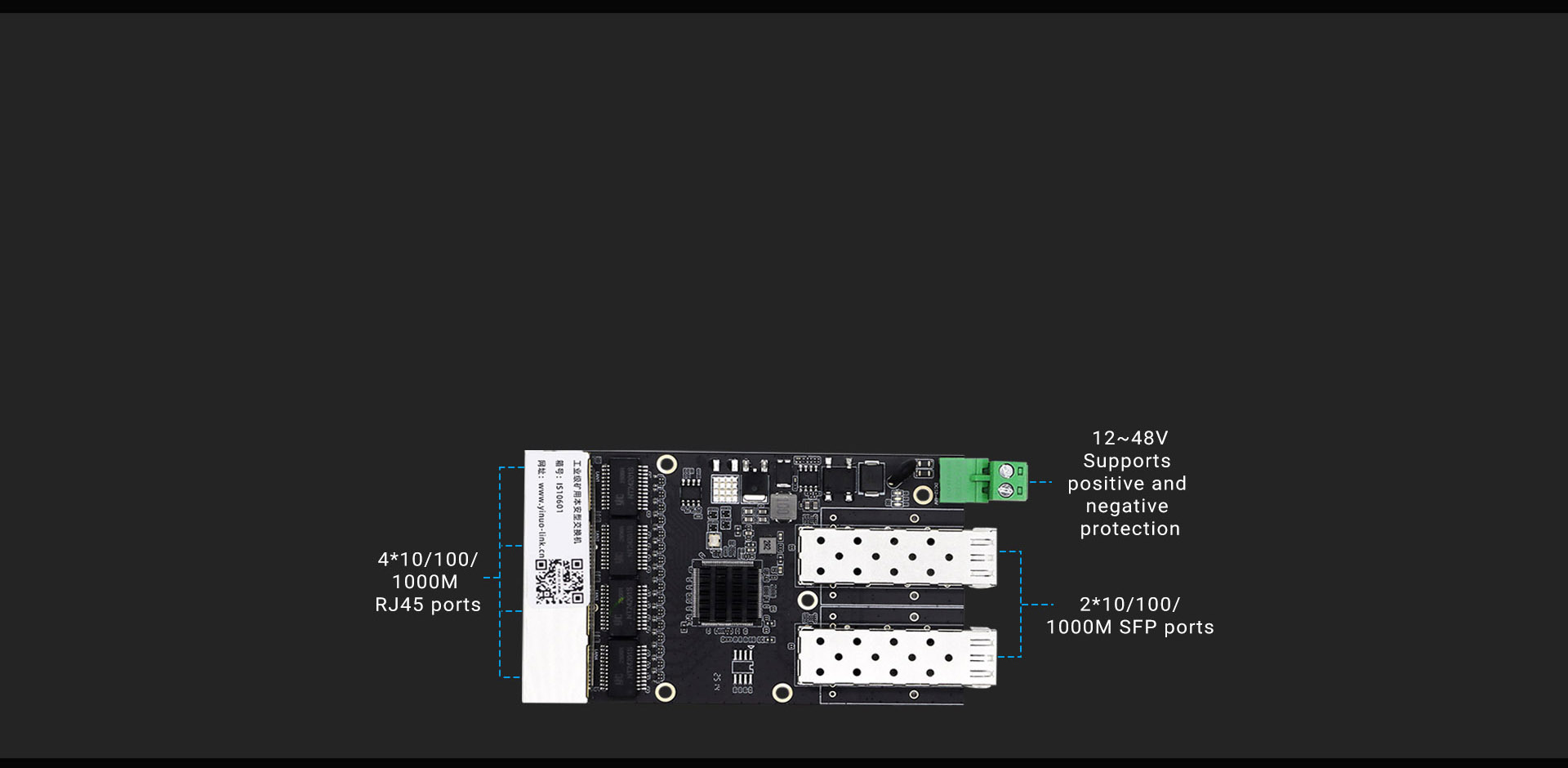

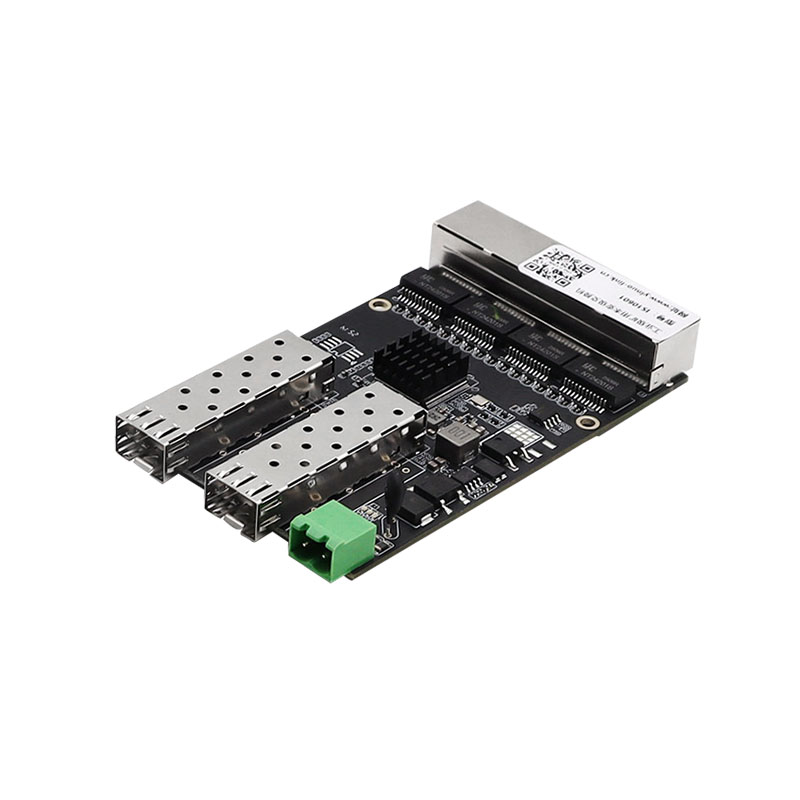

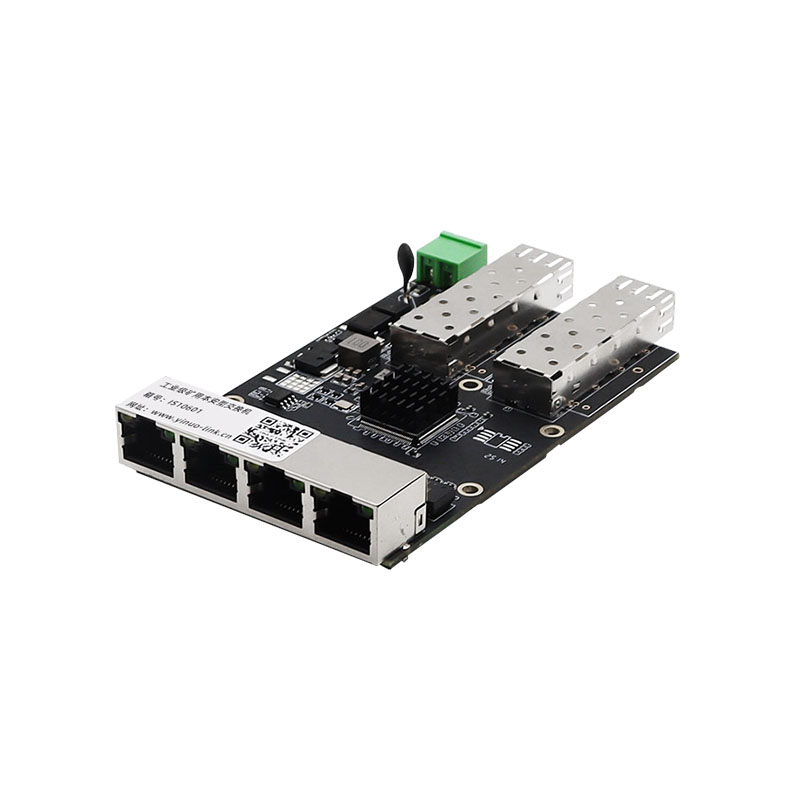

· 4 x 10/100/1000M adaptive RJ45 ports

· 2* Gigabit SFPs

· Fanless design ensures quiet operation

· Auto-negotiation: guarantees maximum speed on each port

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

·  Wide voltage 12~48V

· Silicon Controlled Rectifier (SCR): Effective and precise regulation of voltage, to ensure the safe and stable operation of equipment, to avoid all kinds of faults and damage caused by abnormal voltage.

· NTC Protection: Effectively suppresses the instantaneous impact of the current, avoids the electric spark generated by excessive current, and ensures the stable operation of the circuit.

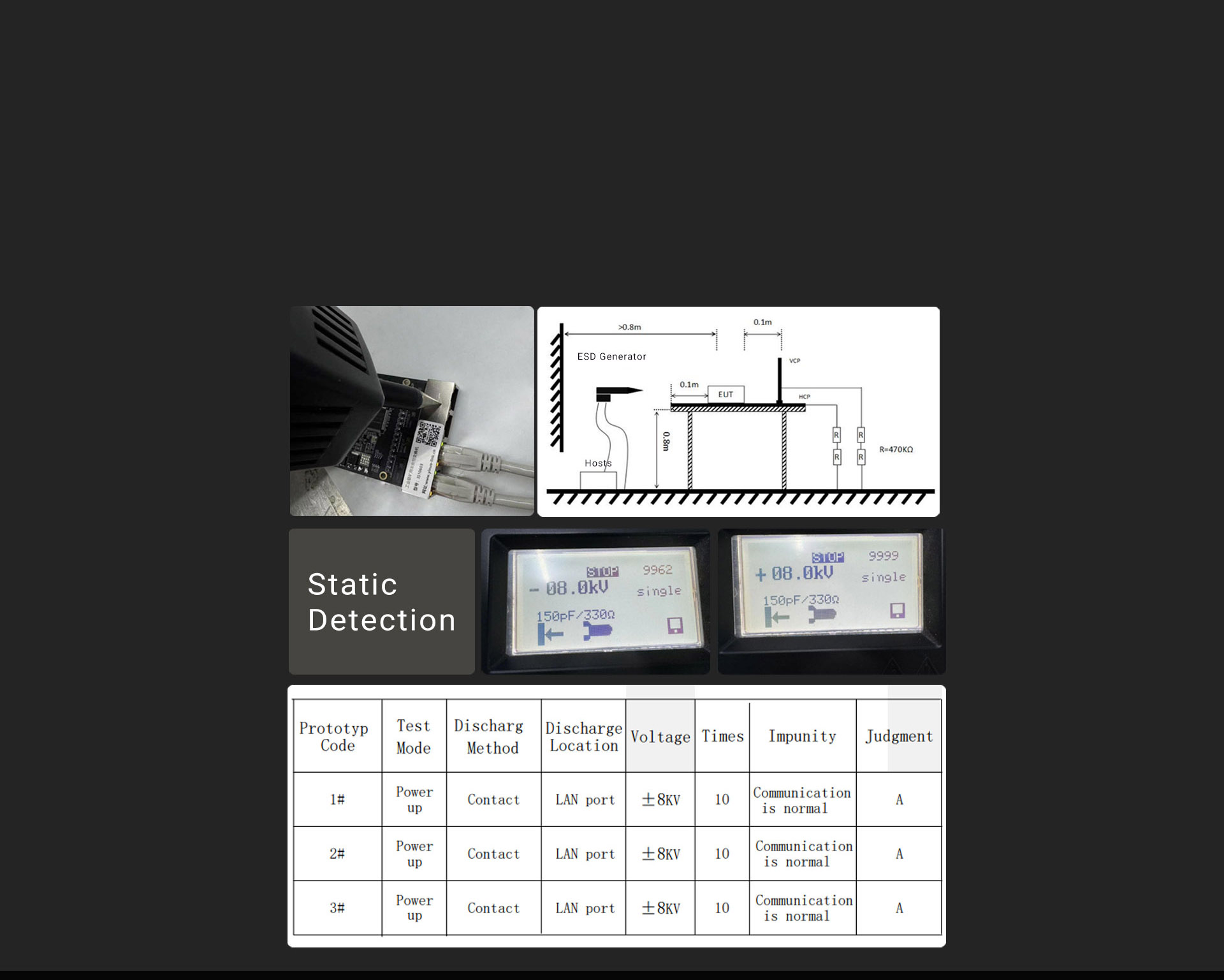

· Lightning surge machine electrostatic full protection, electrostatic support 8KV

· Power supply support positive and negative access protection

· Industrial-grade operating temperature: -40℃~85℃

· Reverse connection protection, short-circuit over-current protection, surge protection, to ensure that the equipment does not work uninterruptedly.

· EMC high protection level, no fear of harsh environments

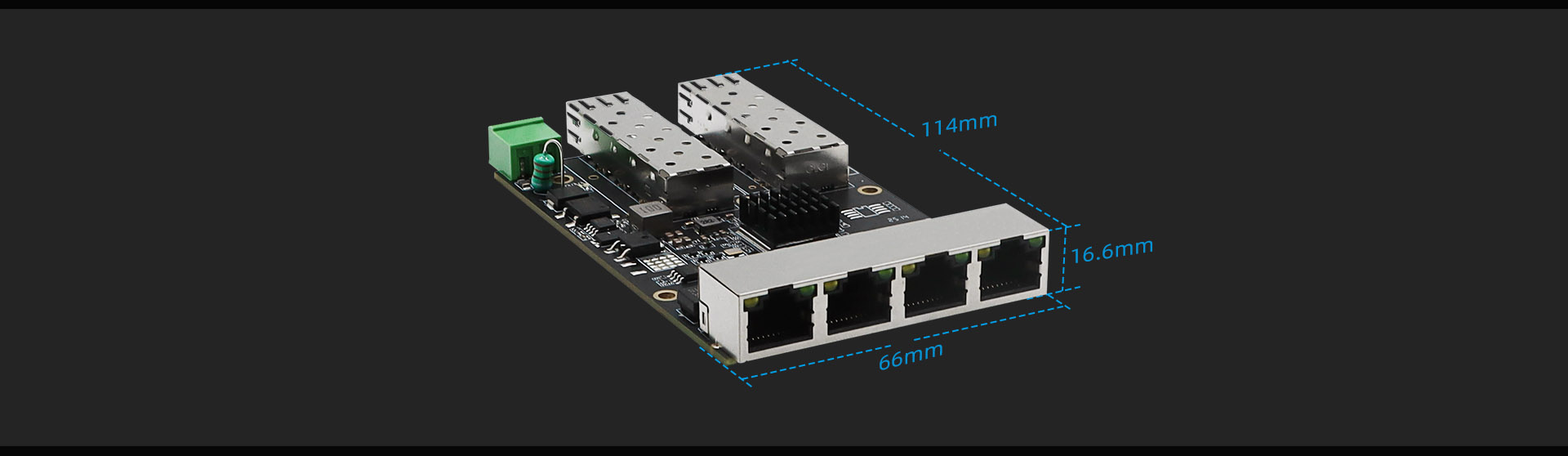

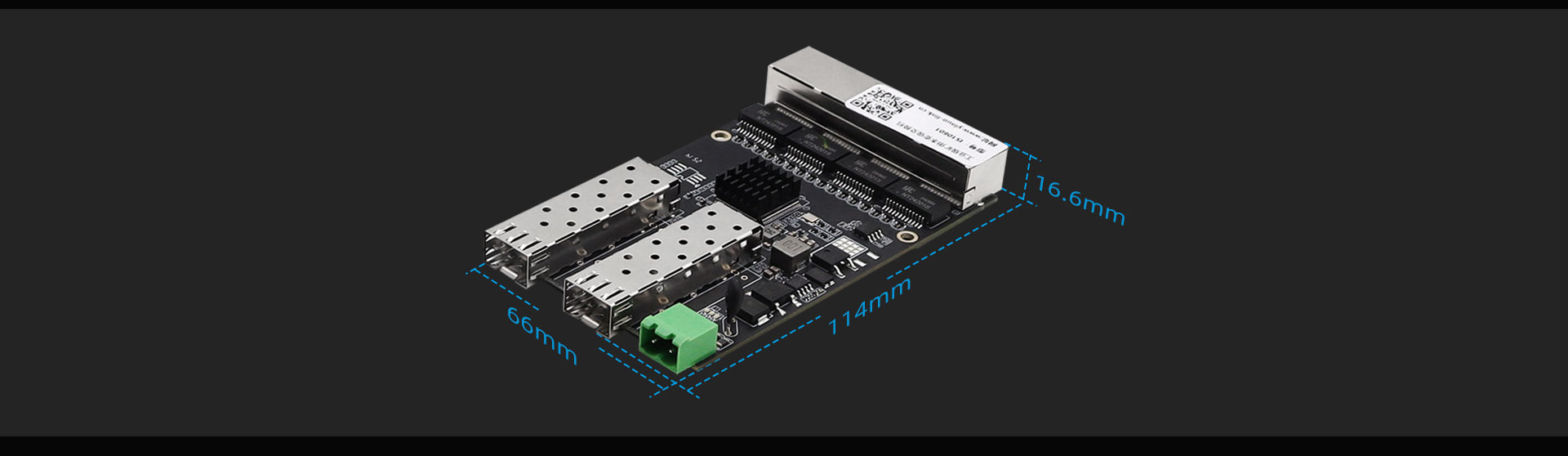

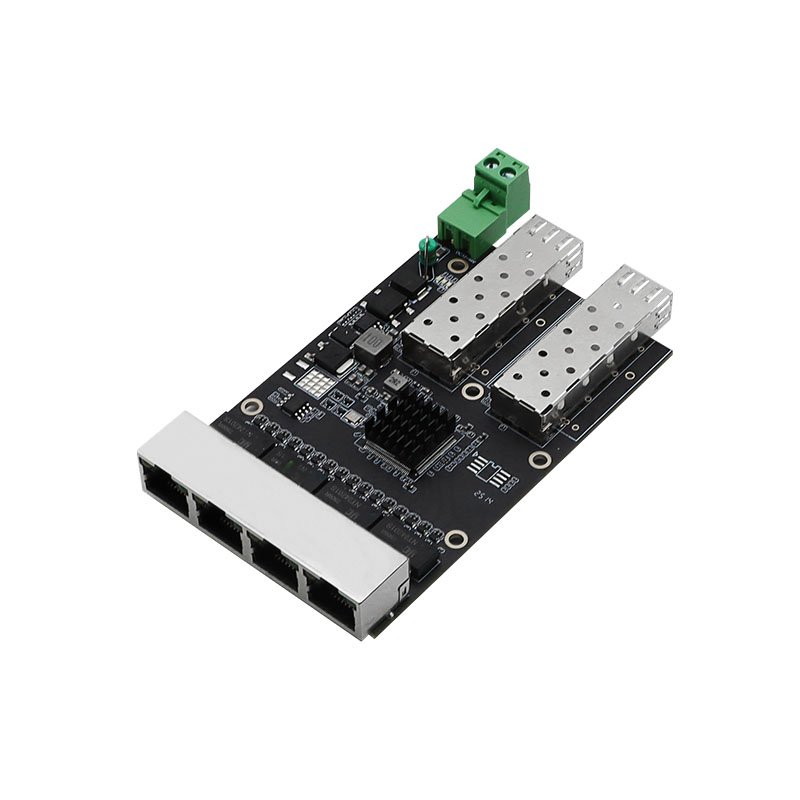

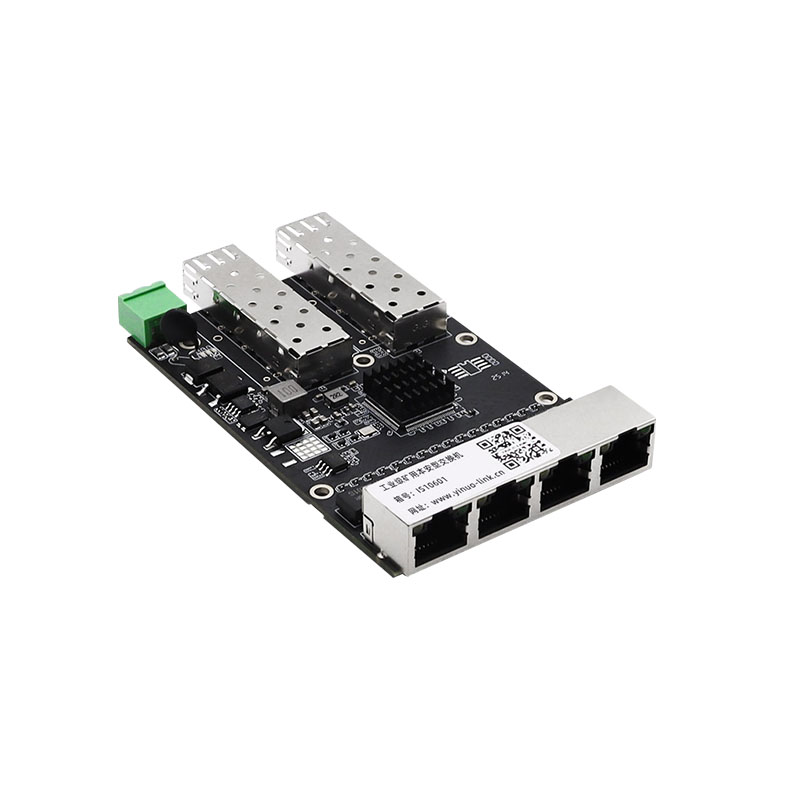

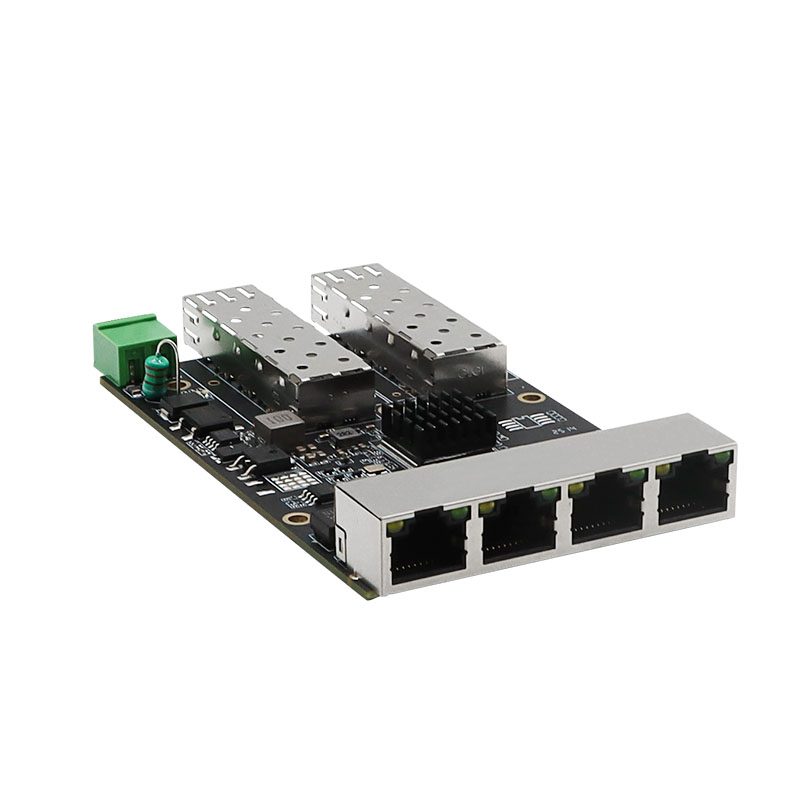

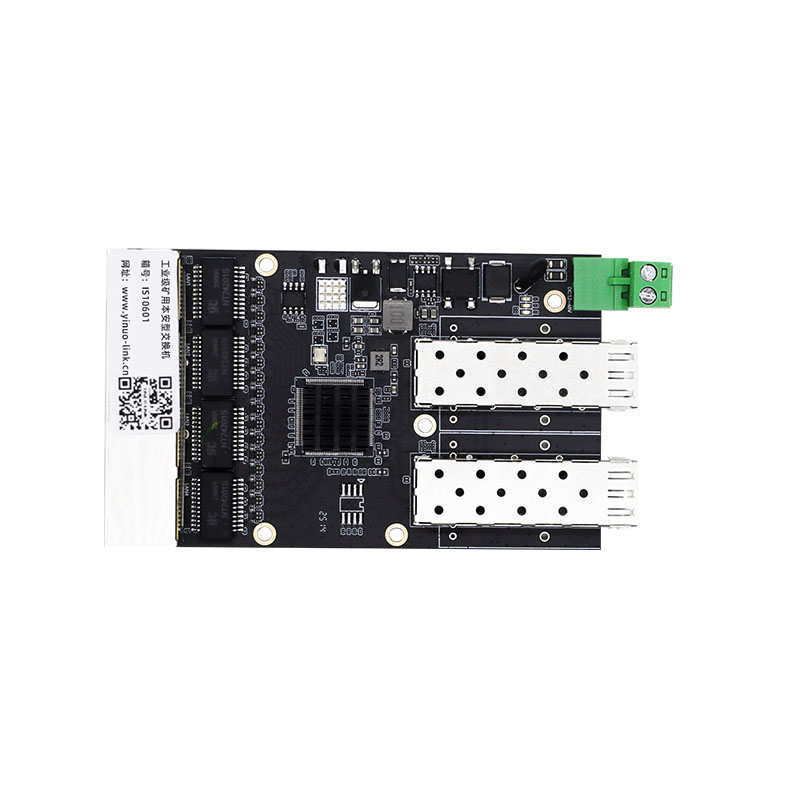

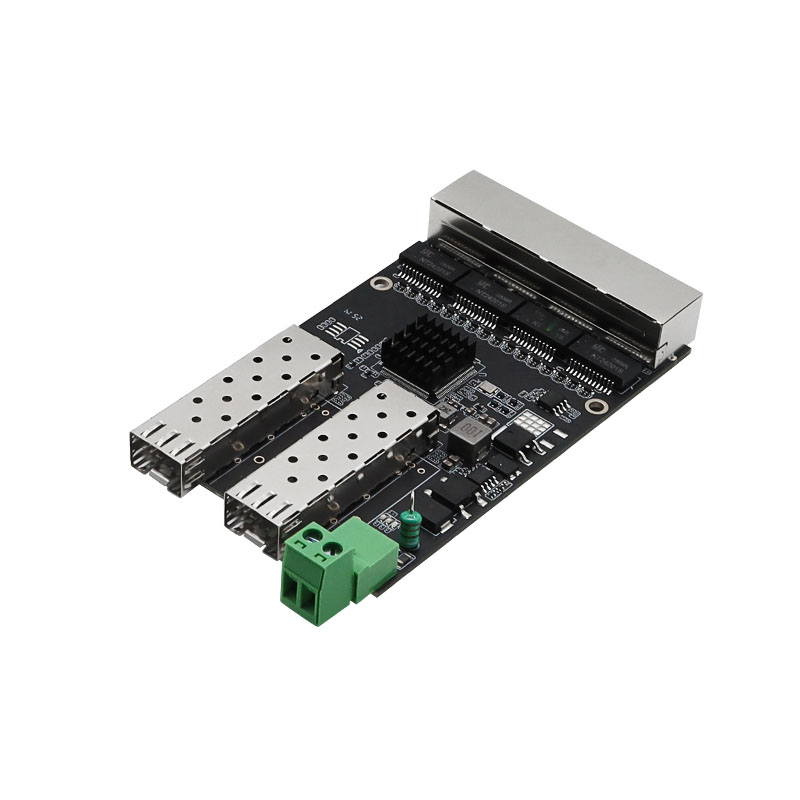

· Dimension: 114x66x16.6mm

  • Overview
  • Specifications

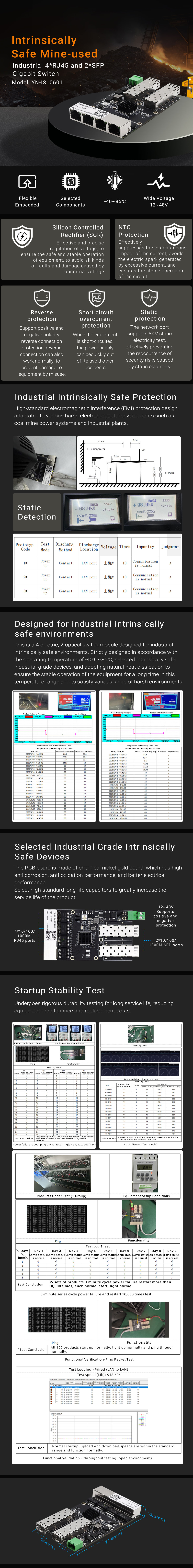

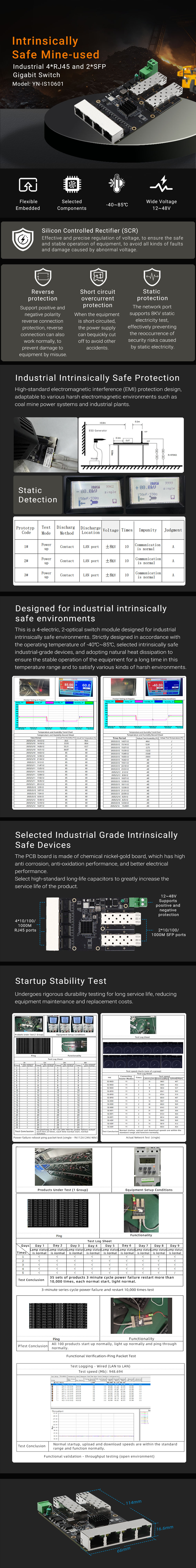

IS10601-1



Intrinsically

Safe Mine-used

Industrial 4*RJ45 and 2* SFP

Gigabit Switch

Model: YN-IS10601

IS10601-2


  Flexible                Selected               -40℃-85℃           Wide Voltage

Embedded          Components                                           12~48V


IS10601-3
IS10601-4

Industrial Intrinsically Safe Protection

High-standard electromagnetic interference (EMI) protection design, adaptable to various harsh electromagnetic environments such as coal mine power systems and industrial plants.


IS10601-5

Designed for industrial intrinsically safe environments

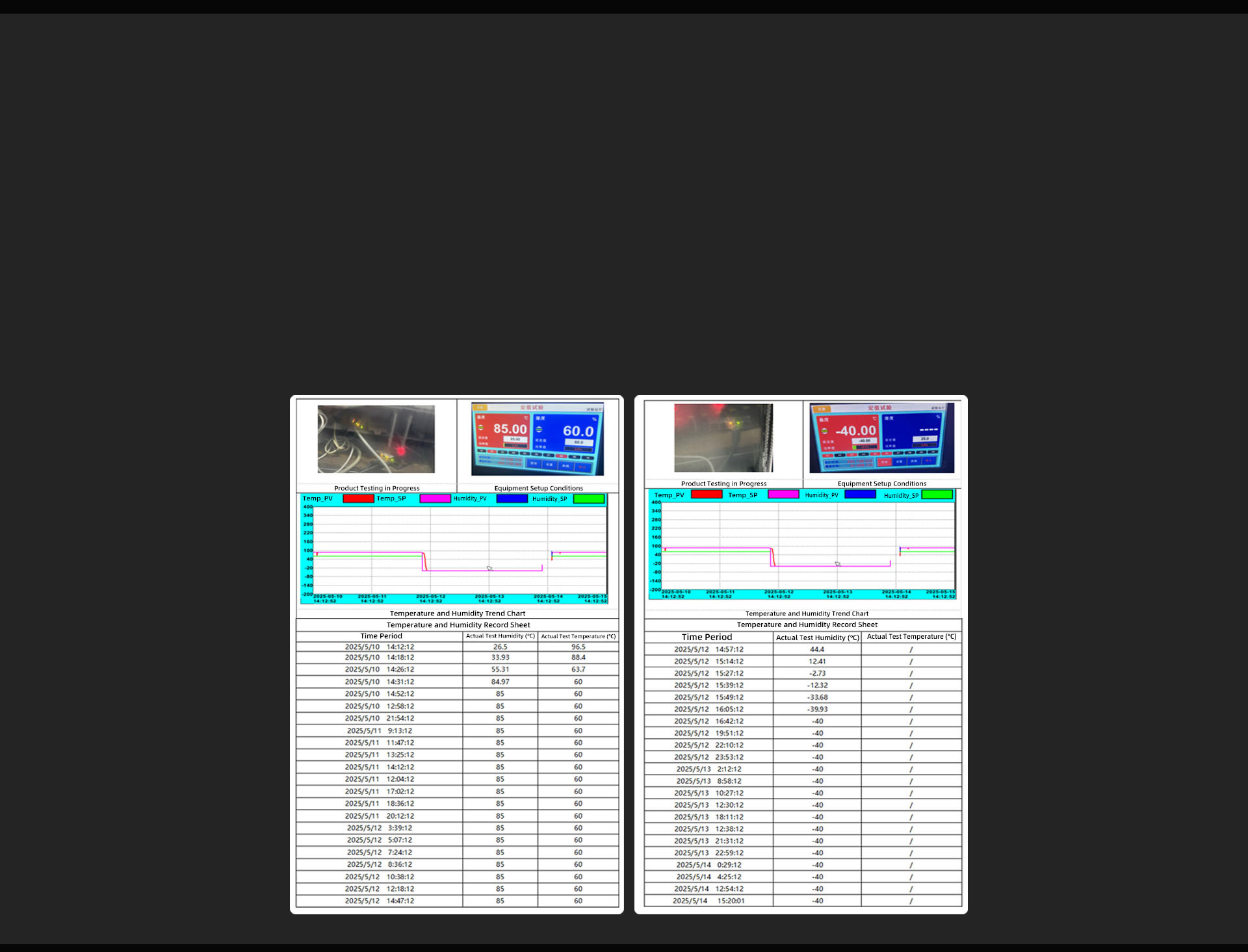

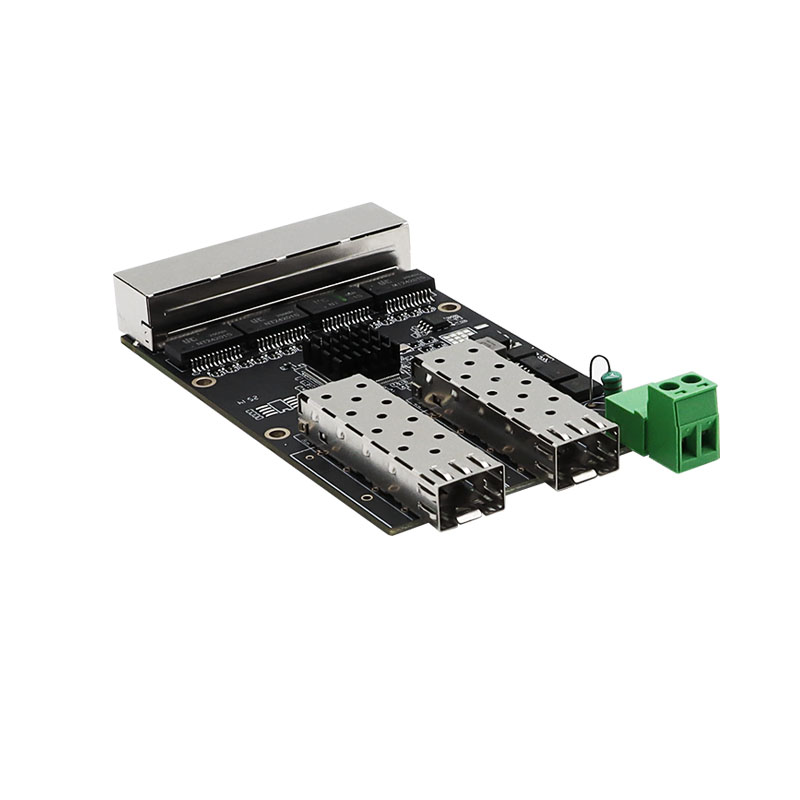

This is a 4-electric, 2-optical switch module designed for industrial intrinsically safe environments. Strictly designed in accordance with the operating temperature of -40℃~85℃, selected intrinsically safe industrial-grade devices, and adopting natural heat dissipation to ensure the stable operation of the equipment for a long time in this temperature range and to satisfy various kinds of harsh environments.

IS10601-6

Selected Industrial Grade Intrinsically Safe Devices

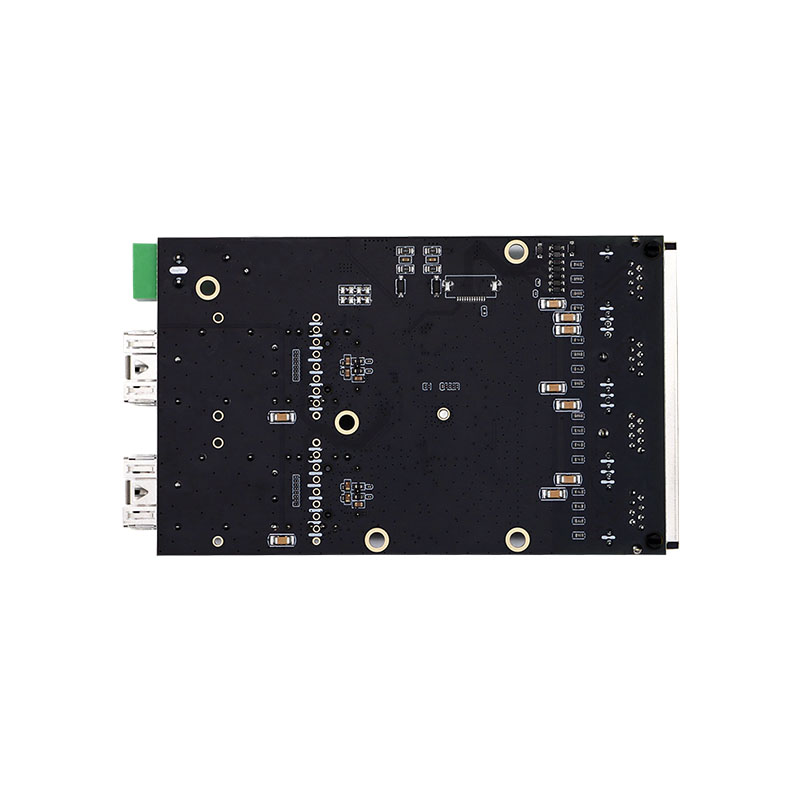

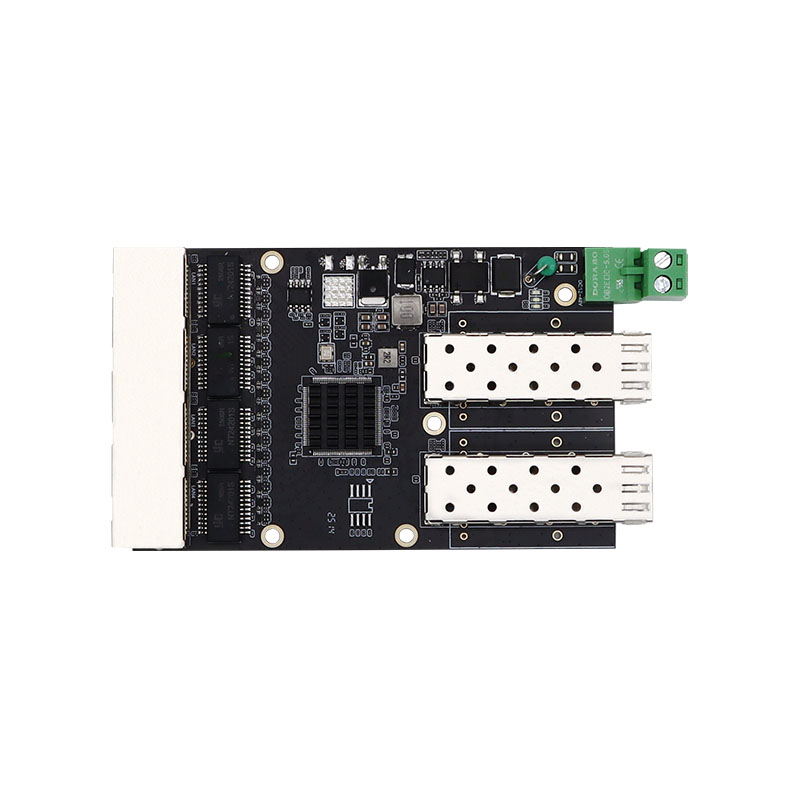

The PCB board is made of chemical nickel-gold board, which has high anti corrosion, anti-oxidation performance, and better electrical performance.

Select high-standard long-life capacitors to greatly increase the service life of the product.

IS10601-7

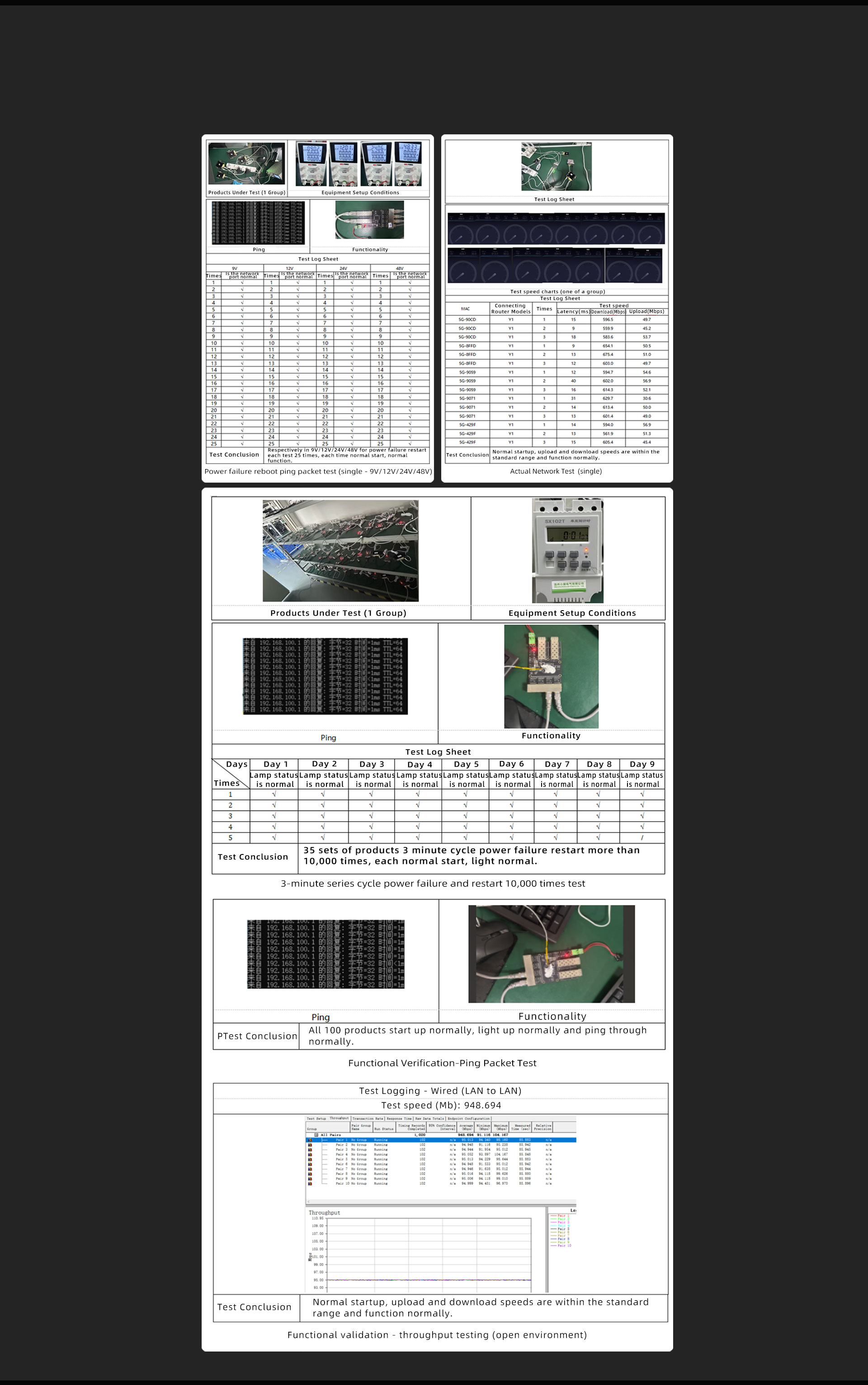

Startup Stability Test

Undergoes rigorous durability testing for long service life, reducing equipment maintenance and replacement costs.

IS10601-8

YN-IS10601 Intrinsically Safe Mine-used Industrial 4*RJ45 and 2*SFP Gigabit Switch

Wide range of applications, easy to control multiple fields

Coal
Petrochemicals
Chemical Warehouse
Industrial Automation
Ports
Factories and Mines

Standard: IEEE 802.3,802.3i,802.3u,802.3x,802.3ab,802.3z


Ports: 4*Gigabit RJ45 ports + 2*Gigabit SFP


Protocols: CSMA/CD


LED indication: Power, Link/Act


Input Voltage: 12~48V (Supports forward and reverse connection protection)


Static Electricity (Contact): 8KV


Power Wastage: 1~2W


Data Transmission Rate: Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)


Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)


Gigabit Ethernet: 2000 Mbps (full duplex)


Network Media (Wire): 10Base-T: UTP Category 3, 4, 5 cable (up to 100m), EIA/TIA-568 100Ω STP (up to 100m)

                                   100Base TX: UTP Category 5 5e cable (100m max), EIA/TIA-568 100Ω STP (100m max)

                                   1000Base-T: UTP Category 5e cable (100m max.), EIA/TIA-568 100Ω STP (100m max.)


Transmission Method: Store and forward


Frame Rate: 0Base-T: 14881pps/port

              100Base TX: 148810pps/port

              1000Base-T: 1488095pps/port


MAC Address Study:  Automatic learning, automatic aging


Environment: Operating Temperature: -40℃ ~ 85℃

                       Storage Temperature: -40℃ ~ 85℃

                       Operating Humidity: 10%RH ~90%RH(non-condensing)

                       Storage Humidity: 5%RH ~ 90%RH(non-condensing)
