YN-MS105M Industrial 5-Port Fast Ethernet Mini Switch Module

Ethernet Switch Module

Online Purchase

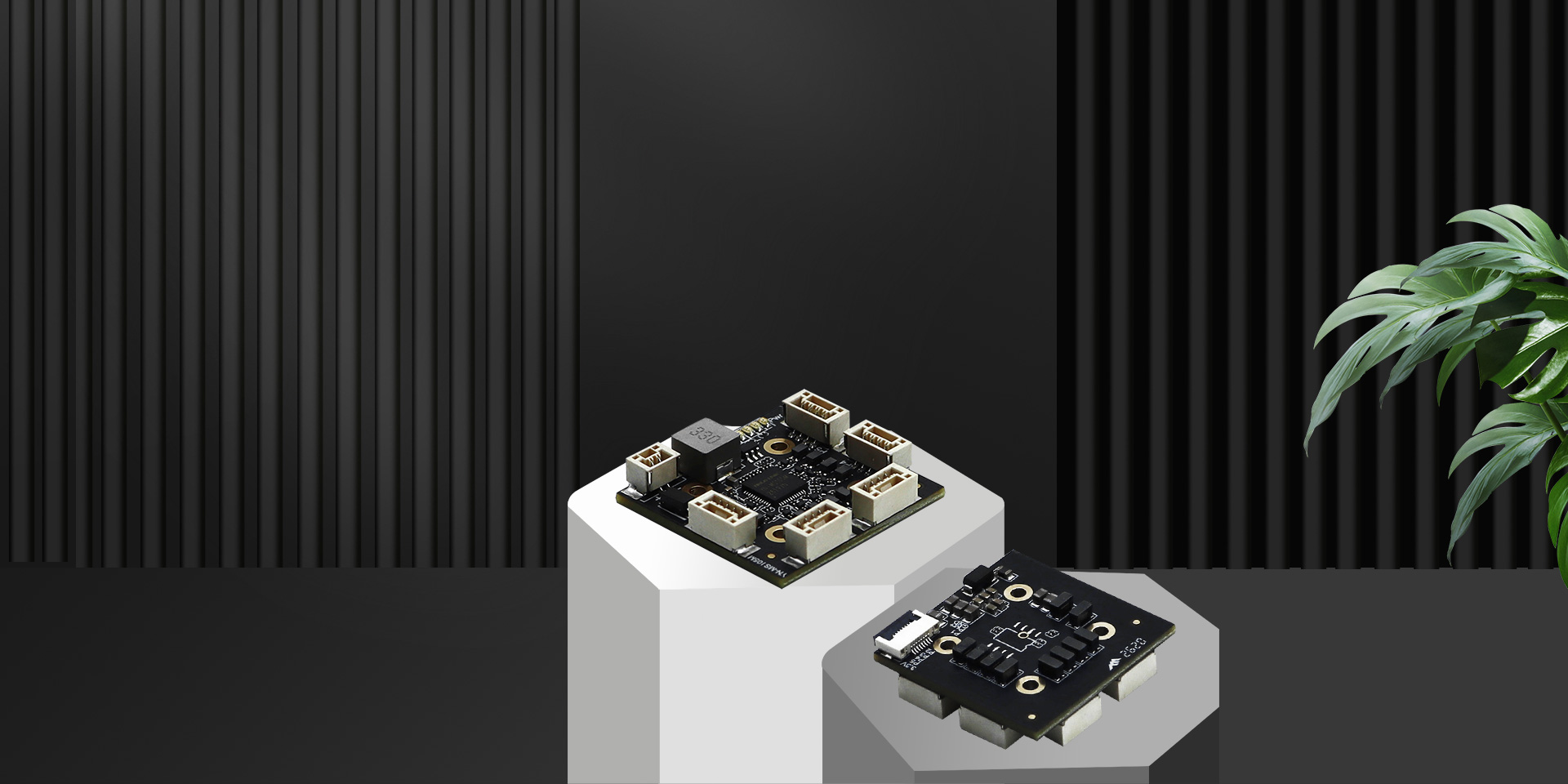

YN-MS105M Industrial 5-Port Fast Ethernet Mini Switch Module

· Plug and Play, no configuration required.

· Compact structure, miniature design with 30×30mm dimensions.

· Auto MDI/MDIX, eliminating the need for crossover cables.

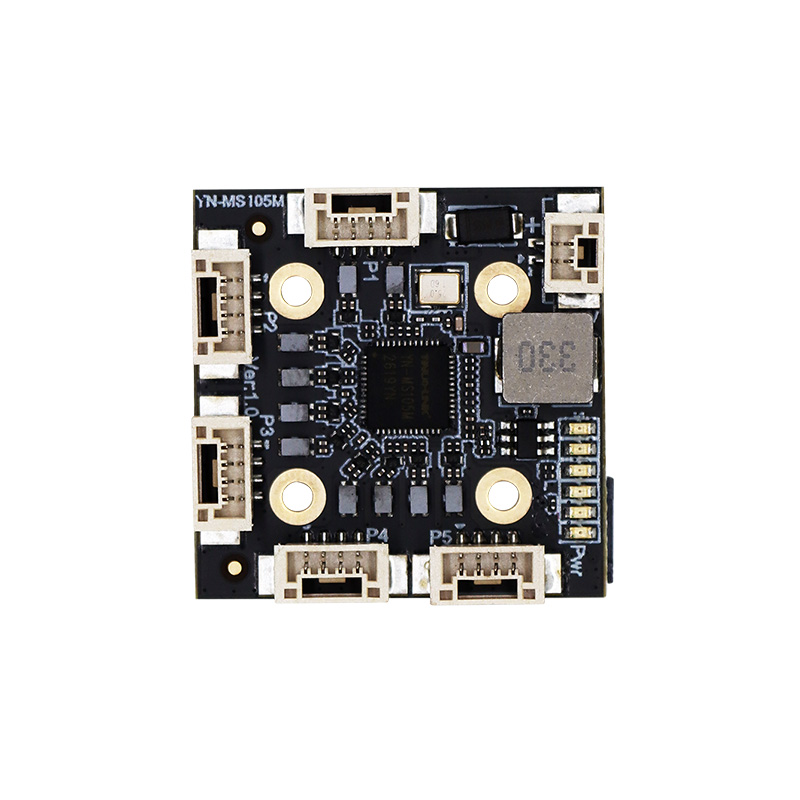

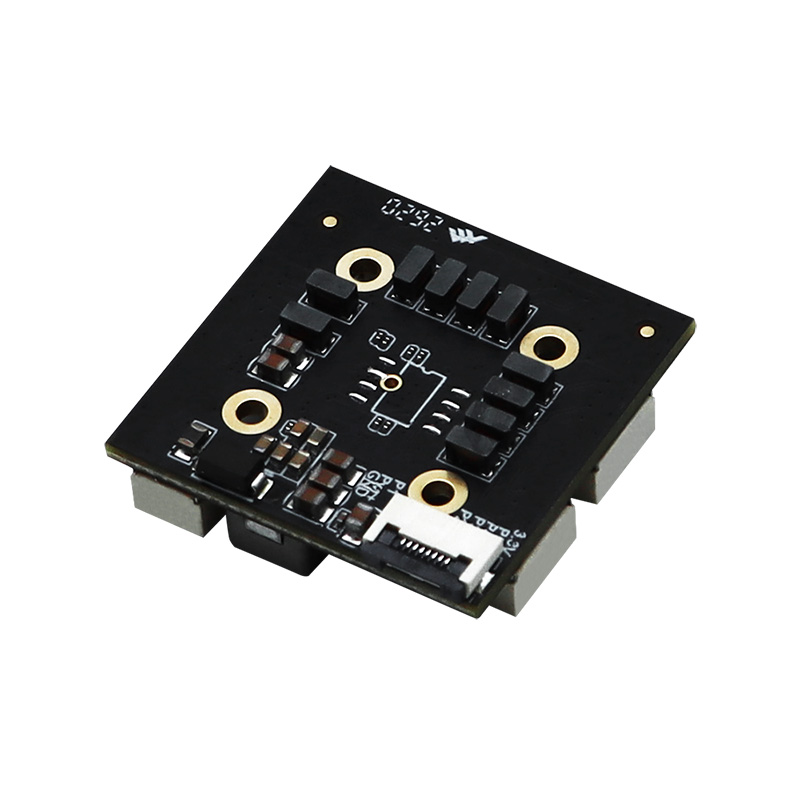

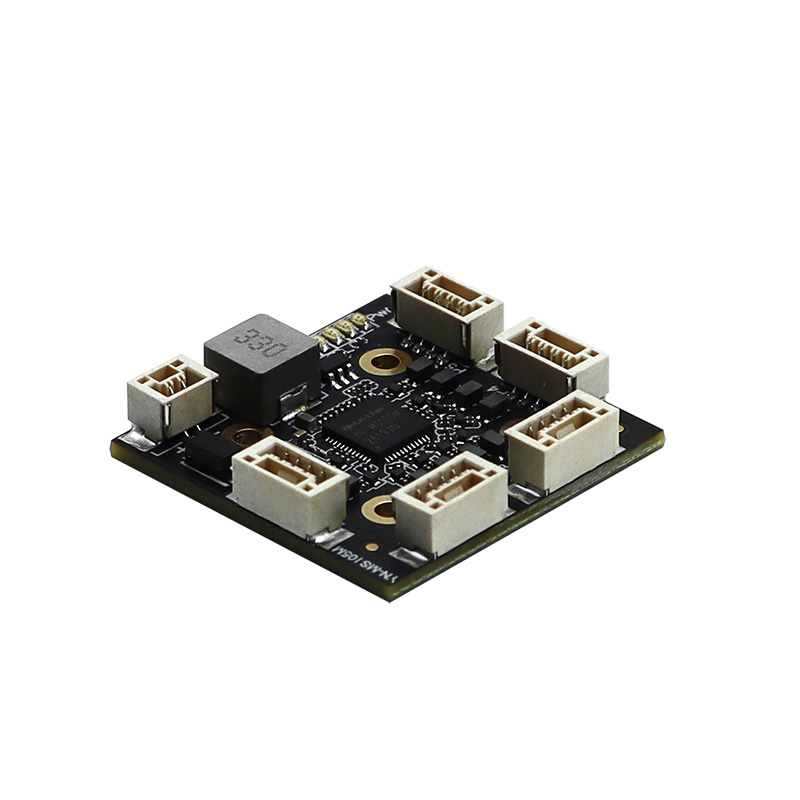

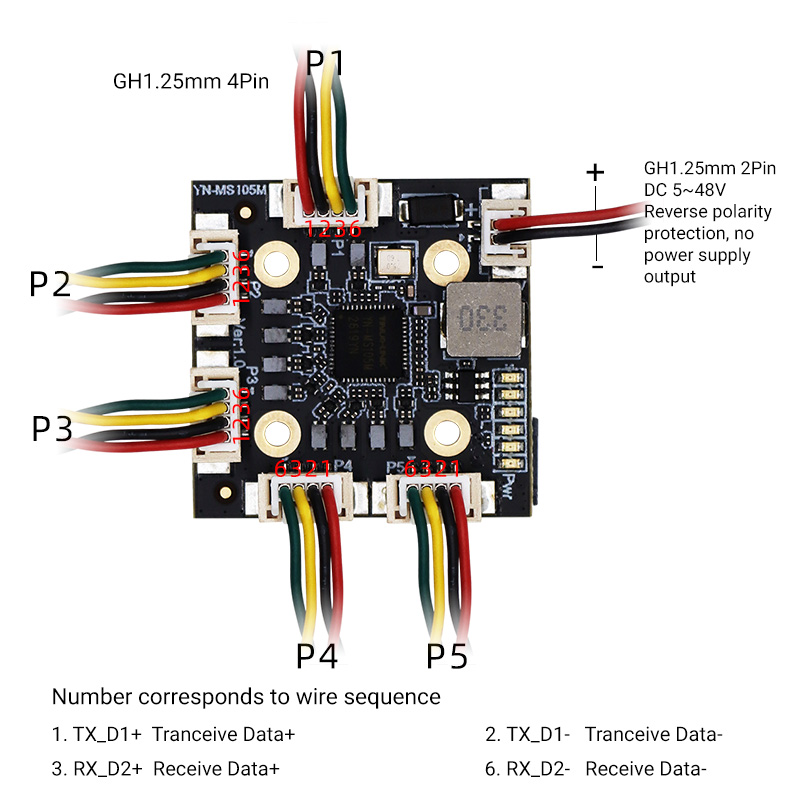

· Equipped with 5 auto-negotiating 10/100Mbps 4-pin connectors with GH1.25mm pitch.

· Full duplex complies with IEEE 802.3x standard; half duplex adopts Backpressure standard.

· DC 5~48V wide input voltage, reverse polarity protection & no-power protection.

· IEEE 802.3x flow control ensures reliable data transmission.

· Fanless design ensures quiet operation.

· Contact ESD: 8KV

· Reserved external indicator LED interface.

· Auto-negotiation guarantees maximum speed for each port.

· Operating temperature: -40℃ ~ 85℃

Services

Overview
Specifications

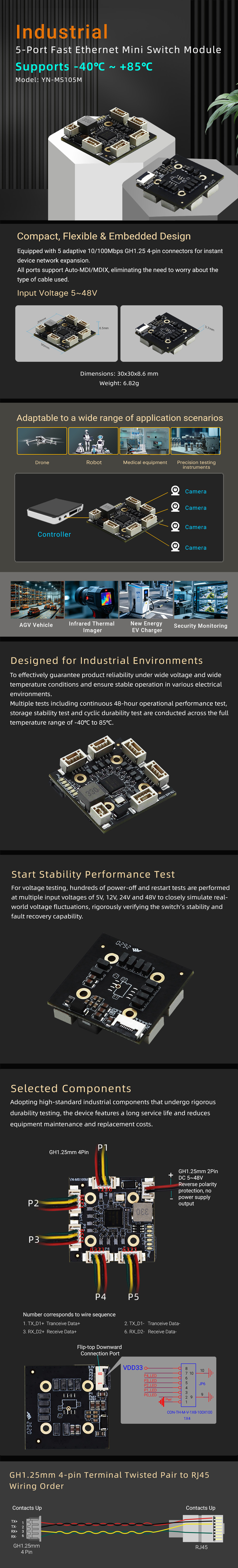

Industrial

5-Port Mini 5-Port Fast Ethernet Switch Module Mini Switch Module

-40~85℃

Model: YN-MS105M

Compact, Flexible Embedded Design

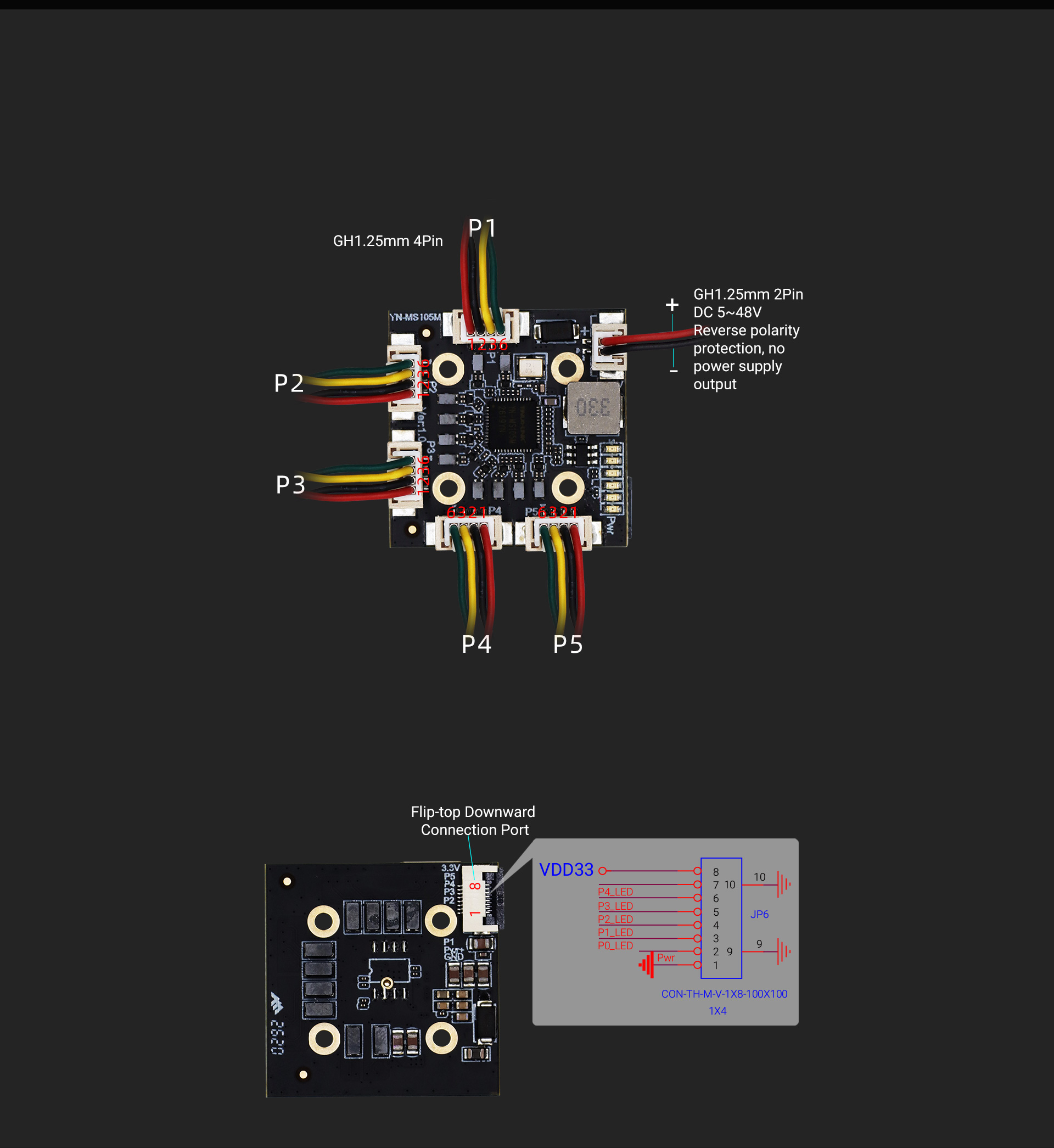

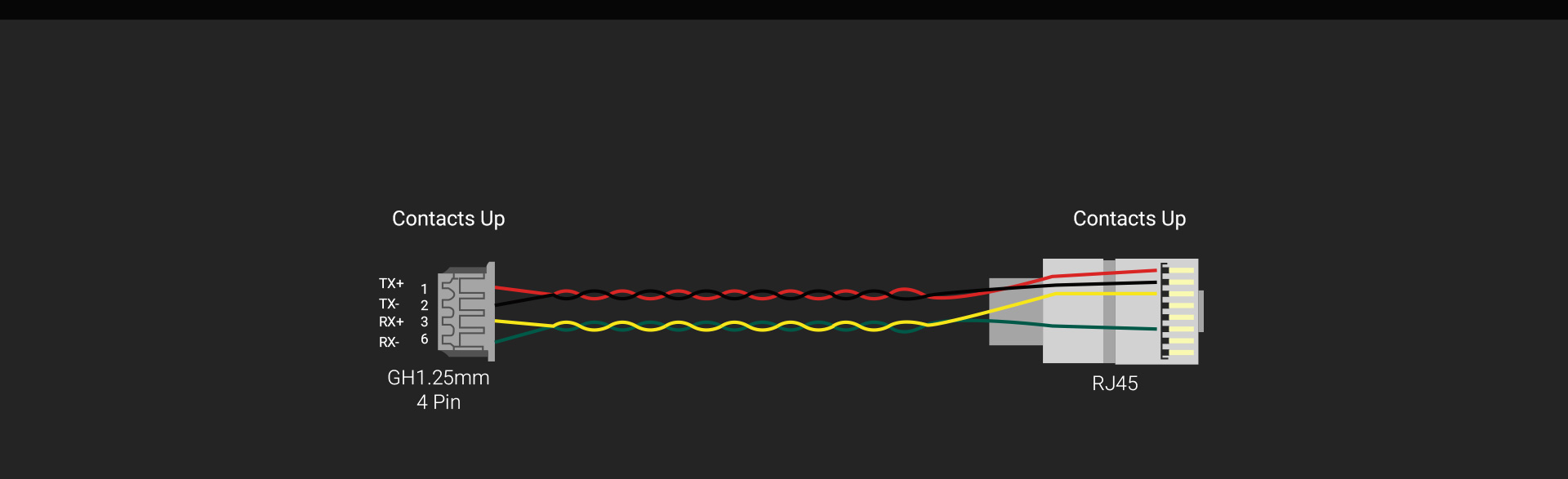

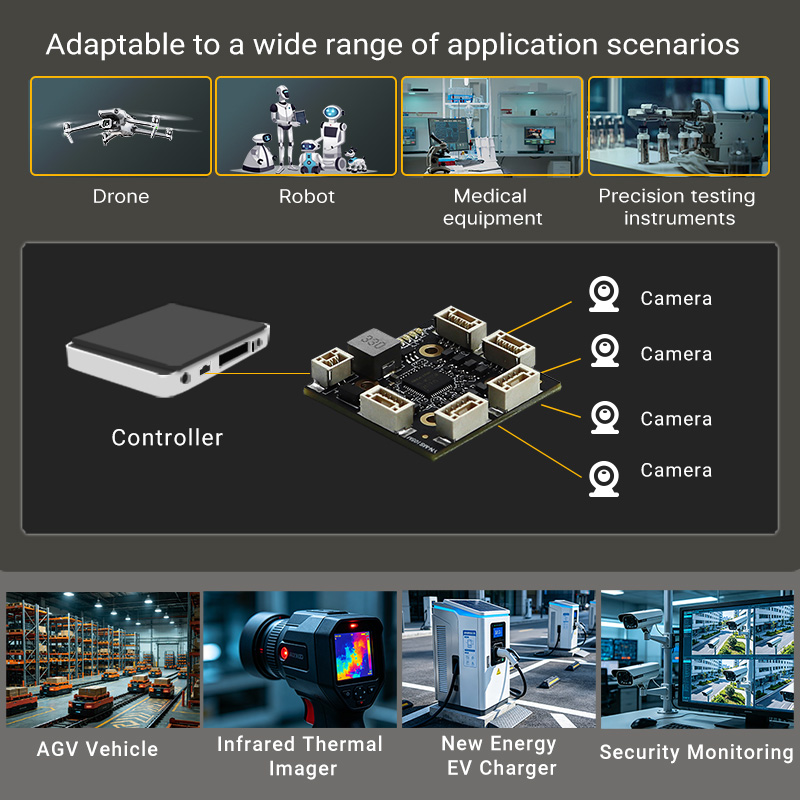

Equipped with 5 adaptive 10/100Mbps GH1.25 4-pin connectors for instant device network expansion.

All ports support Auto-MDI/MDIX, eliminating the need to worry about the type of cable used.

Input Voltage 5~48V

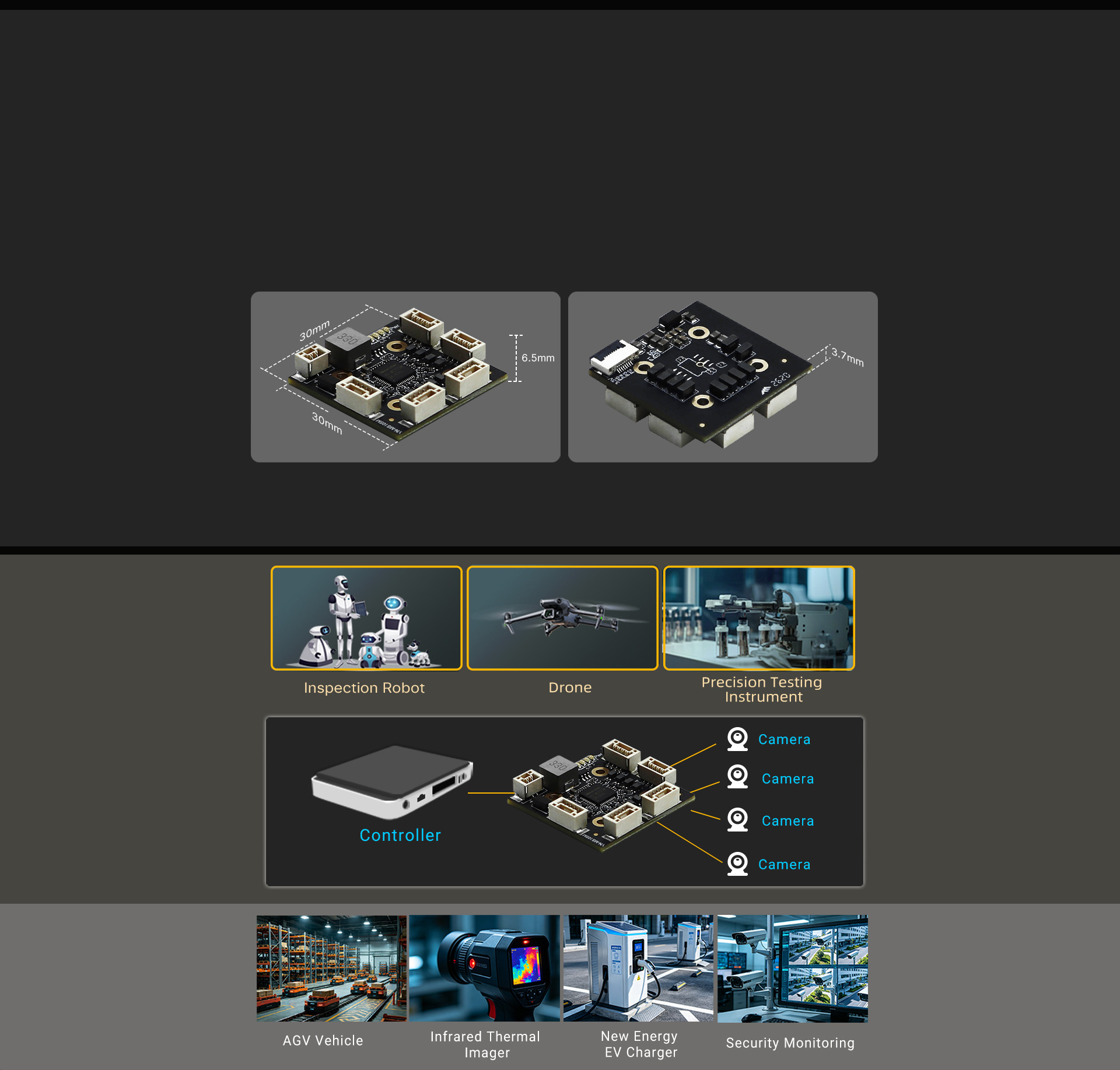

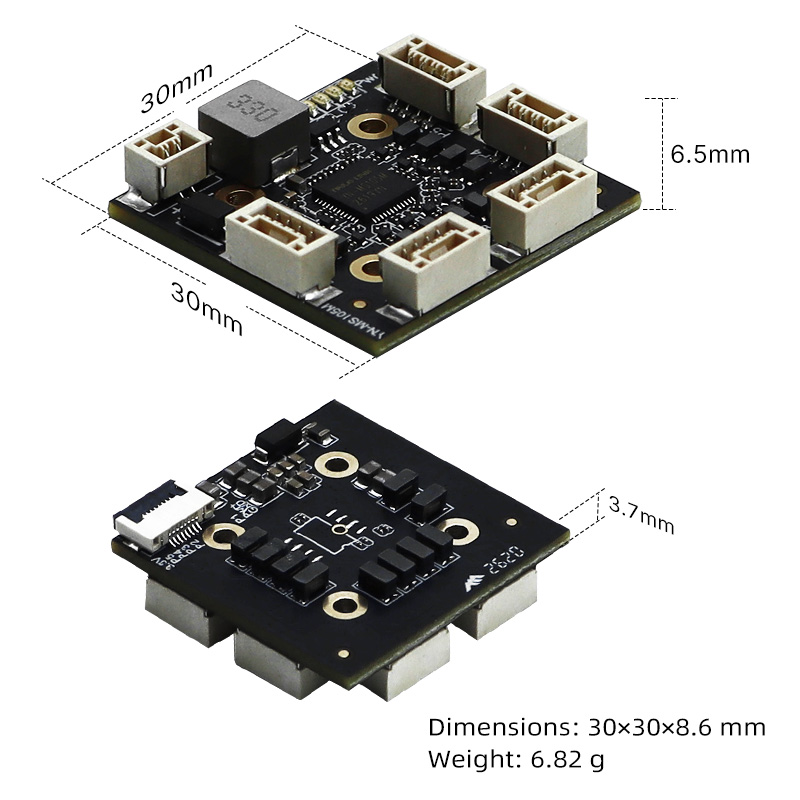

Dimensions: 30 × 30 × 8.6 mm

Weight: 6.82 g

Designed for Industrial Environments

To effectively ensure the reliability of the product in environments with a wide voltage and temperature range, and comprehensively guarantee its normal operation in various electrical environments. Under the environment of -40℃ ~ 85℃, a variety of relevant tests are conducted comprehensively and continuously for 48 hours, including operating performance tests, storage stability tests, and cyclic durability tests.

Startup Stability Test

In terms of voltage testing, hundreds of power-off and restart tests were conducted under different voltage levels, including 5V, 12V, 24V and 48V. These tests highly simulate voltage fluctuations in real-world environments, thereby rigorously verifying the stability and recovery capability of the switch.

Selected Components

Adopting high-standard industrial components that undergo rigorous durability testing, the device features a long service life and reduces equipment maintenance and replacement costs.
