Every component are made in China

Model: YN-SG201F

Support -40~85℃

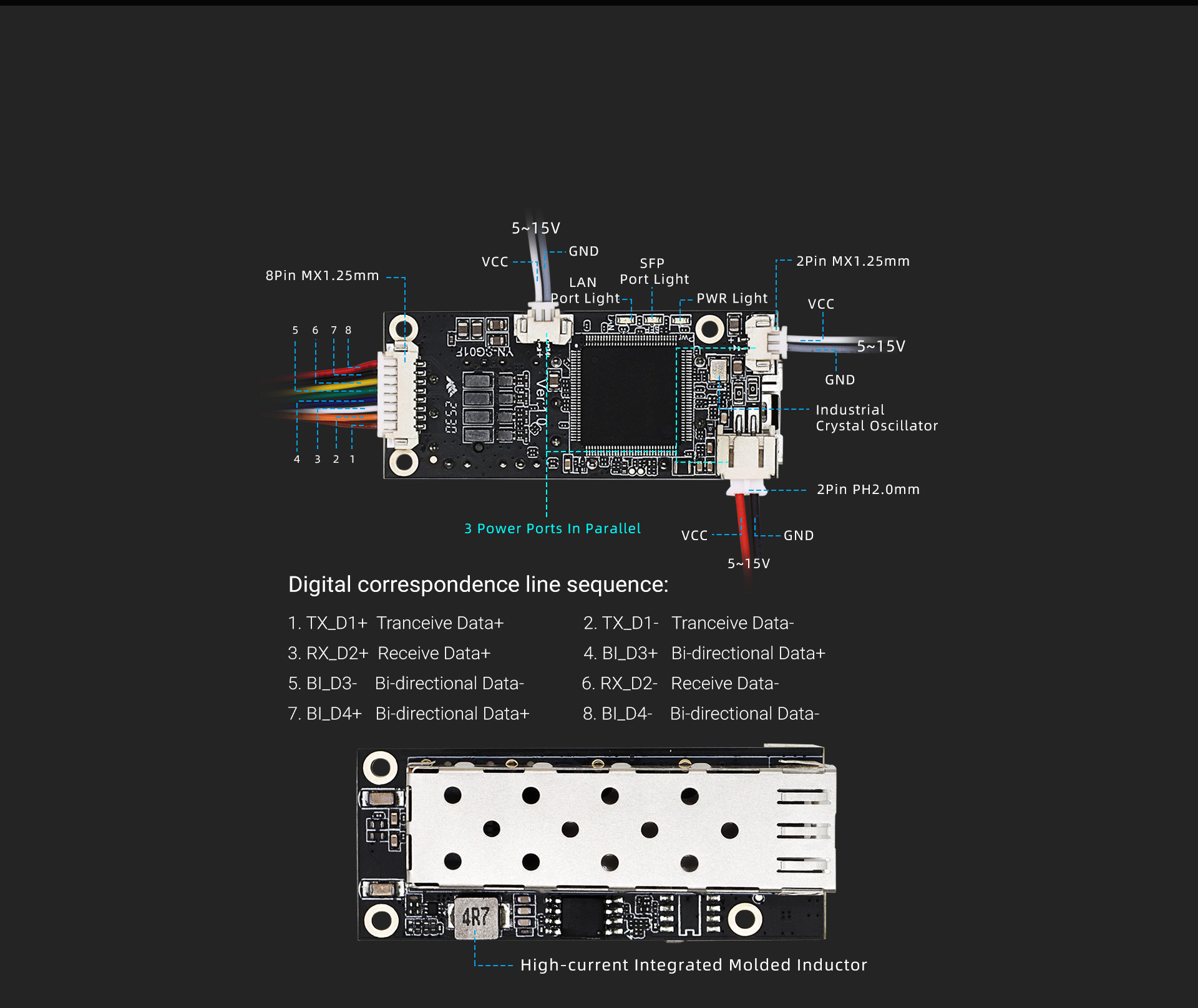

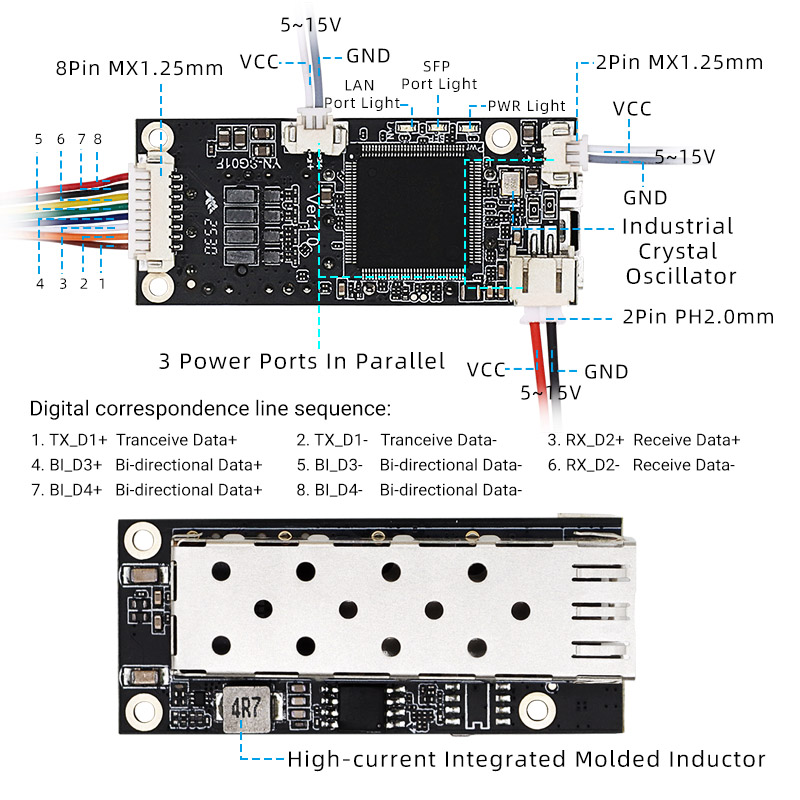

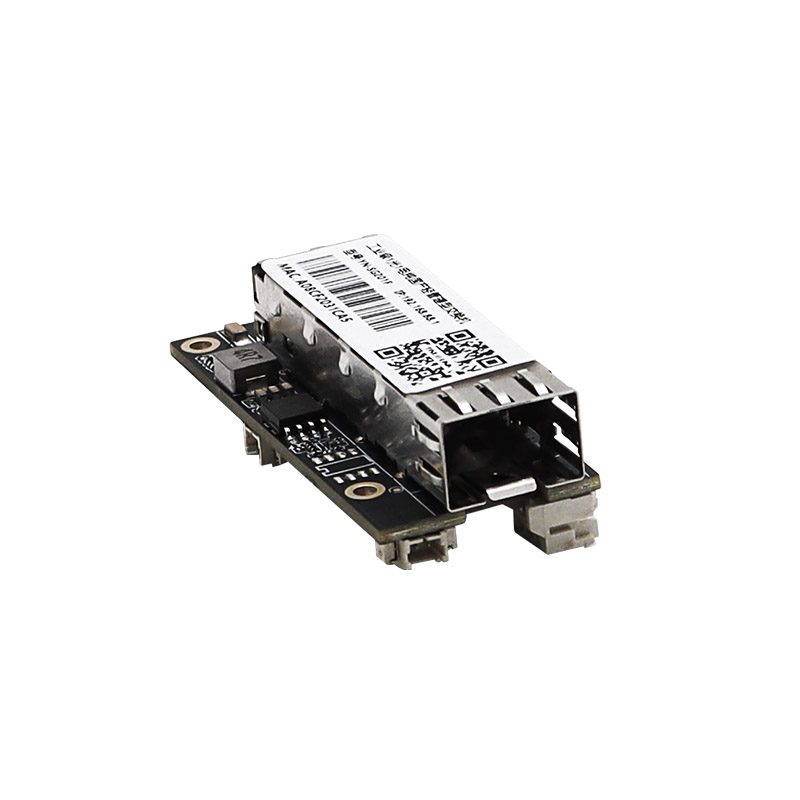

Provides one adaptive 1000M MX1.25mm 8P socket and one 1000M SFP optical port, allowing you to immediately expand your network connection to your device.

Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Input Voltage 5~15V

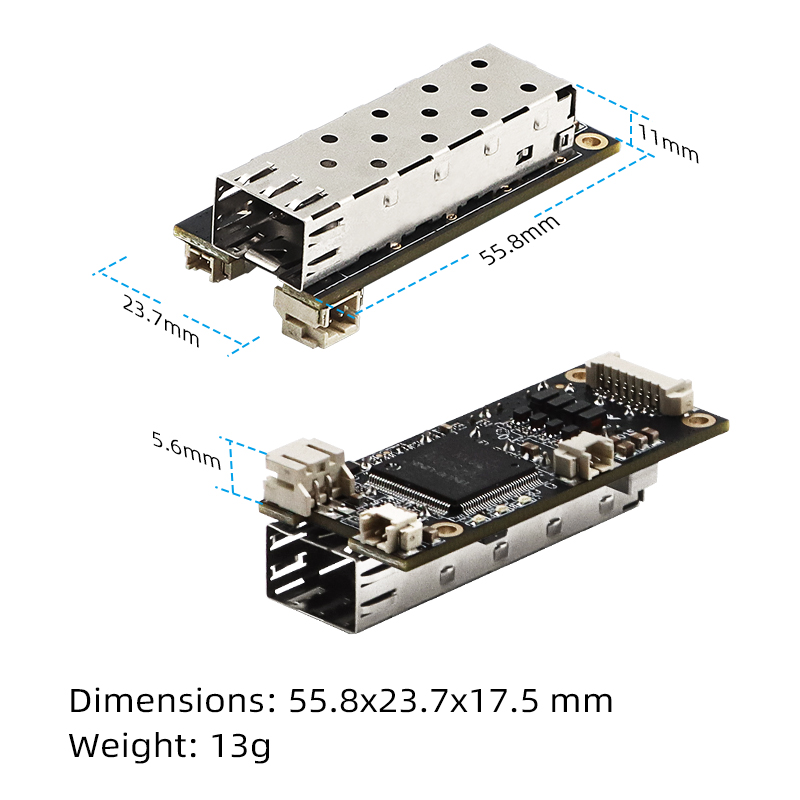

Dimensions: 55.8x23.7x17.5 mm

Weight: 13g

To effectively ensure the reliability of the product in environments with a wide voltage and temperature range, and comprehensively guarantee its normal operation in various electrical environments. Under the environment of -40℃ ~ 85℃, a variety of relevant tests are conducted comprehensively and continuously for 48 hours, including operating performance tests, storage stability tests, and cyclic durability tests.

High-standard industry components, rigorously tested for durability, ensure a long service life and reduce equipment maintenance and replacement costs.

In terms of voltage testing, hundreds of power-off and restart tests were conducted at different voltage levels, including 5V, 12V, and 15V. These tests highly simulates voltage fluctuations in actual environments to rigorously test the stability and recovery capabilities of switches.
