Every component are made in China

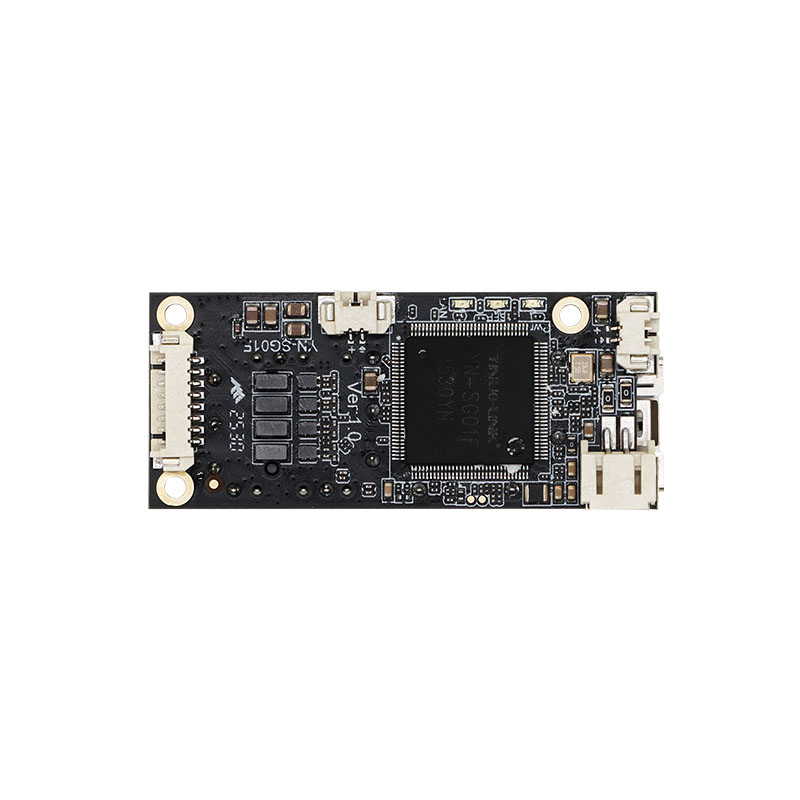

Model: YN-SG01F

Support -40~85℃

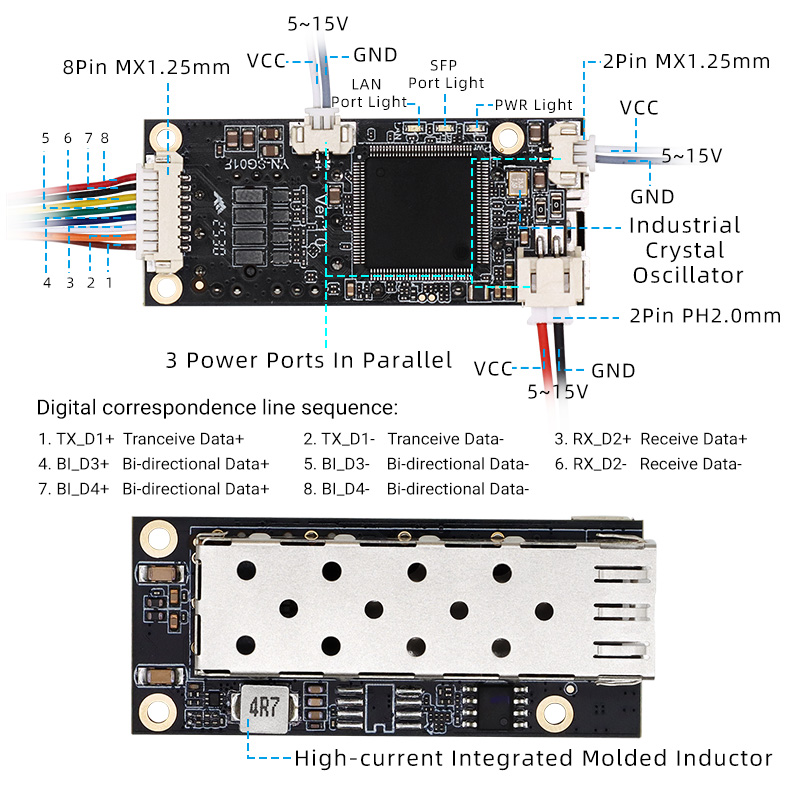

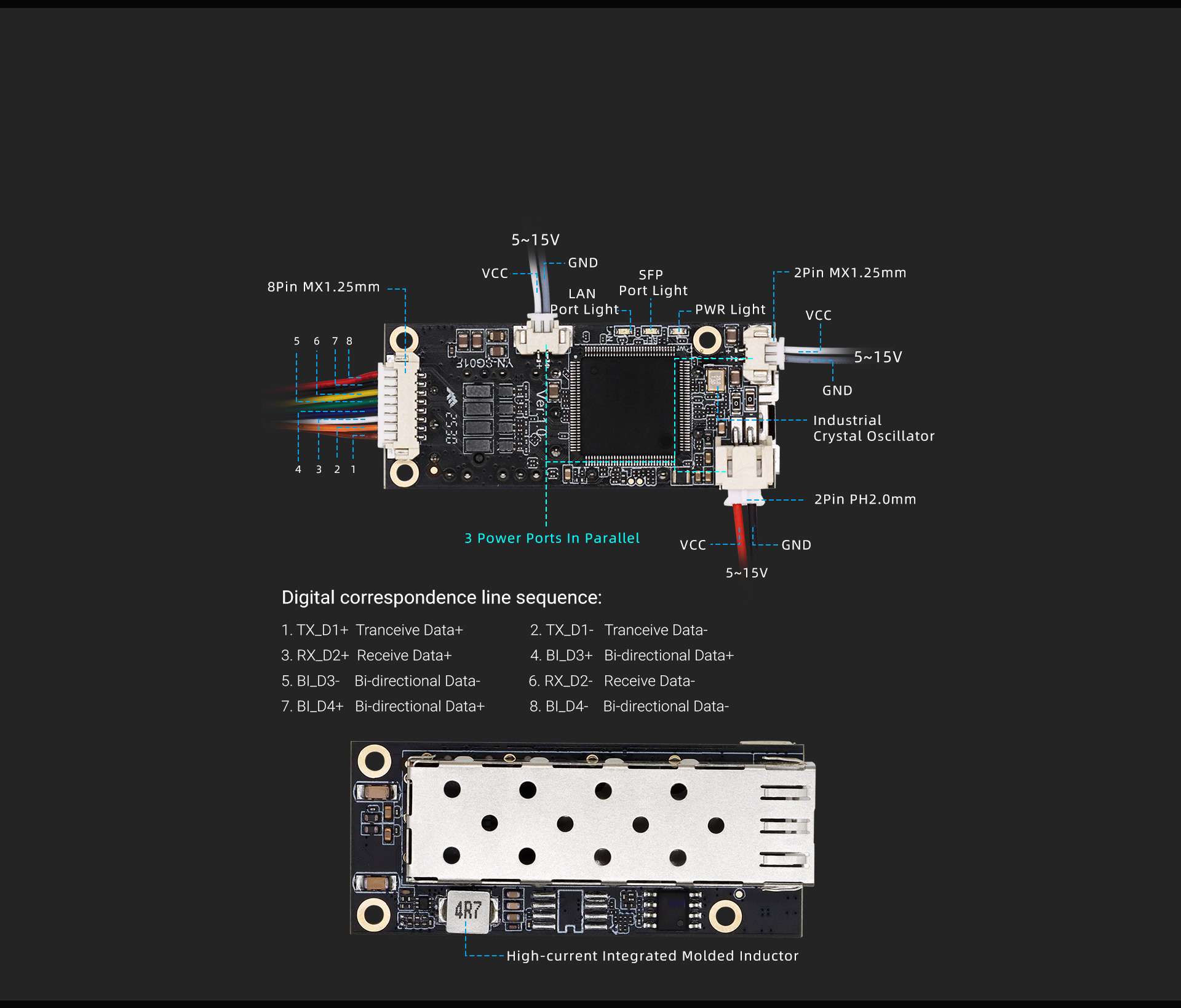

Provides one adaptive 1000M MX1.25mm 8P socket and one 1000M SFP optical port, allowing you to immediately expand your network connection to your device.

Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Input Voltage 5~15V

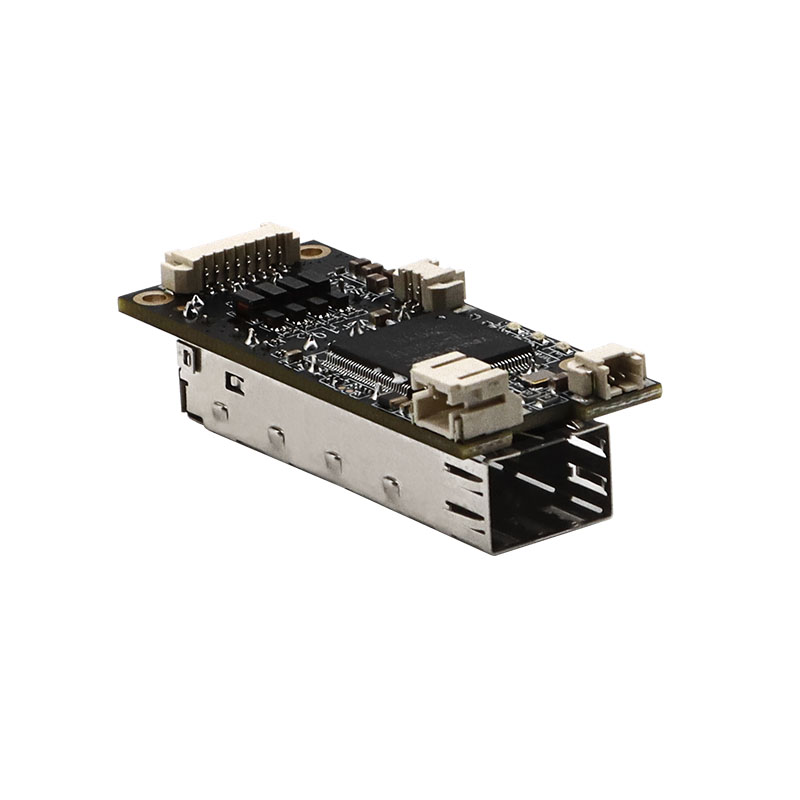

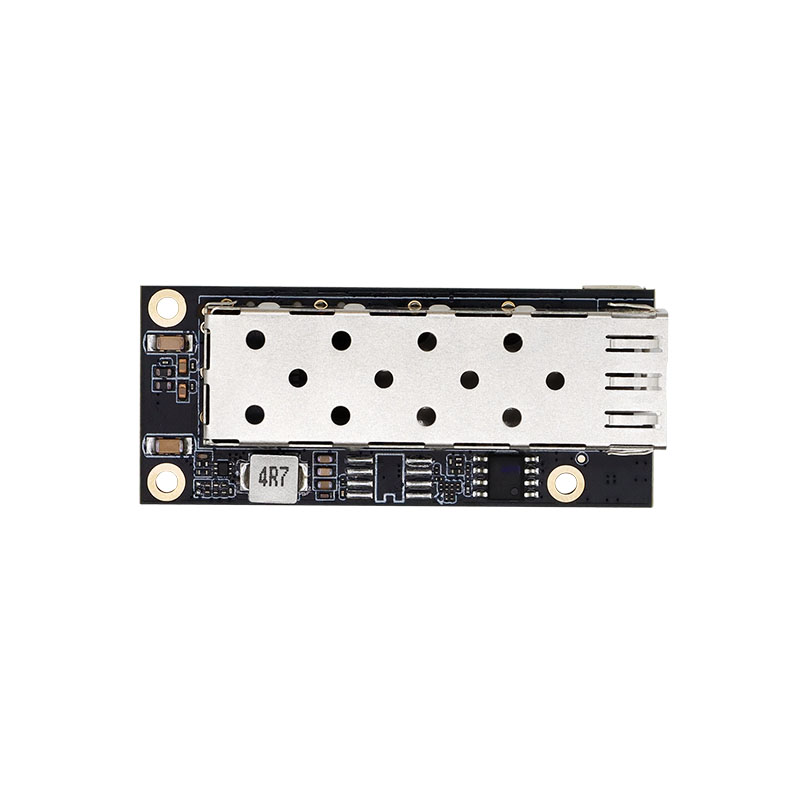

This is a mini industrial 1-Electric 1-Optical Gigabit Fiber Optic Transceiver Module designed specifically for industrial environments. Strictly designed for operating temperatures ranging from -40°C to 85°C, this device uses carefully selected industrial-grade components and natural heat dissipation to ensure long-term stable operation within this temperature range, making it suitable for use in a variety of harsh environments.

High-standard industry components, rigorously tested for durability, ensure a long service life and reduce equipment maintenance and replacement costs.

In terms of voltage testing, hundreds of power-off and restart tests were conducted at different voltage levels, including 5V, 12V, and 15V. Highly simulates voltage fluctuations in actual environments to rigorously test the stability and recovery capabilities of switches.
