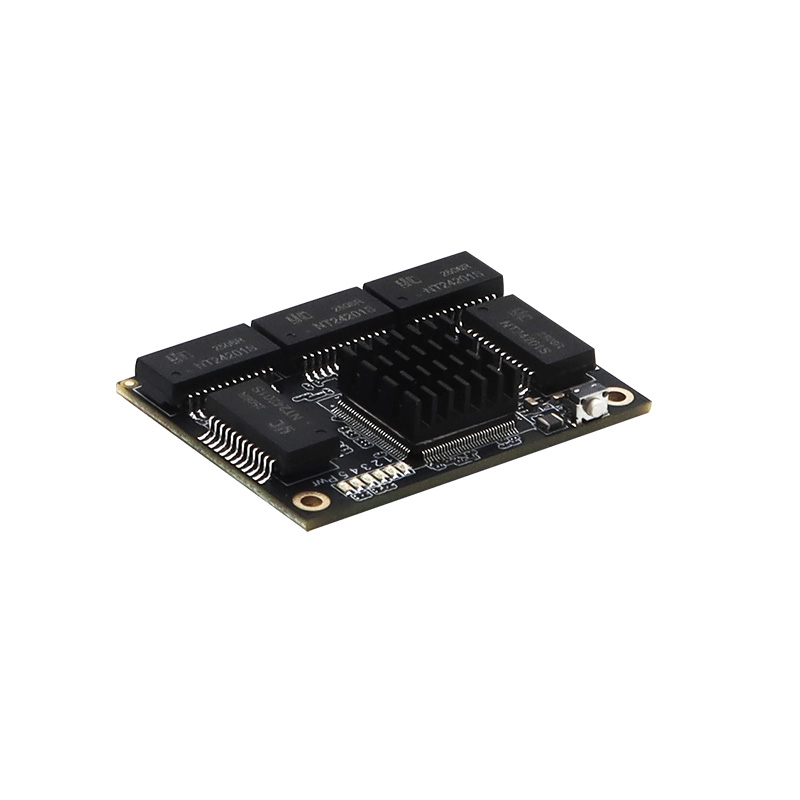

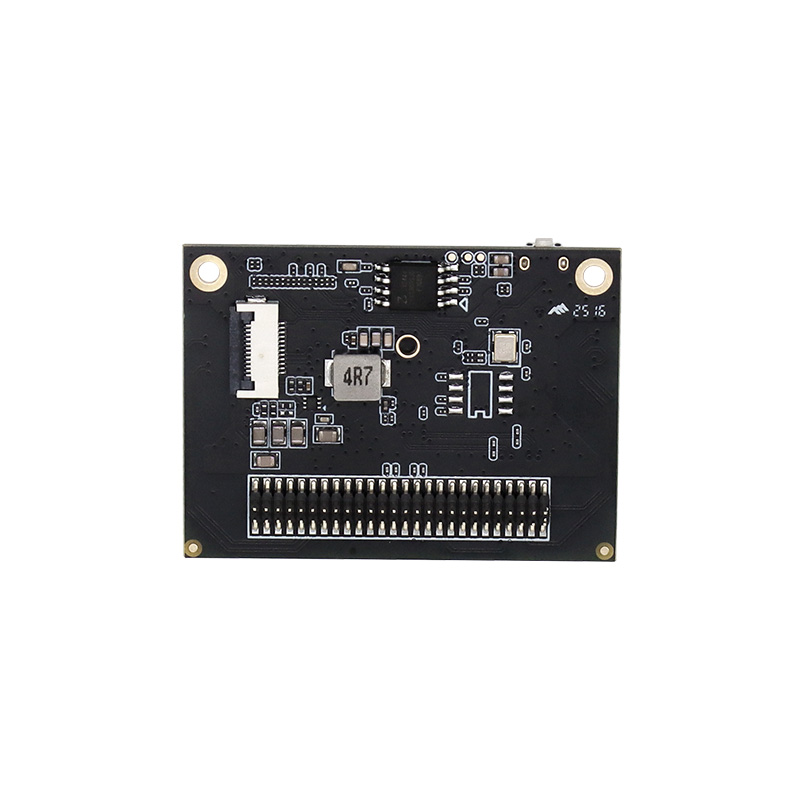

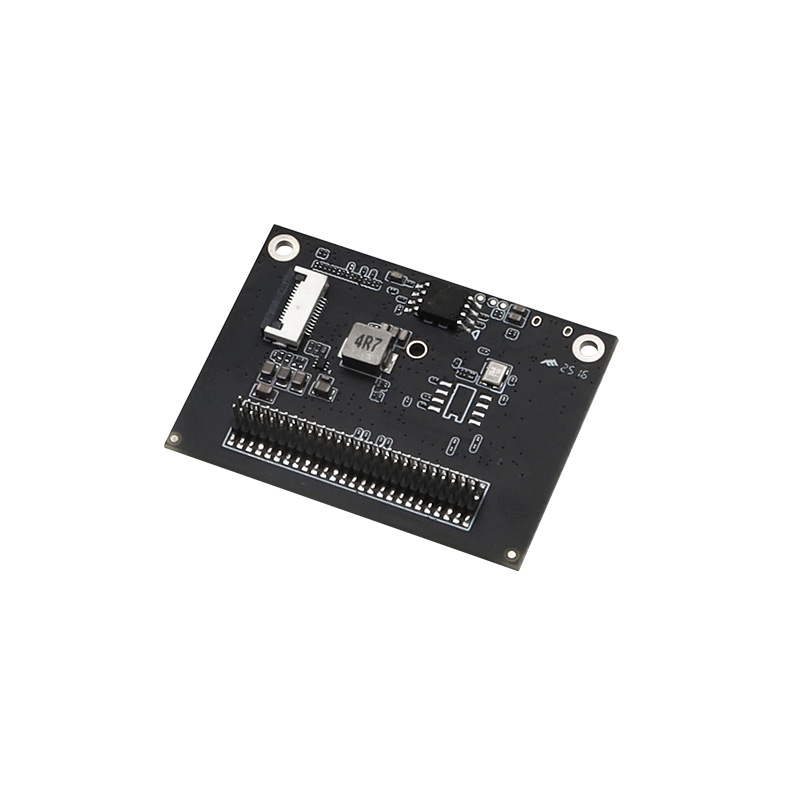

YN-SG20501 Industrial 5 Ports 10/100/1000Mbps Easy Smart Switch Module

Ethernet Switch Module

YN-SG20501 Industrial 5 Ports 10/100/1000Mbps Easy Smart Switch Module

· Every components are made in China

· 10/100/1000Mbps adaptive dual row pin interface

· 5~15V wide voltage

· IEEEE 802.3x flow control provides reliable data transmission

· Compact and ultra-mini design

· Fanless design ensures quiet operation

· Automatic: MDI/MDIX eliminates need for crossover cables

· Auto-negotiation: guarantees maximum speed on each port

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

· Operating Temperature: -40℃~85℃

· EMC high protection level, no fear of harsh environments

· Small size (48 ×35×14mm), better adapted to industrial environments

Services

Overview
Specifications

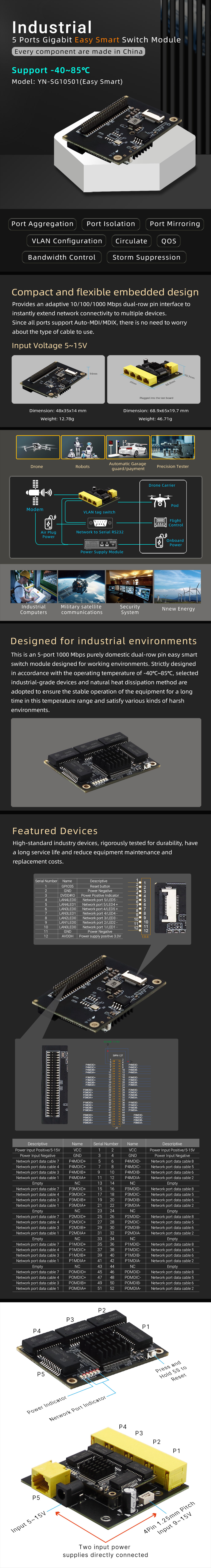

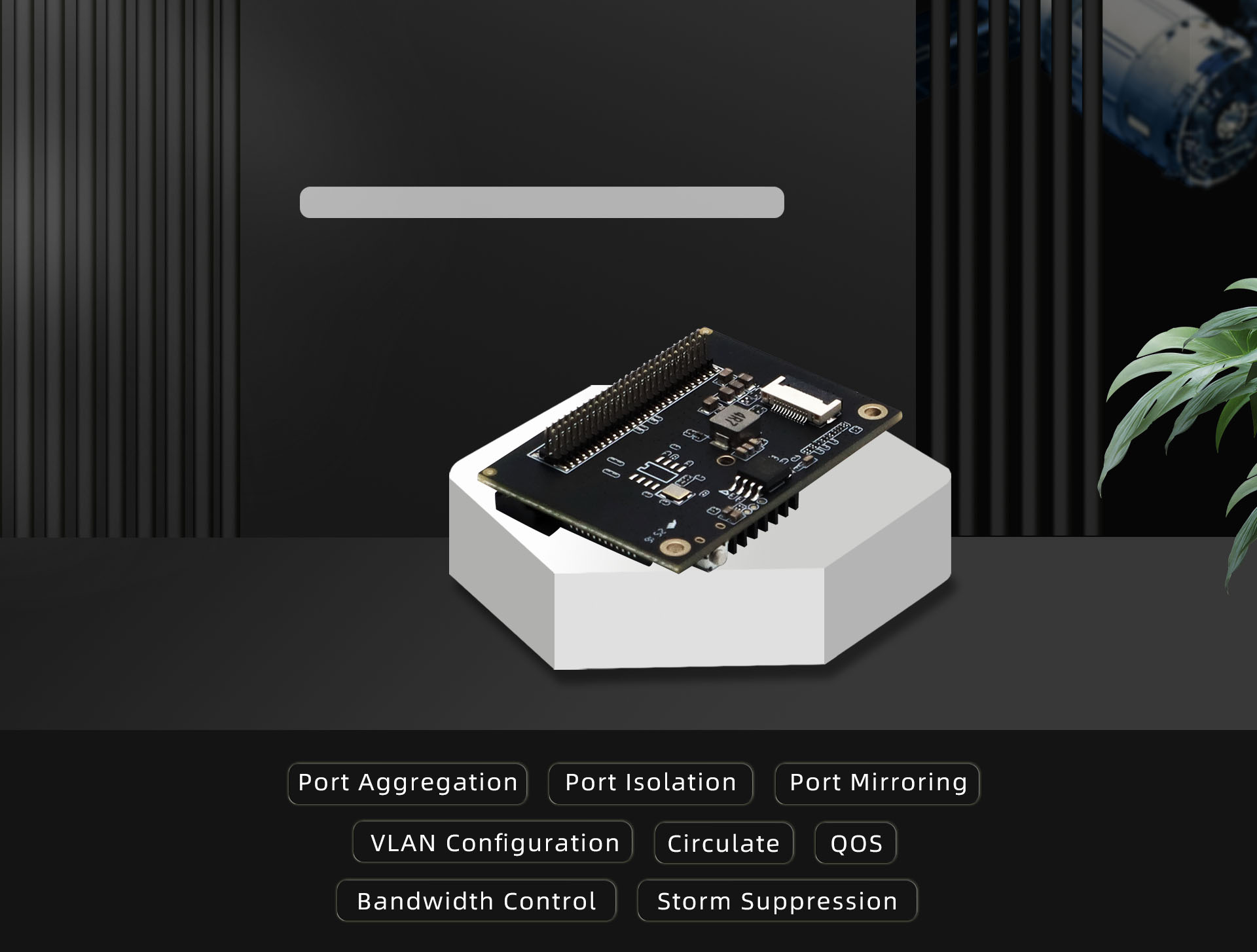

Industrial

5 Ports 1000 Mbps Easy Smart Switch Module

Every component are made in China

Support -40~85℃

Model: YN-SG20501

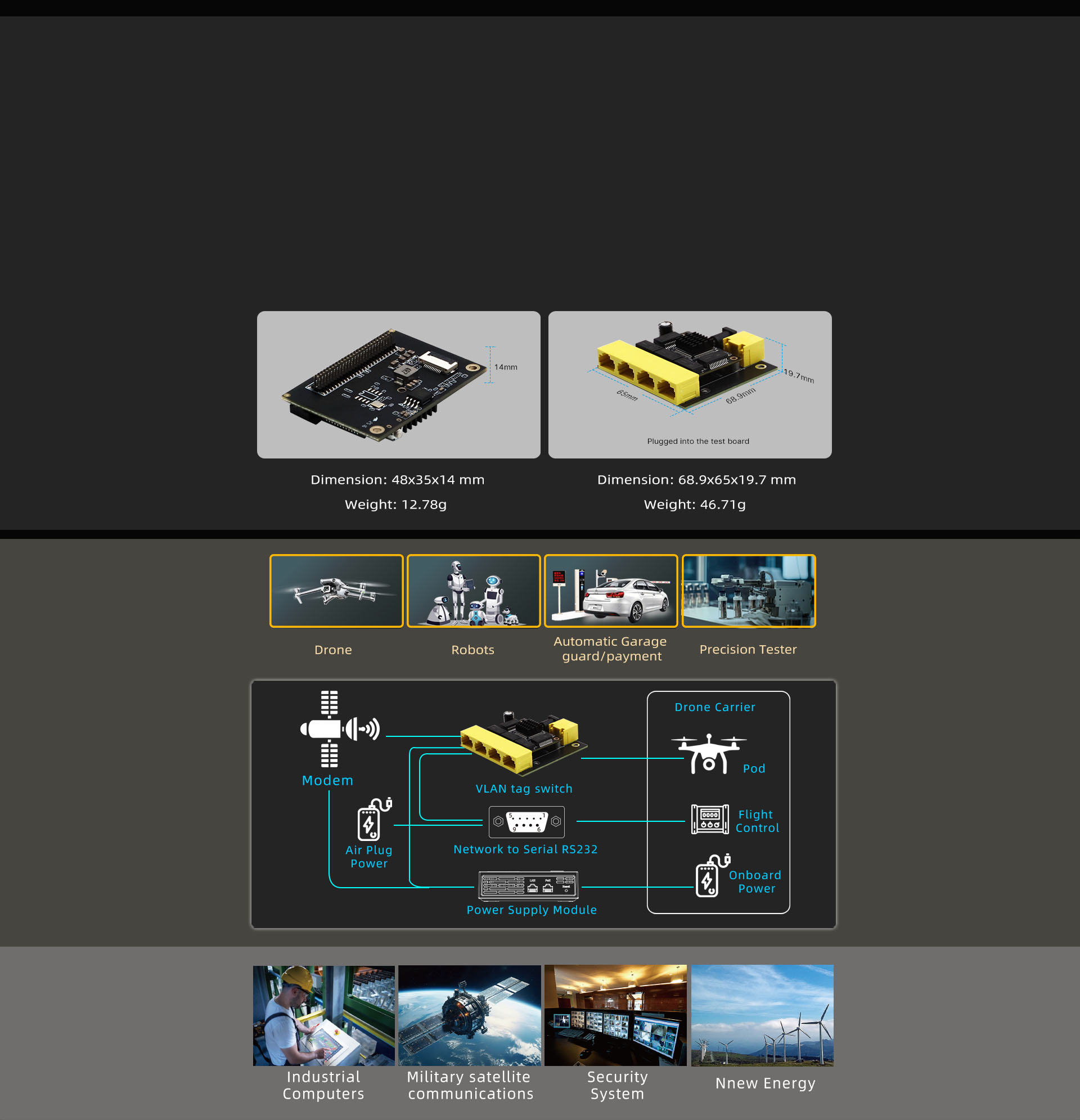

Compact and flexible embedded design

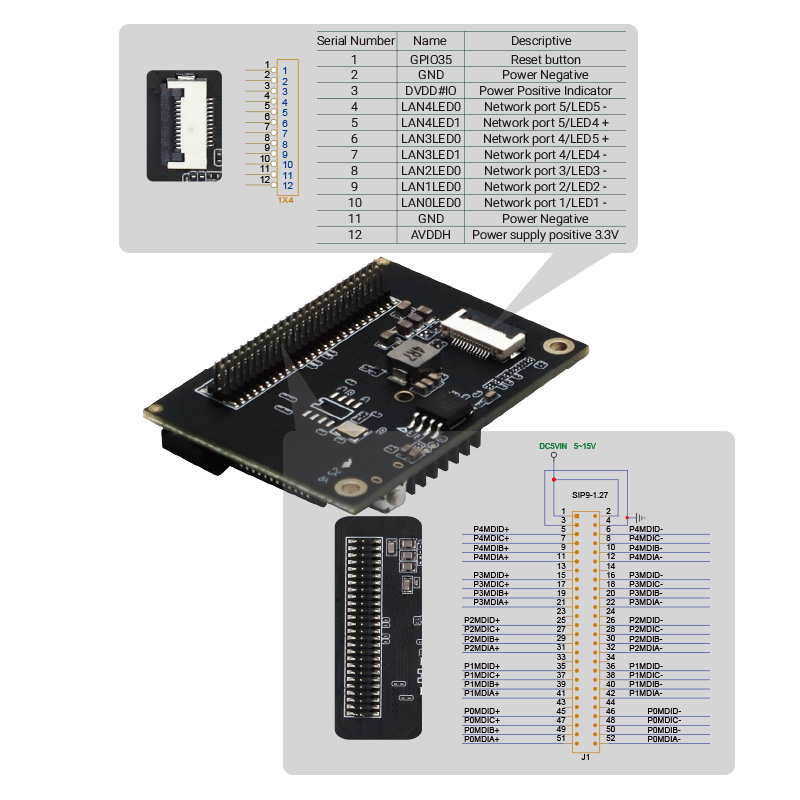

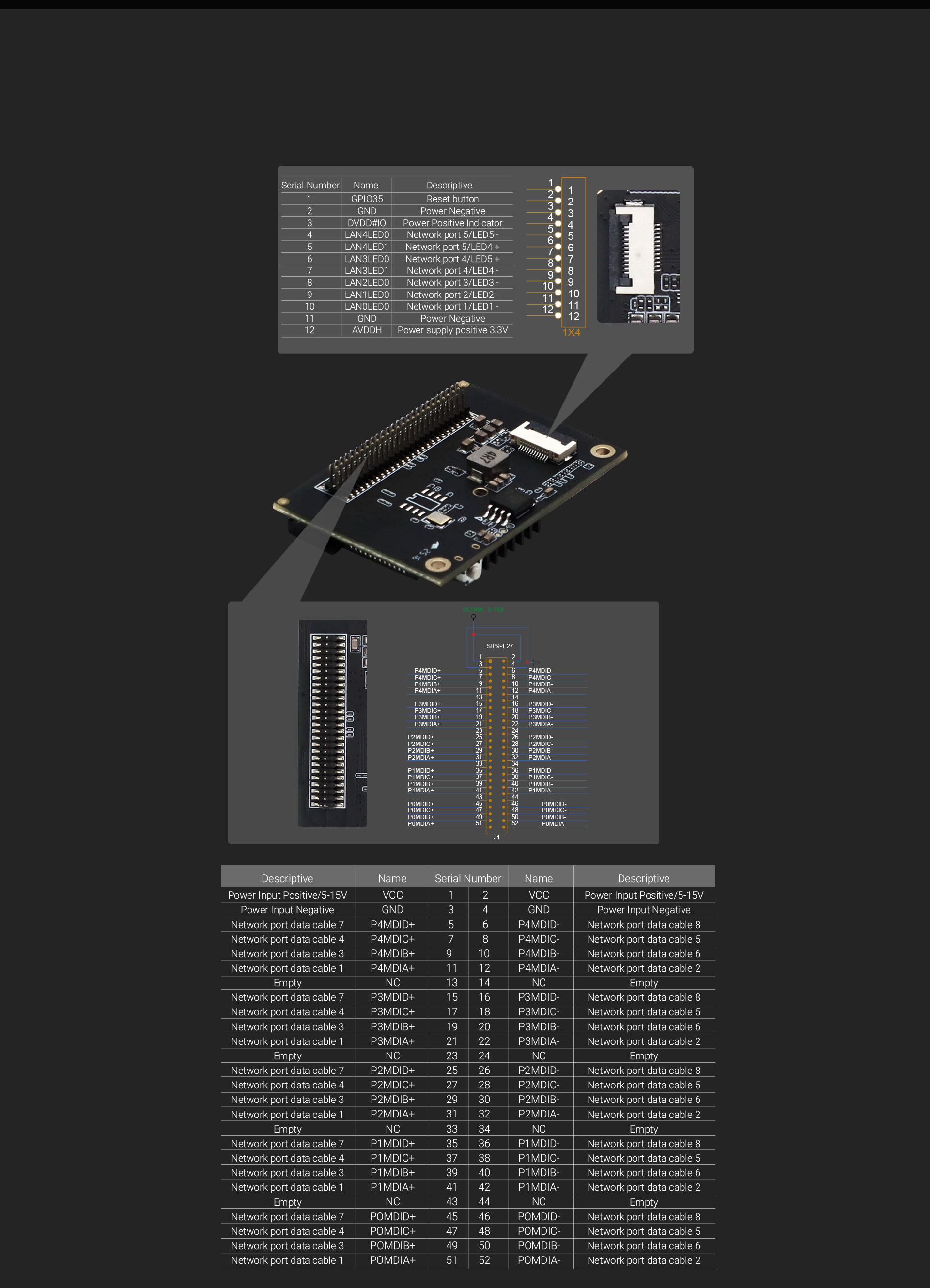

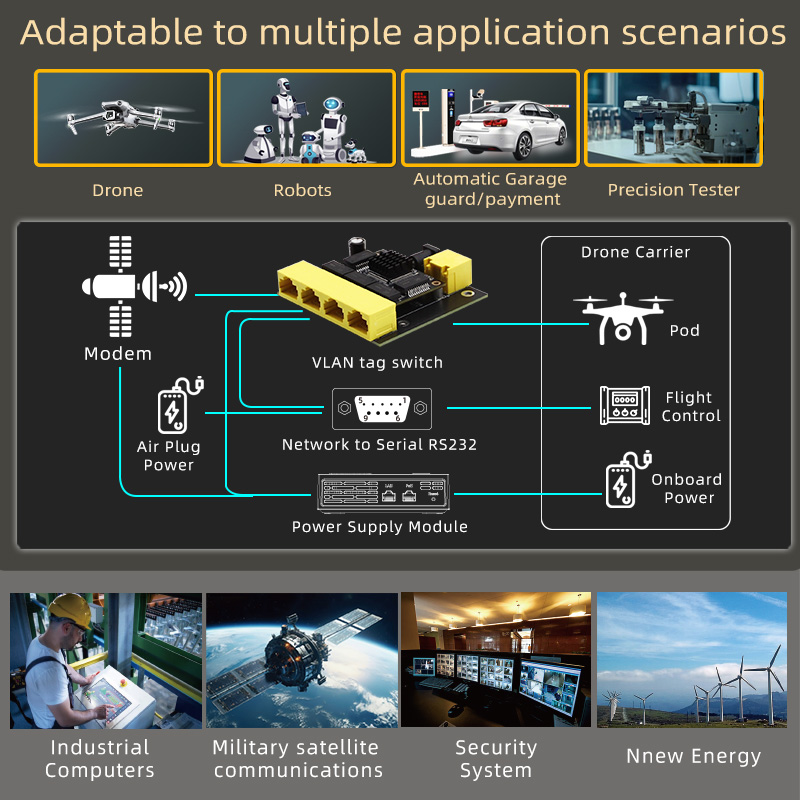

Provides an adaptive 10/100/1000Mbps dual-row pin interface to instantly extend network connectivity to multiple devices.

Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

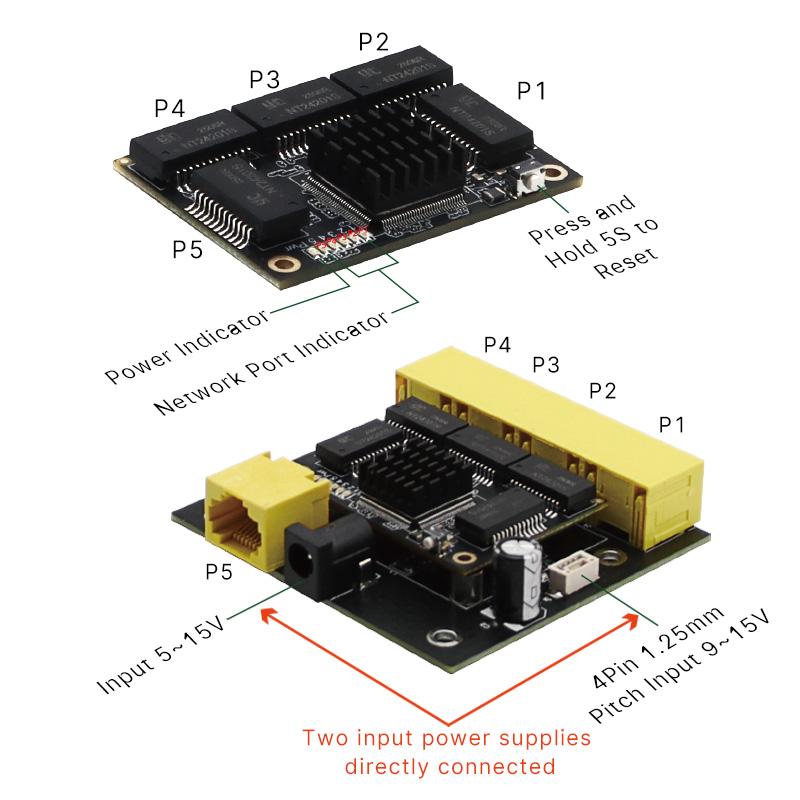

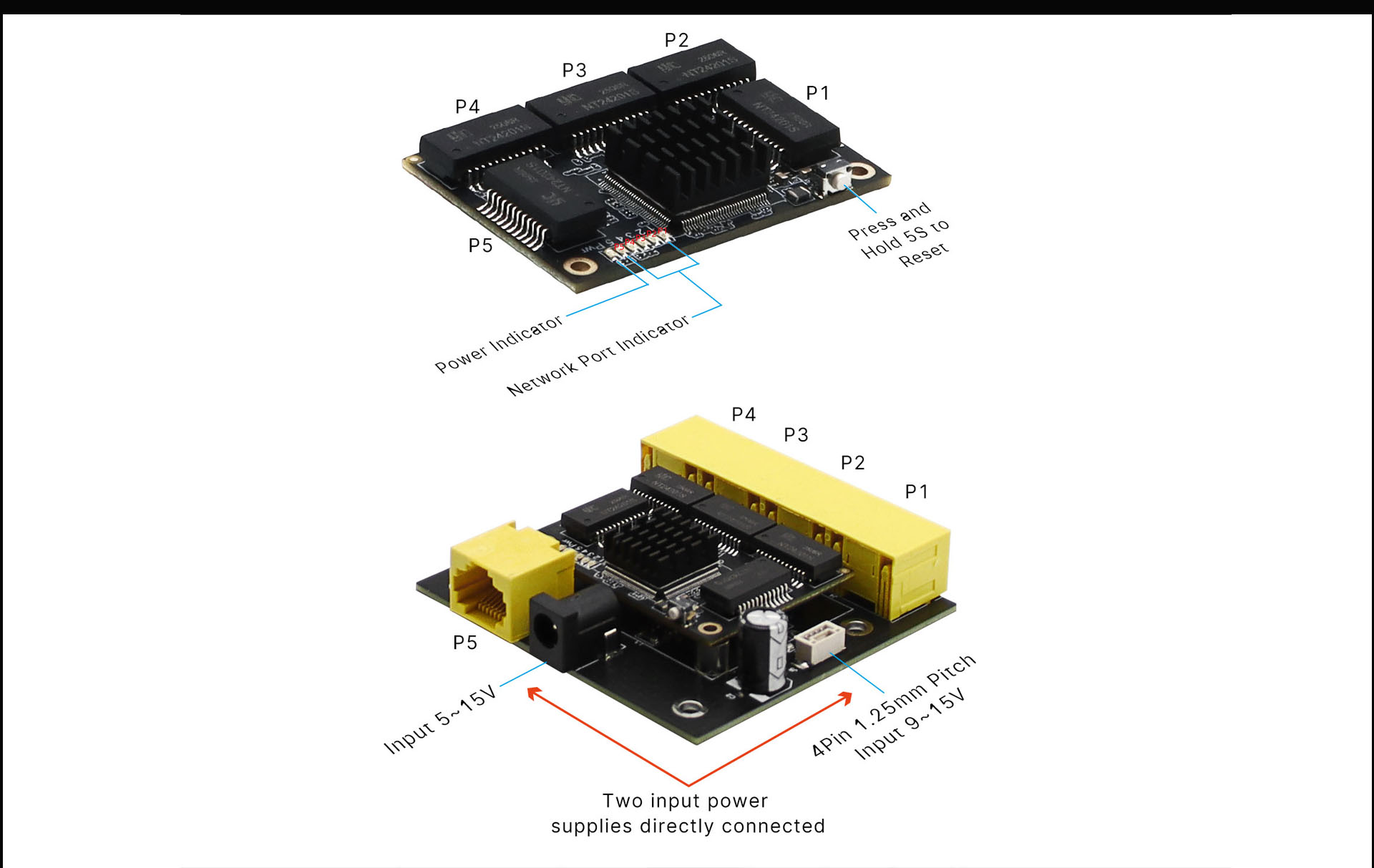

Input Voltage 5~15V

Designed for industrial environments

This is an 5-port 1000 Mbps purely domestic dual-row pin easy smart switch module designed for working environments. Strictly designed in accordance with the operating temperature of -40℃~85℃, selected industrial-grade devices and natural heat dissipation method are adopted to ensure the stable operation of the equipment for a long time in this temperature range and satisfy various kinds of harsh environments.

High and low temperature testing methods:

1) Duration in the high and low temperature chamber 48 hours

2) Test whether computer ping will be lost (loss rate within 1% is normal)

3) The appearance and function of the samples were checked after 4h of recovery at room temperature.

Startup Stability Performance Test

All-round control to ensure the stability, reliability and performance of product start-up.

Test approach:

1) Power failure reboot ping test (6 products in series - 12V)

Power failure restart test 100 times, each time normal start, normal function.

2) Power failure reboot ping test (individual products - 6V/9V/12V)

Power failure restart each test 25 times, each time normal start, normal function.

3) Actual network testing (6 products in series and single)

a. Observe the status of the lighted lamps, whether the product indicator lamp (yellow lamp) is fully lighted and then extinguished, and whether the yellow lamp blinks after connecting to the port.

b. Use your cell phone to connect to the appropriate WiFi MAC code, and use the “Internet Speed Test”app to start the test to check the actual delay, download, and upload.

c. After the test, perform a power-down restart, and so on, for 3 tests.

Test conclusion: normal start, up and down speed are within the standard range, normal function.
