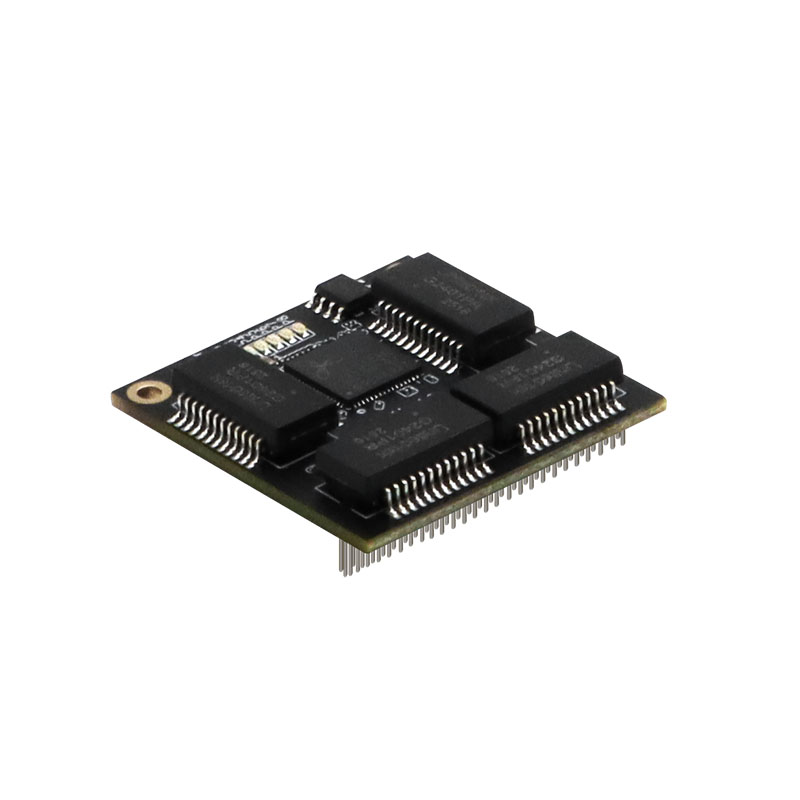

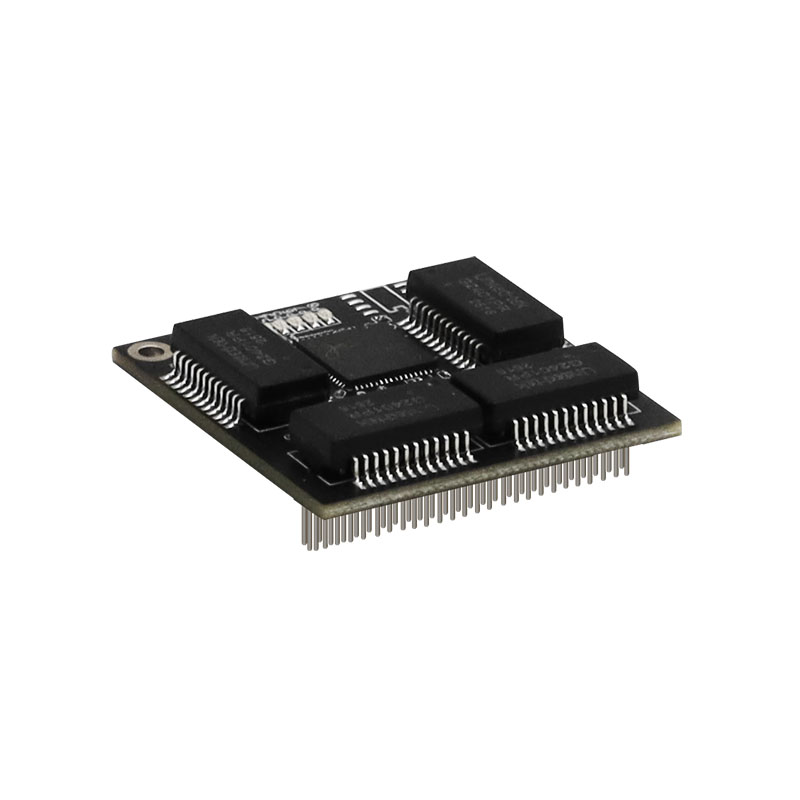

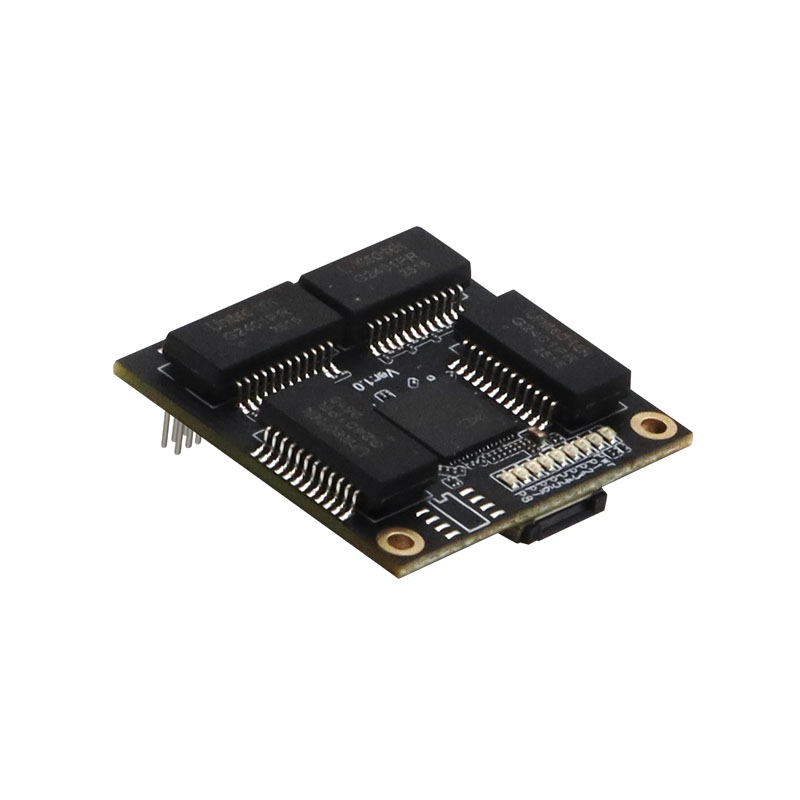

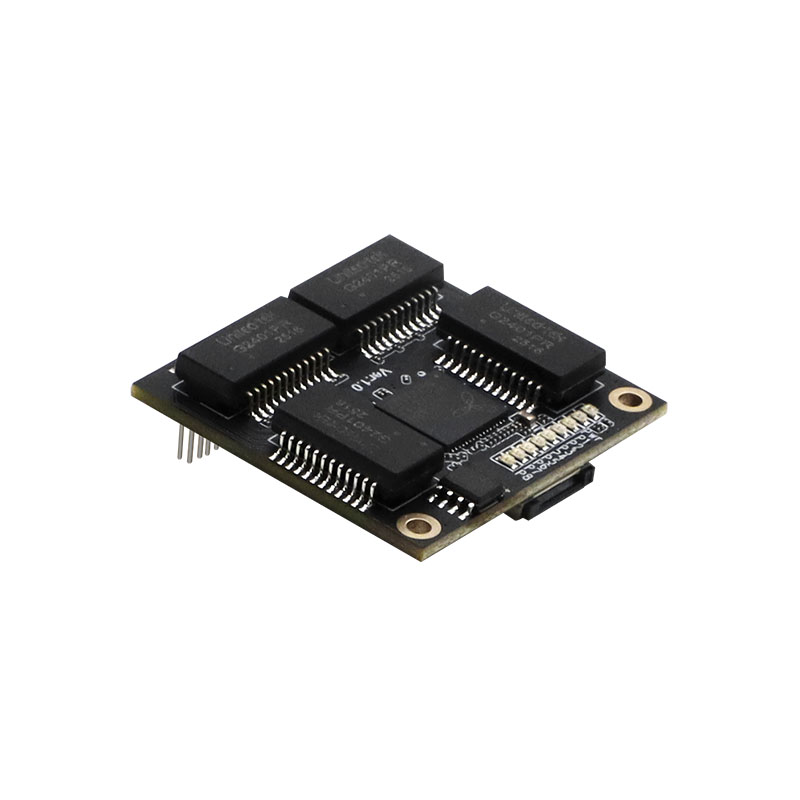

YN-S10801 Industrial 8 Ports 10/100 Mbps Mini Ethernet Switch Module

Ethernet Switch Module

YN-S10801 Industrial 8 Ports 10/100 Mbps Mini Ethernet Switch Module

· Every components are made in China

· 10/100Mbps adaptive dual row pin interface

· VLAN support

· 5~15V wide voltage

· IEEEE 802.3x flow control provides reliable data transmission

· Compact and ultra-mini design

· Fanless design ensures quiet operation

· Automatic: MDI/MDIX eliminates need for crossover cables

· Auto-negotiation: guarantees maximum speed on each port

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

· Operating Temperature: -40℃~85℃

· EMC high protection level, no fear of harsh environments

· Small size (36 ×36×11.2mm), better adapted to industrial environments

Services

Overview
Specifications

Industrial

8 Ports 100 Mbps Mini Ethernet Switch Module

Every component are made in China

Support -40~85℃

Model: YN-S10801

Compact and flexible embedded design

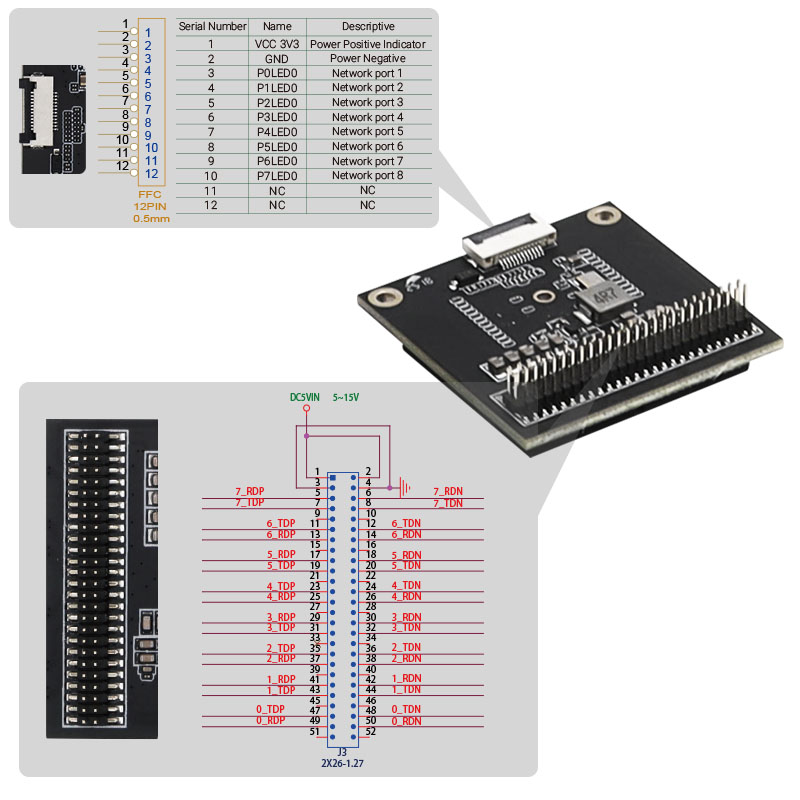

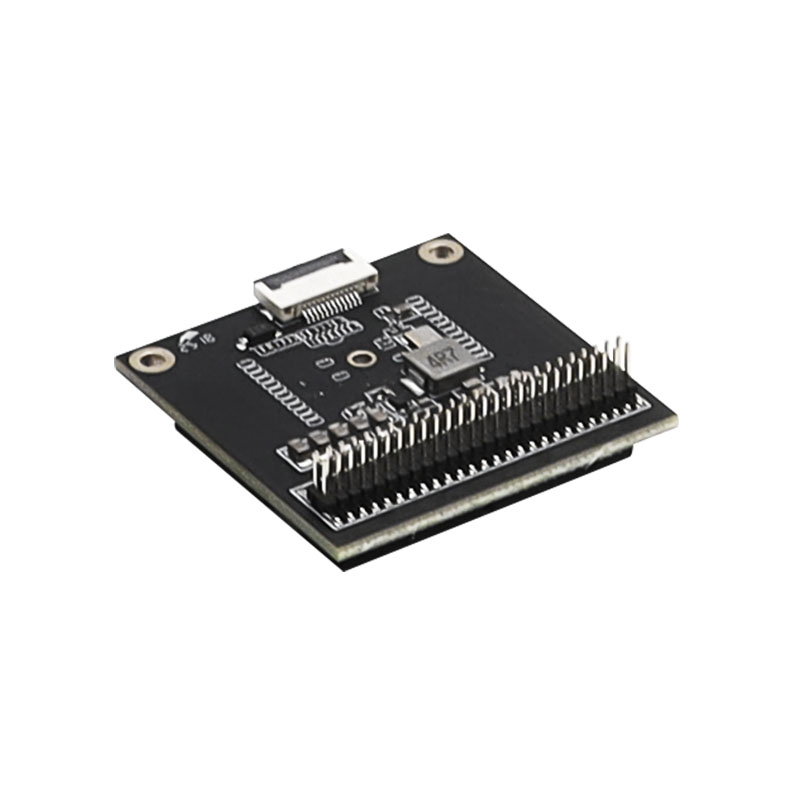

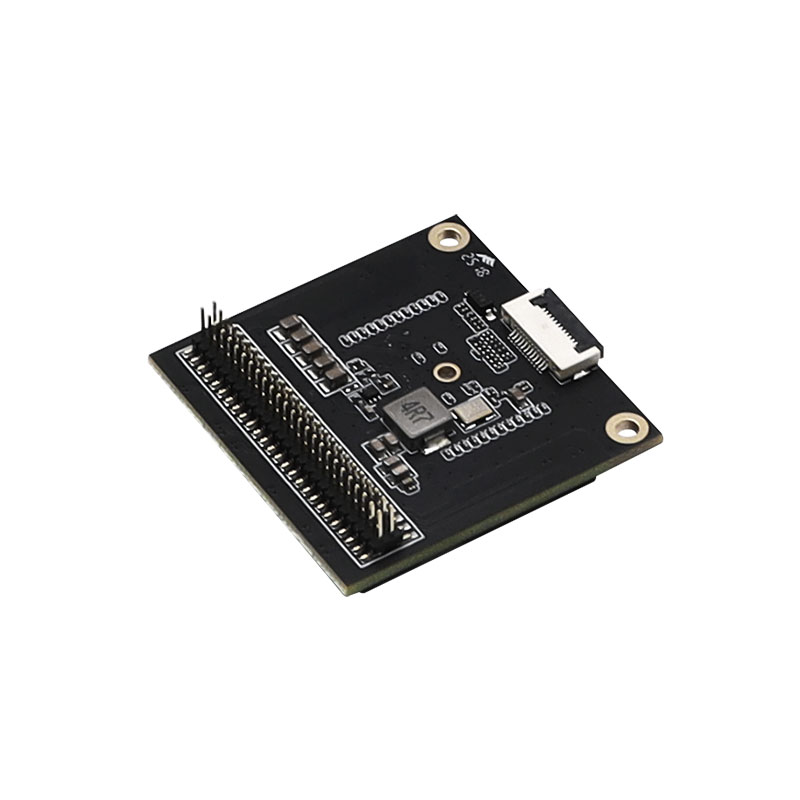

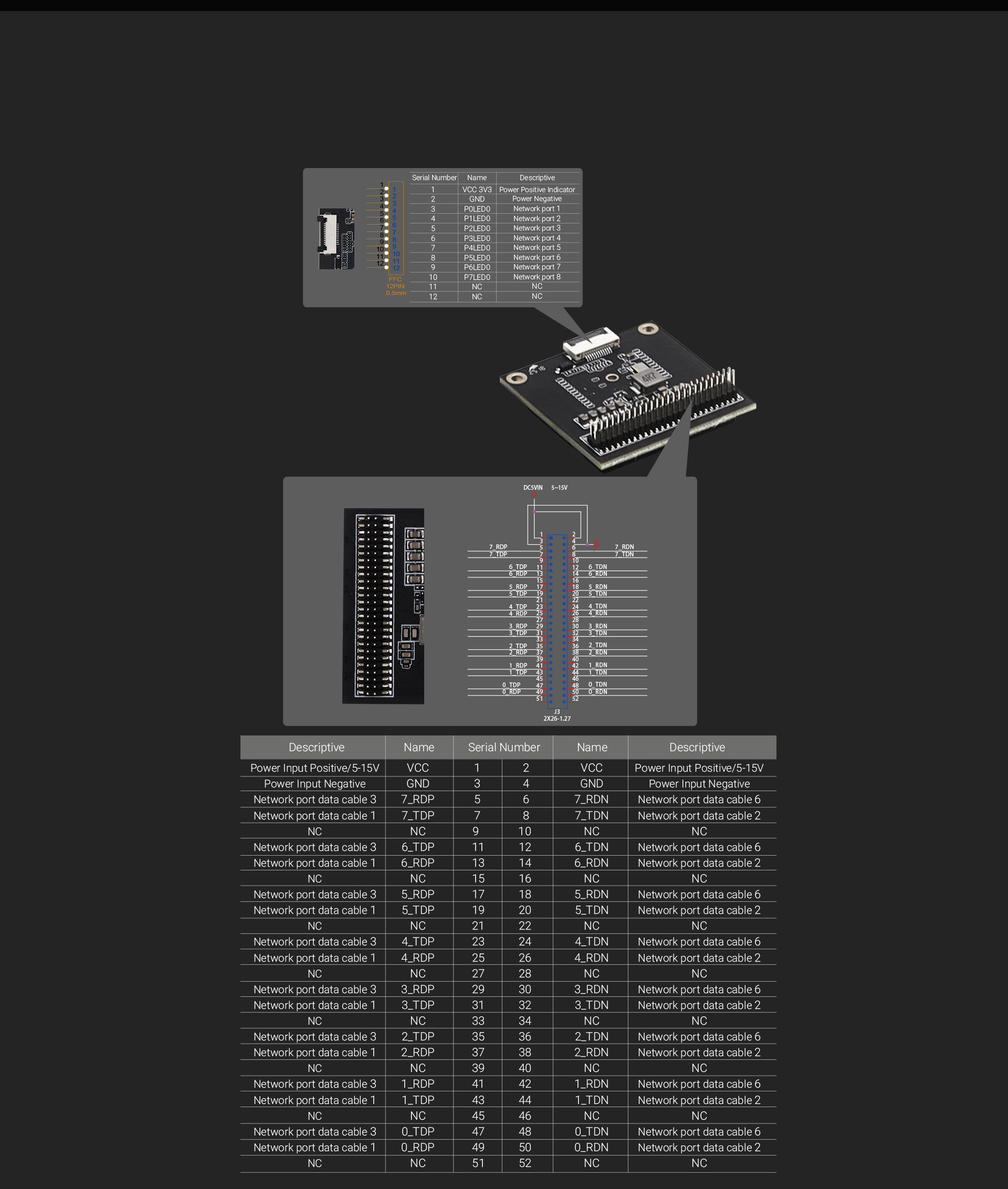

Provides an adaptive 10/100Mbps dual-row pin interface to instantly extend network connectivity to multiple devices.

Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Input Voltage 5~15V

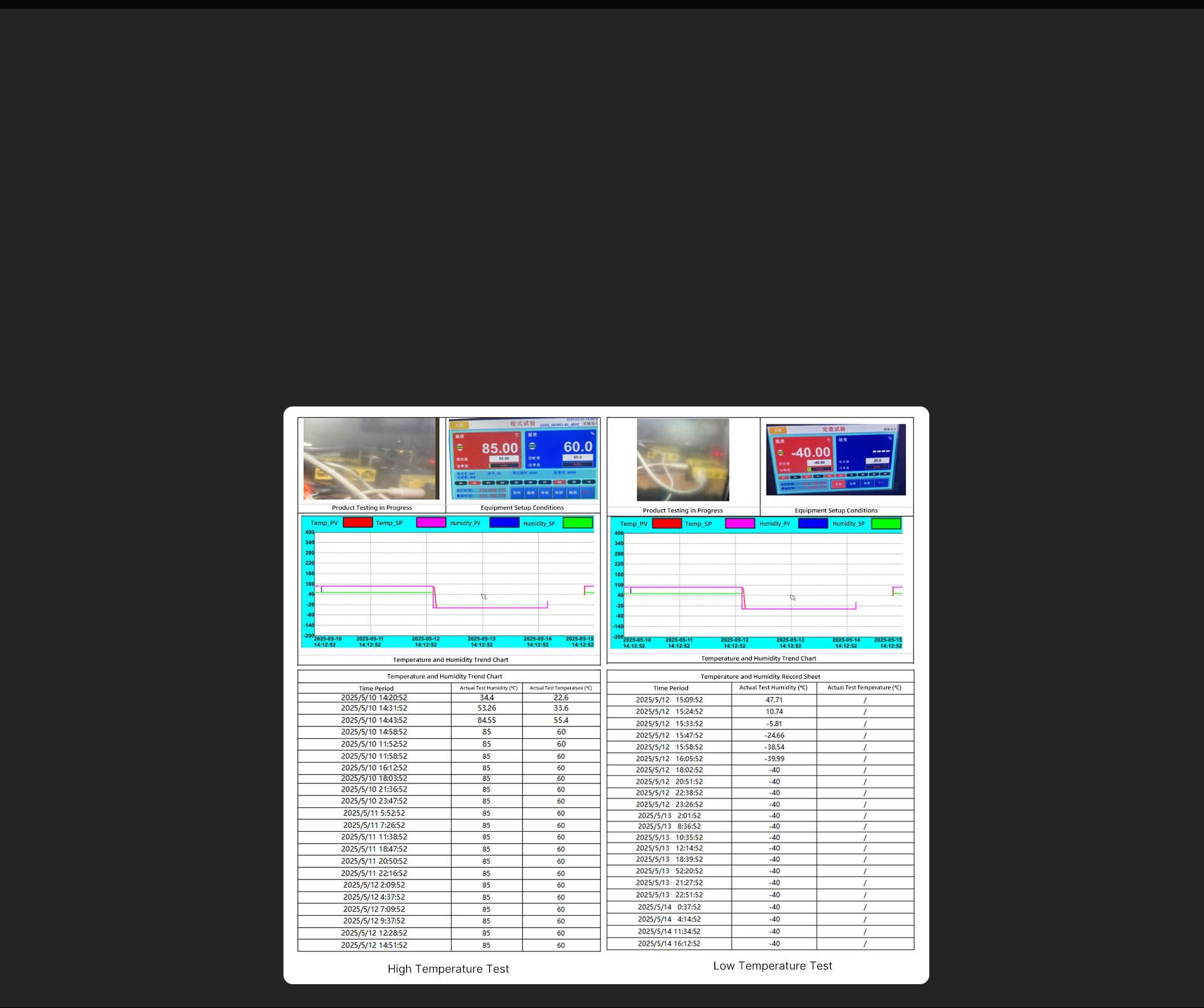

Designed for industrial environments

This is an 8-port 100 Gigabit purely domestic dual-row pin switch module designed for working environments. Strictly designed in accordance with the operating temperature of -40℃~85℃, selected industrial-grade devices and natural heat dissipation method are adopted to ensure the stable operation of the equipment for a long time in this temperature range and satisfy various kinds of harsh environments.
