IEEE 802.3, 802.3i, 802.3u，802.3x

Model: YN-IES20801

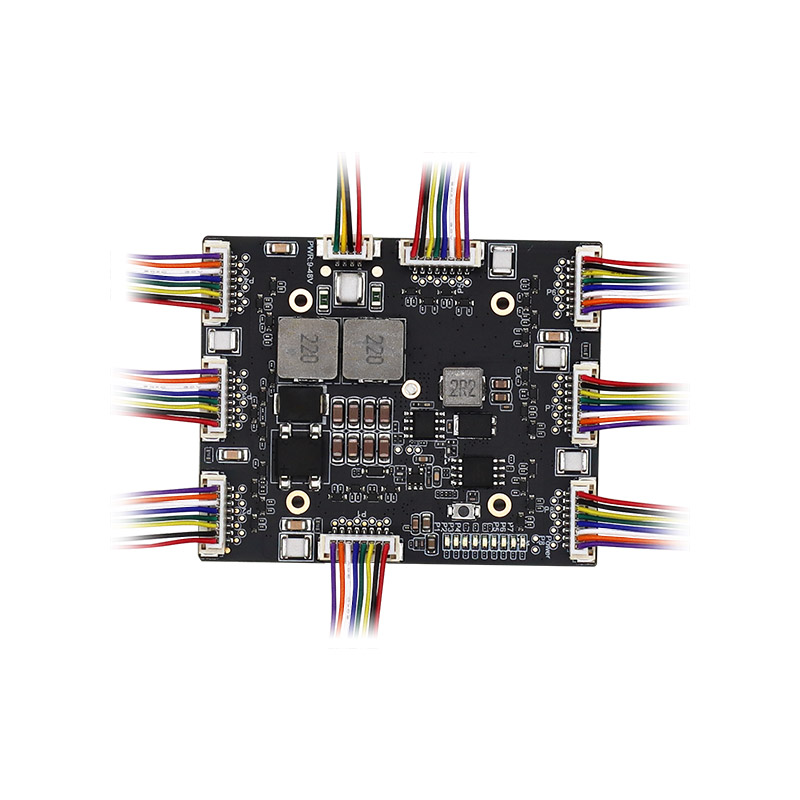

Provides 8 1000M Adaptive Ethernet locking cradles to instantly extend network connectivity to multiple devices.Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Input Voltage 9~35V

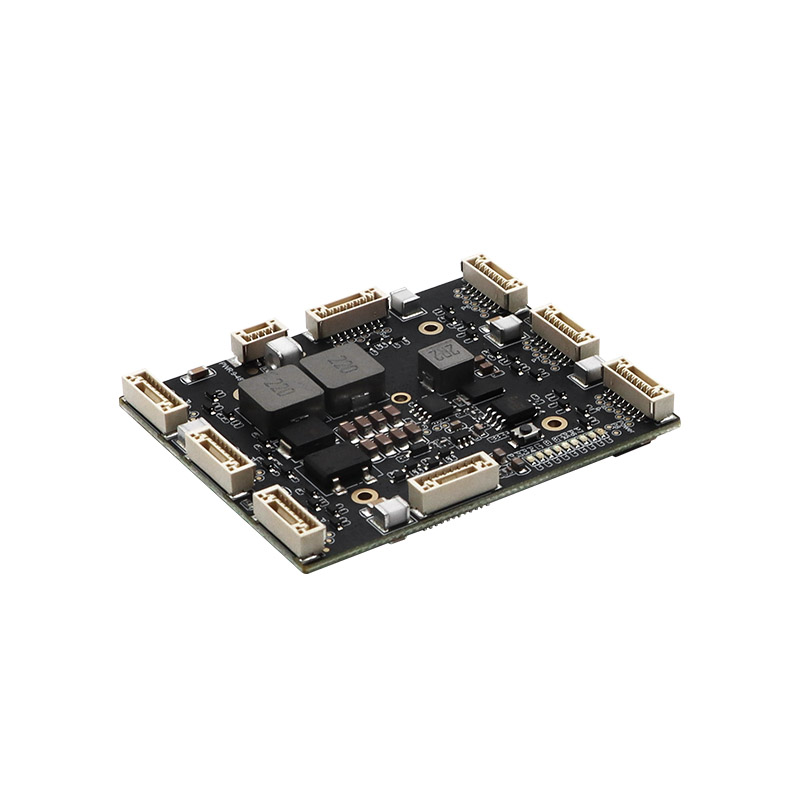

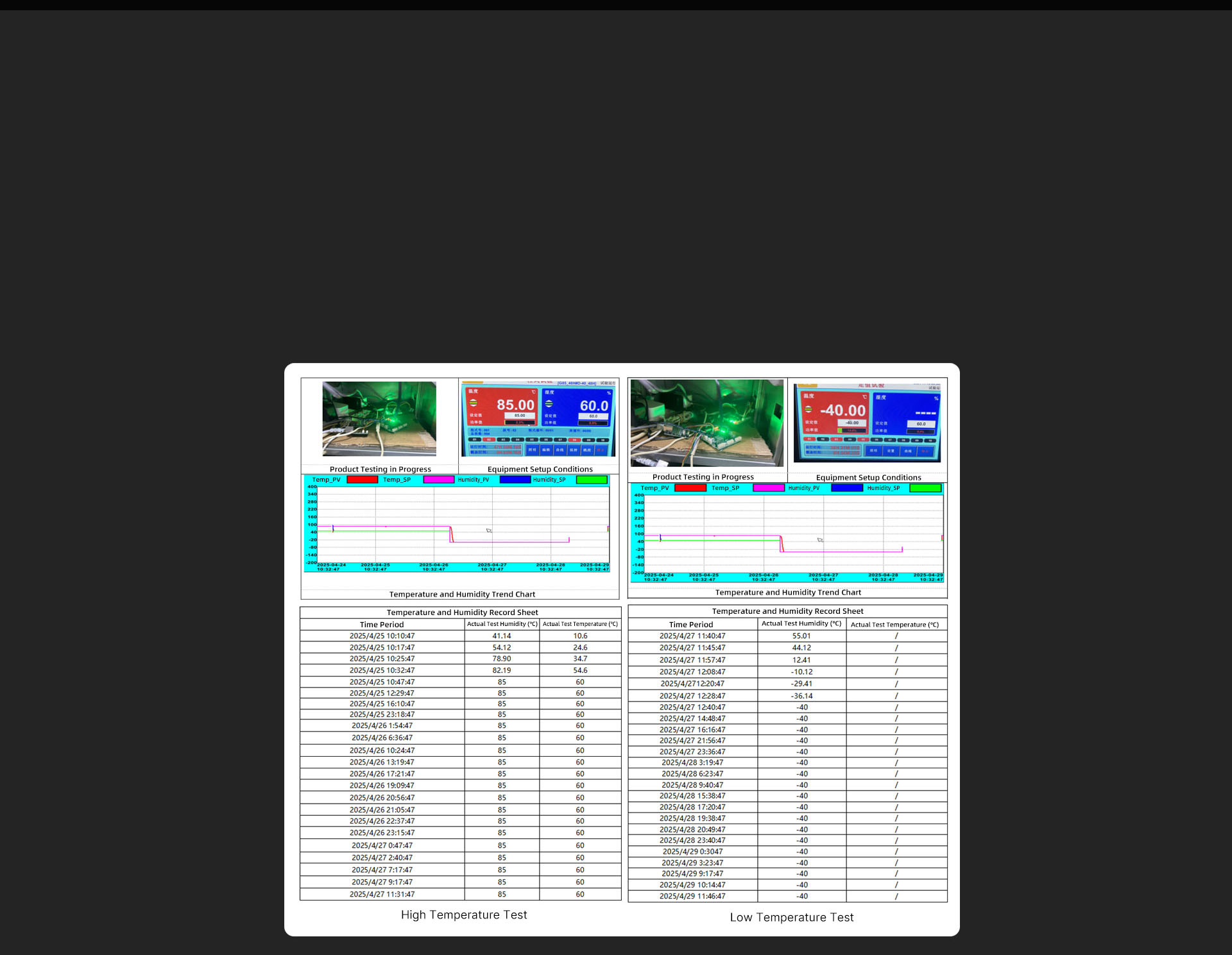

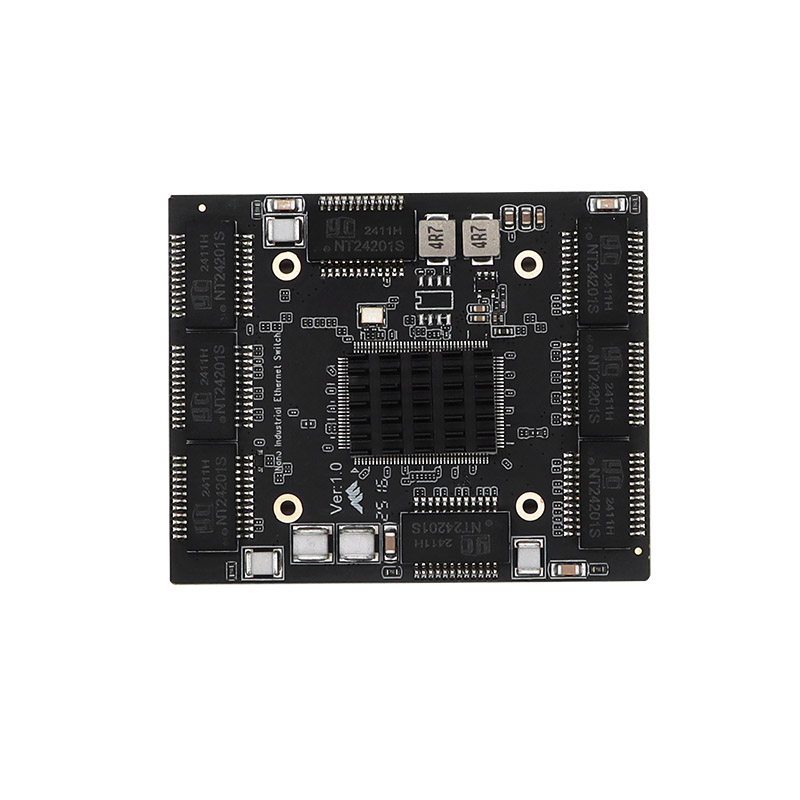

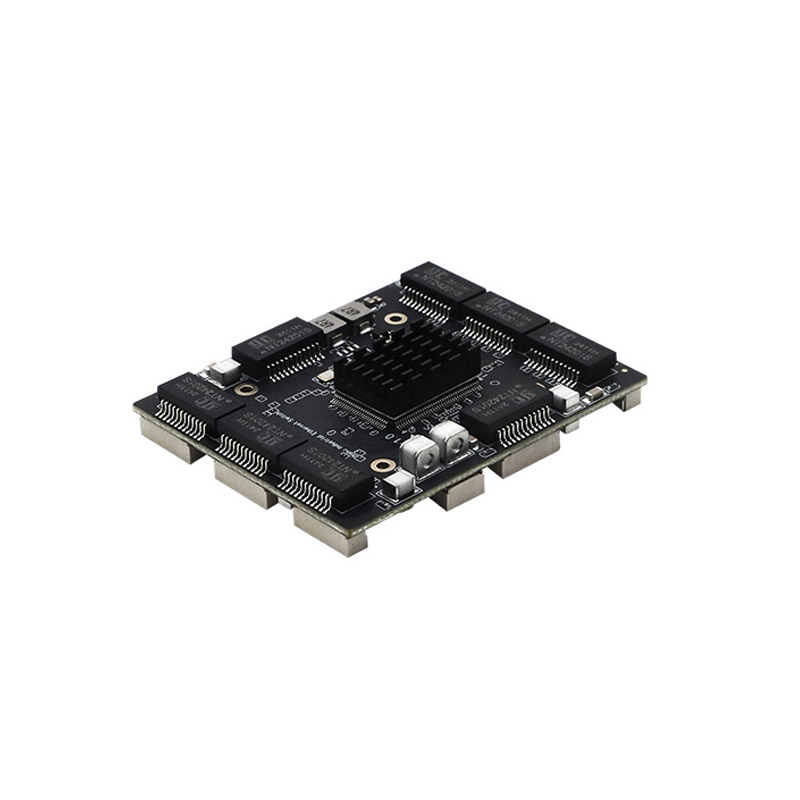

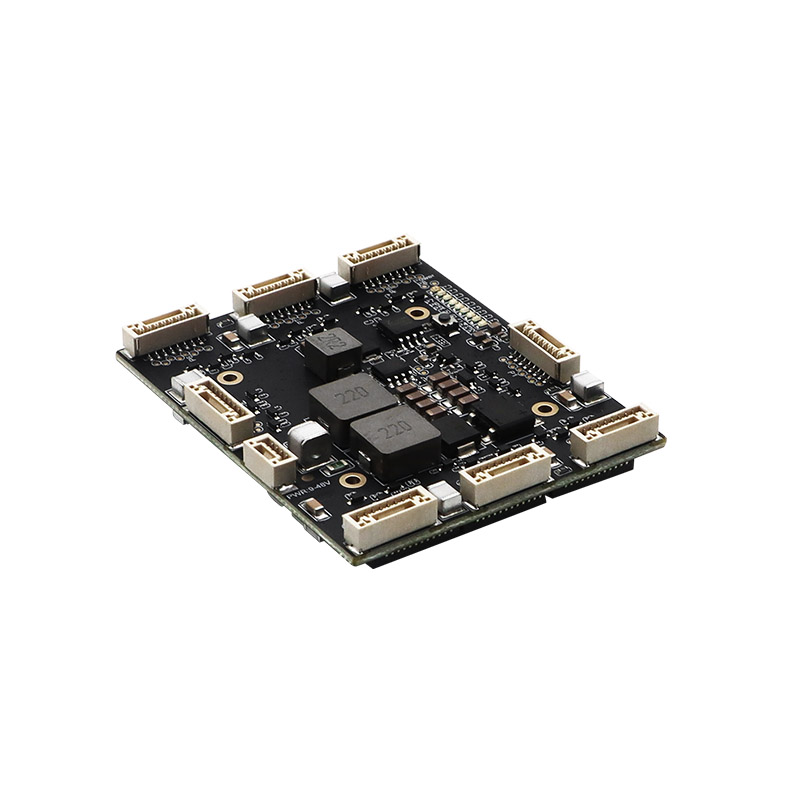

This is a fully domestic 8 Ports gigabit easy smart switch module designed for industrial environments. Strictly designed for operating temperatures in the -40°C to 85°C range. Selected industrial-grade components and natural heat dissipation methods ensure that the device will operate stably for a long period of time in this temperature range, sufficient to cope with a variety of harsh environments.

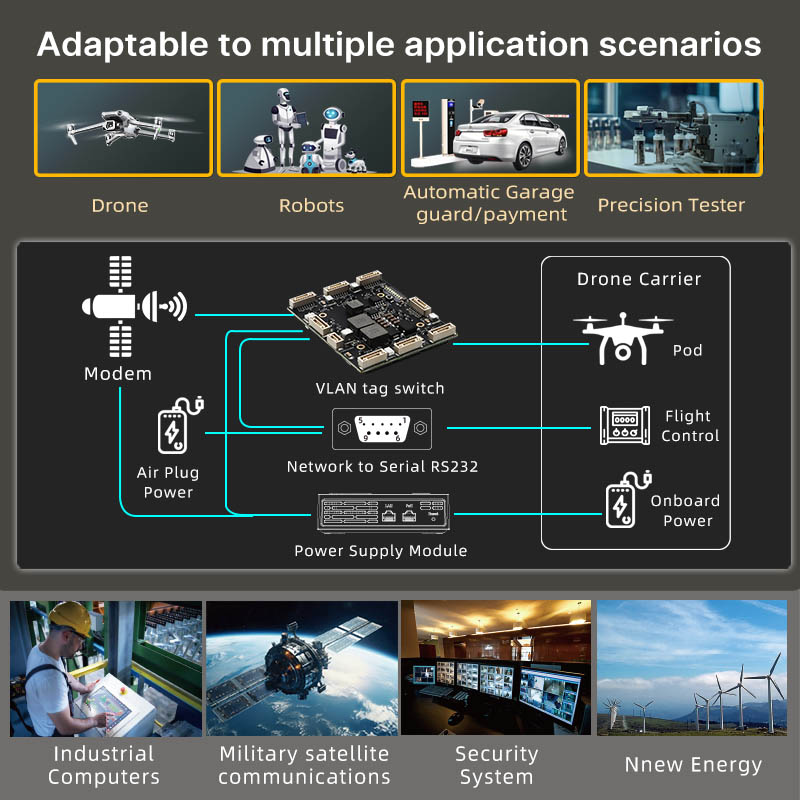

High-standard industrial-grade purely domestic devices, adapted to electric power, industrial plants and other harsh electromagnetic interference environment.

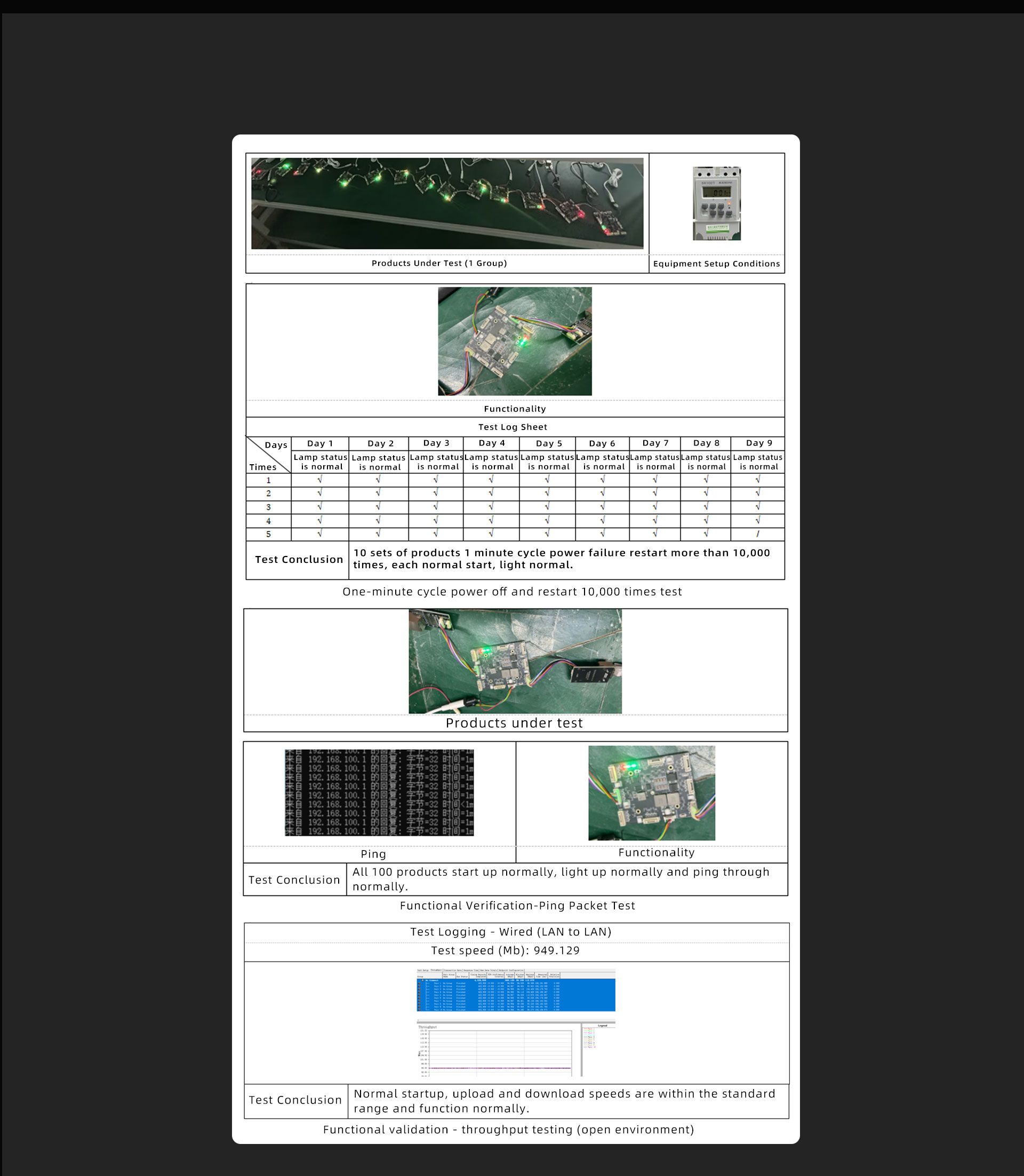

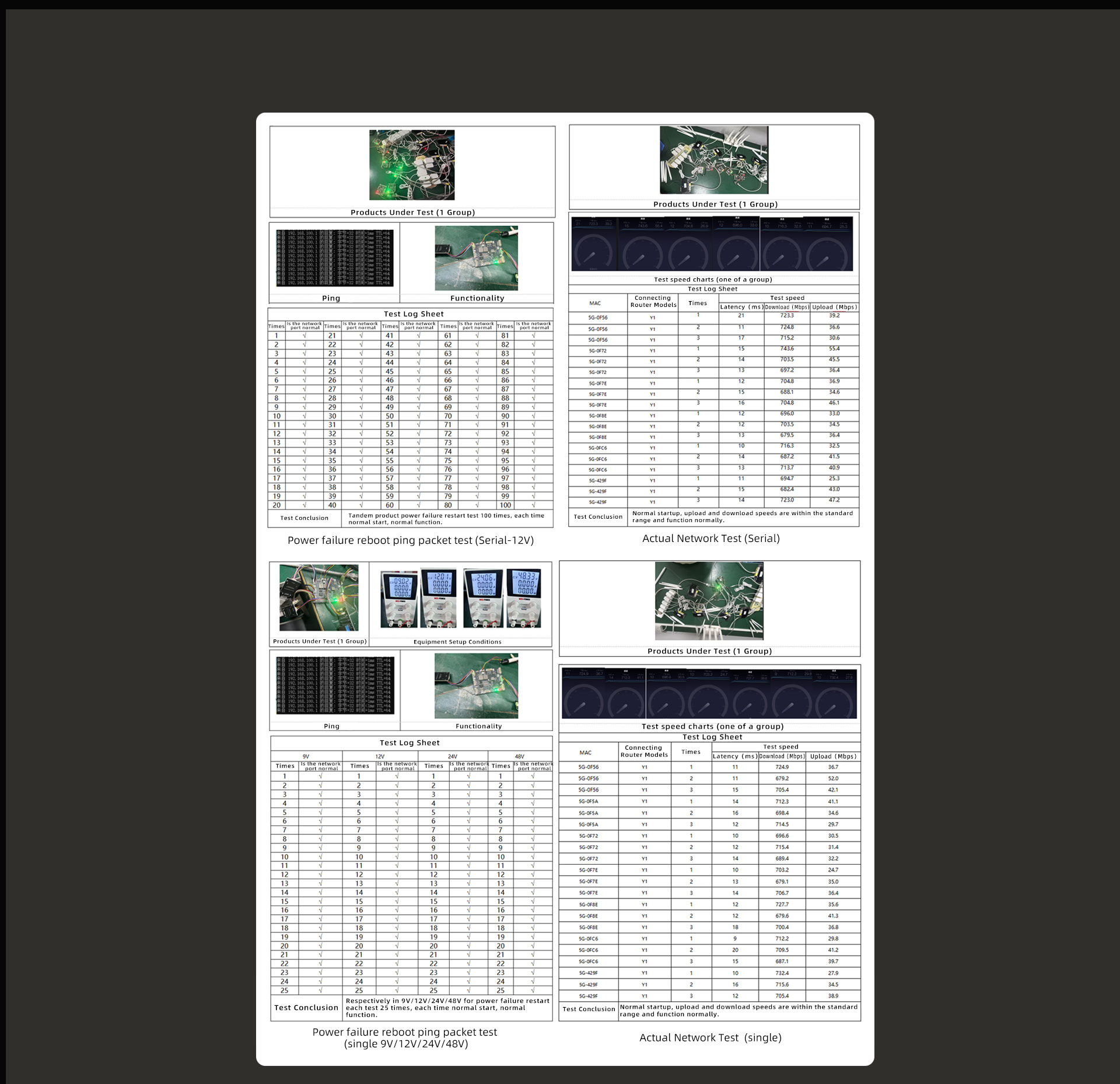

Undergoes rigorous durability testing for long service life, reducing equipment maintenance and replacement costs.

Supports a wide voltage input of 9~35V, adapting to various industrial power supplies.

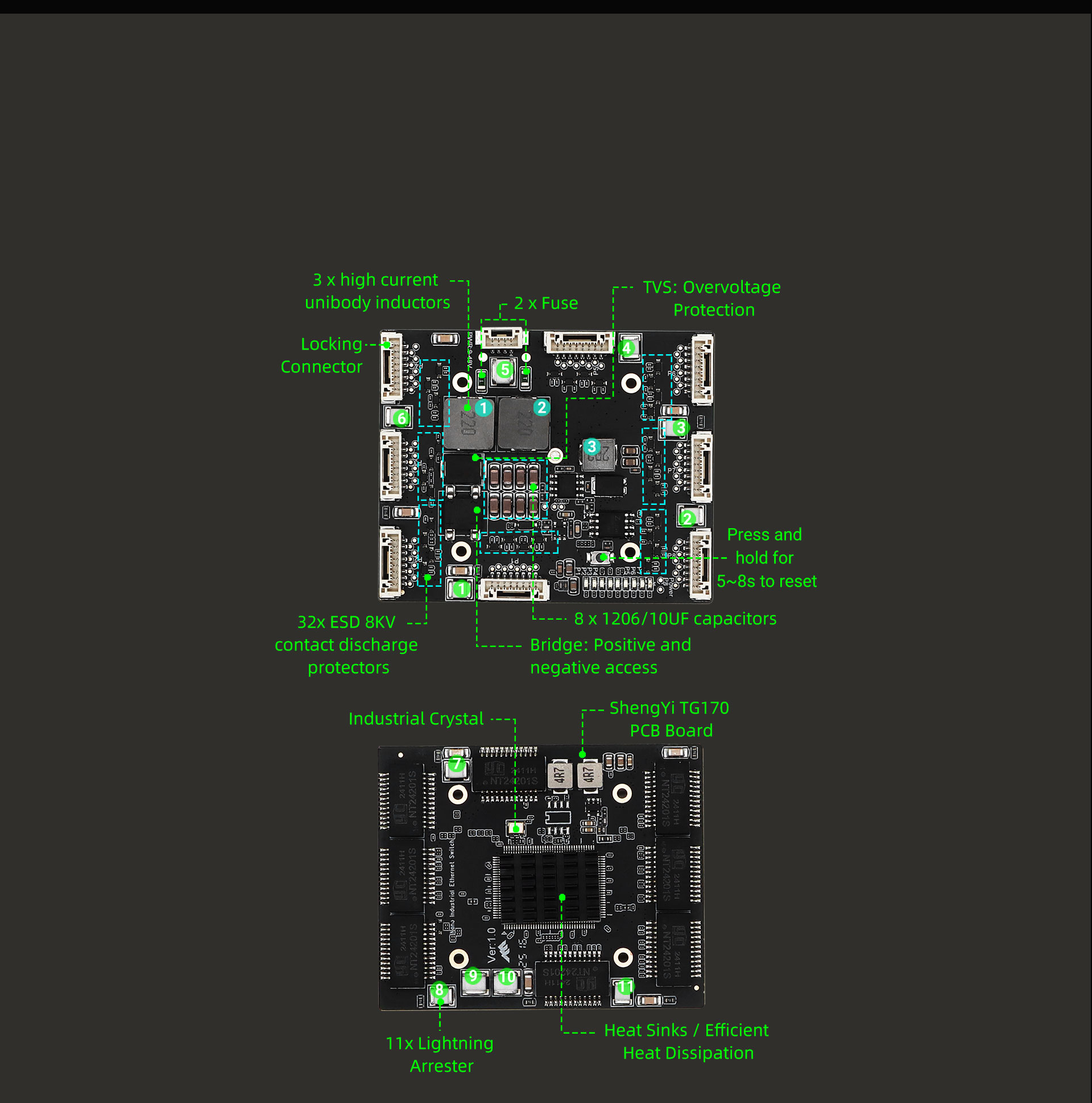

Reverse connection protection, short-circuit over-current protection, surge protection, to protect the equipment uninterrupted work.

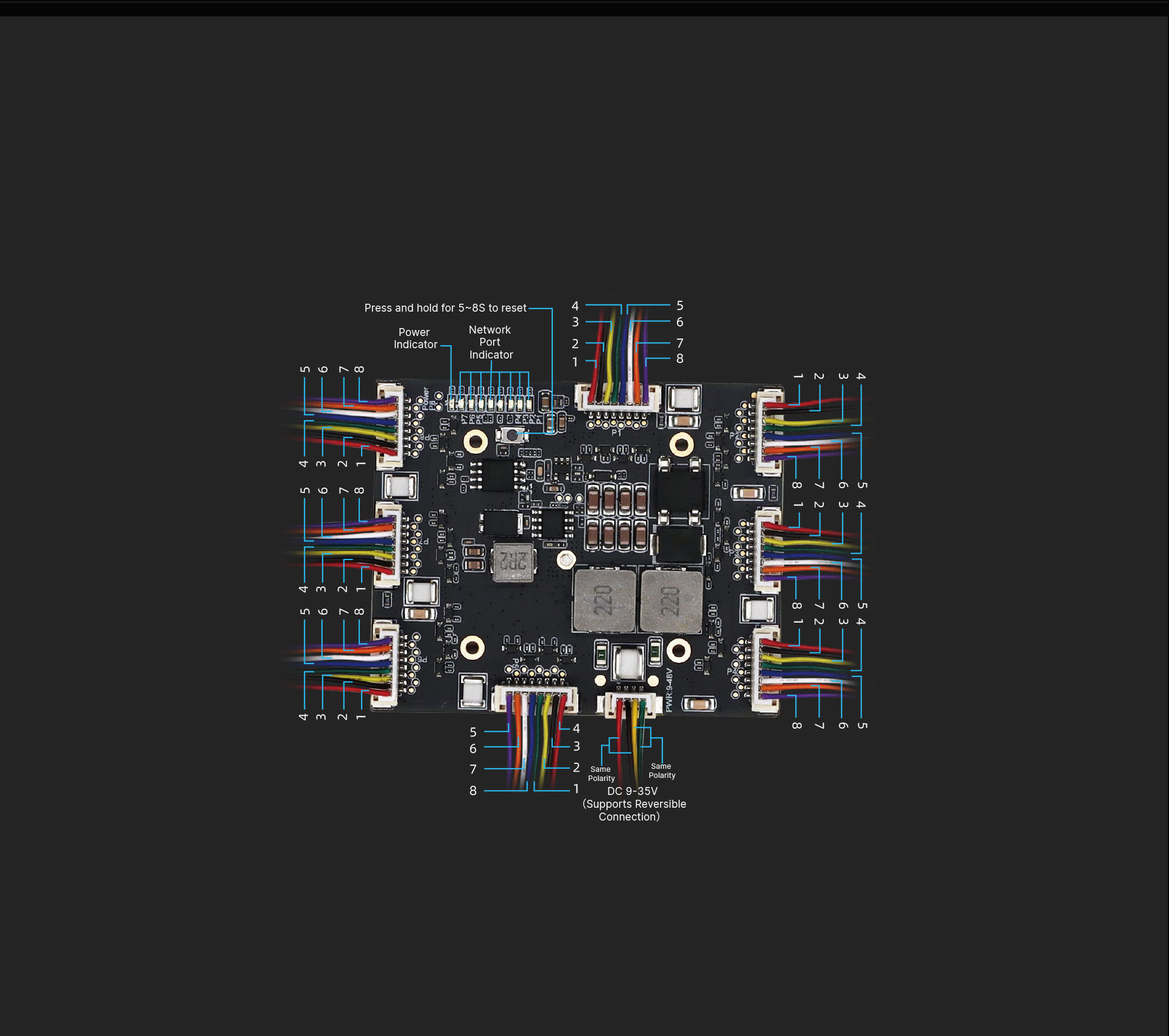

Numeric Correspondence Line Sequence

1. TX_D1+  Tranceive Data+                2. TX_D1-   Tranceive Data-

3. RX_D2+  Receive Data+                 4. BI_D3+   Bi-directional Data+

5. BI_D3-    Bi-directional Data-          6. RX_D2-   Receive Data-

7. BI_D4+   Bi-directional Data+         8. BI_D4-    Bi-directional Data-
