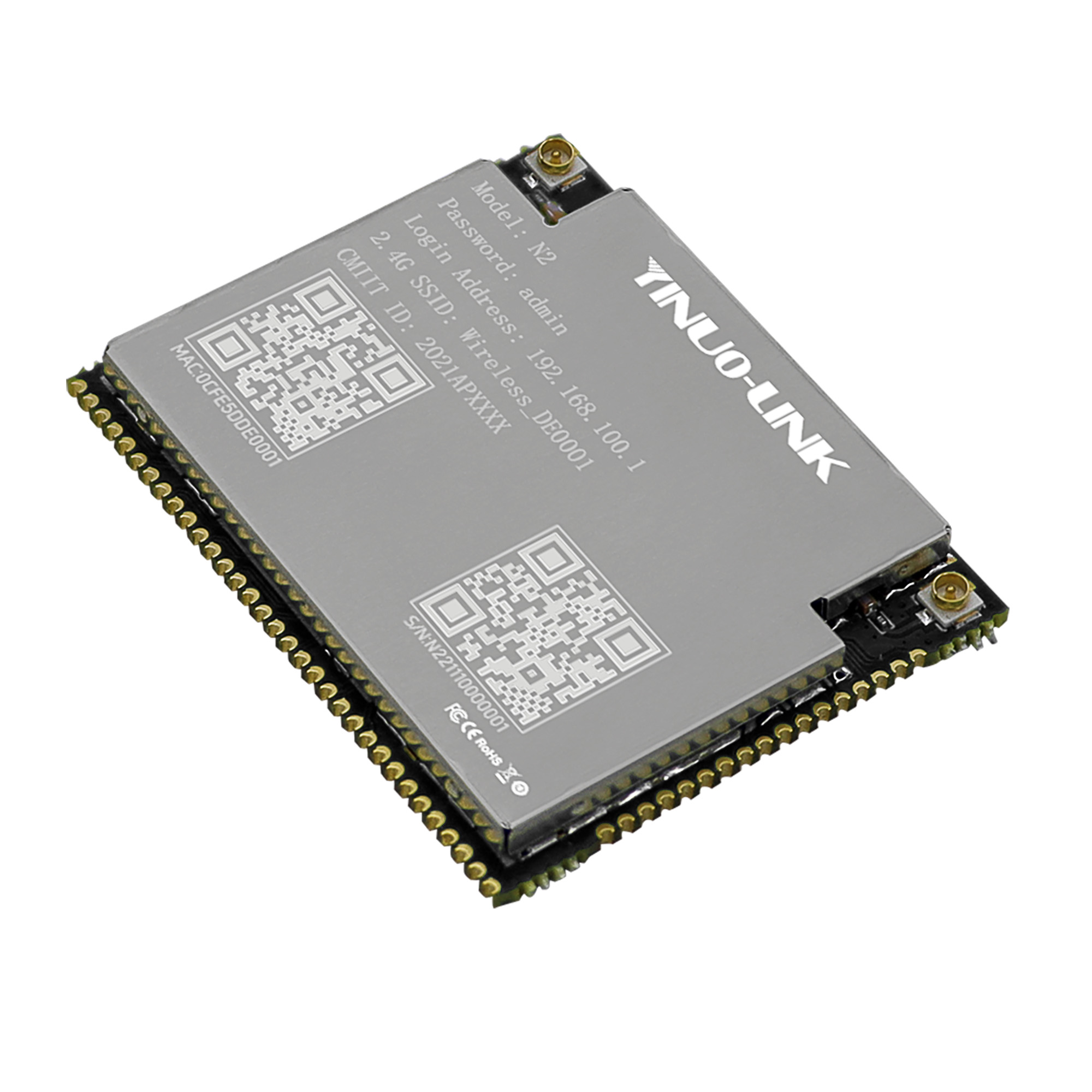

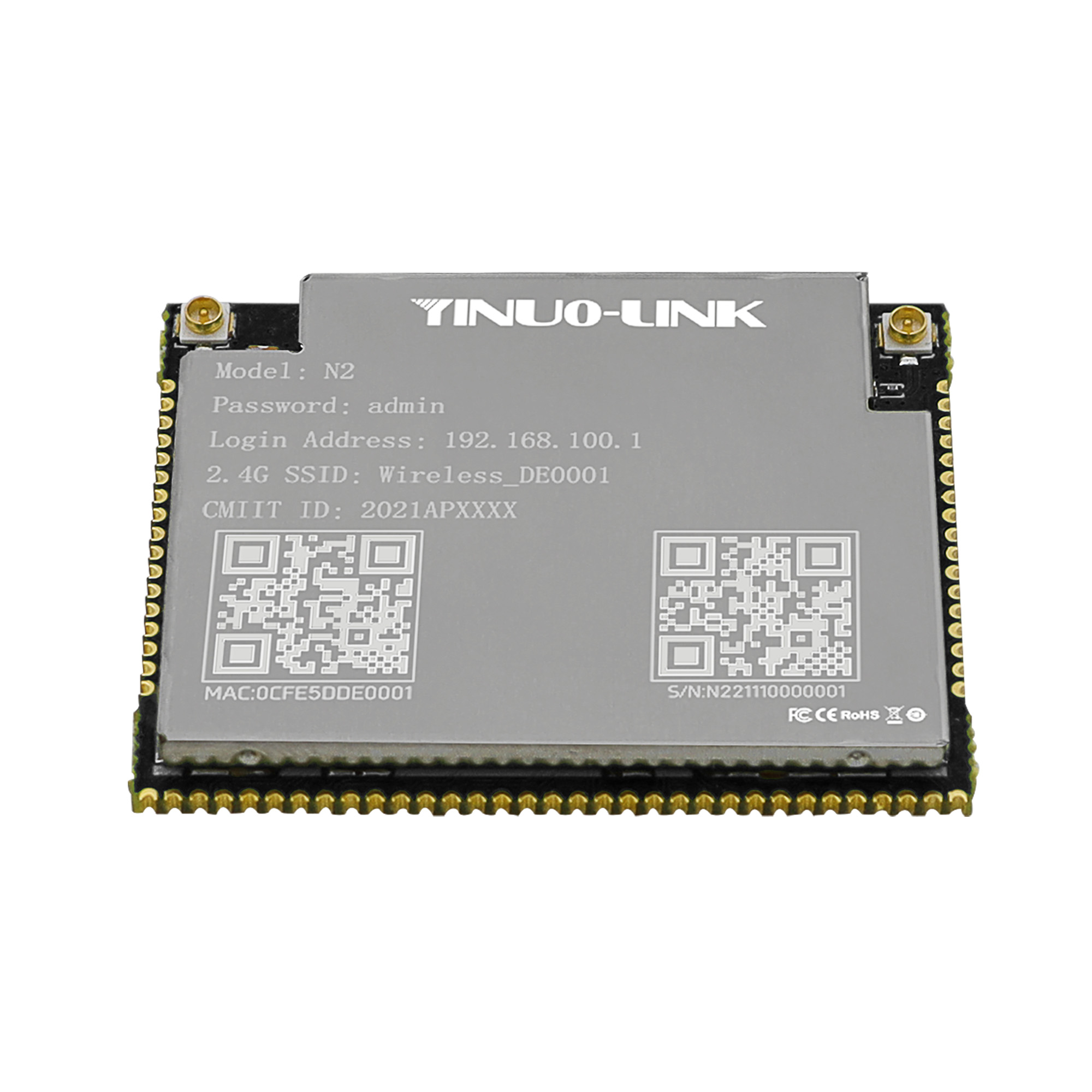

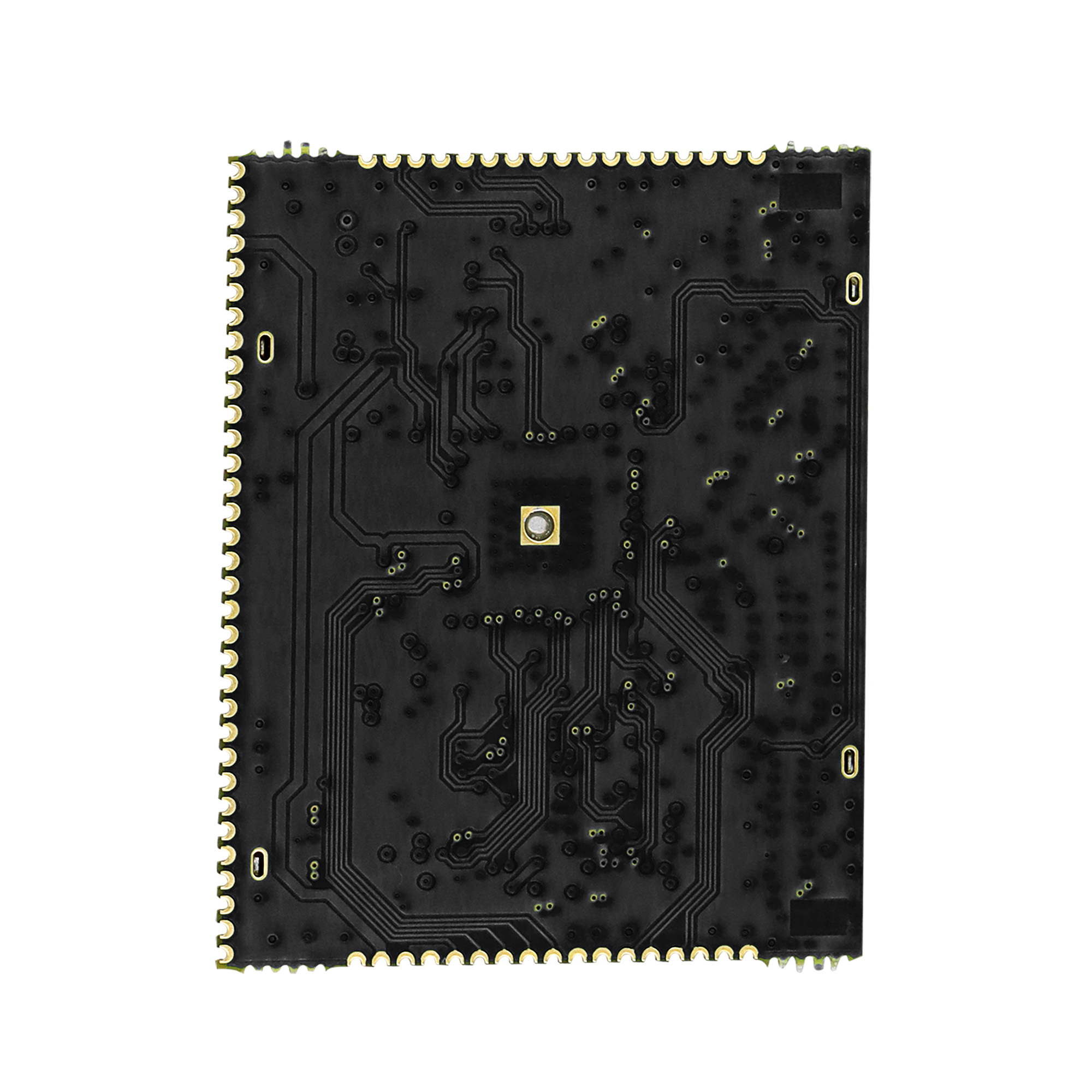

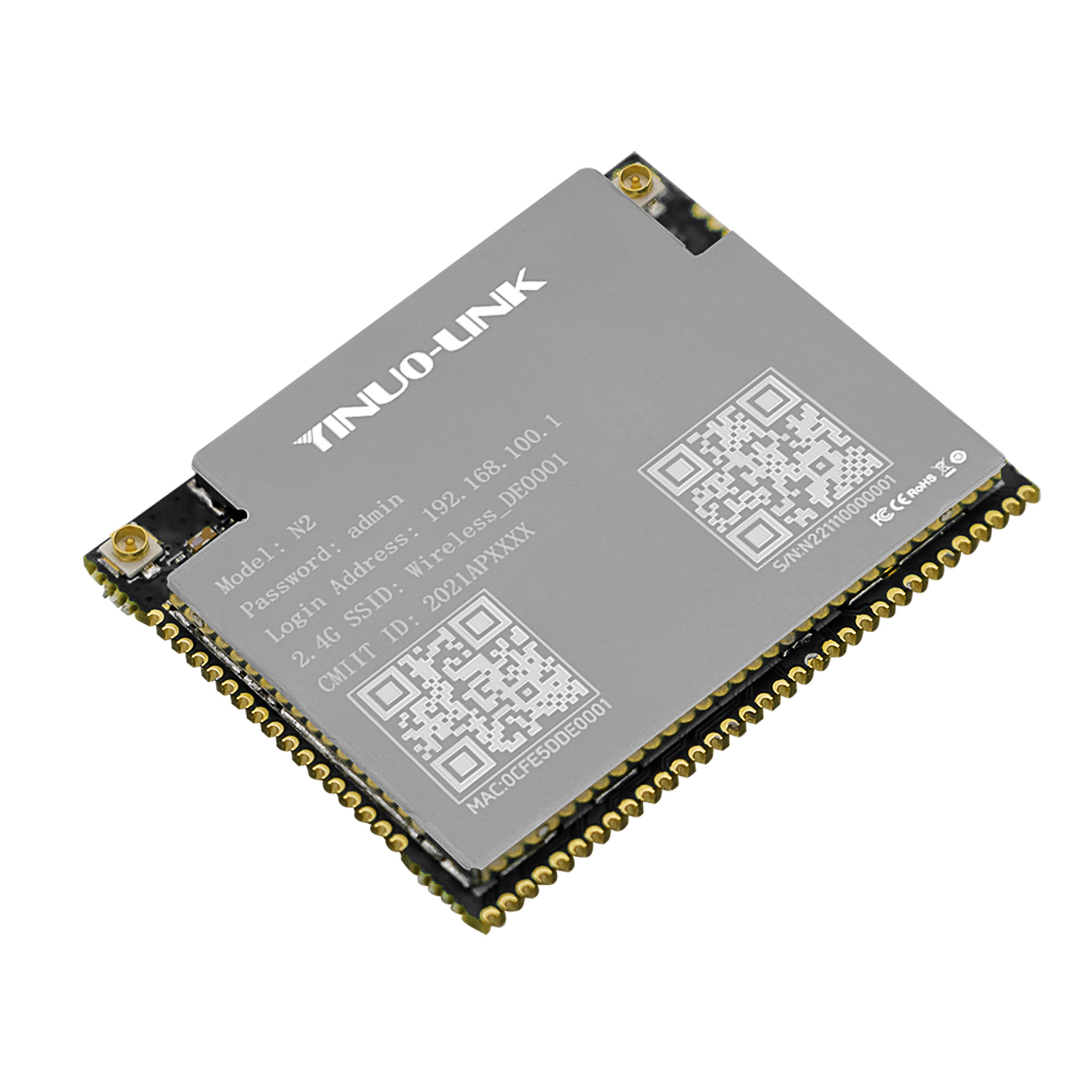

N2 Wireless routing module
N2 Wireless routing module
N2 Wireless routing module
N2 Wireless routing module
N2 Wireless routing module
N2 Wireless routing module
N2 Wireless routing module

· Compliant with IEEE802.11b/g/n standard.

· 2T2R mode, supports 300Mbps wireless speed.

· DDR2 memory up to 1024Mb.

· One 2.0 USB port, one PCIe 2.0 port, rich GPIO ports for extended applications.

· Flash memory up to 1Gb.

· Support 4 LAN and 1 WAN.

· USB 2.0 slave device support for USB flash drives.

· Support USB camera and USB printer access.

· Security system: WEP64/128, TKIP, AES, WPA, WPA2, WAPI.

· Supports AP, routing, bridge, repeat, client and 3/4G modes.

· Compliant with FCC/CE/ROHS certification standards.

· Support Open-Wrt secondary development.

  • Overview
  • Specifications

N2 Wireless routing module

The Qualcomm Atheros QCA9531 is a highly integrated and feature-rich IEEE 802.11n 2x2  2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. It includes a MIPS 24Kc processor, one PCI Express 1.1 Root Complex interface, five port IEEE 802.3 Fast Ethernet Switch with MAC/PHY, one USB 2.0 MAC/PHY, and external memory interface for serial Flash, DDR1 or DDR2, SDRAM, UART, and GPIOs that can be used for LED controls or other general purpose interface configurations.




N22 DEMO Description

N2 Wireless routing module

Various fields of application

Such as: USB Wi-Fi camera, IOT (Internet of Things), Wi-Fi AP, 3G/4G Wi-Fi router, Wi-Fi repeater, building automation, home automation, smart home gateway, industrial control, etc.

Home Automation
Robot Data Upload
Building Automation
IOT(Internet of Things))
Security System


CPU: QCA9531

Antenna Type: IPEX

Voltage: 3.3V±5%

Product Dimesions: 41.6x33mm

Wireless Features

Wireless Standards: IEEE 802.11b, 802.11g, 802.11n

Signal Rate: 300 Mbps , 2.4 GHz

CE EIRP:<20 dBm (2.4 GHz)

Reception Sensitivity: 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -67 dBm

Wireless Function: Enable / Disable wireless, wireless power regulation, multi-SSID

Wireless Security: 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions


Working Mode: Router, Access Point, Client, Repeater, Bridge, WISP client Router

WAN Type: Dynamic IP/Static IP/PPPoE

DHCP: DHCP Customer List

NAT Forwarding: Port Forwarding, DMZ

Firewall Security: IP and MAC Address Binding

Protocols: IPv4


Certification: FCC, CE, SRRC, RoHS

Environment: Operating Temperature: -30℃ ~ 75℃

                       Storage Temperature: -40℃ ~100℃

                       Operating Humidity: 10%~90% non-condensing

                       Storage Humidity: 5%~90% non-condensing
