· 5G high-speed cellular network.

· Supports efficient completion of large-scale device network deployments.

· Multiple dynamic routing protocols.

· Build gigabit networks, WAN/LAN.

· Fully industrialized design, no fear of harsh conditions.

· Support DTU client server.

· Easy to achieve secure gigabit Wi-Fi network with maximum 1800Mbps, 2.4G and 5G WiFi dual-band concurrently.

· Multi-dimensional data security to ensure network security: Multiple VPNs, 'Always-on' network for uninterrupted data services + Adapting to next-generation network trends to build an intent-based network.

  • Overview
  • Specifications

WiFi 6


5G Industrial Grade

Vehicle Router

High Stable丨High Security



Open Up A New Era of 5G

Equipped with 5G cellular network access capability,it provides new capabilities and experiences brought by 5G network, and high bandwidth,low latency and other features make data services no longer limited.

•Global carrier 5G network coverage access.

•5G high-speed network,2Gbps downlink.

•Low latency network, diversified data services.

•Support SA (independent network) and NSA (non-independent network).

版块 3

Easy gigabit secure

Wi-Fi network

Equipped with powerful Wi-Fi capability,

it can meet your wireless network

application whether it is convenient

wireless networking or secure wireless


•Maximum bandwidth up to 1800Mbps.

•Support for IEEE802.11N/G/B/AC/AX.

•Support 2.4G and 5G Wi-Fi dual-band

  concurrently, AP/client in one.

•Support multiple security authentication

  methods and encryption algorithms, it is

  easy to build a secure wireless network.

•5 Gigabit Ethernet, support WAN/LAN,

  can be divided into VLAN, to achieve

  high-speed network fast networking.


Complete security

• Secure virtual private network: support PPTP/L2TP, OPENVPN to ensure secure data transmission.

• Security protection: ACL access control, anti-DoS attack, intrusion protection (no Ping), attack prevention, IP-MAC binding and other firewall functions to protect the network from external attacks.


Full Industrial-grade Design

• From processing chips, communication modules to electronic devices, the design and manufacturing of all adopt high industrial grade standards to ensure that the product can operate stably for a long time without fear of challenges even in harsh environments;

• Rugged metal casing, fanless heat dissipation, IP30 protection, wide temperature and voltage, EMC level 4 or 3, can withstand extreme temperature, voltage instability, high electromagnetic radiation, rain and dust invasion and other harsh conditions security mechanism.


Link detection design

• Link layer detection, detecting link conditions,

  achieving automatic reconnection of dropped

  lines, maintaining long link connections PPP

  layer detection, maintaining the connection

  with the operator's network side, preventing

  forced dormancy.

• Detecting the stability of dial-up connections

  VPN tunnel detection, maintaining the stability

  of VPN tunnels, guaranteeing the continuity of

  data transmission Device failure self-healing


• Embedded hardware watchdog, self-healing

  equipment operation failure, ensuring that the

  device maintains high availability.


N9 AX1800 Industrial Grade 5G Vehicle Router

Suitable for large-scale machine networking

For example: Smart Manufacturing  / Industrial Automation  / Smart Power  / Intelligent Medical  / Intelligent Transportation  / Security and criminal investigation  / Oil and Gas Energy  / Industrial robotics  / Wilderness Big Data  / Intelligent agriculture  / Digital production equipment, etc.

Safe City
Industrial Automation
Factories and Mines
Electricity Meter Reading
Robot Data Upload
Security System


CPU: MT7621

Memory: Default DDR 3:2Gbites, Max 4Gbits

FLASH: Default 16 MB Nand Supports 8Gbits


Cellular: 5G network with 2Gbps downlink, Sub6 (frequency range is 450MHz to 6GHz) or 4G network Ethernet port

Ethernet Port: Supports 1 10/100/10000M adaptive WAN PHY interface

                       Supports 4 10/100/1000M adaptive LAN PHY interfaces

Industrial Serial Interface:

RS485 x 1 Industrial terminal, RS485 Signal:A, B, G, V, ESD Protection: 8KV

USB port: 1 USB 2.0

Reset button: Pinhole type reset button

SIM card holder: Drawer type card holder

TF: Support

Grounding terminal: Support


Frequency: Dual-band 2.4GHz/ 5GHz Wi-Fi

Transmission Bandwidth: Max. 1800Mbps

Transmission Protocol: IEEE802.11N/G/B/AC/AX

Wireless Power: 27dBm

Power Supply

Power Consumption: <25W

Power Connector: 4-pin vehicle locking terminal

Input Voltage: 9-15V

Software Specifications

Network Type: Compatible with majority of mobile operators and supports 5G/4G/3G

                NSA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79

                   SA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79

          LTE-FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71

          LTE-TDD: B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48

                  LAA: B46 / WCDMA: B1/ 2/ 4/ 5/ 8/ 19

LAN protocol: Support Ethernet

WAN protocol: Support static IP, DHCP, PPPoE

IP routing: Support static route

Firewall: Support DMZ, port mapping, virtual server access control list (ACL)

Embedded watchdog: Device operation self-test technology, device operation fault self-repair

Mechanical characteristics

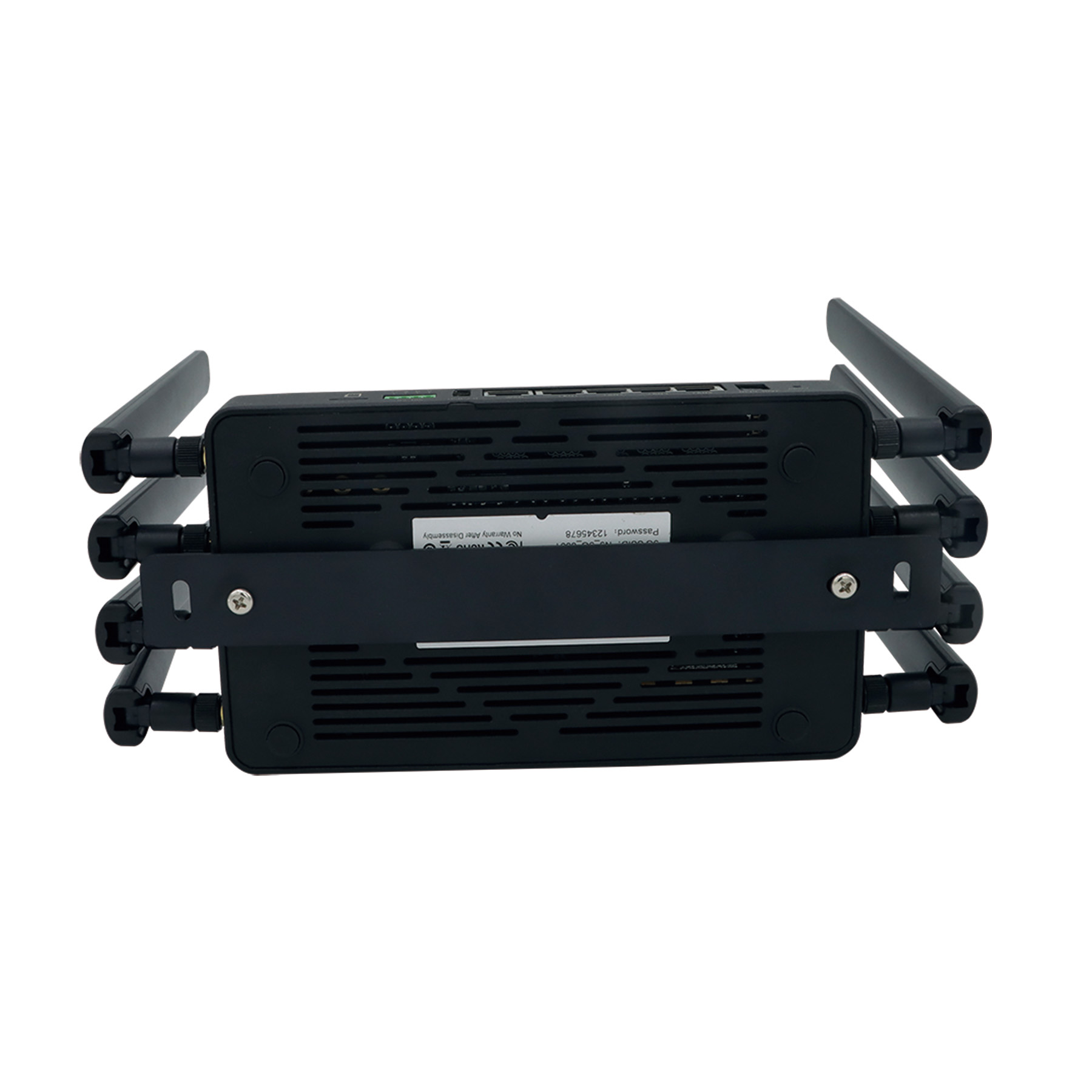

Mounting method: Desktop placement, wall mounting

Shell: Metal Structure

Product Size: 251*124*38mm

Protection class: IP30


Environment: Operating Temperature: -40°C ~ 75°C

                       Storage Temperature: -40°C ~ 100°C

                       Operating Humidity:10%~90%RH non-condensing

                       Storage Humidity: 5%~90%RH non-condensing


Certification: FCC, CE, SRRC, RoHS
