· Every components are made in China

· IEEEE 802.3x flow control provides reliable data transmission

· Compact and ultra-mini design

· 9~48V wide voltage

· Fanless design ensures quiet operation

· Automatic: MDI/MDIX eliminates need for crossover cables

· Auto-negotiation: guarantees maximum speed on each port

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

· Lightning surge machine static full protection; static support 8KV, surge 4KV

· Power supply support positive and negative access protection

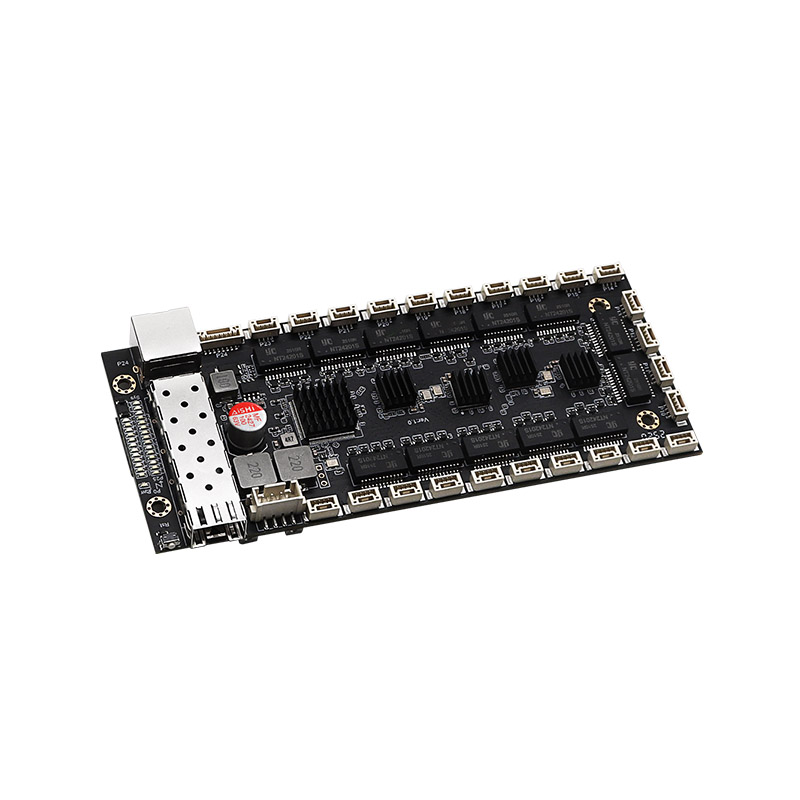

· Provides adaptive 24*10/100Mbps Ethernet GH1.25mm with locking cradle, 1*Gigabit RJ45 port and 1*Gigabit SFP port

· Operating Temperature: -40℃~85℃

· Support reverse protection, short circuit overcurrent protection, and surge protection, to ensure uninterrupted work of the device

· EMC high protection level, no fear of harsh environments

· Small size（156 ×69.5×19.9mm）, better adapted to industrial environments
