As industrial digital transformation enters an advanced stage, industrial networks have become the neural veins of smart manufacturing, security operation & maintenance and intelligent equipment. Autonomous controllability and high reliability are no longer optional technical features, but essential industry requirements. Reliance on overseas supply chains for a long time means potential risks lurking in every switching chip and circuit board.
This time, we break free from overseas reliance completely

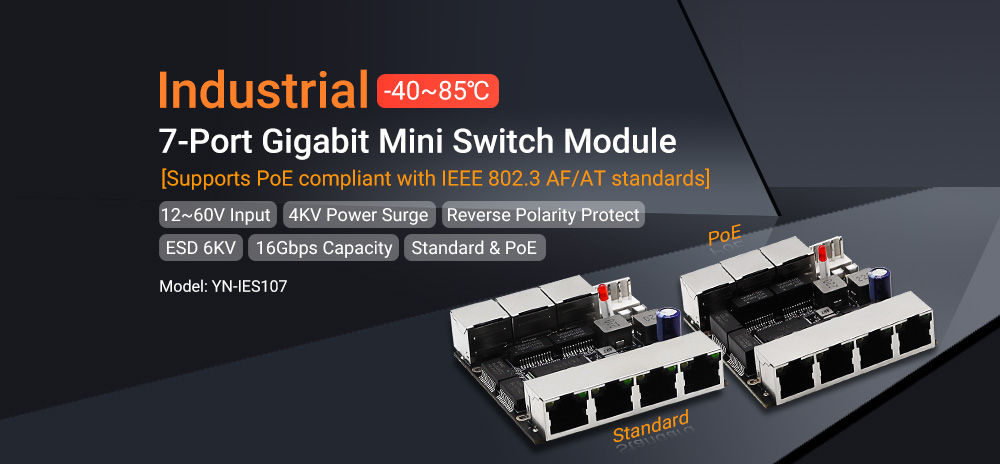

Upholding the full-domestic R&D and manufacturing philosophy, YINUO-LINK has completed multiple rigorous reliability tests, and officially released the YN-IES107 7-Port Gigabit Industrial Switch Module (Standard & PoE Version). Adopted a 100% domestic hardware solution, superior industrial protection and compact modular structure, it perfectly fits a wide range of industrial application scenarios.
Every single component is domestically sourced. This is not just a label, but our bottom line
Why must we adopt fully domestic components?
The discontinuation of a single imported capacitor could leave an entire production line without replacement parts two years down the road. An embargo on foreign switching chips will turn deployed equipment into isolated network nodes. Every component of the YN-IES107 is domestically produced. Its supply chain has undergone strict screening and validation, with no foreign-sourced materials used throughout the process. Thanks to full-lifecycle management of domestic material codes, this product enables key sectors including power dispatching, public security, special equipment and military supporting applications to operate with full confidence — ensuring stable supply and complete independence throughout the product lifespan.
More importantly, full-domestic configuration never means downgraded performance. Adopting an all-domestic component solution, we have completed full-spec industrial-grade tests without compromise, performance reduction or OEM branding. This marks a leap of China’s industrial communication industry from usable to user-friendly, and ultimately to trustworthy.
Industrial-grade robust protection: Operating from -40℃ to 85℃, it performs reliably in all harsh environments
All-domestic components must stand up to real industrial scenarios. Designed targeting three harshest operating environments, including frigid outdoor sites, high-temperature workshops and strong electromagnetic interference sites, the YN-IES107 adopts six-fold protection design to deliver solid reliability:
· Ultra-wide temperature design: Stable operation from -40℃ to 85℃, suitable for extreme environments such as frigid outdoor areas, high-temperature workshops and enclosed cabinets.
· Full-range power protection: Supports ultra-wide voltage input of 12~60V. It features reverse polarity protection, short-circuit protection and over-current protection, with a 4KV surge protection rating. The module remains intact even under drastic power fluctuations or lightning induction.
· ESD protection: 6KV contact discharge, delivering excellent anti-static performance for frequent hot swapping and dry industrial environments.
· High-level EMC protection: Resists strong electromagnetic interference generated by inverters, high-power motors and electric welders. Ideal for power substations, welding workshops and industrial robot clusters.
· Fanless & silent operation: Adopts natural heat dissipation. It produces zero noise, prevents dust accumulation and eliminates failure risks from moving parts.
· Premium long-lifespan components: The PCB with electroless nickel and gold plating features superior corrosion and oxidation resistance. High-grade domestic long-life capacitors greatly extend the overall service life and reduce maintenance and replacement costs.

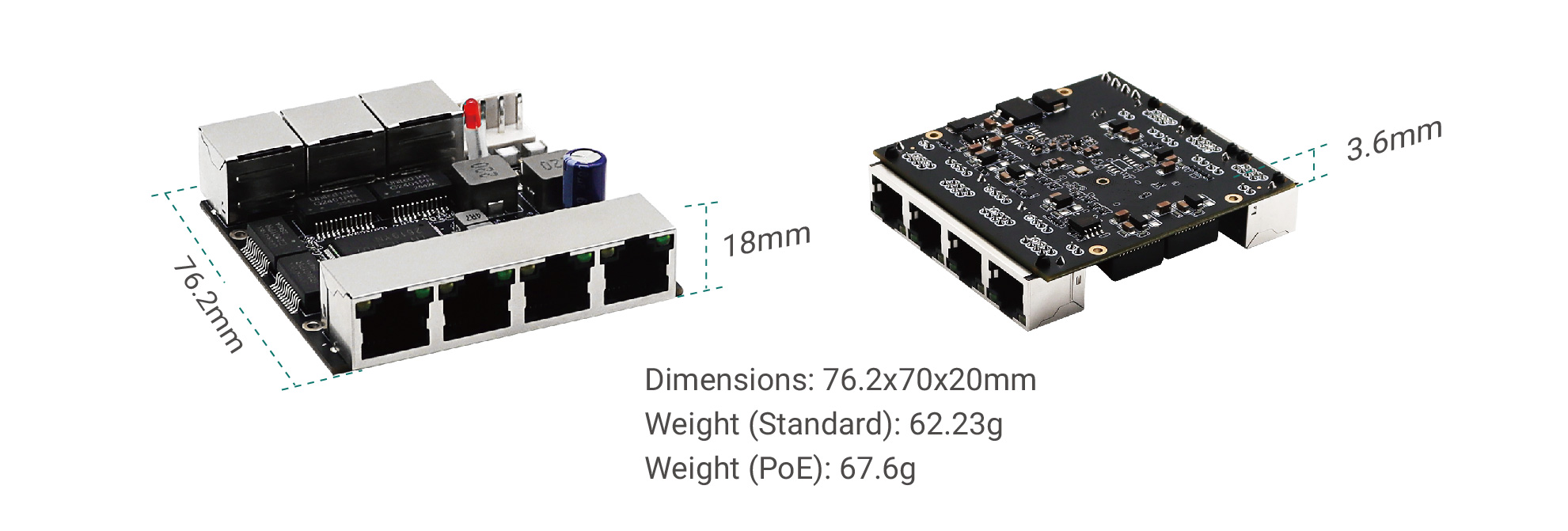

Overall dimensions: only 76.2 × 70 × 20 mm. It can be easily installed in confined spaces of various compact devices, including miniature industrial controllers, industrial robot control cabinets, intelligent terminals, rail transit on-board equipment and vehicle-mounted terminals.
7 Gigabit Ports + 16Gbps Backplane: Compact module with exceptional throughput
The YN-IES107 is equipped with 7 auto-negotiating 10/100/1000Mbps RJ45 Ethernet ports, all supporting wire-speed Gigabit forwarding. It delivers a non-blocking backplane bandwidth of 16Gbps. Combined with store-and-forward architecture and a 2K auto-learning MAC address table, it ensures smooth operation without lag or packet loss even when multiple devices are connected simultaneously.
Each port supports auto speed negotiation and Auto-MDI/MDIX function. There is no need to distinguish between crossover and straight-through cables. Plug and play design greatly simplifies on-site cabling and commissioning.
Two versions for targeted selection: Standard and PoE models
The two versions of YN-IES107 share identical protection class, temperature range and hardware quality. Select according to your actual demands:
PoE Version: Compliant with IEEE 802.3af/at standards, it delivers up to 30W output per port. A single Ethernet cable transmits both data and power. Ideal for deployment of IP cameras, wireless APs and compact sensor terminals. It cuts costs and simplifies wiring by eliminating separate power cables in security monitoring and outdoor low-voltage projects.
Standard Version: Designed purely for data transmission. It features ultra-low power consumption of only 1.5W at no load and minimal heat generation. Suited for network expansion scenarios such as industrial computers, PLCs and automation controllers. Energy efficient and highly stable for long-term operation.
Full-scenario coverage: One device for multiple industries
The YN-IES107 is not merely a domestic prototype for lab use, but a practical product adaptable to a wide range of typical industrial scenarios:
· Industrial Robots & Automated Production Lines: Built into robot control cabinets to add 6 Gigabit ports for connection with servos, vision systems and PLCs. High EMC protection resists interference from inverters and prevents packet loss and equipment collision.
· Fire Trucks & Emergency Rescue Vehicles: Supports direct connection to vehicle batteries via 12~60V wide voltage input. Equipped with reverse polarity protection and 6KV surge protection. It links PTZ cameras, command tablets and 4G routers to build an on-board operational network.
· Full-range Security Monitoring (PoE Version): Delivers power and data transmission over a single Ethernet cable. Each port provides up to 30W power to drive IR dome cameras. With a working temperature range of -40℃~85℃, it suits outdoor poles, underground pipe corridors and border outposts.
· New Energy Stations (Wind Power / Photovoltaic / Energy Storage): Operating under drastic temperature changes, salt mist and condensation inside nacelles or cabinets. Adopting ENIG-plated PCB and wide temperature design, it connects main wind turbine controllers, vibration monitoring devices, weather stations, billing units and back-end communication modules.
· Intelligent Traffic & Roadside Cabinets: 6KV surge protection defends against lightning strikes. Wide voltage input works with traffic power supplies, connecting snapshot cameras, signal lamp controllers and RSUs.
· Rail Transit & On-board Signal Systems: Train cabins feature volatile power supply, intense vibration and complex electromagnetic environments. Featuring wide voltage input, 4KV surge protection and high EMC immunity, the module safely connects to train DC power systems. It enables networking for on-board PIS, cameras, Wi-Fi hotspots and door controllers. Its compact size allows easy installation in driver consoles and equipment cabinets.
Officially Launched Now: A Reliable Domestic Choice with Guaranteed Supply and Uncompromised Quality
The YN-IES107 is a fully domestically developed module that serves as a direct replacement for imported counterparts. It addresses three core practical challenges of your existing equipment:
· Lead time of imported chips has extended from 12 weeks to indefinite delivery.
· Frequent disconnections caused by high temperature, electromagnetic interference and unstable power supply on site.
· No suitable industrial switches available to fit miniaturized equipment.
Featuring fully domestic core components and comprehensive industrial protection, along with a compact modular design and two optional versions, the YN-IES107 is a practical achievement from YINUO-LINK’s long-term dedication to industrial communication. We believe that an independent and controllable industrial network starts with the reliable performance of every domestic component.
Effective immediately, orders and sample requests for the standard and PoE versions of YN-IES107 are now accepted.
Feel free to contact YINUO-LINK for datasheets, embedded integration guides and quotations.
