Separate 4G and 5G versions available
When data transmission from remote pump stations is interrupted by signal fluctuations on stormy nights, when outdoor energy storage cabinets lose remote access in unattended remote areas, and when latency spikes at edge computing nodes under complex electromagnetic environments — these issues are not caused by equipment failures, but by the lack of a wireless communication link specifically built for industrial scenarios.
The solution lies in a 4G/5G communication core tailored for industrial sites. The YN-HIR5105 is exactly what you need.
YINUO-LINK new-generation YN-HIR5105 4G/5G 5-Port Gigabit WiFi 6 Industrial Router Module is engineered for complex operating environments with no broadband access, difficult wiring and stringent operational requirements. Integrating 4G/5G full-network access, WiFi 6, five Gigabit ports and industrial-grade protection, it delivers stable, low-latency and manageable wireless networking for critical industrial devices.
4G/5G Full Network Access: Truly Free from Cable Restrictions
The YN-HIR5105 comes in separate 4G and 5G versions. Equipped with mature industrial-grade full-network modules, it supports frequency bands of major global operators. It is not merely a backup link, but a primary and reliable communication hub.

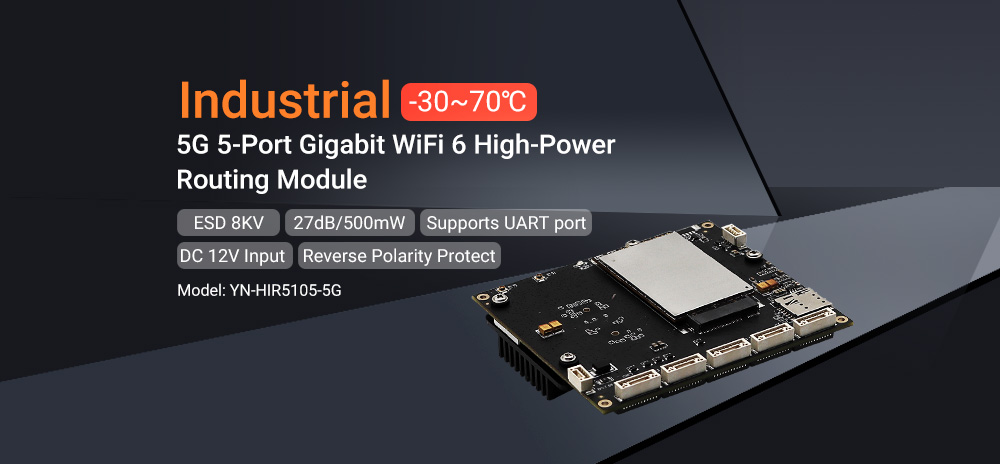

5G Version (for high-bandwidth & low-latency scenarios)
· Supports 5G SA/NSA dual modes with full Sub-6GHz frequency band coverage.
· The theoretical peak downlink rate of 5G cellular network reaches 2.4Gbps. It stably delivers hundreds of megabits of bandwidth even in complex operating environments.
· End-to-end latency is as low as 10~20ms, ideal for latency-sensitive and high-reliability scenarios such as remote control of industrial robots, real-time 4K/8K video transmission and AGV cluster scheduling.

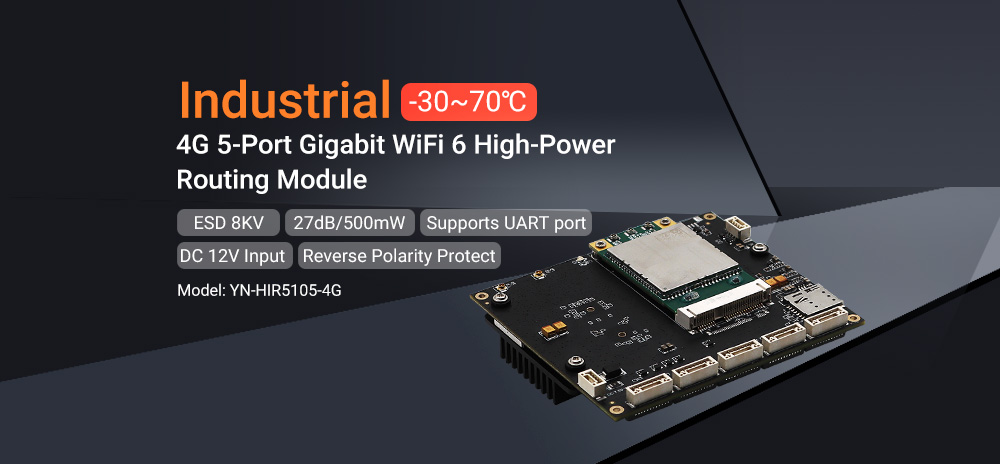

4G Version (Stable, Mature & Wide Coverage)
· Supports LTE-FDD / LTE-TDD, covering bands of China's three major carriers and mainstream overseas operators.
· Maximum downlink rate up to 150Mbps (Cat 4). The actual bandwidth fully supports industrial tasks including multi-channel sensor data transmission, PLC status reporting and remote maintenance.
· Ideal for scenarios with mature 4G coverage and strict requirements for stability and compatibility, such as smart parcel lockers, self-service terminals, testing instruments and fixed monitoring systems.
No fiber cabling, no bridging, no reliance on on-site Wi-Fi required. The YN-HIR5105 equips every mobile device with built-in cellular connectivity right out of the factory. It powers up and operates instantly anywhere with operator network signals.
Industrial-grade Protection: Resist extreme temperatures and interference
Even high-performance 4G/5G modules require a robust hardware platform to operate steadily in harsh conditions. Designed for demanding industrial sites from the ground up, the YN-HIR5105 adopts premium components to withstand tough working environments.

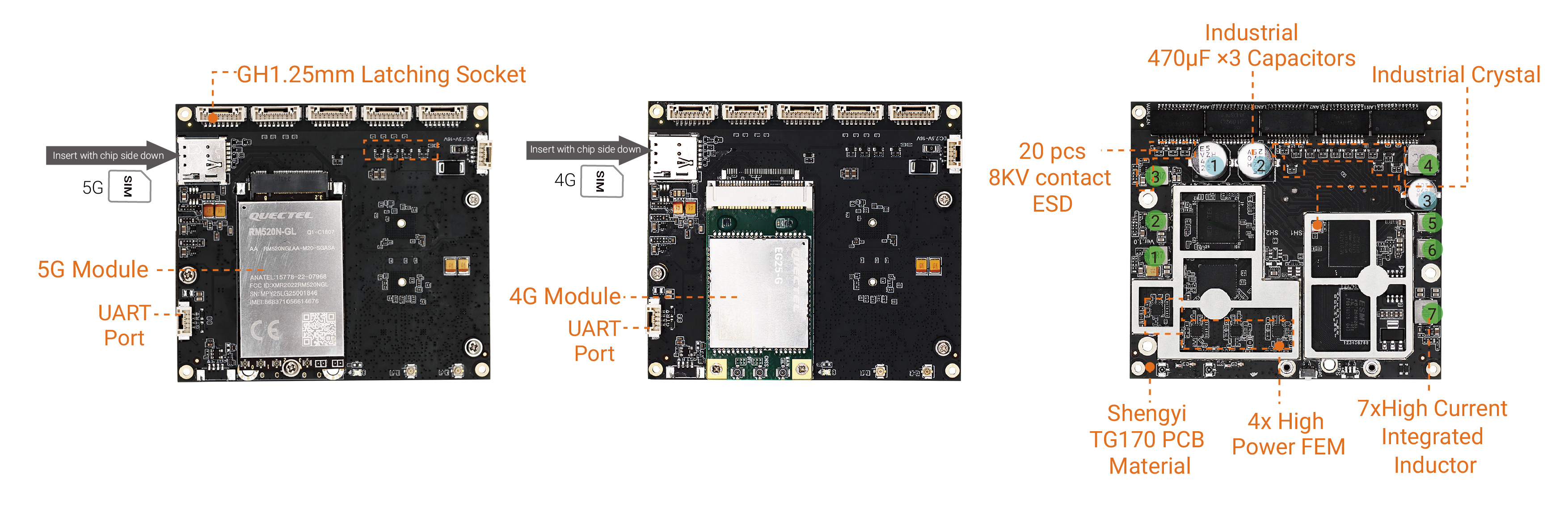

· Premium Components: Adopts electroless nickel gold PCB, high-spec long-life capacitors, metal shielding cover and large heat sink. Features excellent oxidation resistance, corrosion resistance and heat dissipation for longer service life and lower maintenance costs.
· Wide Temperature Range: Supports an ultra-wide operating temperature from -30℃ to 70℃. It runs stably 7×24 hours for outdoor base stations in frigid northern winters and enclosed stuffy workshops in the south.
· Hardware Watchdog: Built-in independent hardware watchdog. It automatically resets the device in case of abnormal crash, ensuring high availability for unattended operation and greatly reducing on-site maintenance work.
· Electrical Protection: 8KV contact ESD protection and DC12V reverse polarity protection. Effectively withstand voltage fluctuations and static interference to guarantee long-term stable operation.

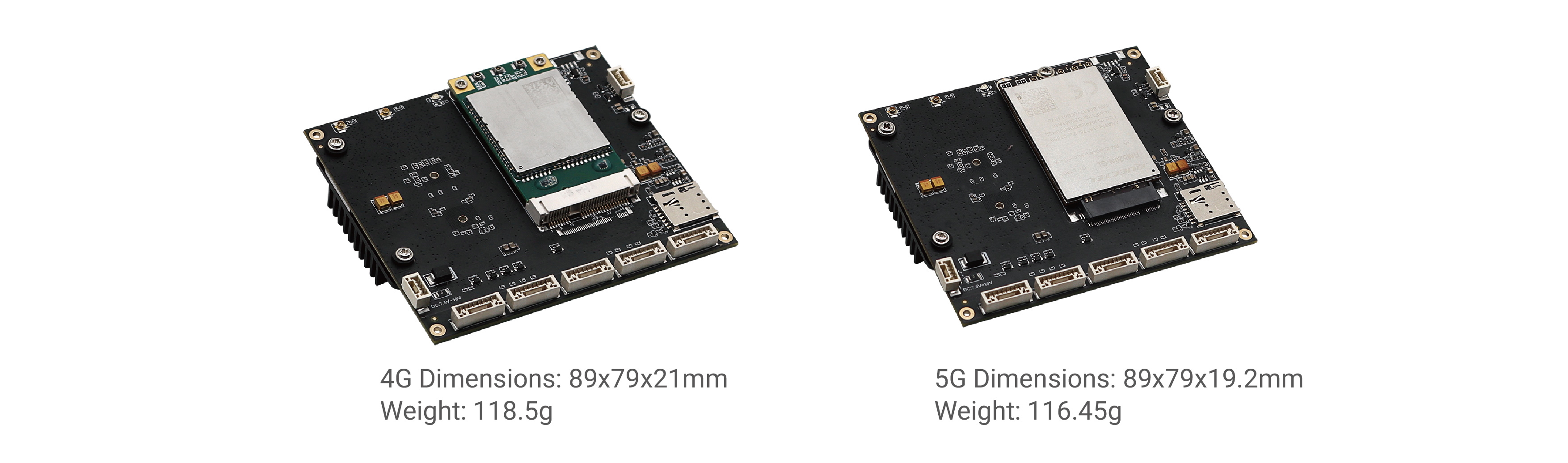

· Compact Size: Dimensioned at only 89×79mm. The lightweight design allows easy embedding, ideal for space-constrained scenarios such as AGVs, robotic arms, inspection drones, medical devices, smart street lights, unmanned retail terminals and outdoor monitors.
5-Port Gigabit Ethernet + Wi-Fi 6: Deliver full 4G/5G bandwidth without loss
A high-speed 4G/5G uplink requires powerful data distribution capabilities. The YN-HIR5105 delivers comprehensive distribution performance to meet your needs.
· 5 Gigabit Ports: 5 auto-adaptive 10/100/1000M Ethernet ports with IEEE 802.3x flow control. It connects wired devices including PLCs, industrial cameras, industrial controllers and displays simultaneously to fully utilize 5G bandwidth.
· Dual-band Wi-Fi 6: Equipped with 4 high-power FEMs. Wireless coverage reaches 100-150 meters in open areas (subject to actual environment). Adopting OFDMA and MU-MIMO technologies, it drastically cuts latency for multi-device concurrent access and enables smooth 4K/8K ultra HD video transmission, delivering high-speed wireless performance for high-load multi-terminal scenarios.
Protocol Compatibility & Security: From Modbus to Cloud
The YN-HIR5105 is more than a router — it is an industrial IoT gateway.
· Rich Protocol Support: Compatible with mainstream IoT protocols including TCP/UDP, Modbus and MQTT, enabling local device control, remote data transmission and cloud access effortlessly.
· Flexible Networking: Supports dynamic IP, static IP and PPPoE, along with MAC cloning, port forwarding, DMZ and IP-MAC binding.
· Enhanced Security: Built-in firewall and multiple security mechanisms protect critical industrial data, ideal for 4G/5G transmission over public networks.
Open API Interface: Enable Flexible Integration & Intelligent Management
The YN-HIR5105 features complete HTTP APIs, allowing third-party systems to perform remote configuration, status monitoring and automatic maintenance. All APIs adopt standard request and response mechanisms for rapid integration.
Core API capabilities include:
· Retrieve overall device information: Firmware version, operating time, LAN IP, SIM card details, signal strength, network operator, APN, traffic statistics and more.
· GPS positioning data: Longitude, latitude, altitude and coordinate system.
· Network configuration: LAN IP, time zone, module redial and device reboot.
· APN management: Add and delete custom APN entries.
· 5G mode selection: Auto (NSA+SA), NSA only, SA only.
· Wi-Fi configuration: SSID and password for 2.4G/5G dual bands; supports encrypted and open networks.
· Network slicing management: Add, modify and delete bindings for eMBB, URLLC and other network slices.
· Factory reset: Remote activation with automatic reboot.
The open API design enables the YN-HIR5105 to seamlessly integrate with existing operation & maintenance platforms and edge management systems. It delivers advanced O&M capabilities including batch configuration, automatic inspection and fault self-recovery, upgrading the industrial routing module from a simple connectivity tool to a programmable communication node.
Full-scenario Adaptation: Deliver Reliable Connectivity for Diverse Industries
Featuring an all-in-one solution of native 4G/5G connectivity, industrial-grade protection, high-speed data distribution and open APIs, the YN-HIR5105 is the top choice for numerous intelligent upgrading projects.
· Industrial Automation: Connect industrial cameras, PLCs and outdoor pump station monitoring systems, and realize production line data collection & transmission to build wireless digital factories.
· Intelligent Handling: Enable real-time network access for AGVs, AMRs and driverless forklifts, delivering low-latency commands and higher scheduling efficiency.
· Smart Robots: Provide stable video transmission and remote control links for industrial, service and EOD robots.
· Commercial Smart Devices: Support wireless networking for smart parcel lockers, self-service terminals and outdoor testing instruments.
· Vehicular Communication: Serve as the wireless communication hub for special vehicles, buses, mining trucks, sanitation vehicles and other mobile platforms.
The YN-HIR5105 4G/5G Gigabit Wi-Fi 6 Industrial Routing Module is a latest masterpiece from YINUO-LINK, a long-standing player in the industrial communication industry. Boasting six core strengths — industrial-grade protection, full-network compatibility, dual-band Wi-Fi 6, multi-protocol support, open APIs and easy installation — it effectively addresses major networking challenges for industrial mobile devices.
This is more than a mere parameter upgrade. Rooted in 4G/5G connectivity and empowered by open APIs, it is a core infrastructure tailor-made for the era of intelligence and wireless networking, designed to tackle real pain points in industrial mobile scenarios.
Effective immediately, orders and sample requests for YN-HIR5105 are now accepted.
Feel free to contact YINUO-LINK for datasheets, integration guides and quotations.
