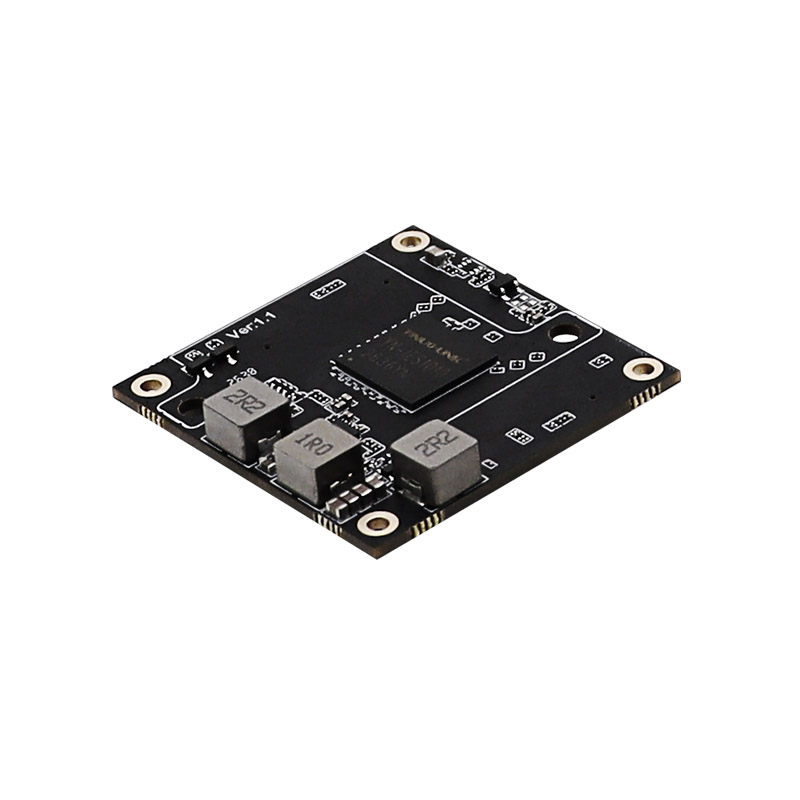

YN-IES1010 Industrial 10-Port 2.5G PoE Switch Module

Ethernet Switch Module

Online Purchase

YN-IES1010 Industrial 10-Port 2.5G PoE Switch Module

· Plug and Play, no configuration required

· IEEE 802.3x flow control for reliable data transmission

· Compact and small‑size design

· 12‑57V Wide Voltage Input

· Fan‑less design for quiet operation

· Auto MDI/MDIX, eliminating the need for crossover cables

· Auto‑negotiation for maximum speed on each port

· Full duplex complies with IEEE 802.3x standard; half duplex adopts Backpressure standard.

· Complete surge and ESD protection, with ESD protection up to 8KV.

· Reverse‑polarity power protection (no power output upon reverse connection), 4KV surge protection

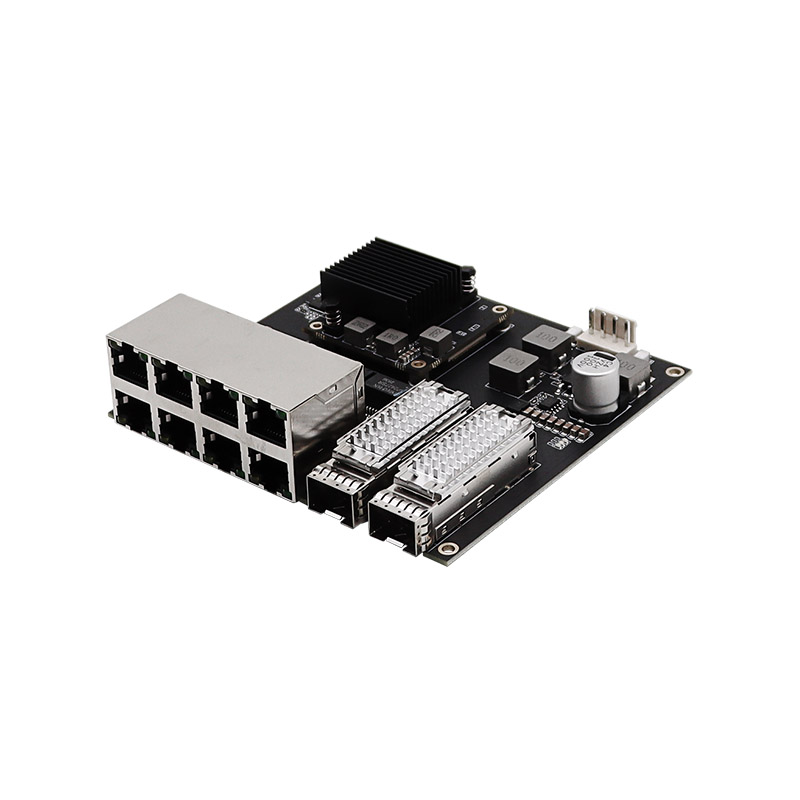

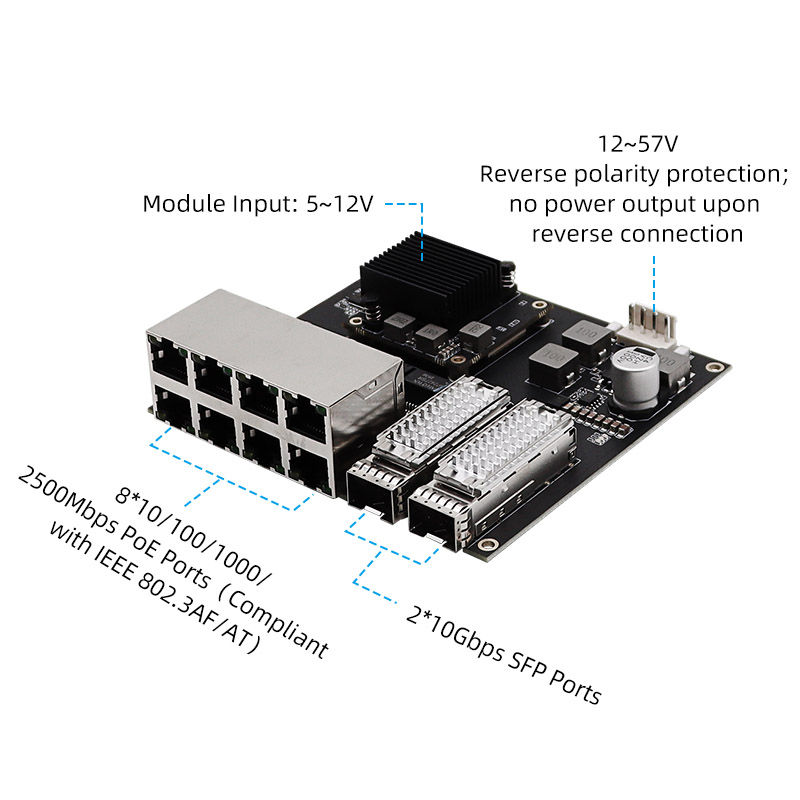

· Provides 8×10/100/1000/2500Mbps auto‑sensing PoE electrical ports and 2×10Gbps SFP+ optical ports

· PoE compliant with IEEE 802.3af/at standards

· Operating temperature: -40℃ ~ 85℃

· High‑grade EMC protection, reliable under various harsh environments

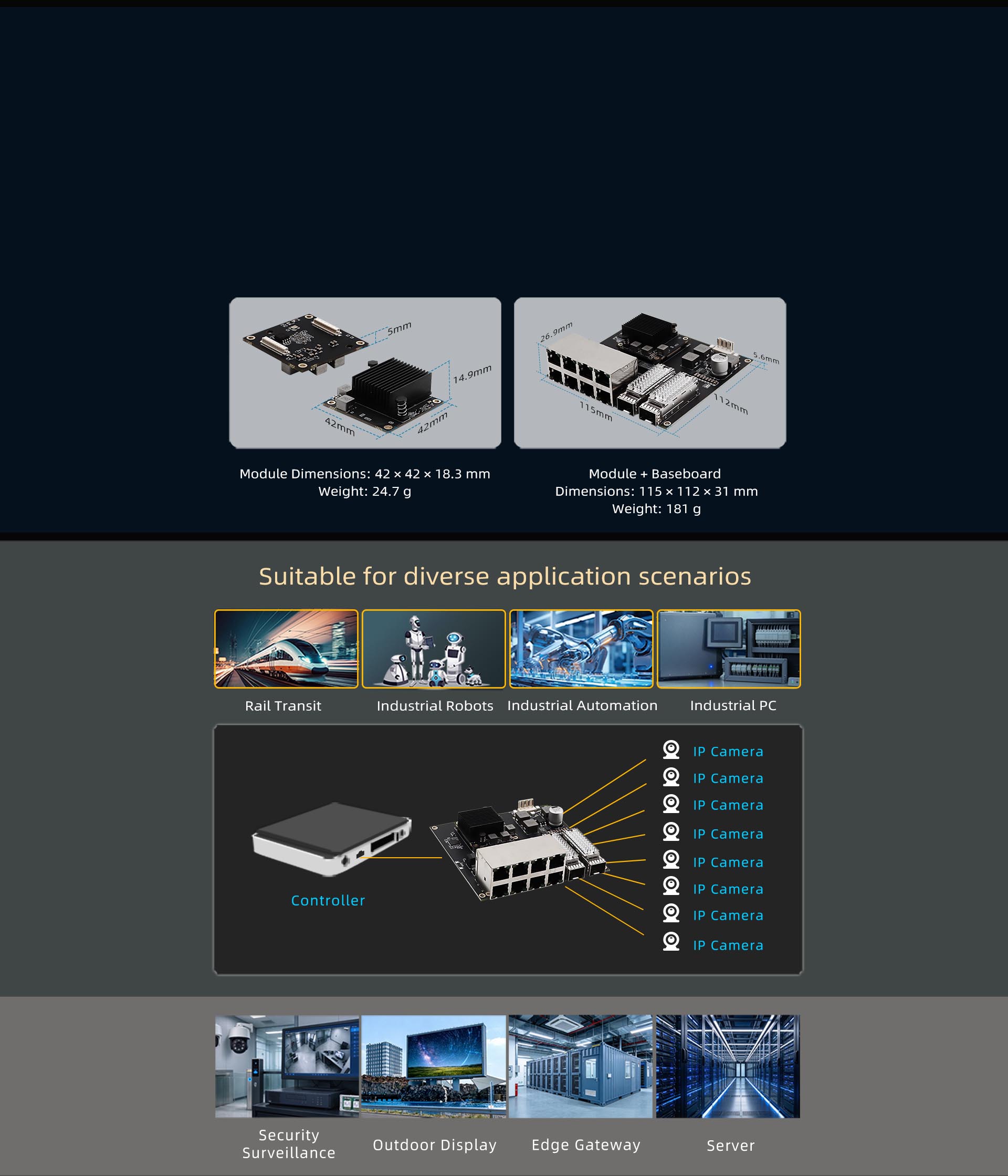

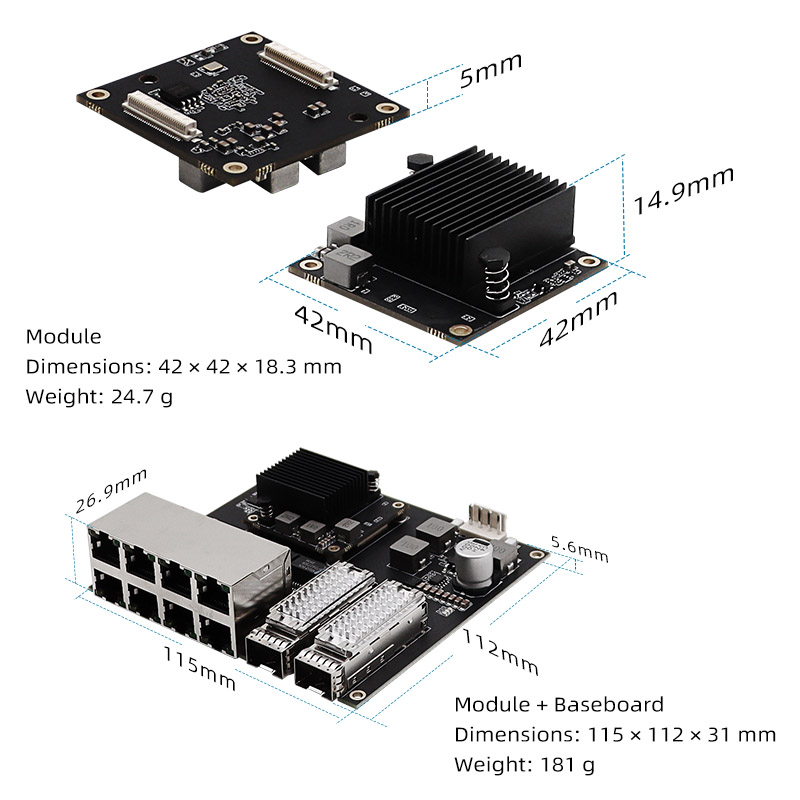

· Compact small form‑factor (42 × 42 × 18.3 mm), well‑suited for industrial environments

Services

Overview
Specifications

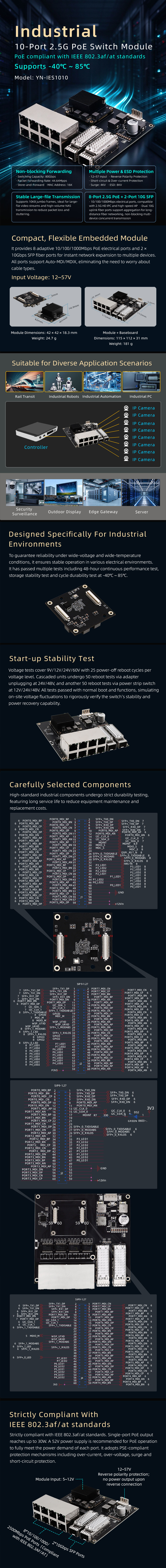

Industrial

10-Port 2.5G PoE Switch Module

PoE supports IEEE 802.3 af/at standard

-40~85℃

Model: YN-IES1010

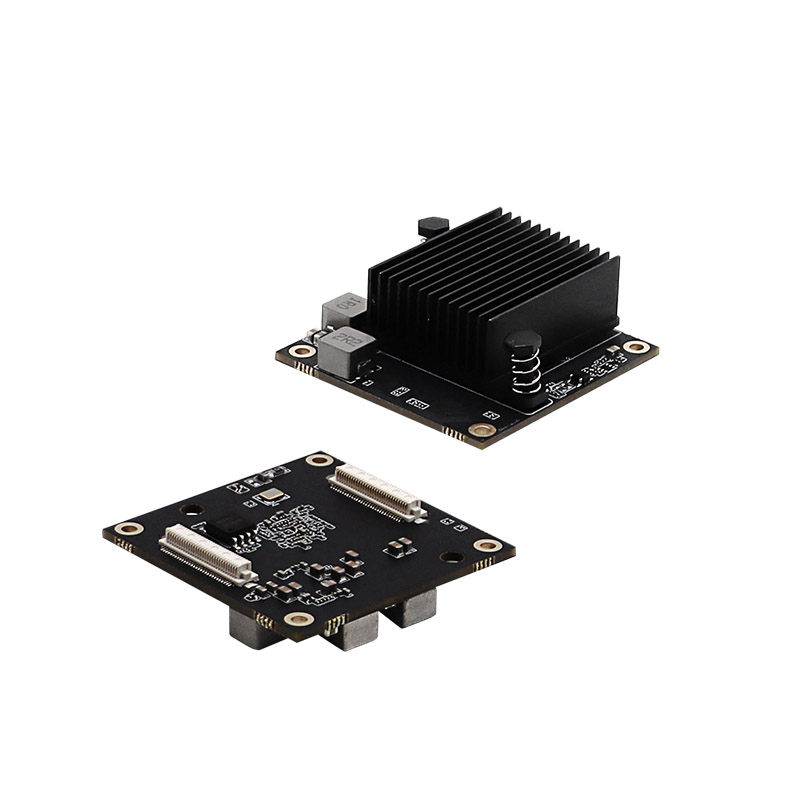

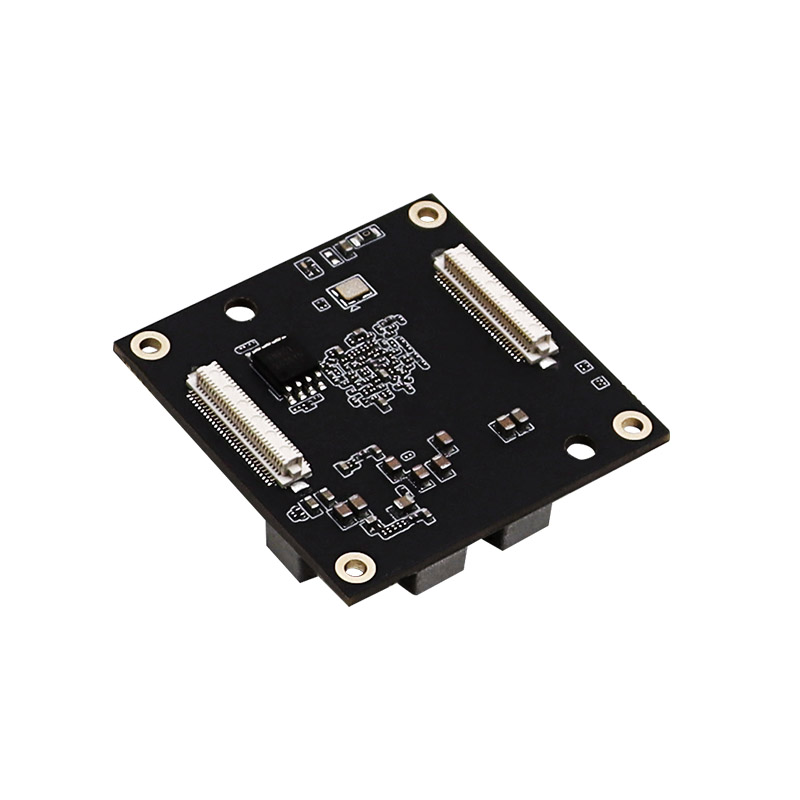

Compact, Flexible Embedded Module

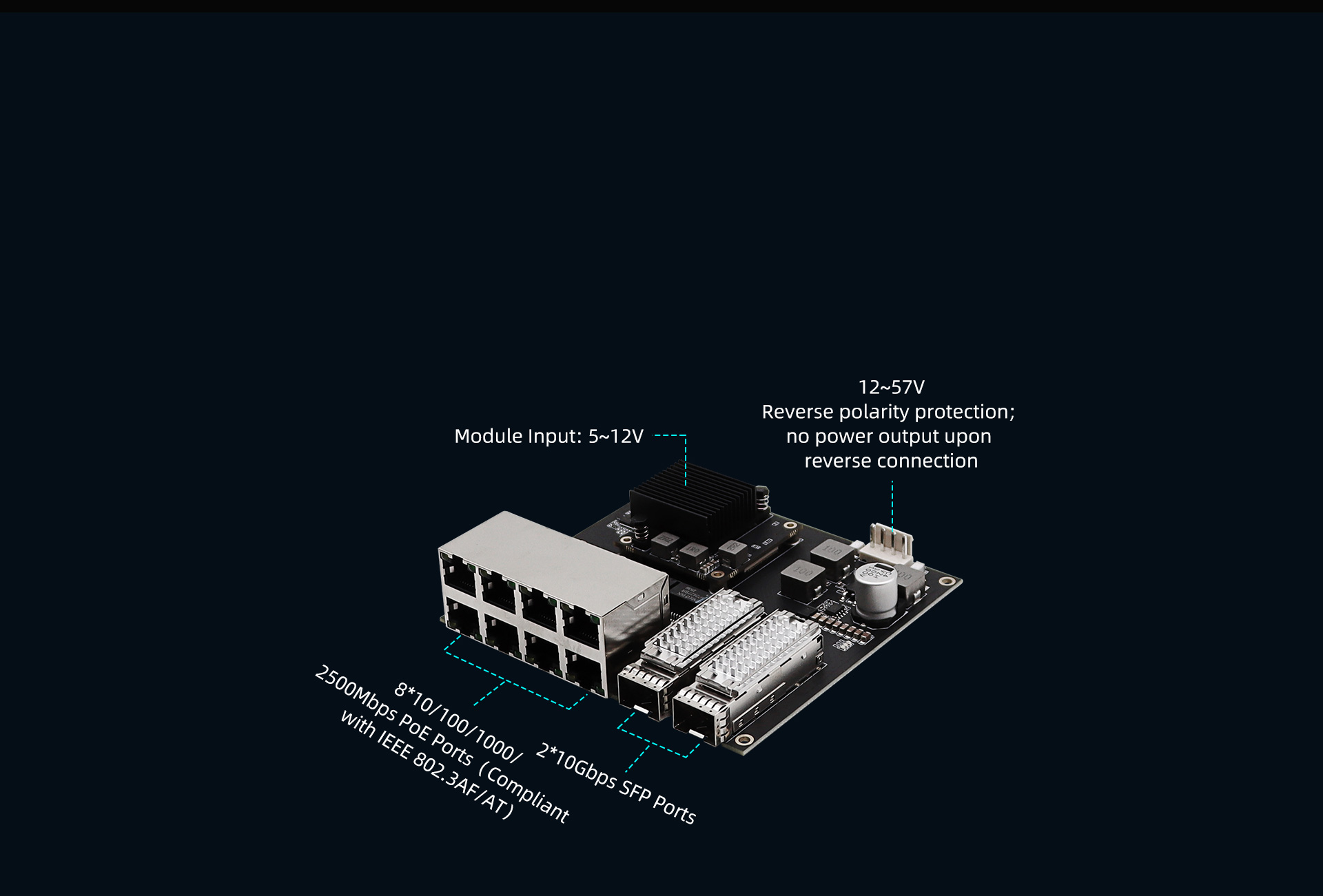

It provides 8 adaptive 10/100/1000Mbps PoE electrical ports and 2 × 10Gbps SFP fiber ports for instant network expansion to multiple devices.

All ports support Auto-MDI/MDIX, eliminating the need to worry about cable types.

Input Voltage 12~57V

Designed for Industrial Environments

To guarantee reliability under wide-voltage and wide-temperature conditions, it ensures stable operation in various electrical environments.

It has passed multiple tests including 48-hour continuous performance test, storage stability test and cycle durability test at -40℃ ~ 85℃.

Startup Stability Test

Voltage tests cover 9V/12V/24V/60V with 25 power-off reboot cycles per voltage level. Cascaded units undergo 50 reboot tests via adapter unplugging at 24V/48V, and another 50 reboot tests via power strip switch at 12V/24V/48V. All tests passed with normal boot and functions, simulating on-site voltage fluctuations to rigorously verify the switch's stability and power recovery capability.

Selected Components

High-standard industrial-grade components ensure excellent adaptability to harsh electromagnetic interference environments like power facilities and industrial workshops. Rigorous durability testing guarantees a long service life, effectively cutting down equipment maintenance and replacement costs.

Strictly complies with the

IEEE 802.3 af/at standards

It strictly complies with the IEEE 802.3af/at standards, with a single port providing up to 30W of power. When using PoE power supply, a 52V power source is recommended to fully meet the power demand of each port. It is equipped with overcurrent, overvoltage, surge, and short-circuit protection mechanisms that comply with the PSE standard.
