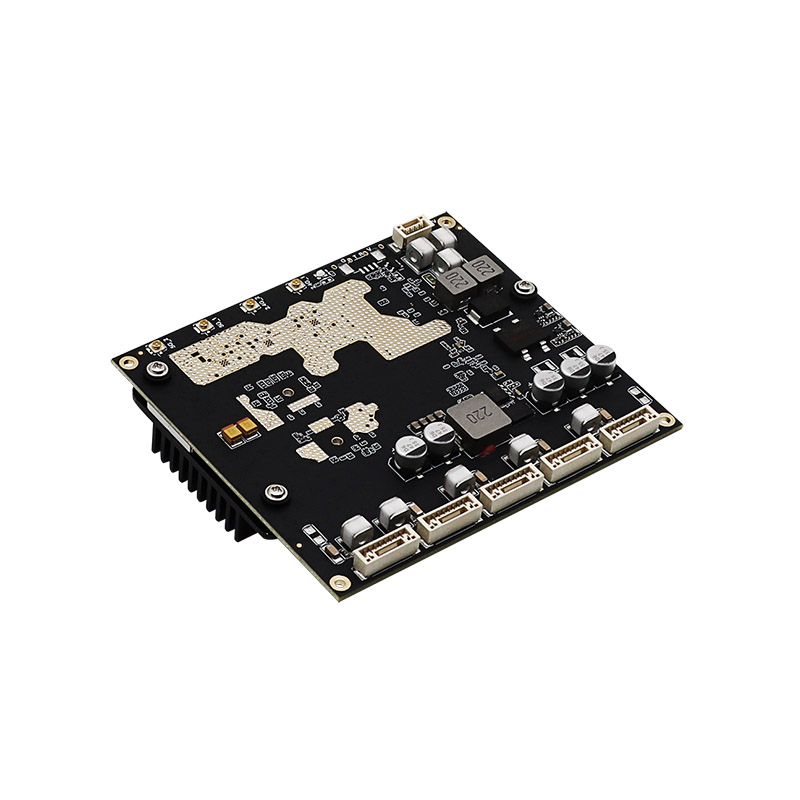

YN-MXCPE1800R Industrial 5-Port Gigabit Dual-Band Wireless Client

· Flexible Multi-mode Deployment: Supports Client and Client-Router modes for flexible networking in various industrial scenarios.

· Intelligent Dual-band Wireless Roaming: Self-developed enhanced dual-band roaming enables fast switching to better APs under both modes to keep mobile terminals connected stably.

· Concurrent Dual-band & High-speed Transmission: 2.4GHz+5GHz concurrent bands, up to 1800Mbps wireless rate to meet industrial high-bandwidth, low-latency data transmission.

· Rugged Industrial Design: Compact and robust structure with efficient heat dissipation, suitable for harsh complex industrial environments.

· Auto MDI/MDIX: Auto detects Ethernet cables; no need to separate straight-through and crossover cables to simplify field deployment and maintenance.

· Comprehensive Surge & ESD Protection: 8KV ESD and 2KV lightning surge protection for reliable operation under complex electrical conditions.

· 5× Gigabit Industrial Ethernet Ports: Five 10/100/1000Mbps adaptive ports with 8Pin locking GH1.25mm connectors, supporting multi-device access on site.

· Wide-temperature Industrial Design: Operates stably from -40°C to 65°C for long-term use outdoors, in cabinets and other harsh environments.

· Multiple Electrical Safety Protections: Built-in reverse polarity, short-circuit, over-current and surge protection to improve reliability and service life.

· High-grade EMC Protection: High-level EMC capability against complex electromagnetic interference for stable wired and wireless communications.

· Compact Form Factor for Flexible Installation: Dimension 89 × 79 × 22.5 mm, compact size saves space and fits industrial field deployment.

Services

Overview
Specifications

AX1800

5-Port Gigabit Dual-Band Wireless Client

Model: YN-MXCPE1800R

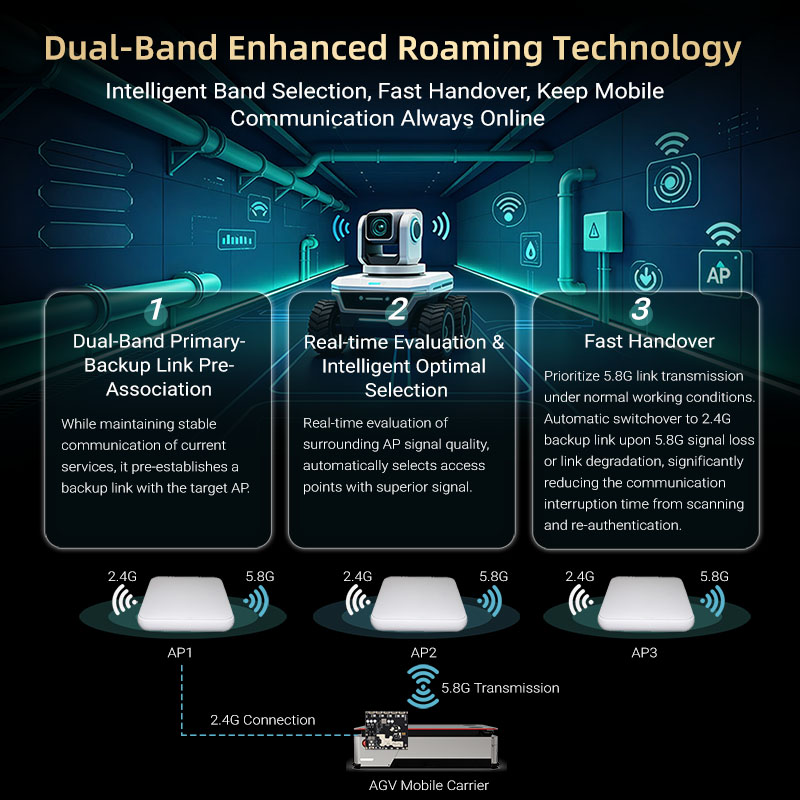

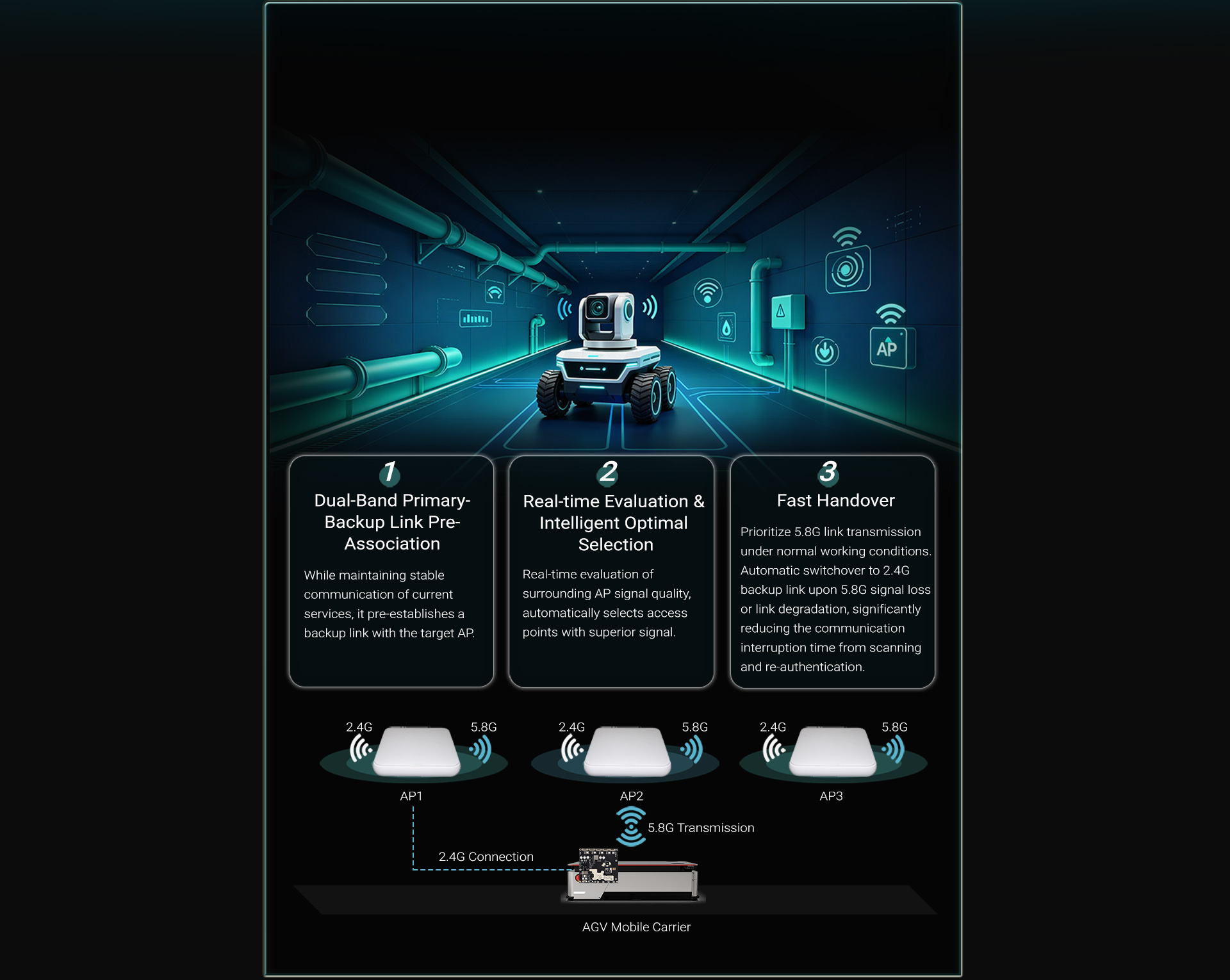

Dual-Band Enhanced Roaming Technology

Intelligent Band Selection, Fast Handover, Keep Mobile Communication Always Online

Small Multi- High Selected

Embedded mode Power Components

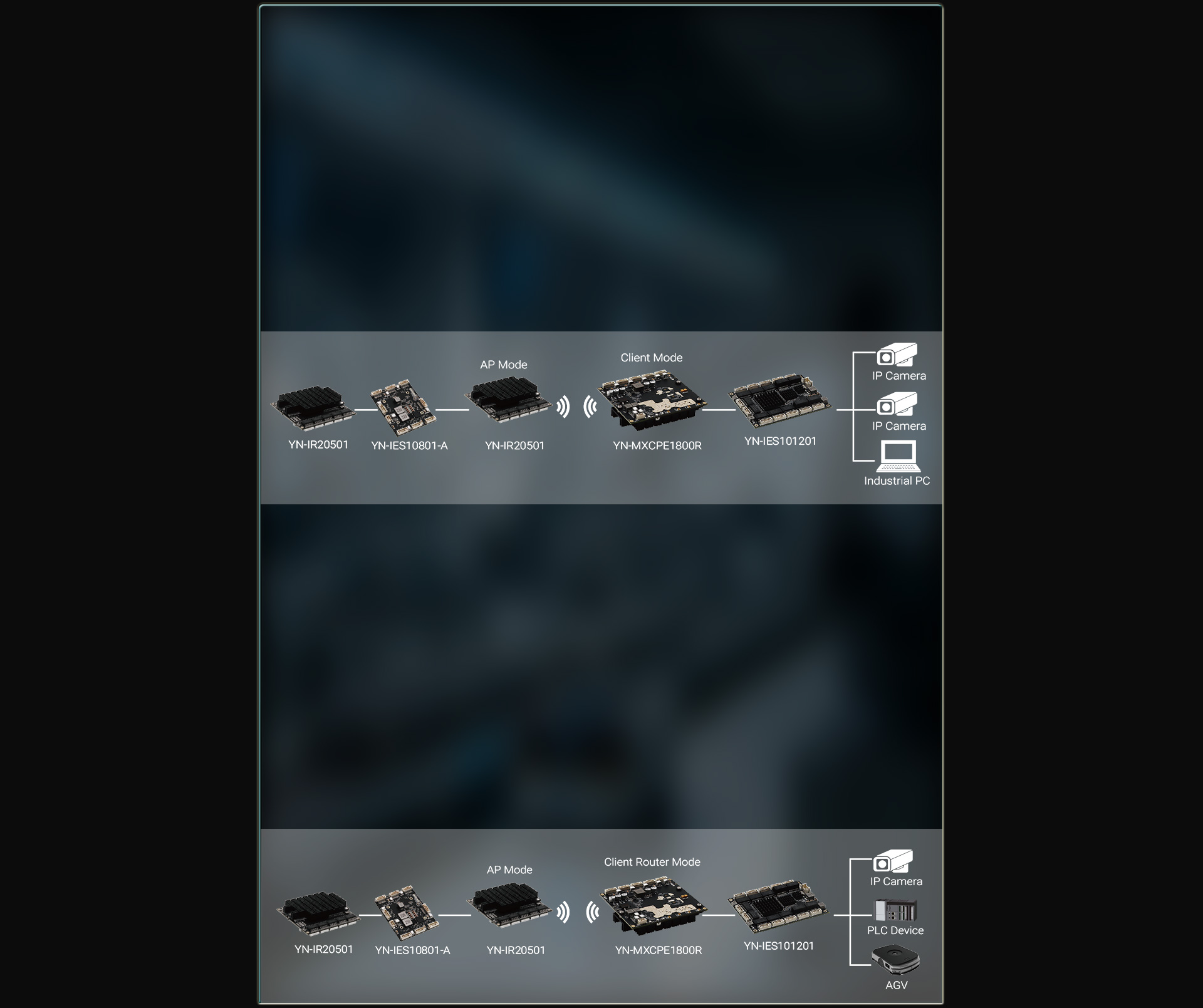

Flexible Deployment with Multiple Modes

Supports two transmission coverage modes: Client and Client Router.

In Client mode, the device works like a wireless adapter to receive signals from front-end APs. Wired terminals connected to the Client device can access the network from the AP or base station.

Client Router mode is a derivative of Client mode and can be regarded as a combination of Client mode and routing mode. In Client Router mode, the WLAN side of the device behaves the same as in Client mode and can bridge the front-end AP. Meanwhile, this mode integrates partial functions of routing mode: it divides the WLAN and LAN ports into two subnets and supports static routing, DHCP server, NAT, port forwarding and other functions. In this mode, users are allowed to assign private IP addresses to LAN-side devices and protect LAN-side devices from interference originating from the WLAN side.

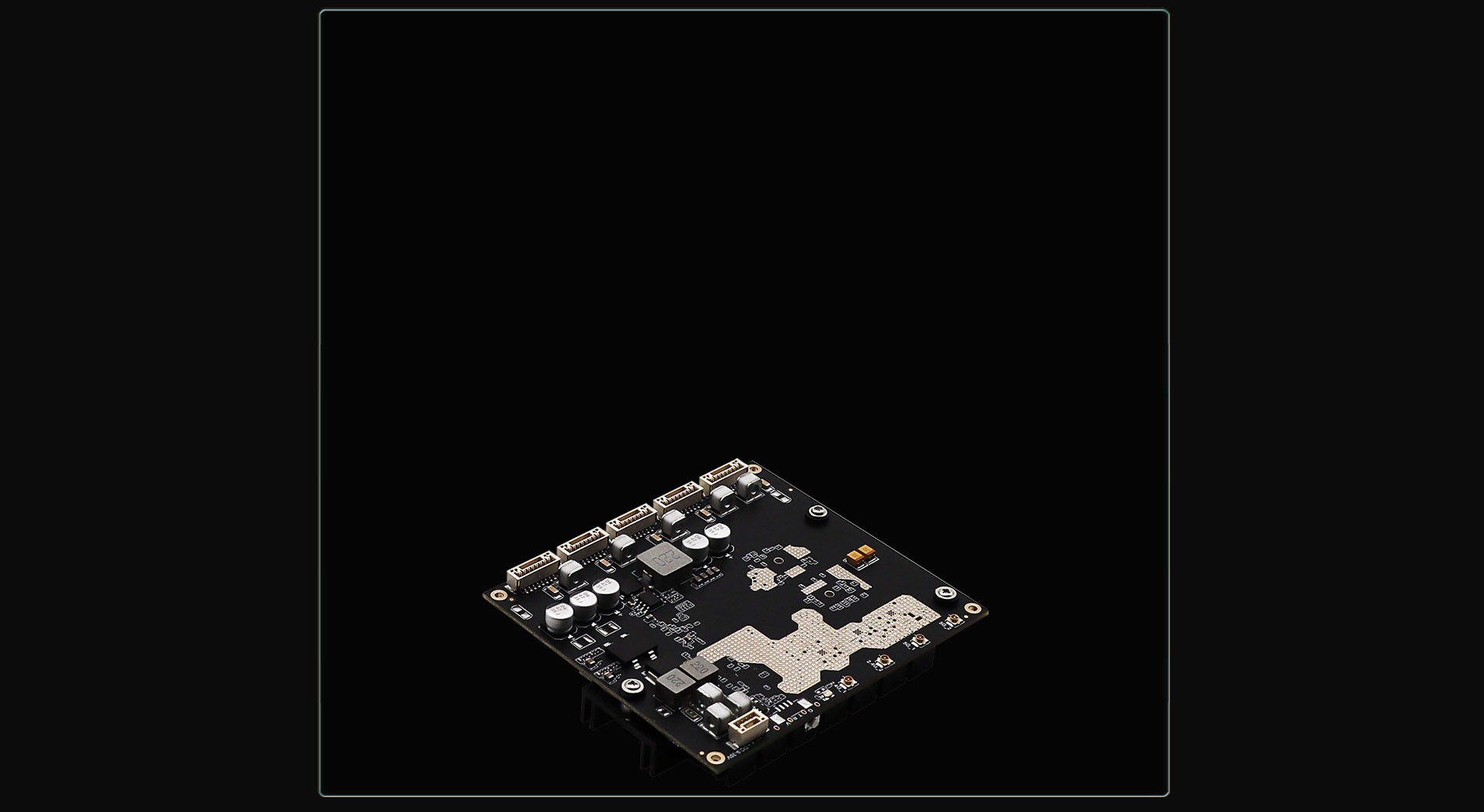

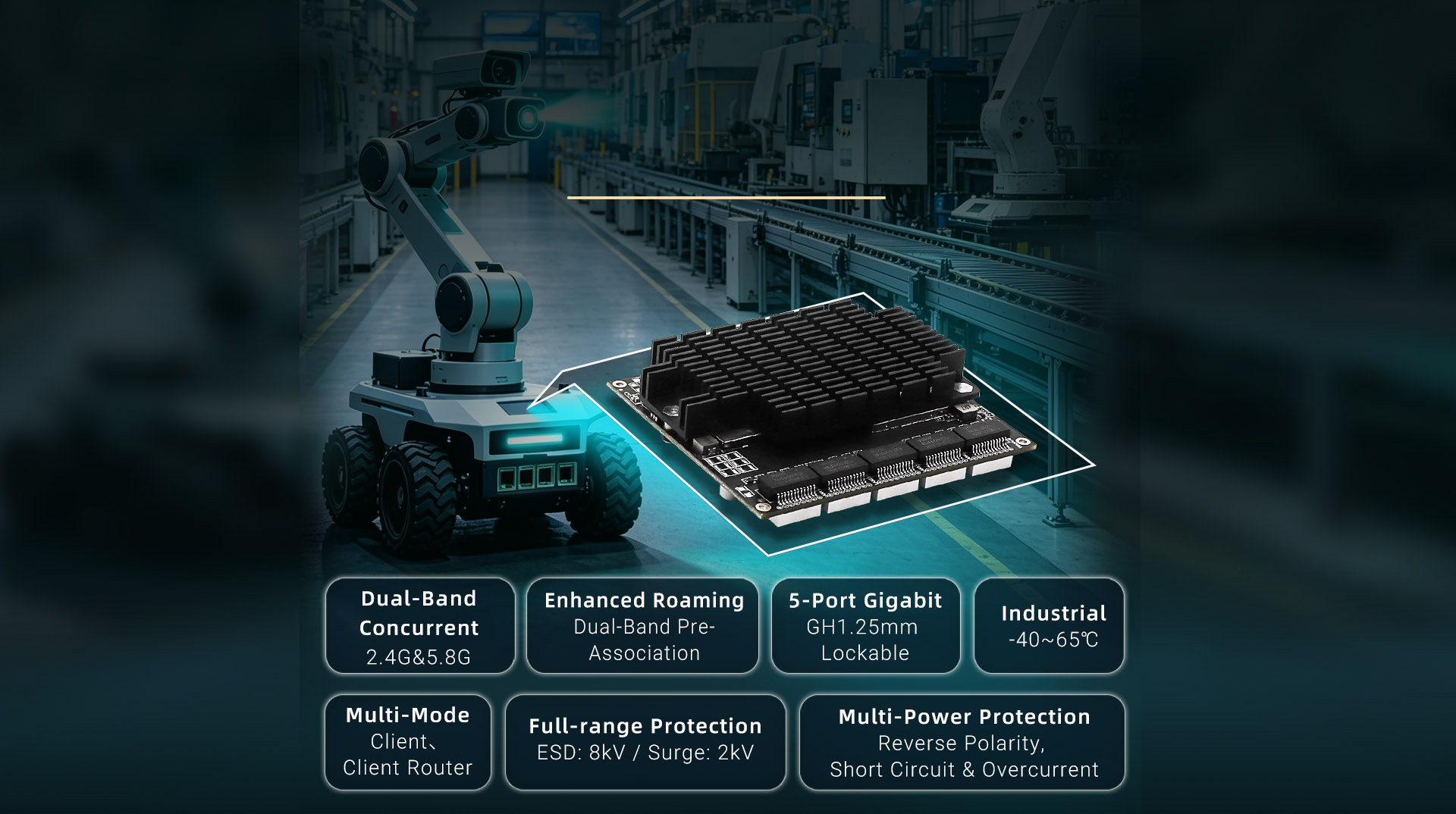

Compact and Flexible Embedded Design

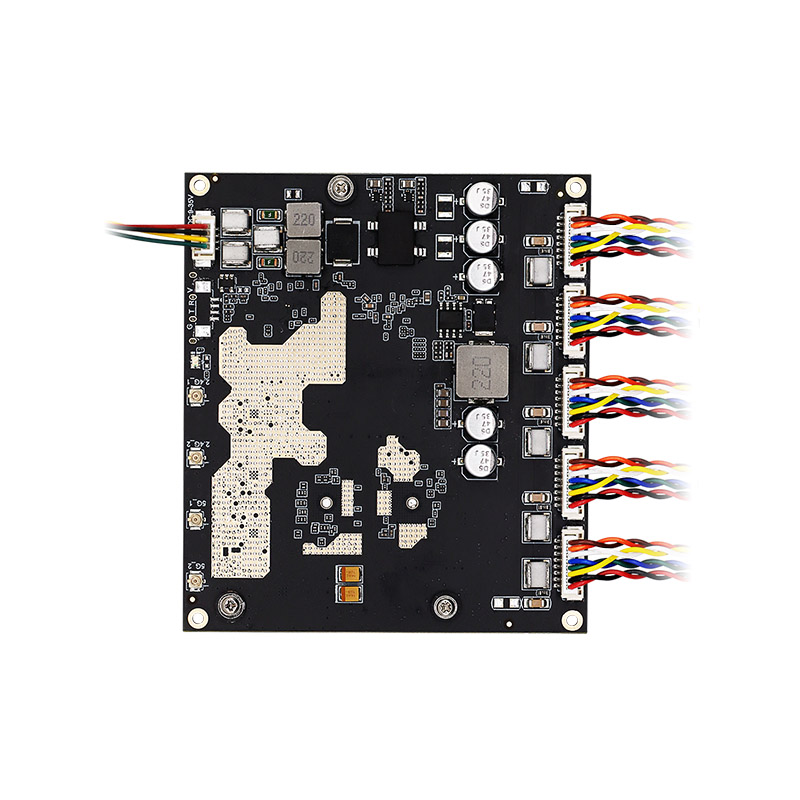

It provides five 10/100/1000M adaptive GH1.25mm 8Pin locking connectors. Since all ports support Auto-MDI/MDIX, there is no need to worry about the cable type to be used.Supports multiple connection methods, including Wi‑Fi 2.4GHz (574Mbps), 5GHz (1201Mbps) and wired access, to meet users' connection requirements for different devices.

Dimensions: 89 × 79 × 22.5 mm

Weight: 110 g

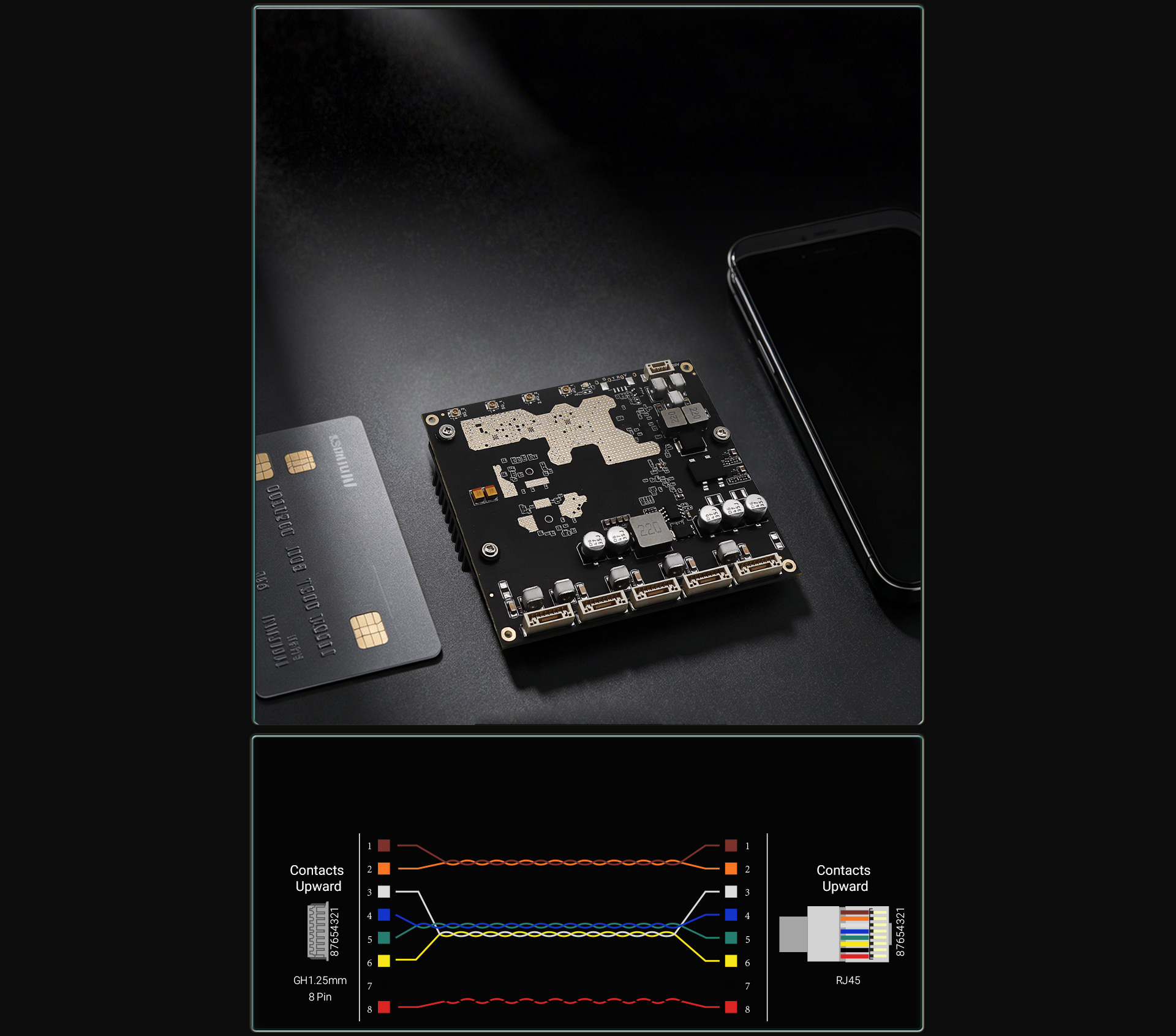

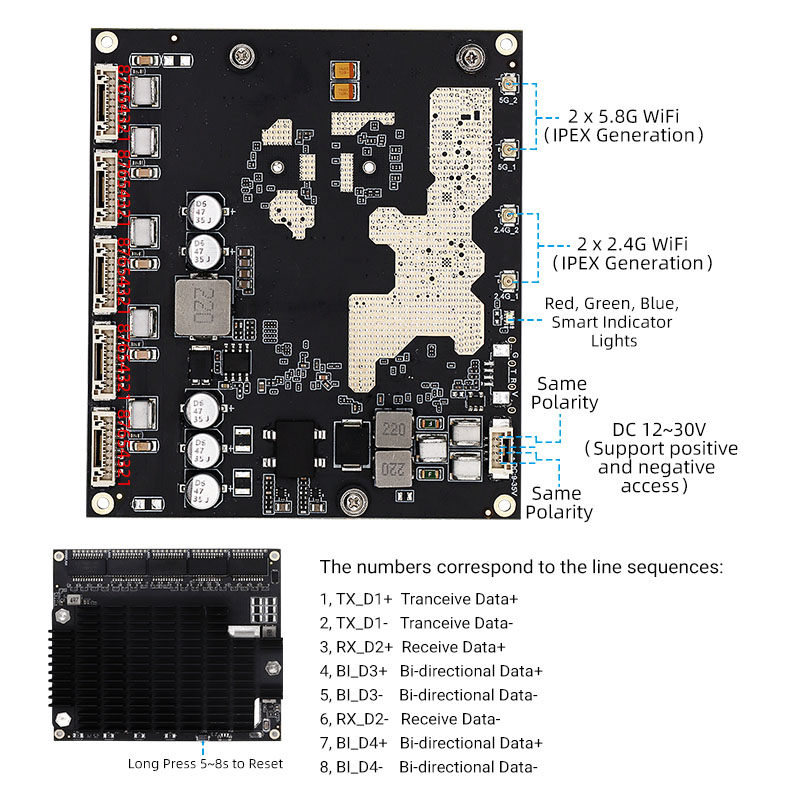

GH1.25mm 8Pin Terminal Twisted-Pair Cable to RJ45 Wiring Sequence

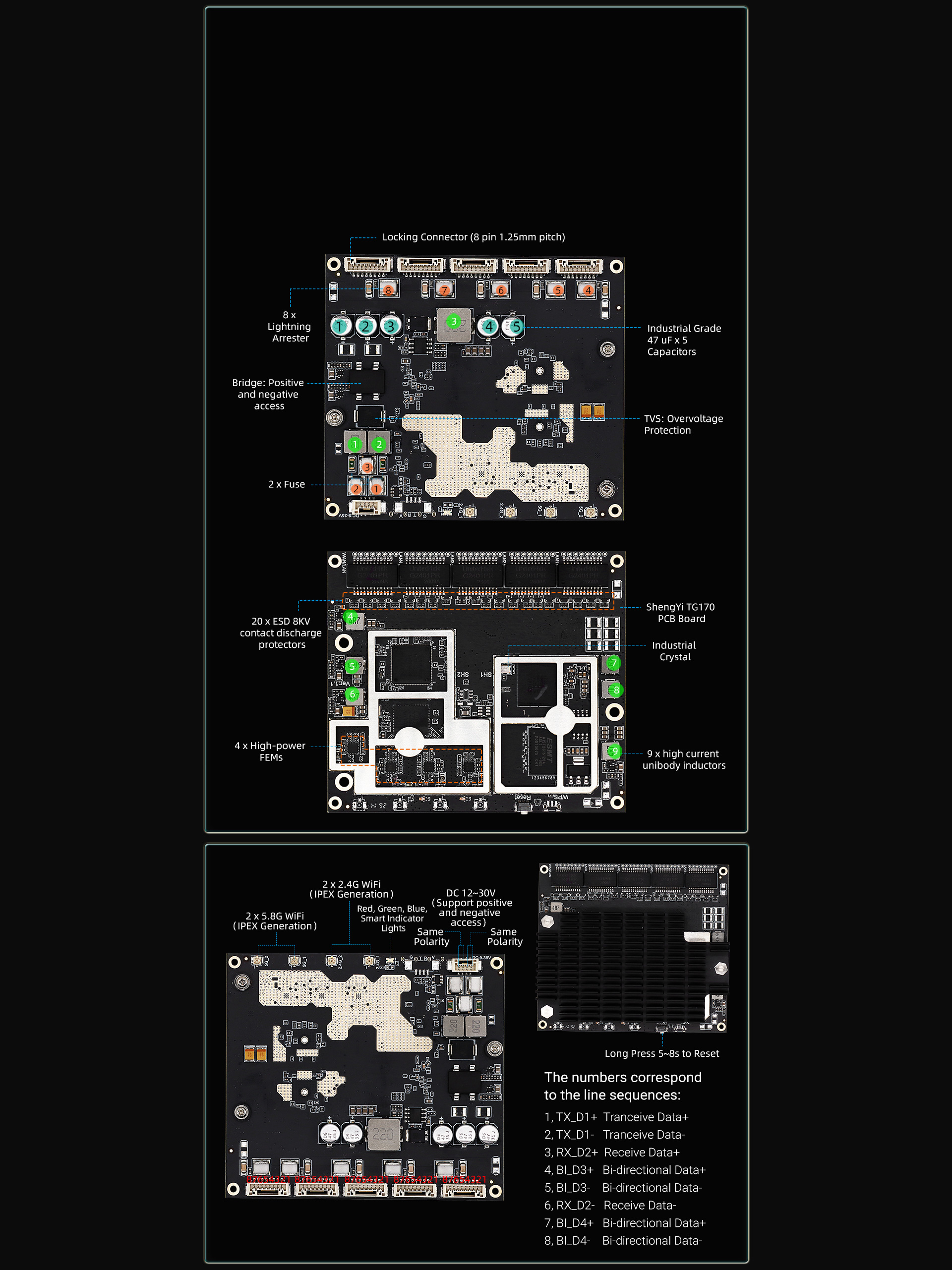

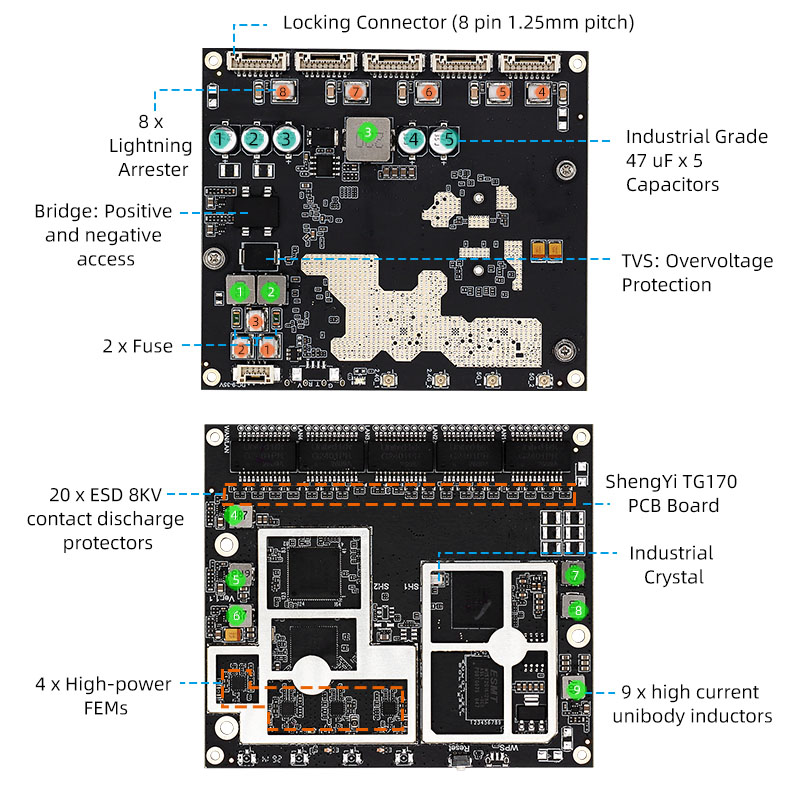

Selected Industrial Components

High-standard industrial-grade components adapt to various harsh electromagnetic interference environments such as power systems and industrial workshops. Subjected to rigorous durability tests, they feature a long service life and reduce equipment maintenance and replacement costs.

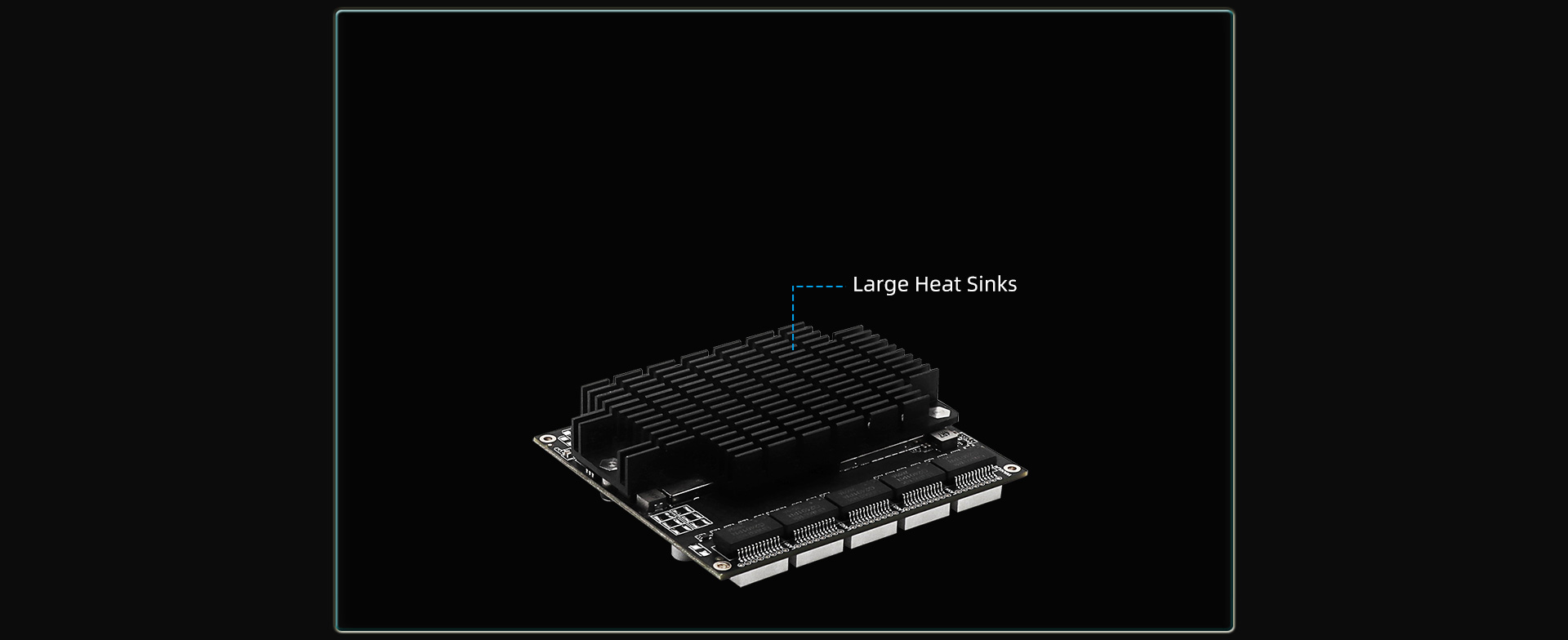

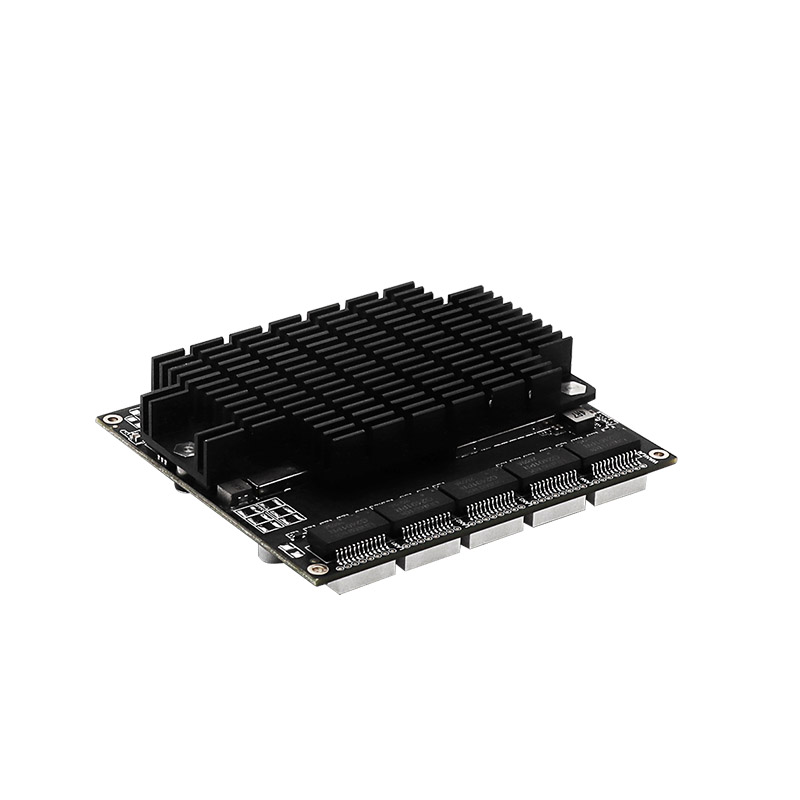

Large Heat Sinks

Increased heat dissipation and more stable performance, avoiding a series of problems caused by poor heat dissipation, component aging and unstable equipment operation.

Designed for industrial environments

This is a 5-port Gigabit Dual-Band Wireless Client designed specifically for industrial environments. Strictly designed in accordance with the operating temperature of -40℃~65℃, selected industrial-grade devices and natural heat dissipation method are adopted to ensure the stable operation of the equipment for a long time in this temperature range and satisfy various kinds of harsh environments.

YN-MXCPE1800R Industrial 5-Port Gigabit Dual-Band Wireless Client

Typical Application Scenarios

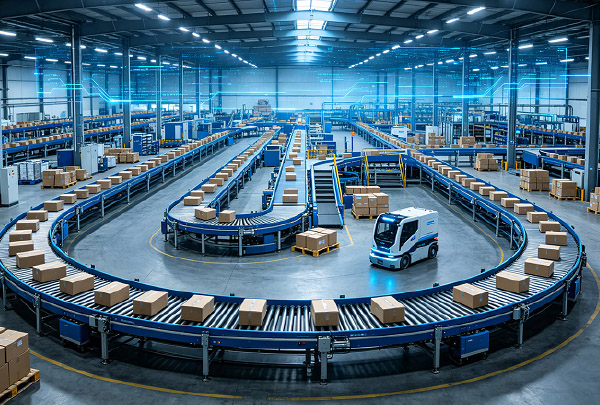

Compact and flexible embedded design, widely deployed in various scenarios, such as smart manufacturing factories, intelligent automated warehouses, automated port terminals, rail mobile carriers, utility tunnel / factory site inspection, large logistics sorting centers, mobile operation equipment at large airports / large logistics parks, etc.
