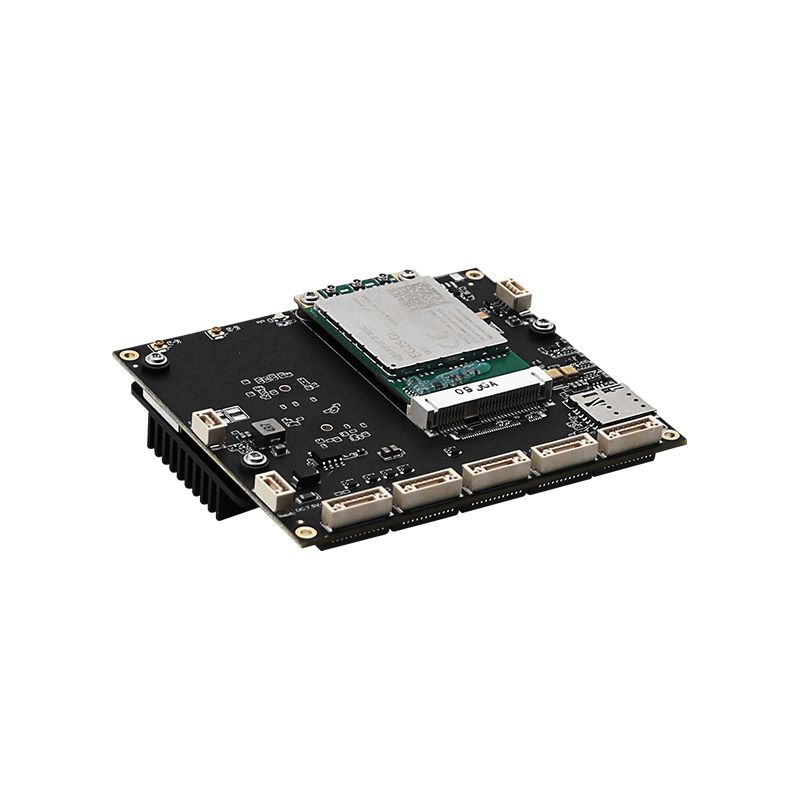

YN-HIR5105 4G/5G 5‑Port Gigabit High‑Power Router Module

· IEEE 802.3x flow control ensures reliable data transmission.

· Compact structure, ultra-mini design.

· Auto MDI/MDIX eliminates the need for crossover cables.

· Auto-negotiation: Guarantees maximum speed for each port

· Full-duplex: IEEE 802.3x; Half-duplex: Backpressure flow control.

· Supports ESD protection up to 8kV.

· Supports DC 12V power input with reverse polarity protection; no power output under reverse connection.

· Supplies five 10/100/1000M auto-negotiable GH1.25mm 8Pin lockable connectors.

· Industrial operating temperature: -40℃ ~ 65℃

· High-grade EMC protection, suitable for various harsh environments.

· Supports 4G/5G full-network access. No fixed broadband or wiring required. Simply insert a SIM card to quickly establish a stable wireless network, delivering real-time, reliable and high-speed data transmission.

· Compact size (89 × 79 mm), ideal for industrial environments.

· 4G/5G is applicable to service robots, industrial robots, AGVs, autonomous mobile equipment and other scenarios, meeting the stable networking demands of robots both indoors and outdoors in broadband-free environments.

Services

Overview
Specifications

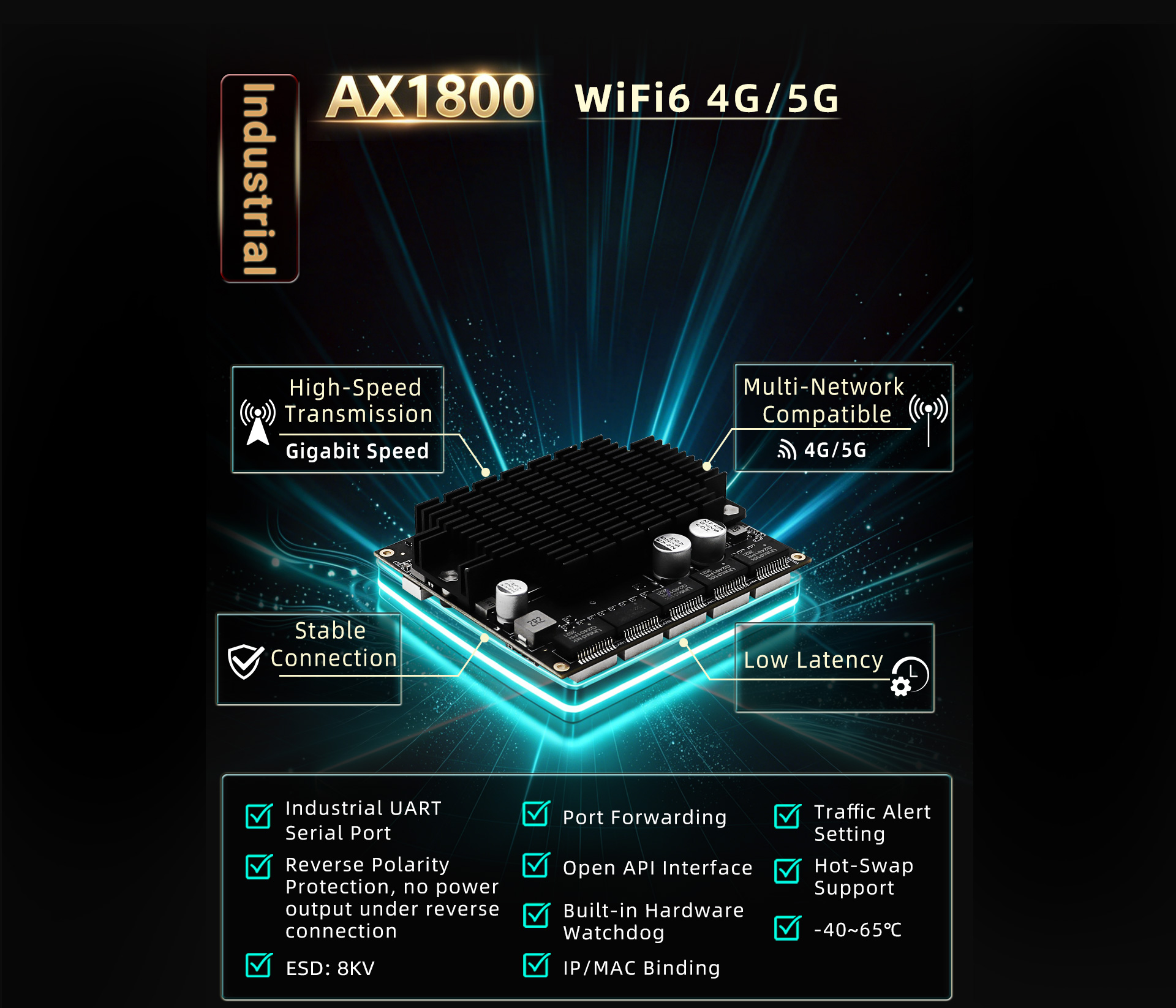

5‑Port Gigabit High‑Power

Router Module

Wi‑Fi coverage up to 80‑100 meters under open, line‑of‑sight and

obstacle‑free conditions, with terminals supporting Wi‑Fi 6 or

higher and mounted at 1.5m or above ground level.

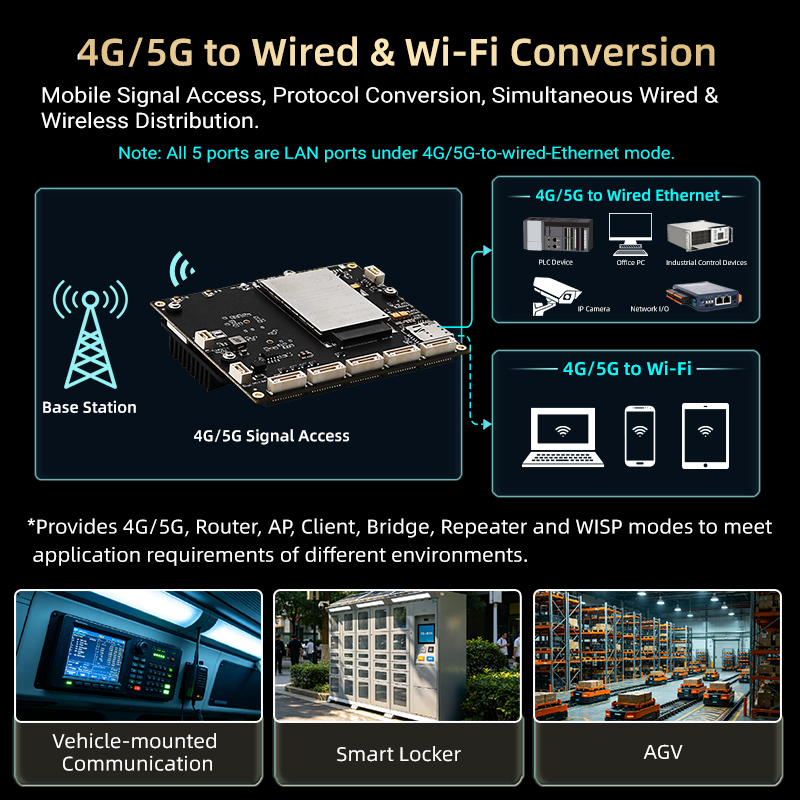

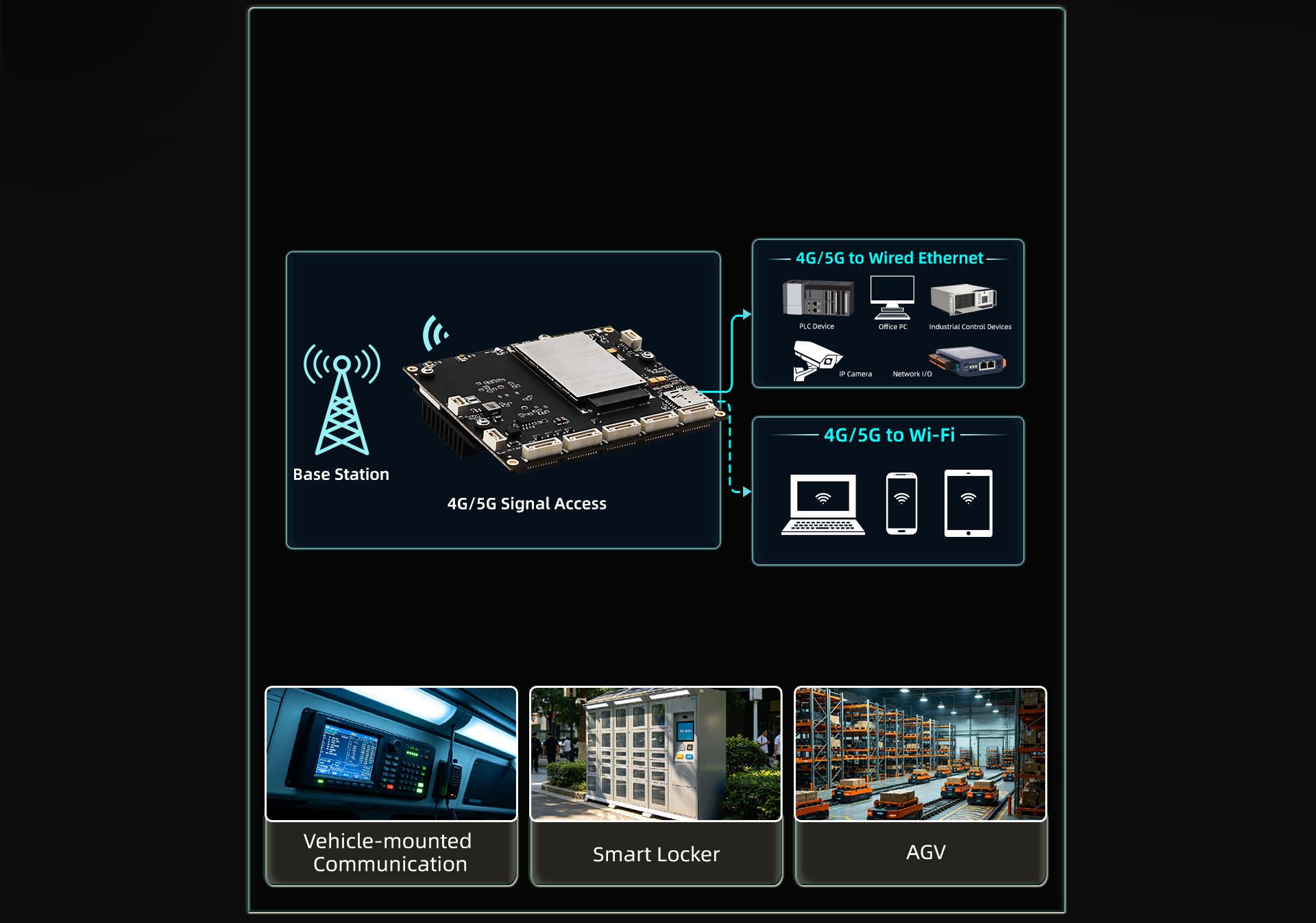

4G/5G to Wired & Wi‑Fi Conversion

Mobile Signal Access, Protocol Conversion, Simultaneous Wired & Wireless Distribution.

Note: All 5 ports are LAN ports under 4G/5G‑to‑wired‑Ethernet mode.

*Provides 4G/5G, Router, AP, Client, Bridge, Repeater and WISP modes to meet application requirements of different environments.

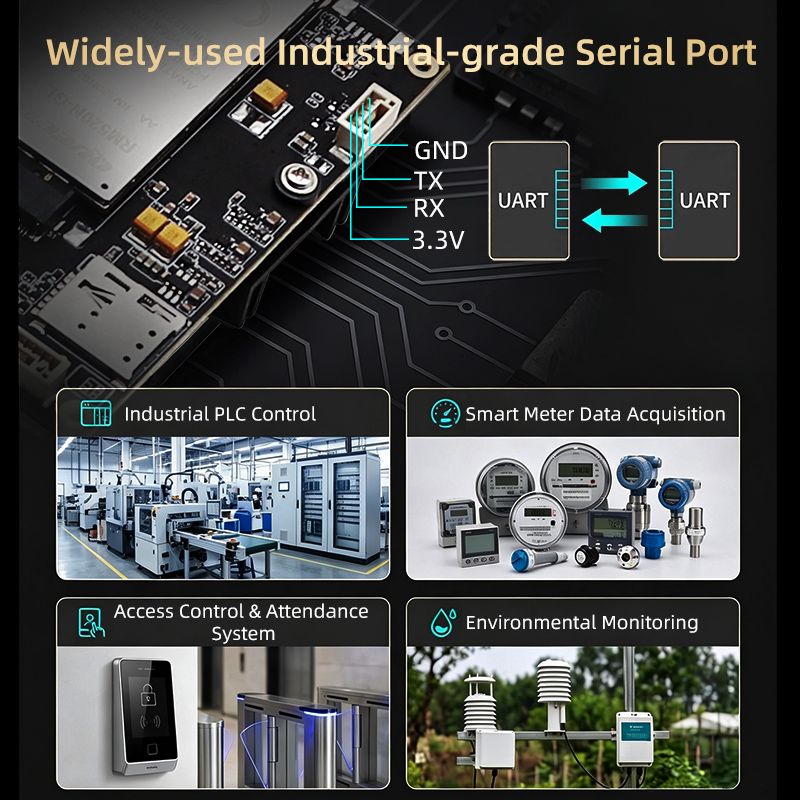

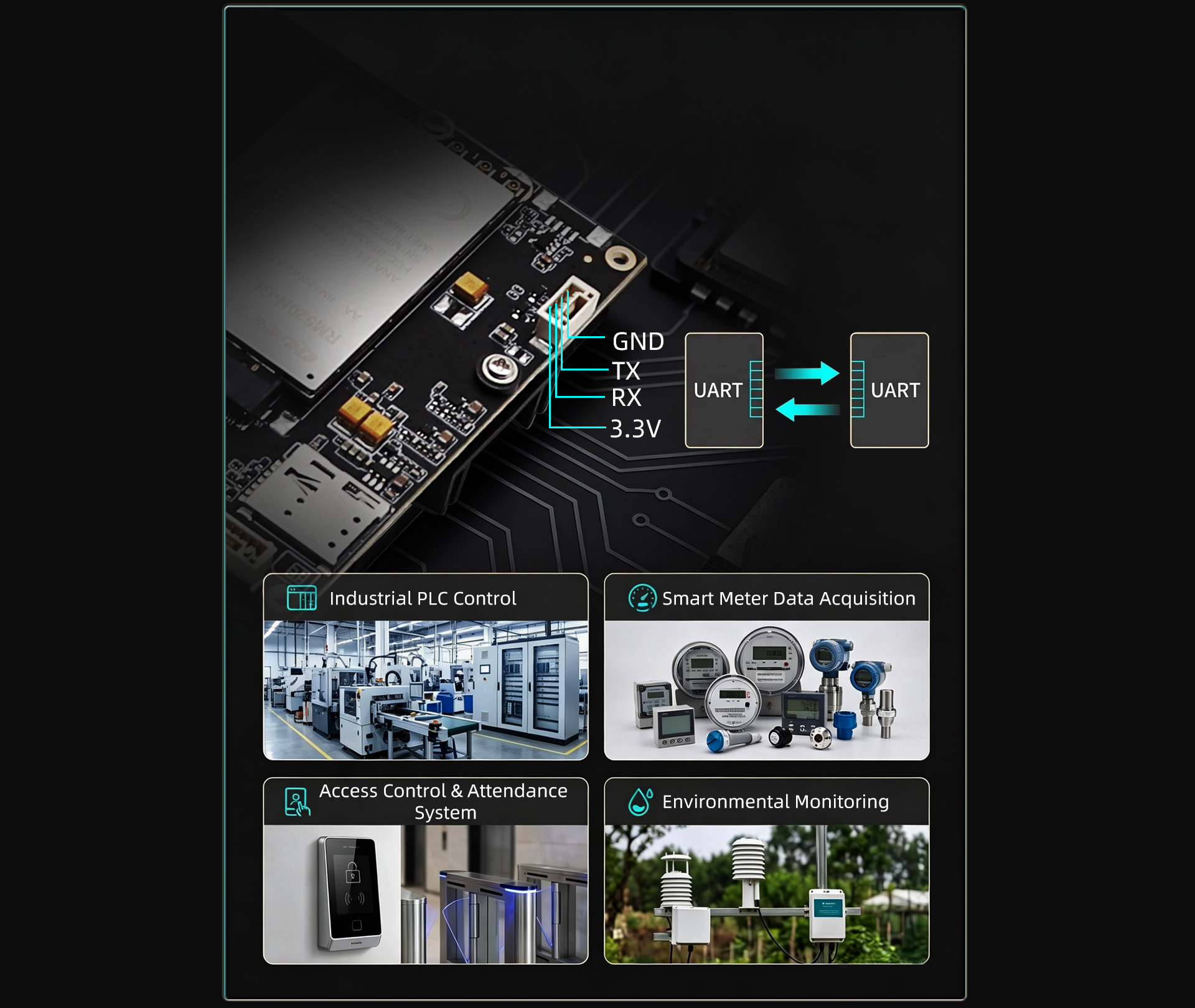

Widely‑used Industrial‑grade Serial Port

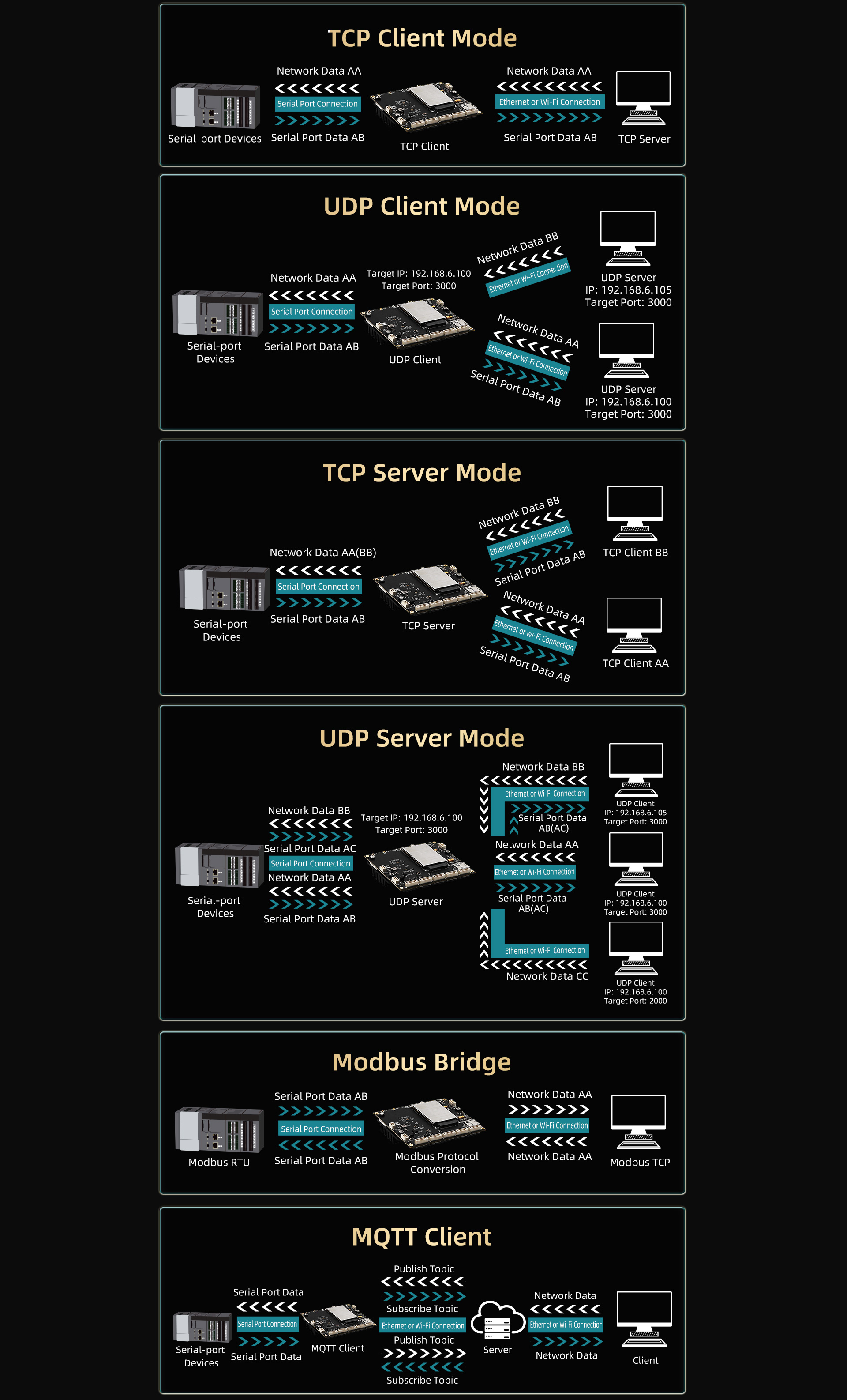

Client Mode, Server Mode, Modbus Bridge, MQTT Client

RS232 Multi‑scene Adaptation

Open API Interface

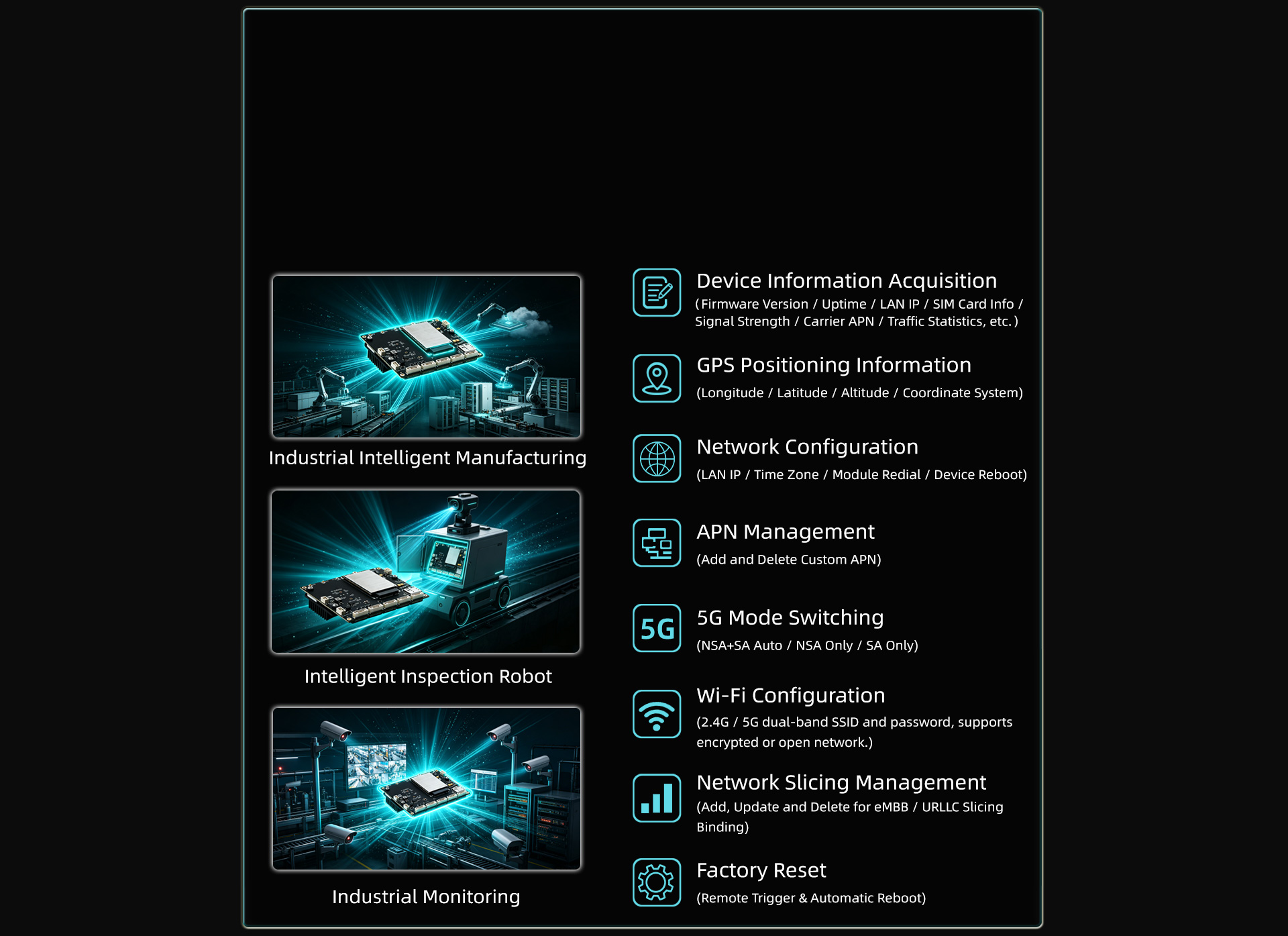

Provides complete HTTP API interfaces, enabling third‑party systems to perform remote configuration, status monitoring and automatic operation & maintenance for devices. All interfaces adopt standardized request‑response mechanism for fast integration.

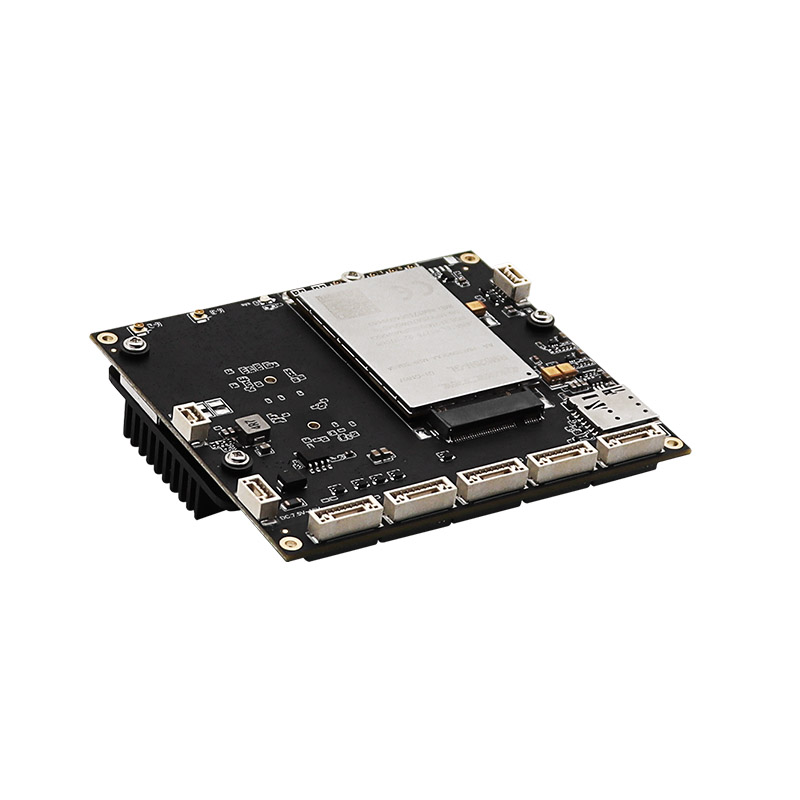

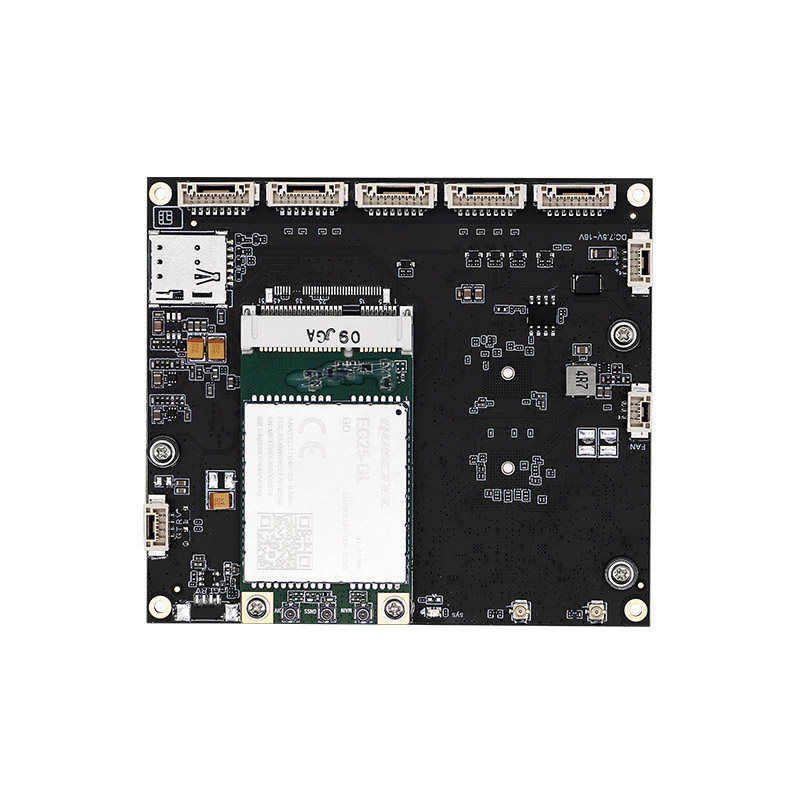

Compact & Flexible Embedded Design

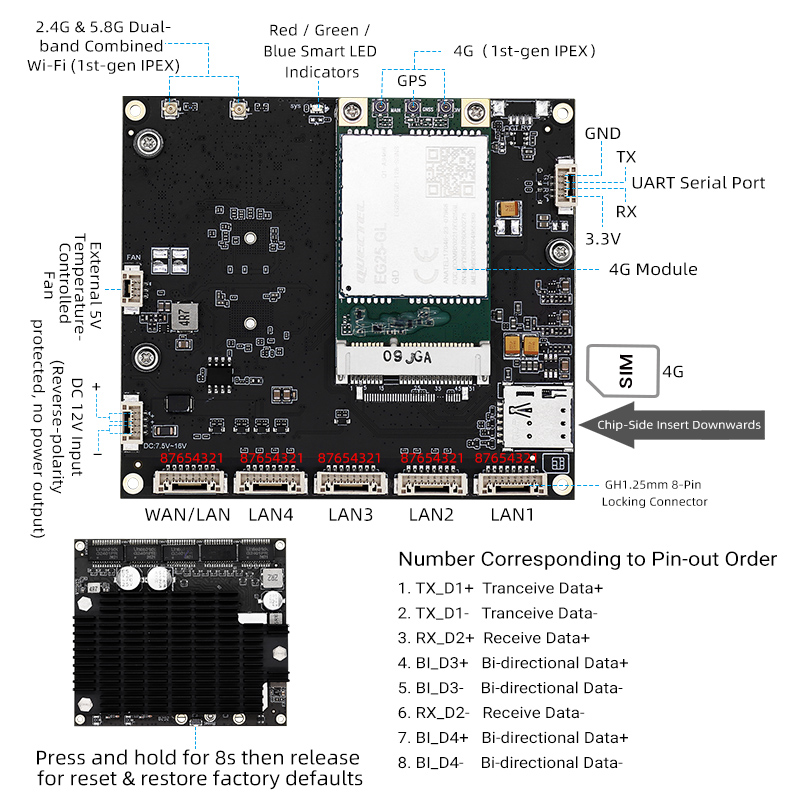

It provides five 10/100/1000M auto‑negotiable ports with GH1.25mm 8‑pin locking connectors. All ports support Auto‑MDI/MDIX, so there is no need to worry about cable types.

Supports multiple connection methods including Wi‑Fi 2.4GHz (574Mbps), 5GHz (1201Mbps), 4G/5G and wired access, to meet connection requirements of various user devices.

4G Dimension: 89×79×21mm

Weight: 118.5g

5G Dimension: 89×79×19.2mm

Weight: 116g

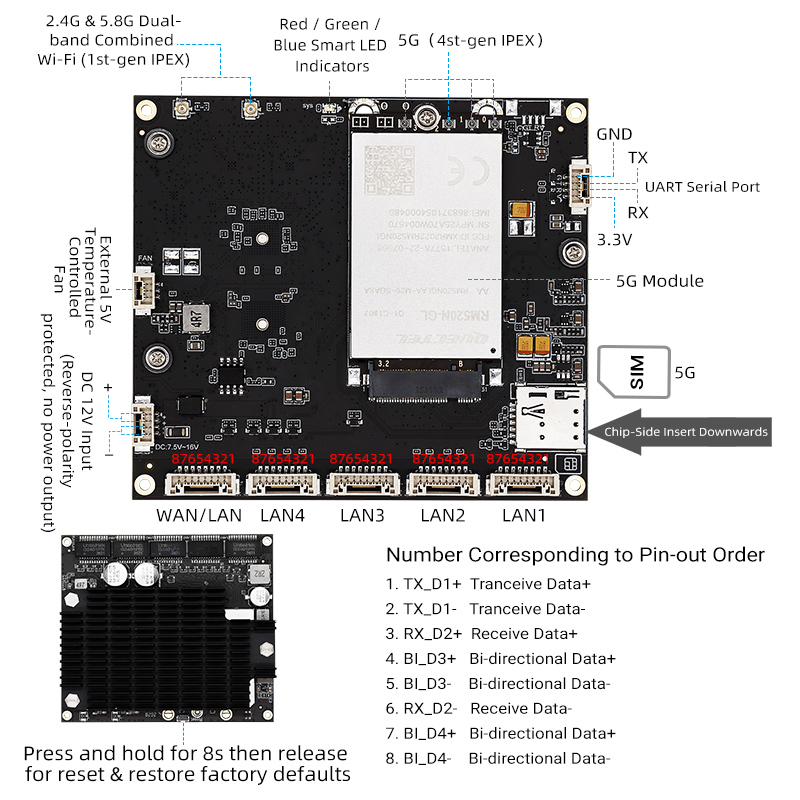

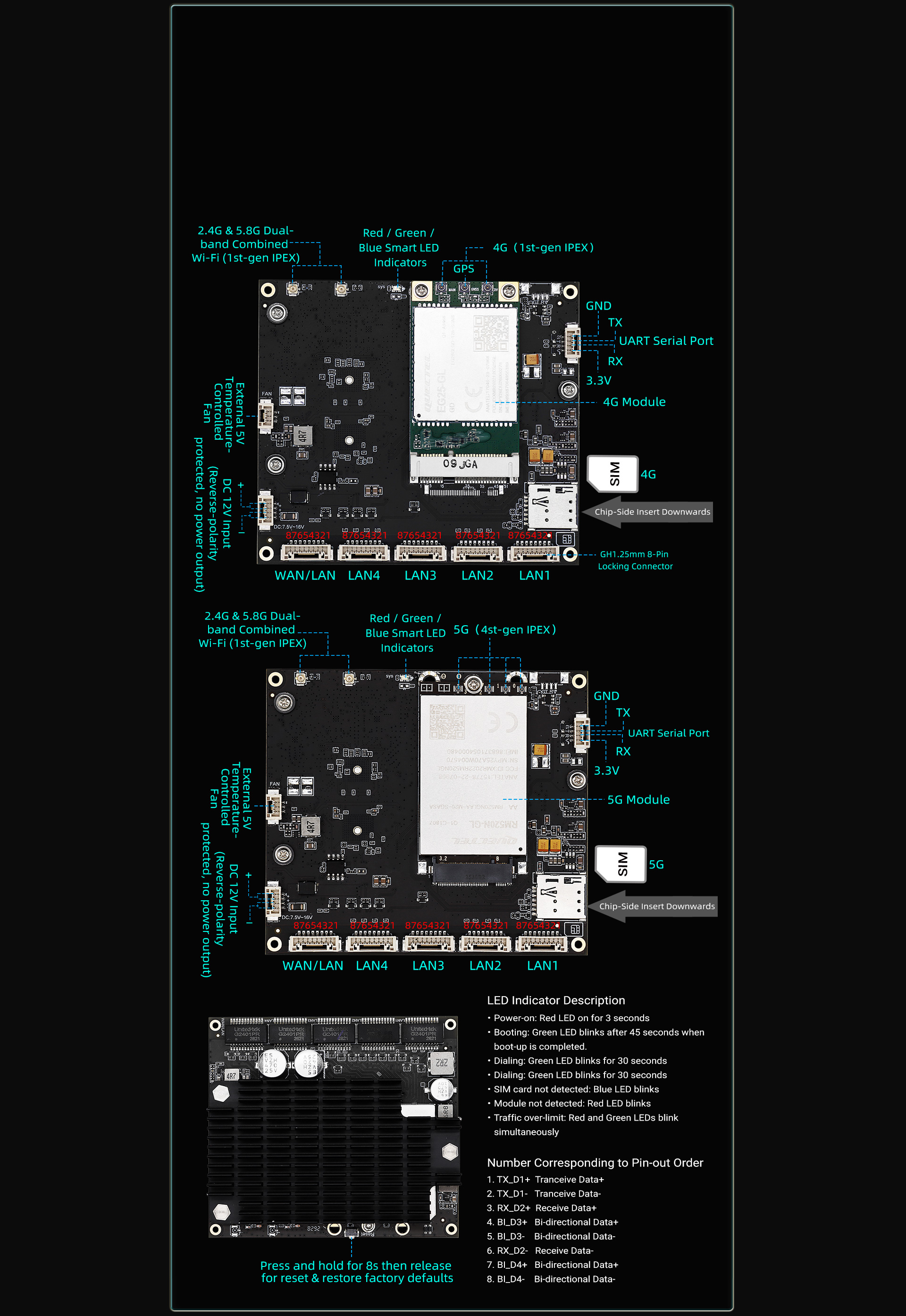

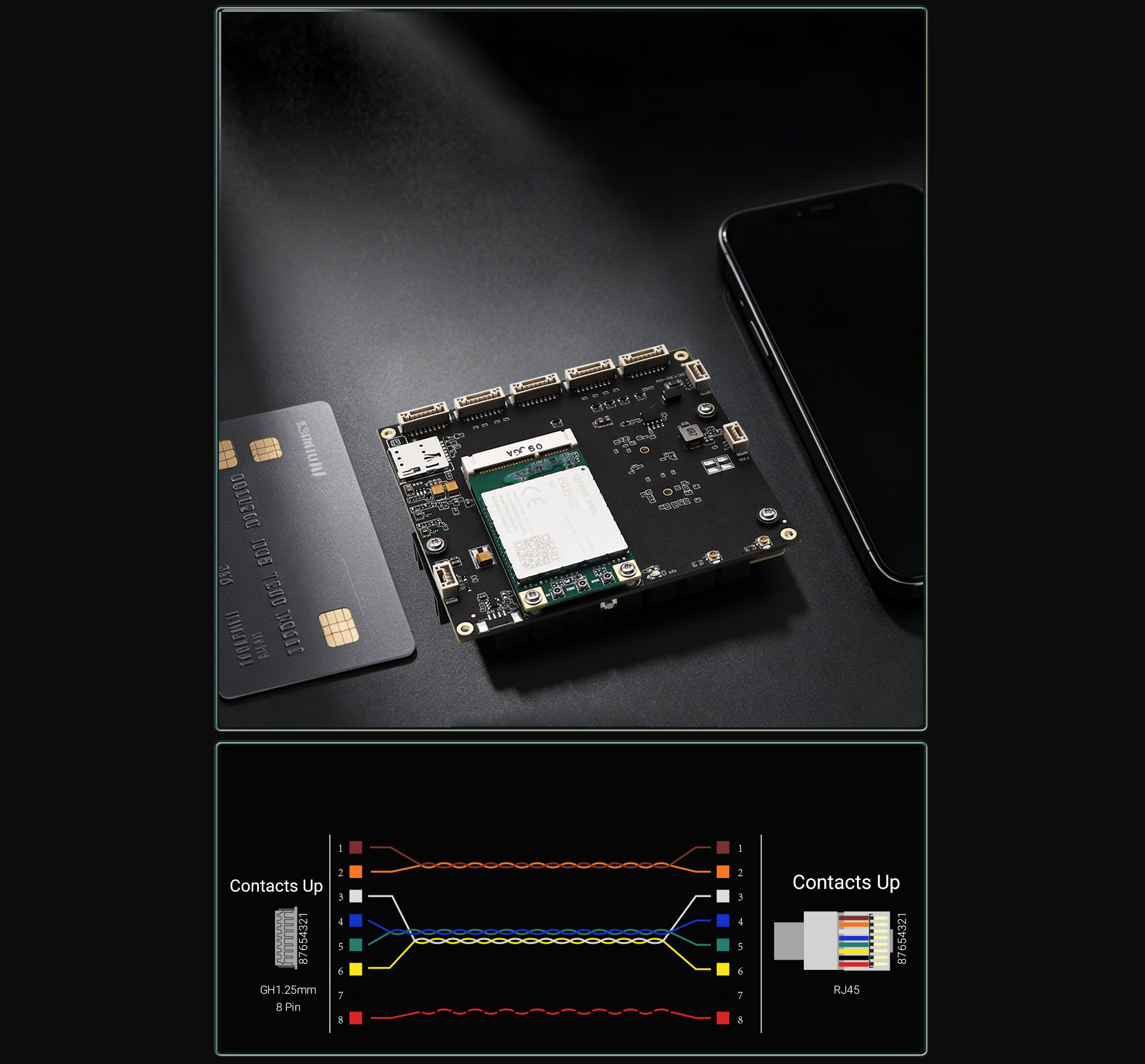

GH1.25mm 8‑Pin Terminal to RJ45 Twisted‑Pair Pin‑out

Hardware Watchdog

Built‑in hardware‑level independent watchdog, it can automatically reset the device upon abnormal system hang‑up to achieve high availability under unattended operation and greatly reduce on‑site maintenance frequency.

High‑Power Wi‑Fi 6 FEM

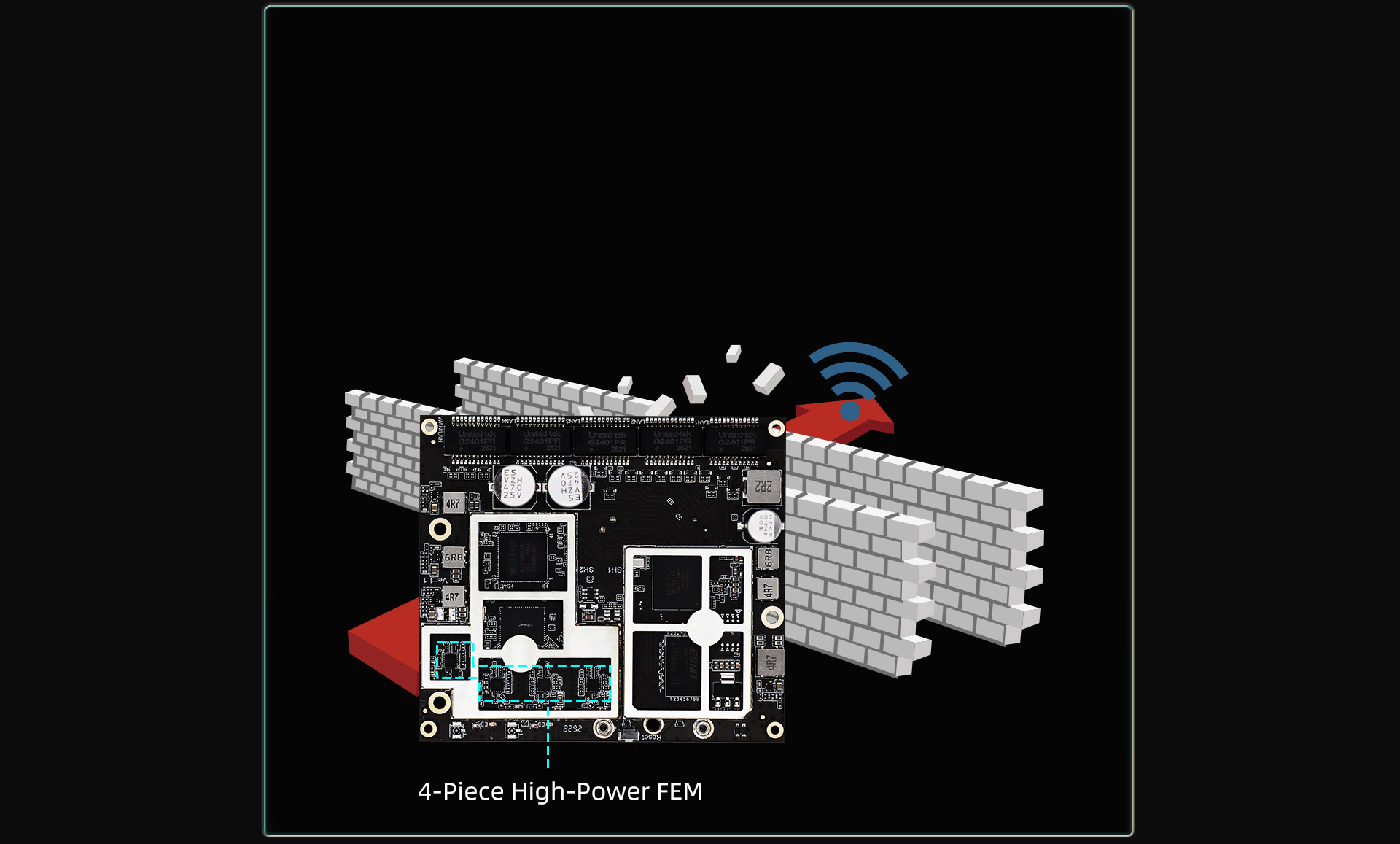

External high‑power Wi‑Fi 6 FEM delivers stronger wireless penetration and better stability. It boosts transmit power and improves receiving sensitivity, providing Wi‑Fi coverage range of 80‑100 meters under open line‑of‑sight unobstructed environment (terminal shall support corresponding Wi‑Fi protocol).

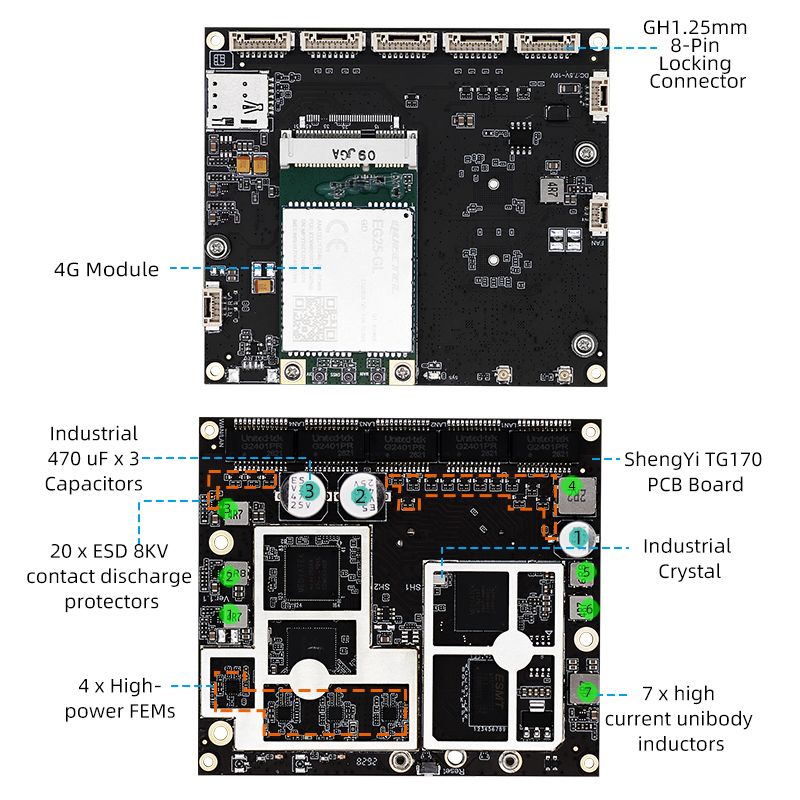

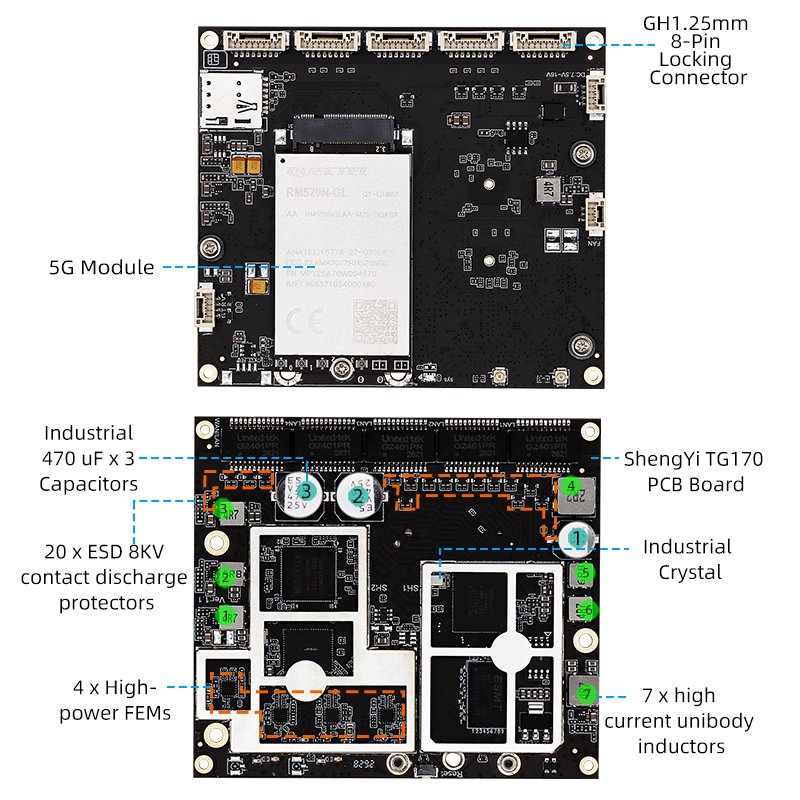

Selected Industrial‑Grade Components

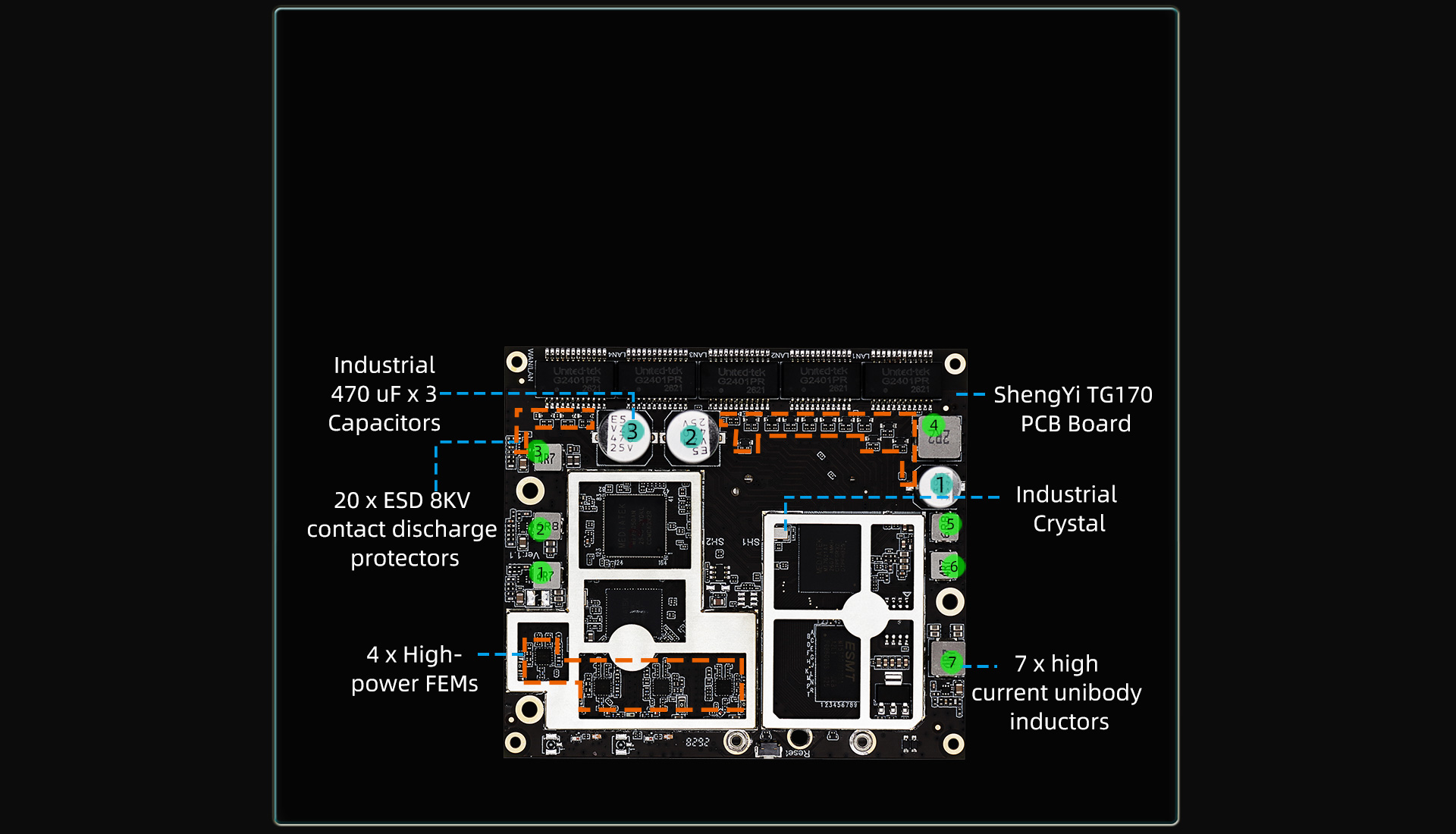

High‑standard industrial‑grade components, suitable for harsh electromagnetic interference environments such as power systems and industrial workshops. Subjected to strict durability tests for long service life, reducing equipment maintenance and replacement costs.

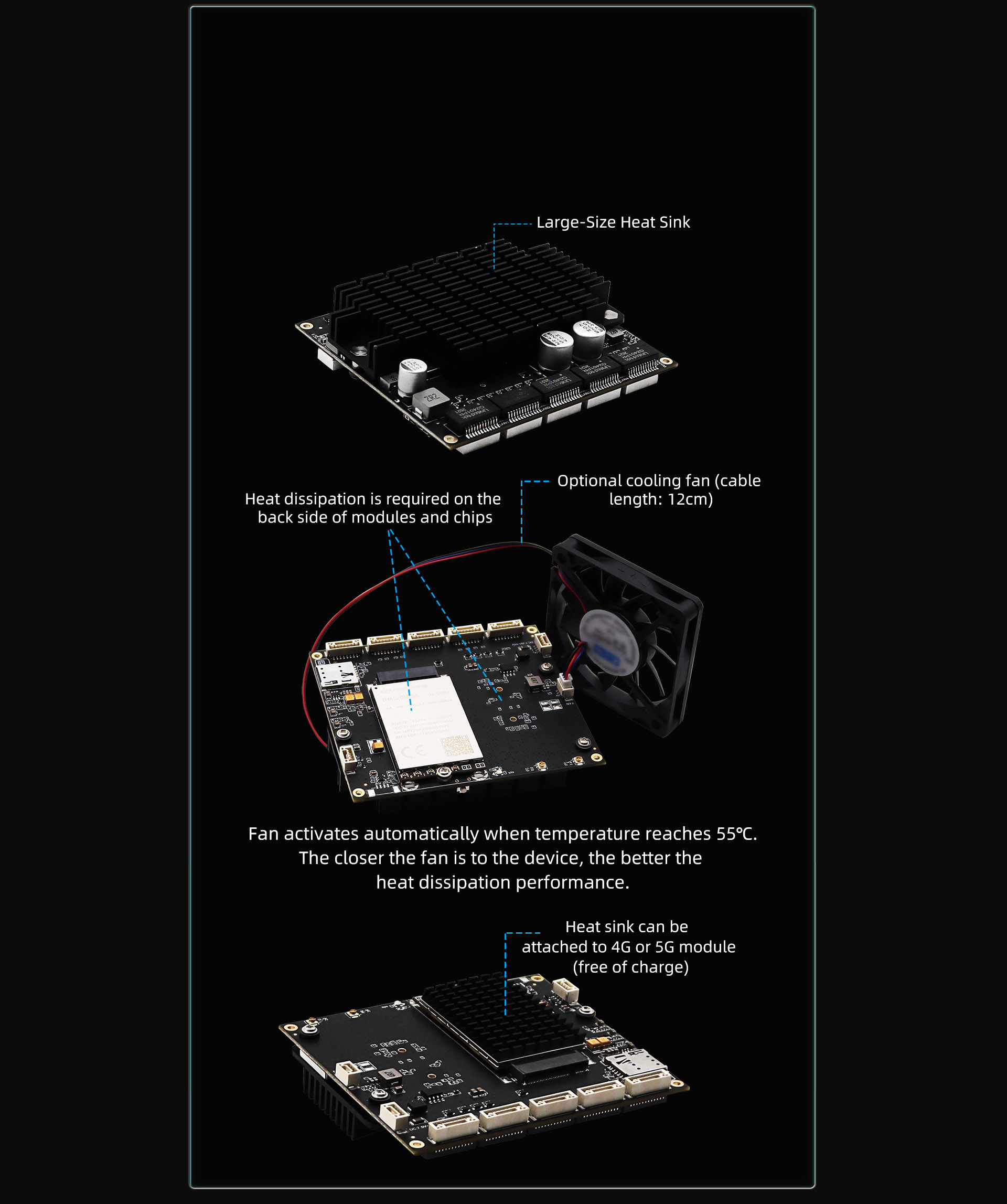

Thermal Management

Optimized heat dissipation design enhances overall performance stability, effectively avoiding abnormal issues caused by poor heat dissipation, component aging and unstable device operation.

YN-HIR5105 4G/5G 5‑Port Gigabit High‑Power Router Module

Typical Application Scenarios

Compact and flexible embedded design, widely applied in various scenarios including intelligent robots, AGVs, wireless data collection for industrial automation cameras, smart parcel lockers, wireless networking for intelligent visual security inspection, self-service terminals, vehicle chassis inspection equipment, industrial electronic scales, medical devices, industrial automation equipment, and integrated wireless networking for machinery.

Hardware

Ports: 5 x 10/100/1000 Mbps Lockable Ethernet Ports

Input Voltage: DC 12V (Reverse‑polarity protection supported, no power output)

Buttons: Reset Button

Card Slot: Nano‑SIM Card Slot

Product Dimensions: 89 × 79 mm

ESD: 8 kV

Average Power Consumption: 8 W

Maximum Power Consumption: 30 W

Wireless

Network Type: Compatible with most mobile operators, supports 5G/4G

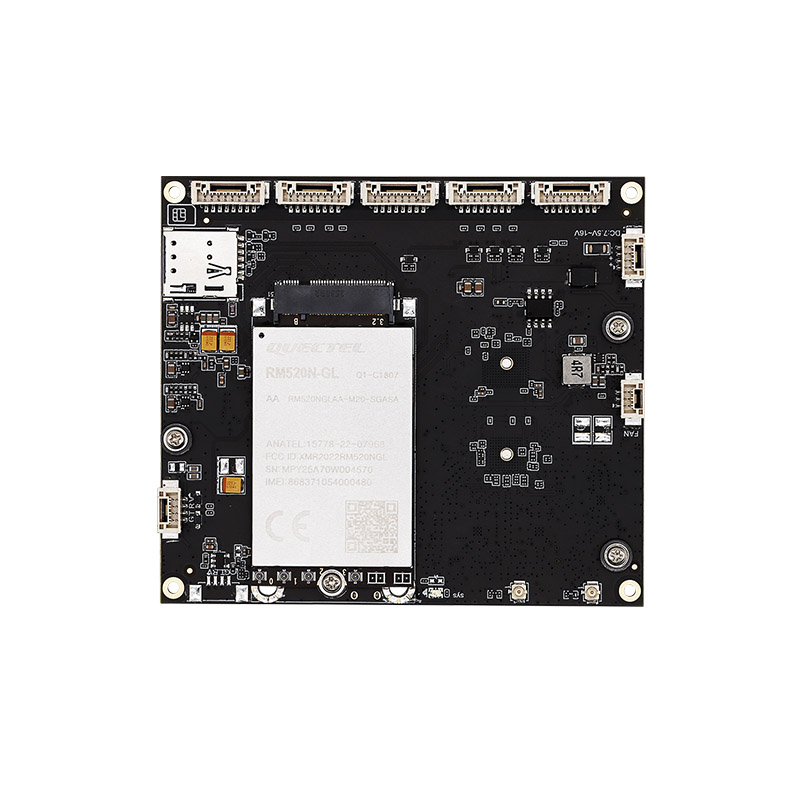

5G Global‑band Module (RM520N‑GL)

NSA：n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79

SA：n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79

LTE-FDD：B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71

LTE-TDD：B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48

LAA：B46 WCDMA：B1/ 2/ 4/ 5/ 8/ 19

4G Global‑band Module (EG25‑GL)

LTE-FDD：B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 18/ 19/ 20/ 25/ 26/ 28

LTE-TDD：B38/ 39/ 40/ 41

WCDMA：B1/ 2/ 4/ 5/ 6/ 8/ 19

GSM：900/1800MHz

Wireless Standard: 1201 Mbps (5 GHz, 802.11ax) + 574 Mbps (2.4 GHz, 802.11ax), compliant with IEEE 802.11b/g/n/ac/ax Wi‑Fi standards

Frequency: 2.4 GHz and 5 GHz

Transmit Power: FCC: ＜30 dBm (2.4 GHz), ＜30 dBm (5 GHz)

CE: ＜20 dBm (2.4 GHz), ＜23 dBm (5 GHz)

Signal Rate: 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz

Receiver Sensitivity:

5 GHz: 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm

2.4 GHz: 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm

Wireless Security: 64/128‑bit WEP, WPA/WPA2‑Personal, WPA/WPA2‑Enterprise

Software

Mobile 4G, Mobile 5G

WAN Type: Dynamic IP / Static IP / PPPoE

Serial‑port Function: Supports TCP Server, TCP Client, UDP, Modbus, MQTT modes

Management: Local Management

DHCP: DHCP Client List

MAC Clone

Software Backup

NAT Forwarding: Port Forwarding, DMZ

Firewall Security: IP‑MAC Address Binding

Protocol: IPv4

Others

Environmental Temperature & Humidity:

Operating Temperature: ‑40 °C ~ 65 °C

Storage Temperature: ‑40 °C ~ 85 °C

Operating Humidity: 10% ~ 90%, non‑condensing

Storage Humidity: 5% ~ 90%, non‑condensing
