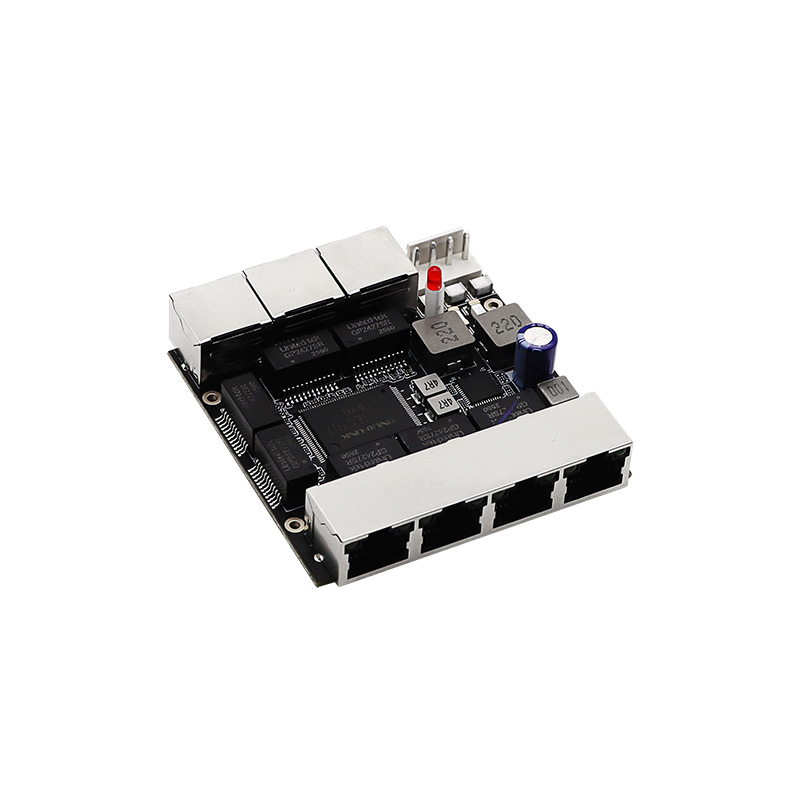

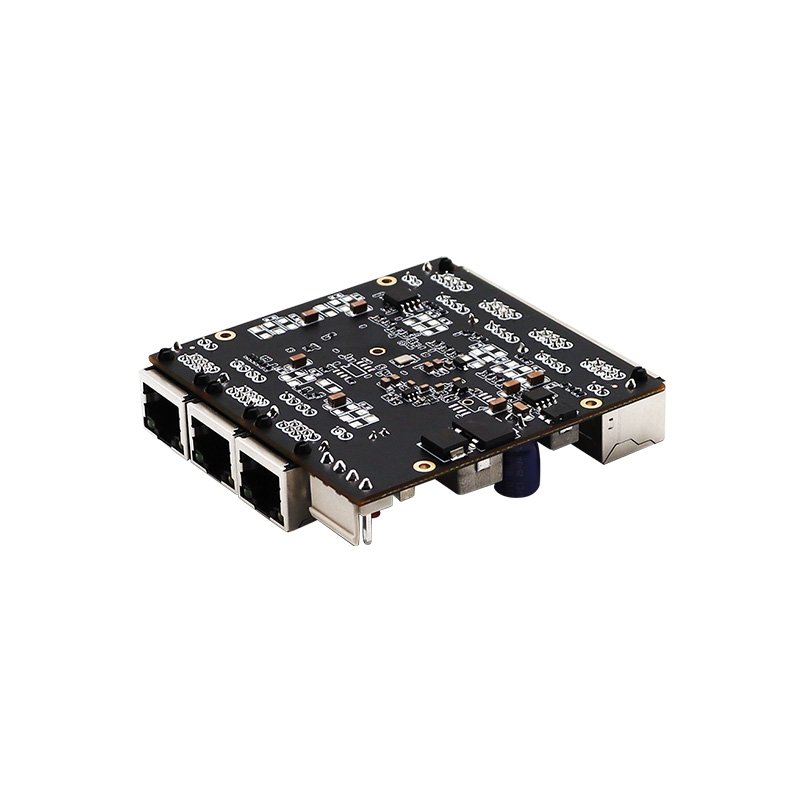

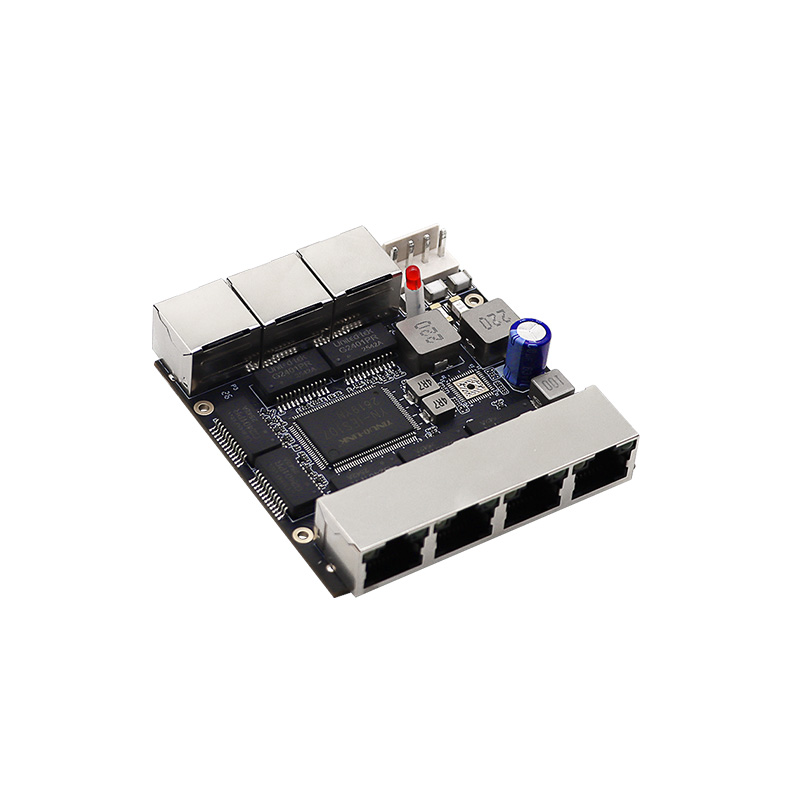

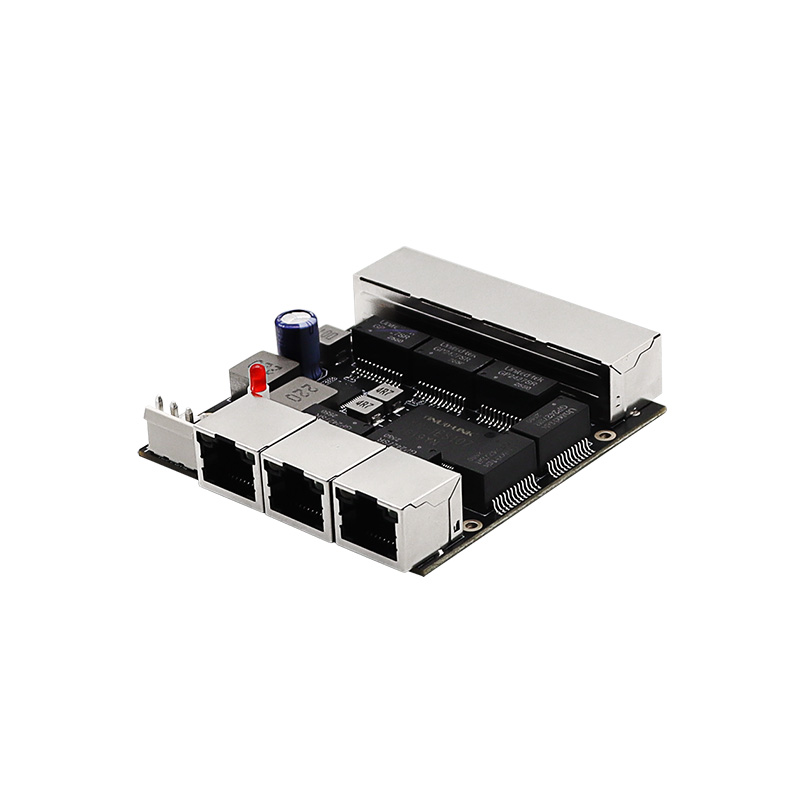

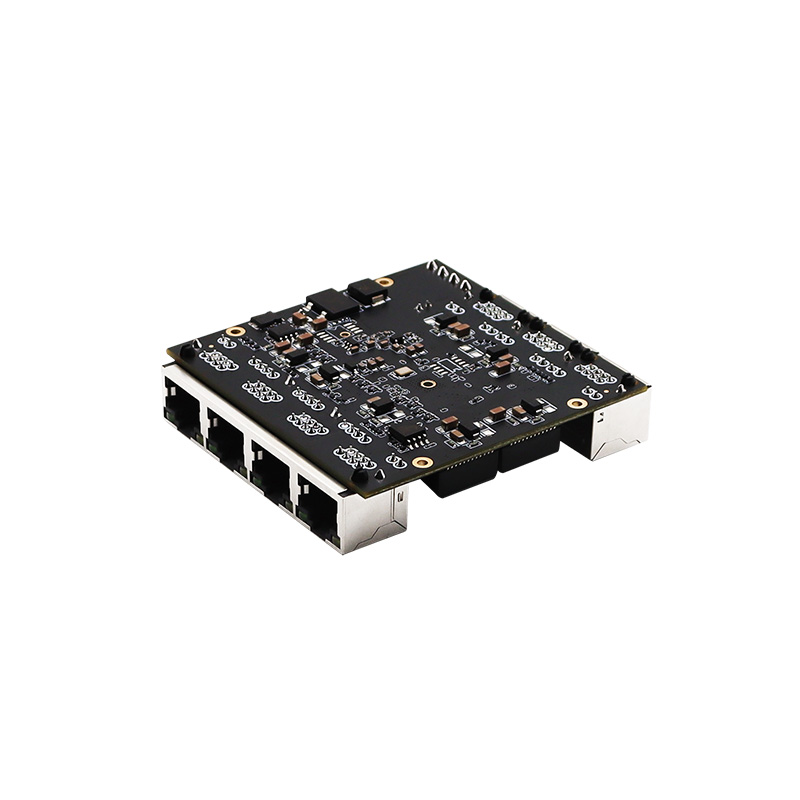

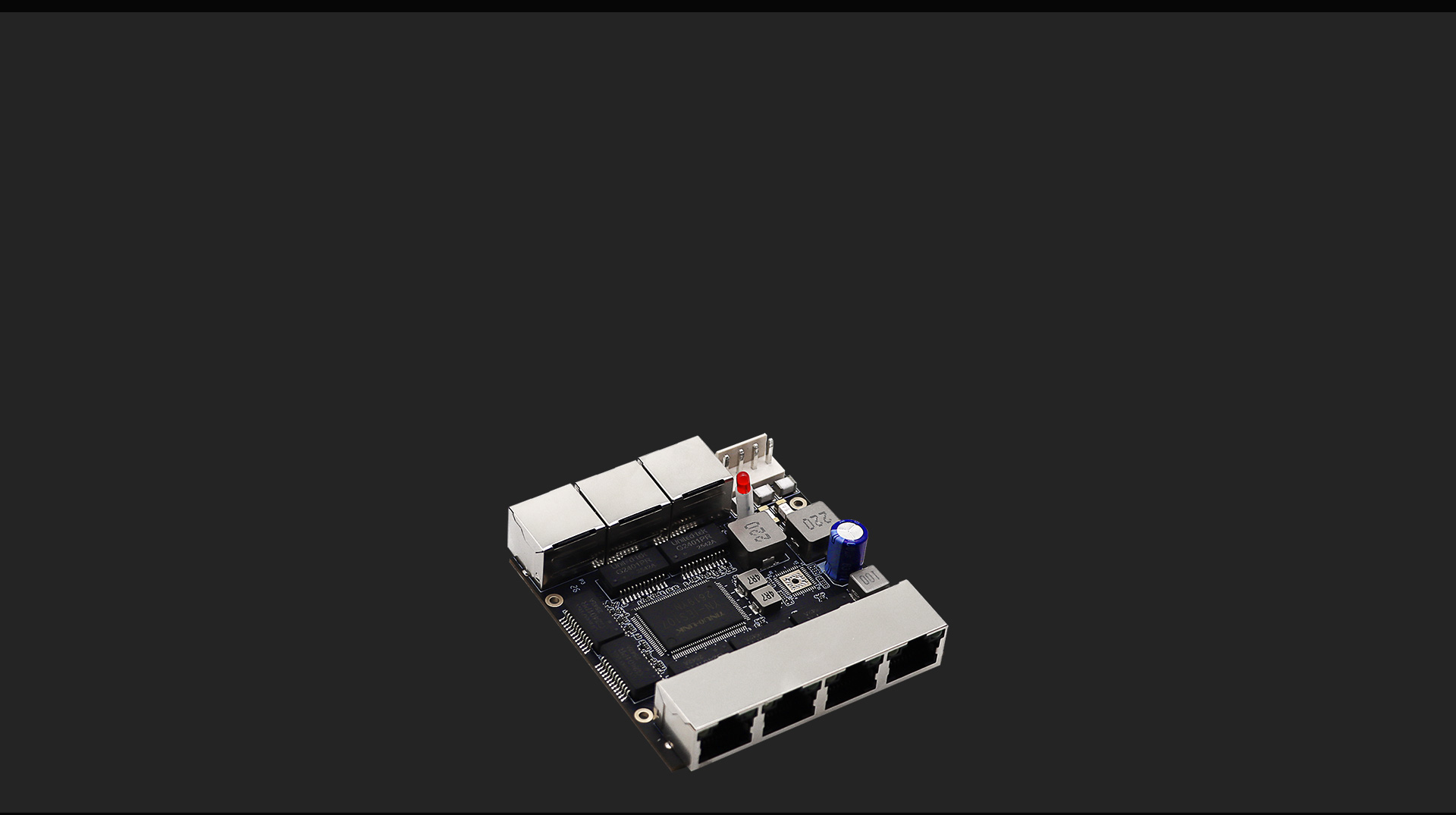

YN-IES107 Industrial 7-Port Gigabit Mini Switch Module

· Compact Structure and Small-Size Design.

· 7×10/100/1000Mbps Auto-Negotiation RJ45 Ethernet ports.

· Fanless design ensures quiet operation.

· Auto-Negotiation: Ensures the maximum speed for each port.

· Full-duplex mode adopts the IEEE 802.3x standard, while half-duplex mode adopts the Backpressure standard.

· Auto MDI/MDIX: Eliminates the need for crossover cables.

· Wide voltage range: 12~60V (supports reverse protection without power supply), surge 4KV.

· Supports IEEE 802.3af/at standards(Single port MAX. PoE output up to 30W)

· Supports 6KV contact electrostatic discharge (ESD) protection.

· Industrial-grade operating temperature: - 40℃~85℃

· Reverse polarity protection, short-circuit & over-current protection, surge protection, ensuring continuous operation of the device.

· High EMC protection rating, withstanding all harsh environments.

· Dimensions: 76.2 x 70 x 20mm

Services

Overview
Specifications

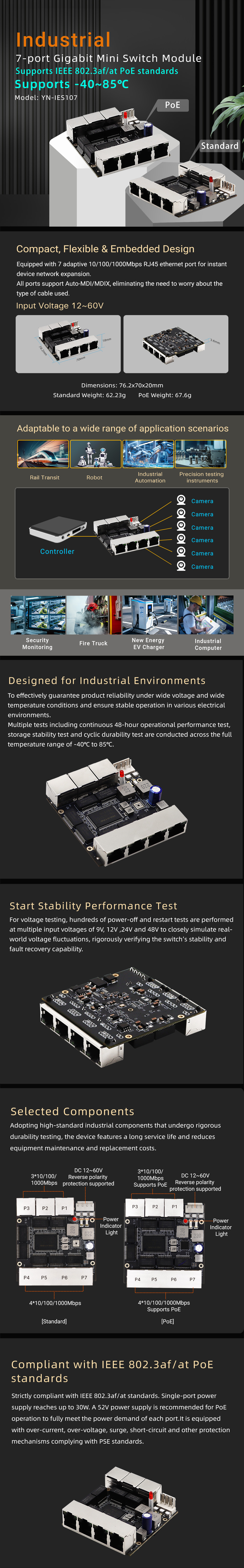

Industrial

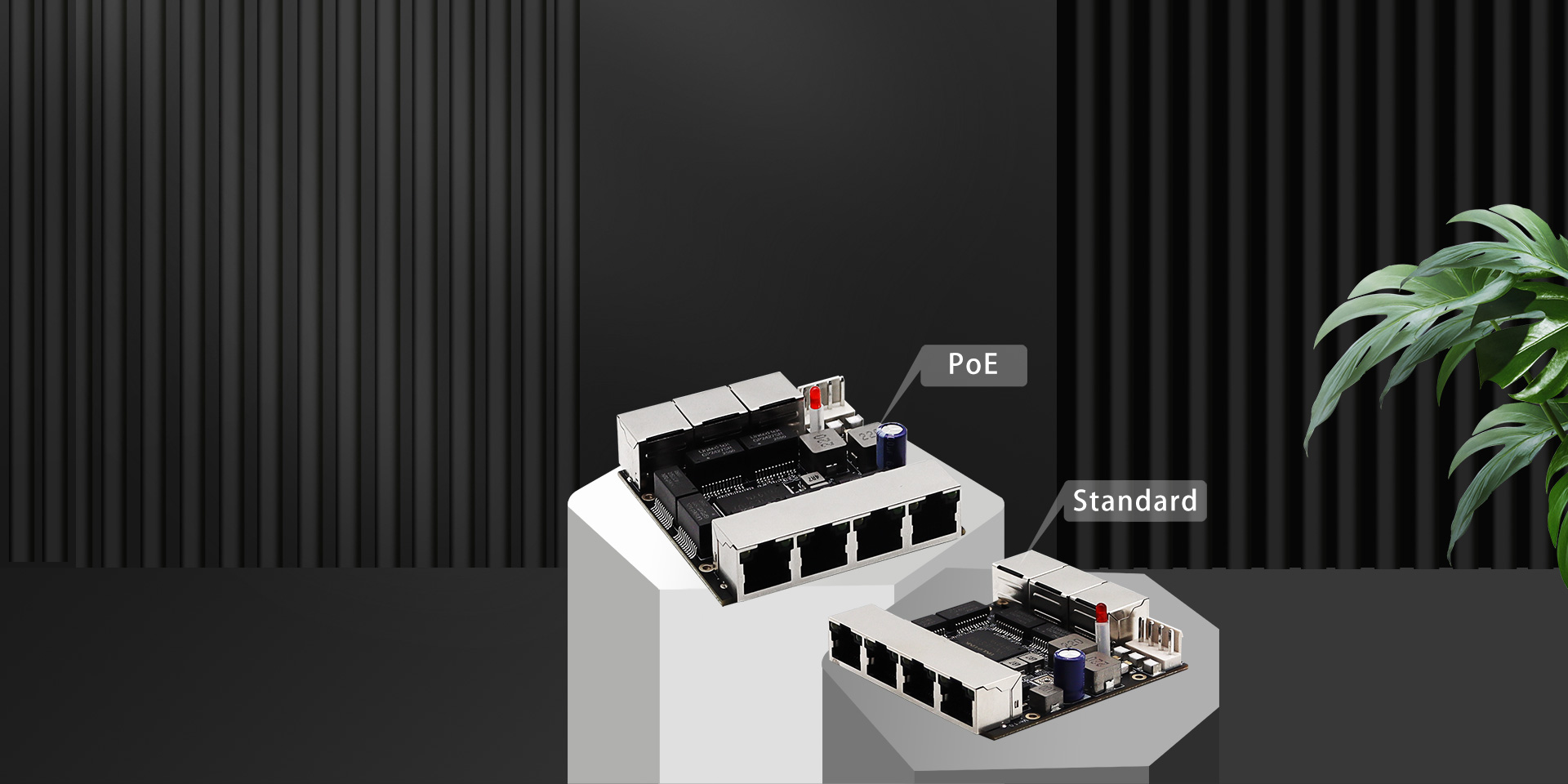

7-Port Gigabit Mini Switch Module

Supports IEEE 802.3af/at PoE standards

-40~85℃

Model: YN-IES107

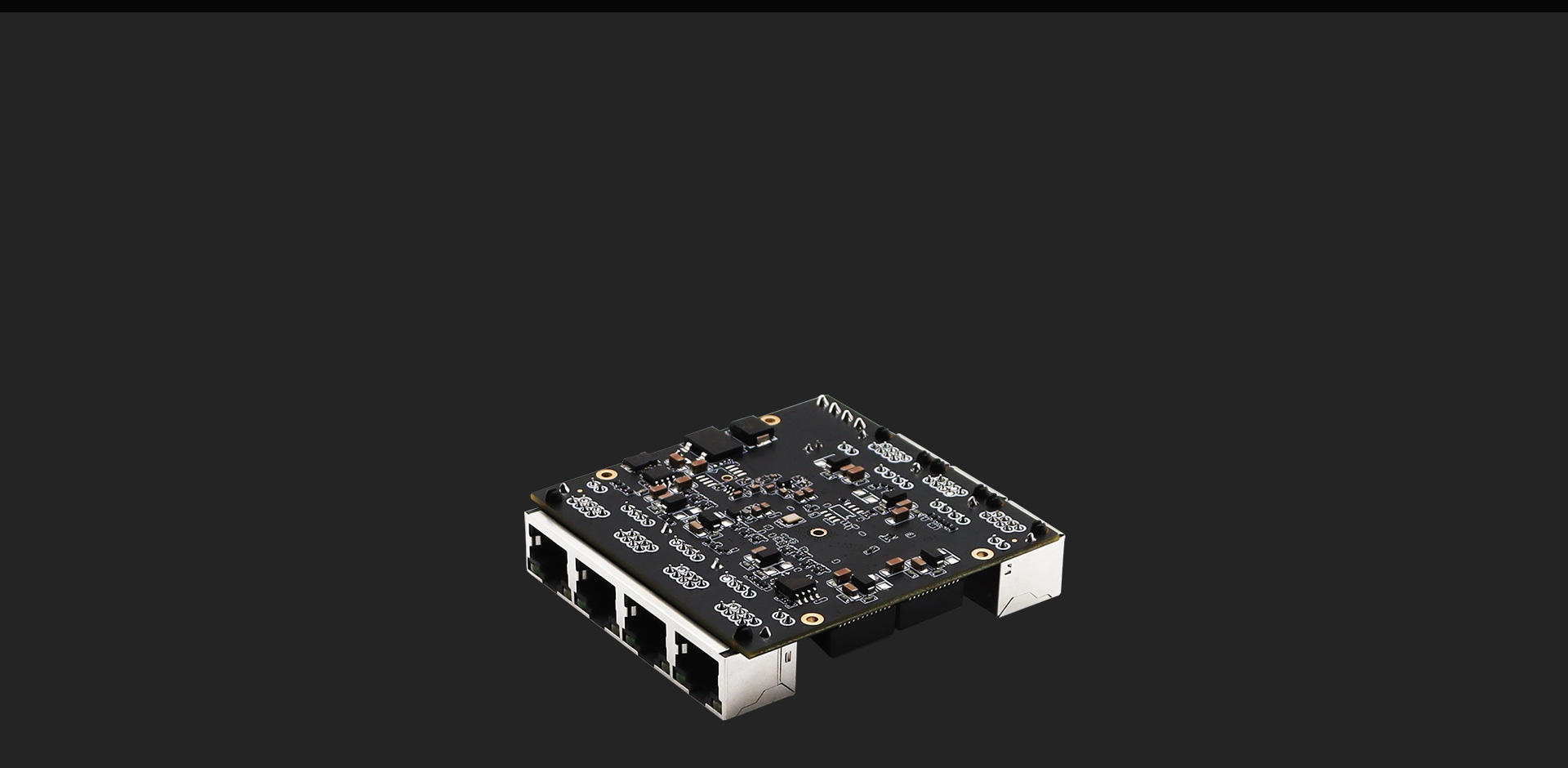

Compact, Flexible Embedded Design

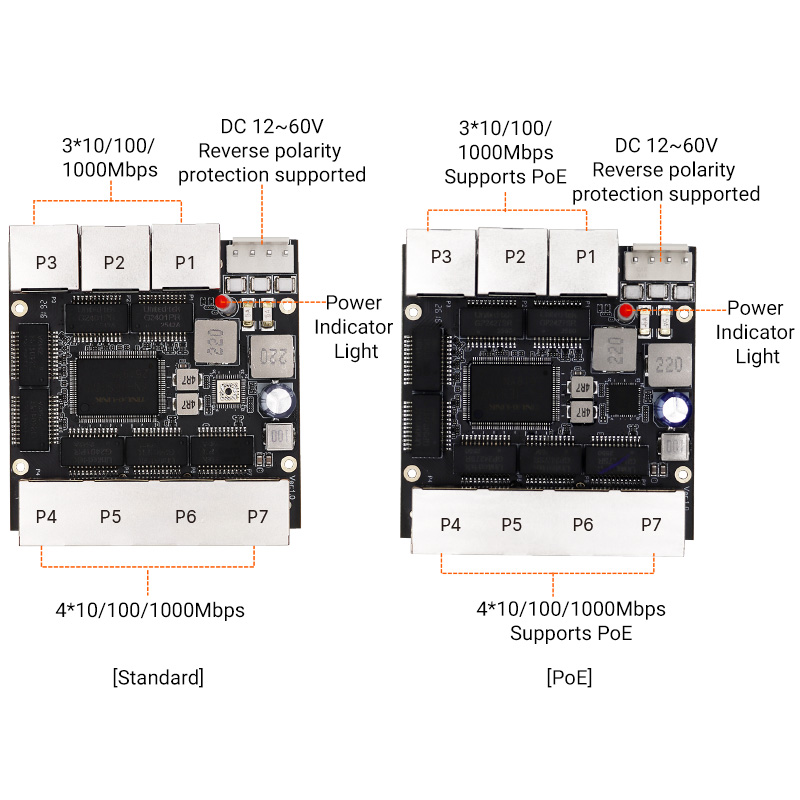

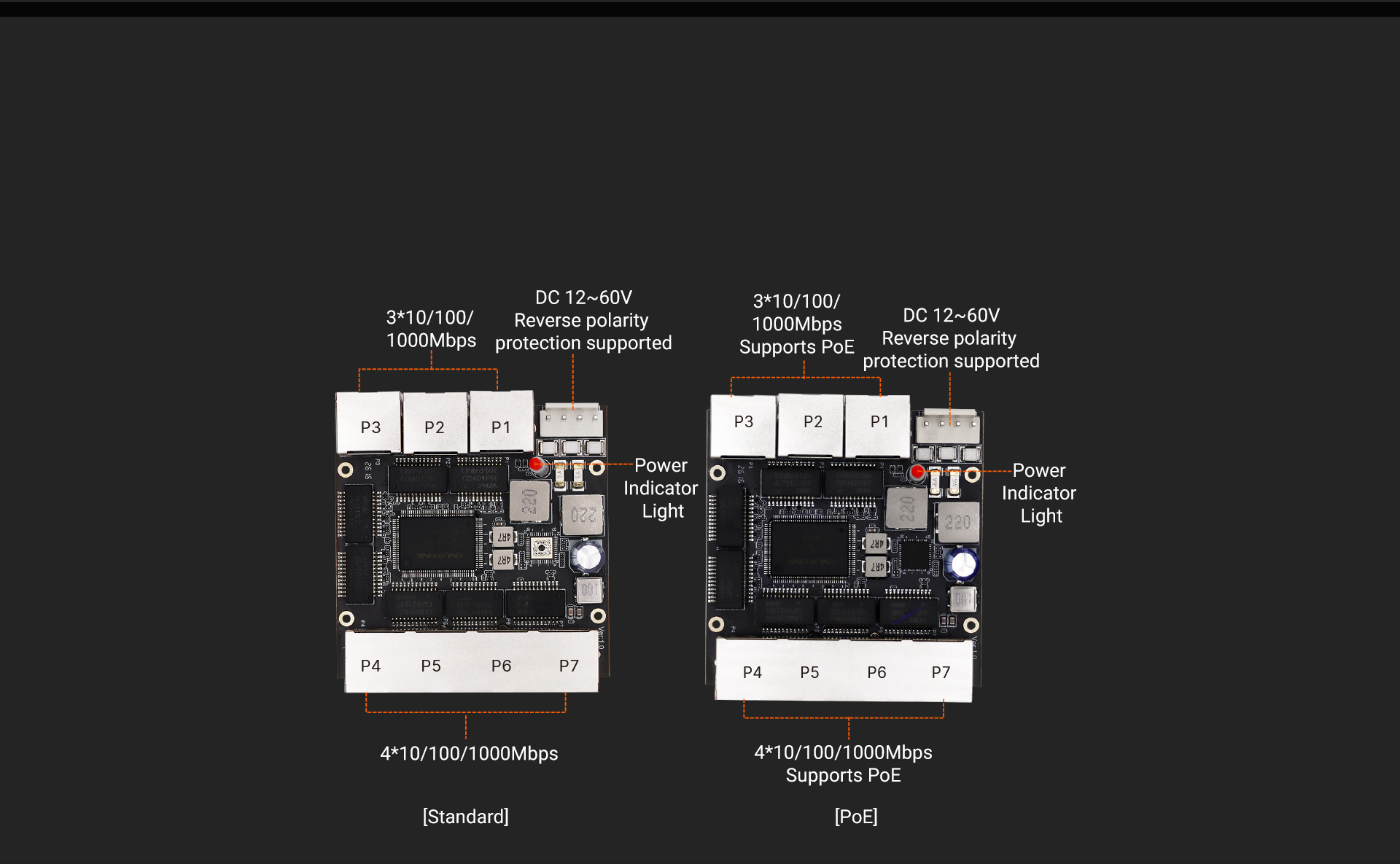

Equipped with 7 adaptive 10/100/1000Mbps RJ45 ethernet port for instant device network expansion.

All ports support Auto-MDI/MDIX, eliminating the need to worry about the type of cable used.

Input Voltage 12~60V

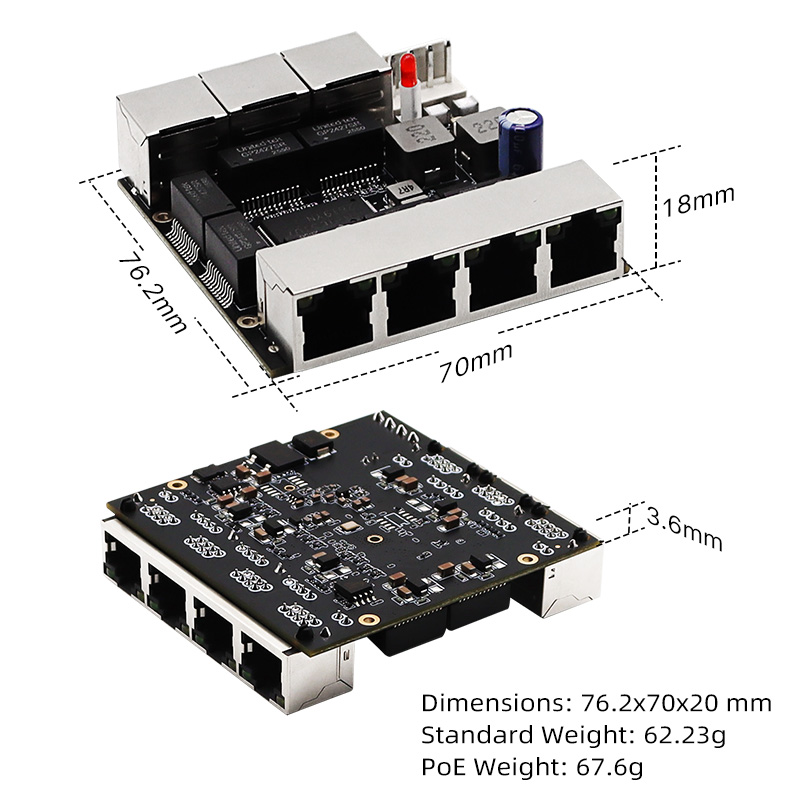

Dimensions: 76.2 × 70 × 20 mm

Standard Weight: 62.23g PoE Weight: 67.6g

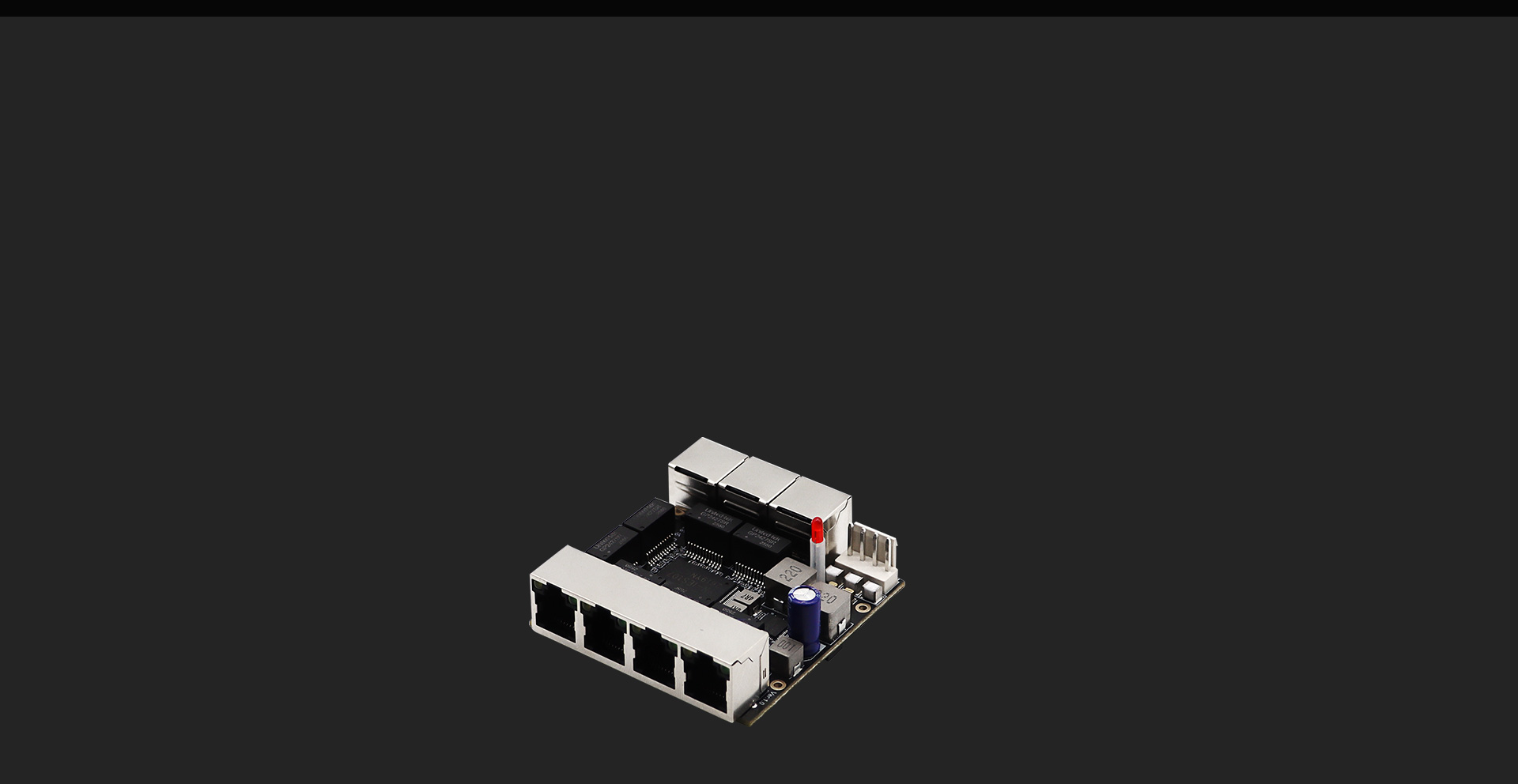

Designed for Industrial Environments

To effectively ensure the reliability of the product in environments with a wide voltage and temperature range, and comprehensively guarantee its normal operation in various electrical environments. Under the environment of -40℃ ~ 85℃, a variety of relevant tests are conducted comprehensively and continuously for 48 hours, including operating performance tests, storage stability tests, and cyclic durability tests.

Startup Stability Test

In terms of voltage testing, hundreds of power-off and restart tests were conducted under different voltage levels, including 9V, 12V, 24V and 48V. These tests highly simulate voltage fluctuations in real-world environments, thereby rigorously verifying the stability and recovery capability of the switch.

Selected Components

Adopting high-standard industrial components that undergo rigorous durability testing, the device features a long service life and reduces equipment maintenance and replacement costs.

Number corresponds to wire sequence

1. TX_D1+ Tranceive Data+ 2. TX_D1- Tranceive Data- 3. RX_D2+ Receive Data+

4. BI_D3+ Bi-directional Data+ 5. BI_D3- Bi-directional Data- 6. RX_D2- Receive Data-

7. BI_D4+ Bi-directional Data+ 8. BI_D4- Bi-directional Data-

Compliant with IEEE 802.3af/at PoE standards

Strictly compliant with IEEE 802.3af/at standards. Single-port power supply reaches up to 30W. A 52V power supply is recommended for PoE operation to fully meet the power demand of each port.It is equipped with over-current, over-voltage, surge, short-circuit and other protection mechanisms complying with PSE standards.

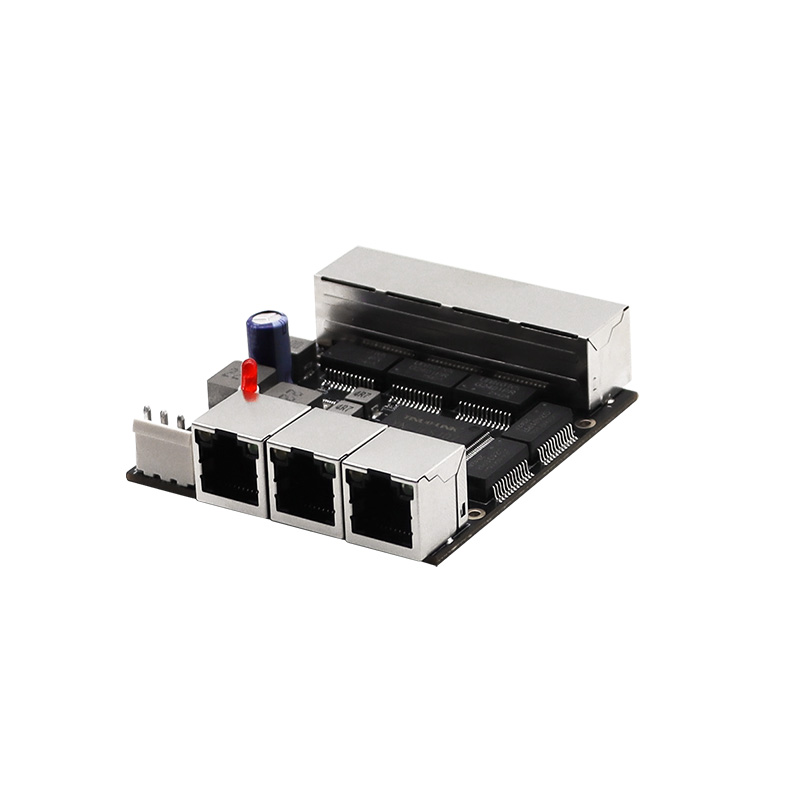

YN-IES107 Industrial 7-Port Gigabit Mini Switch Module

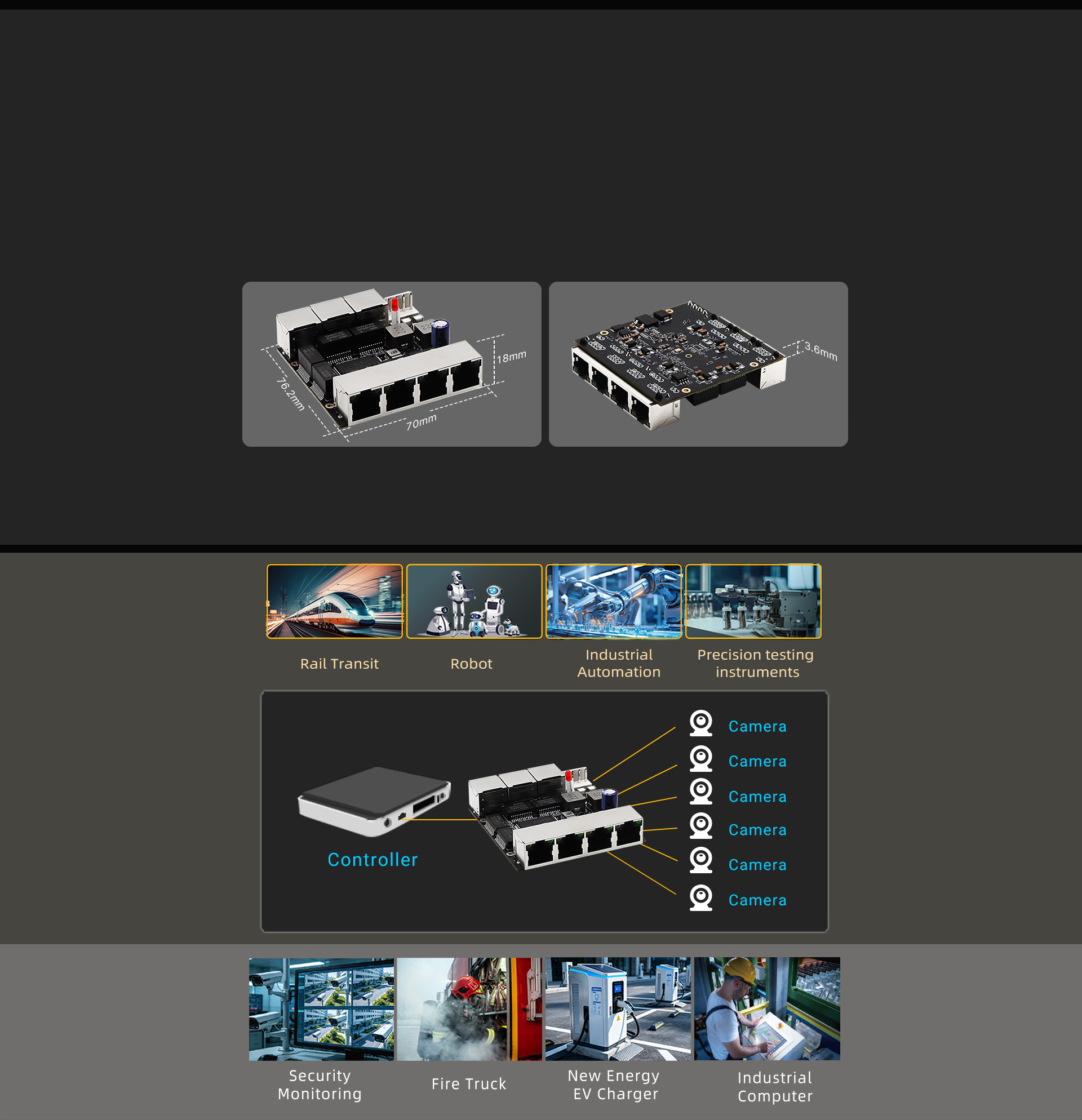

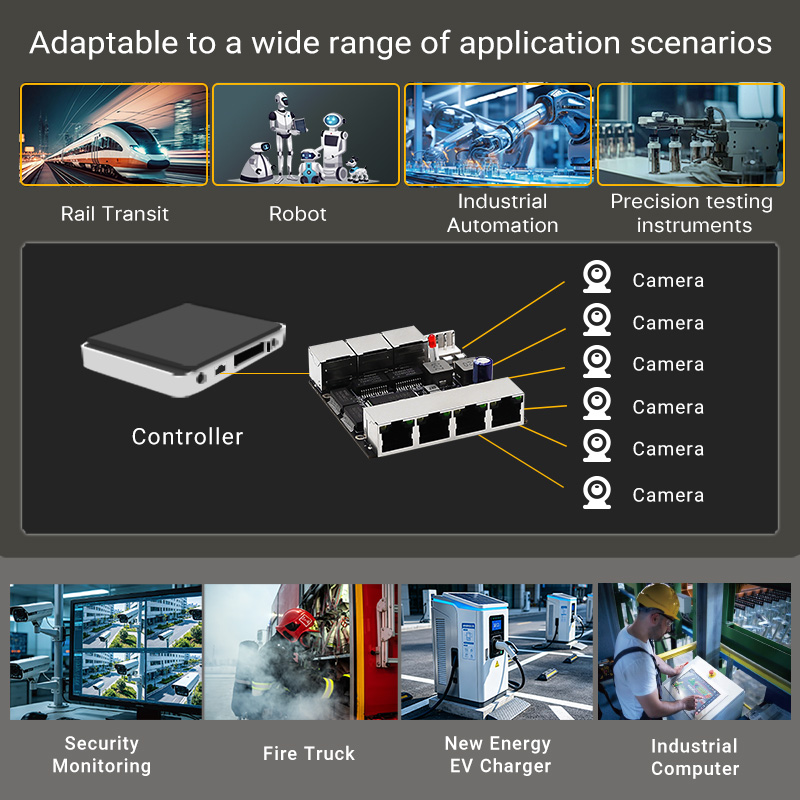

Wide Range of Applications,

Adaptable to Many Fields

Standard: IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3AF/AT

Ports: 7 x 10/100/1000Mbps auto-sensing Ethernet port（When using PoE power supply, it is recommended to use a 52V power source.） Single-port maximum PoE output up to 30W

Protocol: CSMA/CD

LED Indicators: Power, Link/Act

Input Voltage: 12~60V VH3.96mm 4 Pin Connector（Supports reverse polarity protection, surge 4KV）

Electrostatic Discharge (Contact): 6KV

No-load: 1.5W

Average Power Consumption: 6W

Max. Power Consumption: 10W

Transmission Method: Store and Forward

Switching Capacity: 16Gbps

MAC Address Learning: Automatic Learning, Automatic Aging

MAC Address: 2K

Environmental:

Operating Temperature: -40℃ ~ 85℃

Storage Temperature: -40℃ ~ 85℃

Operating Humidity: 10%RH ~90%RH(non-condensing)

Storage Humidity: 5%RH ~ 90%RH(non-condensing)
