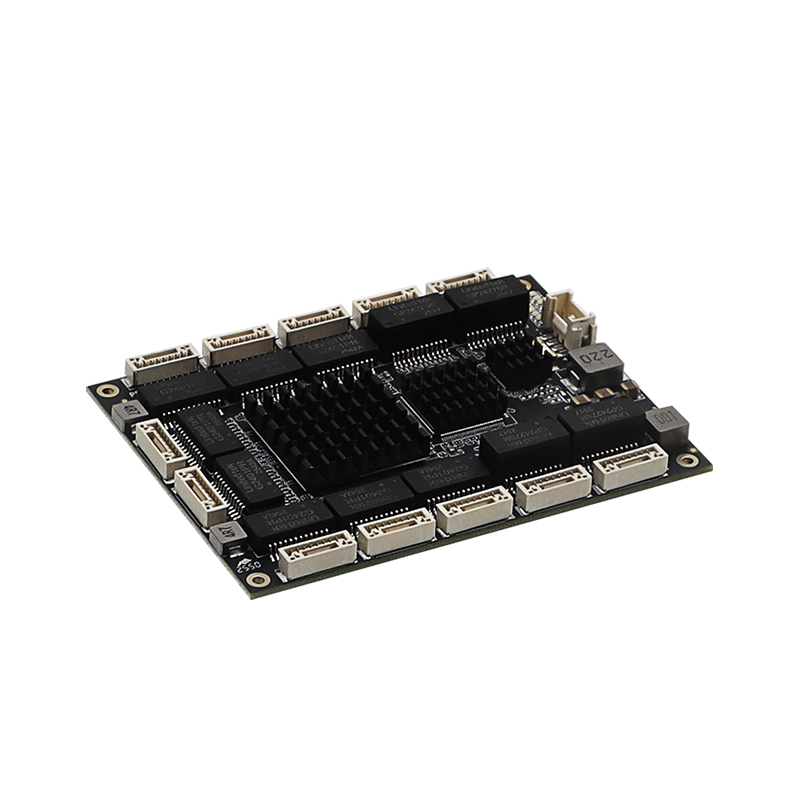

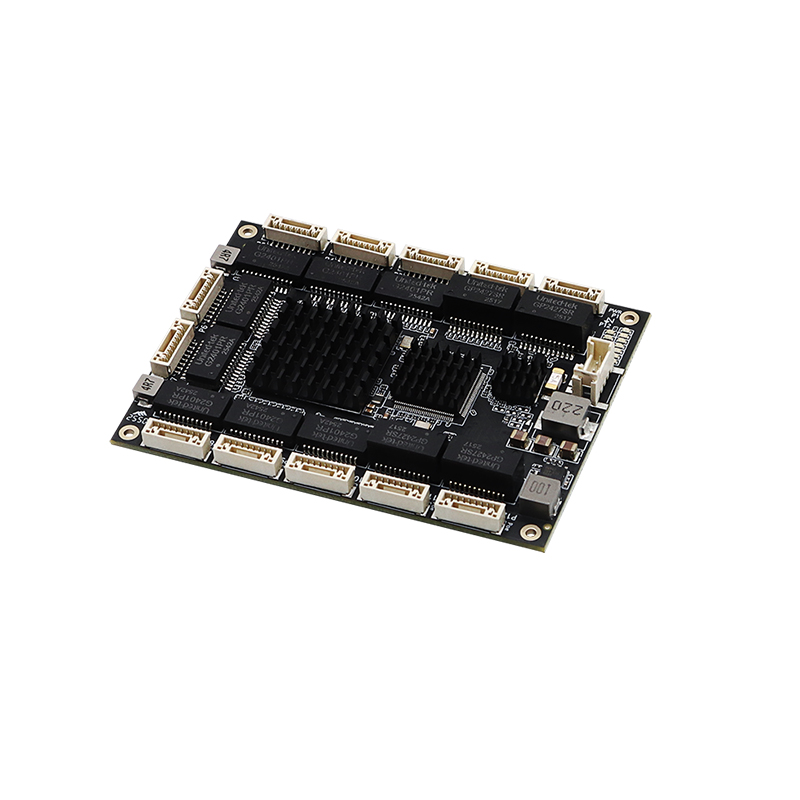

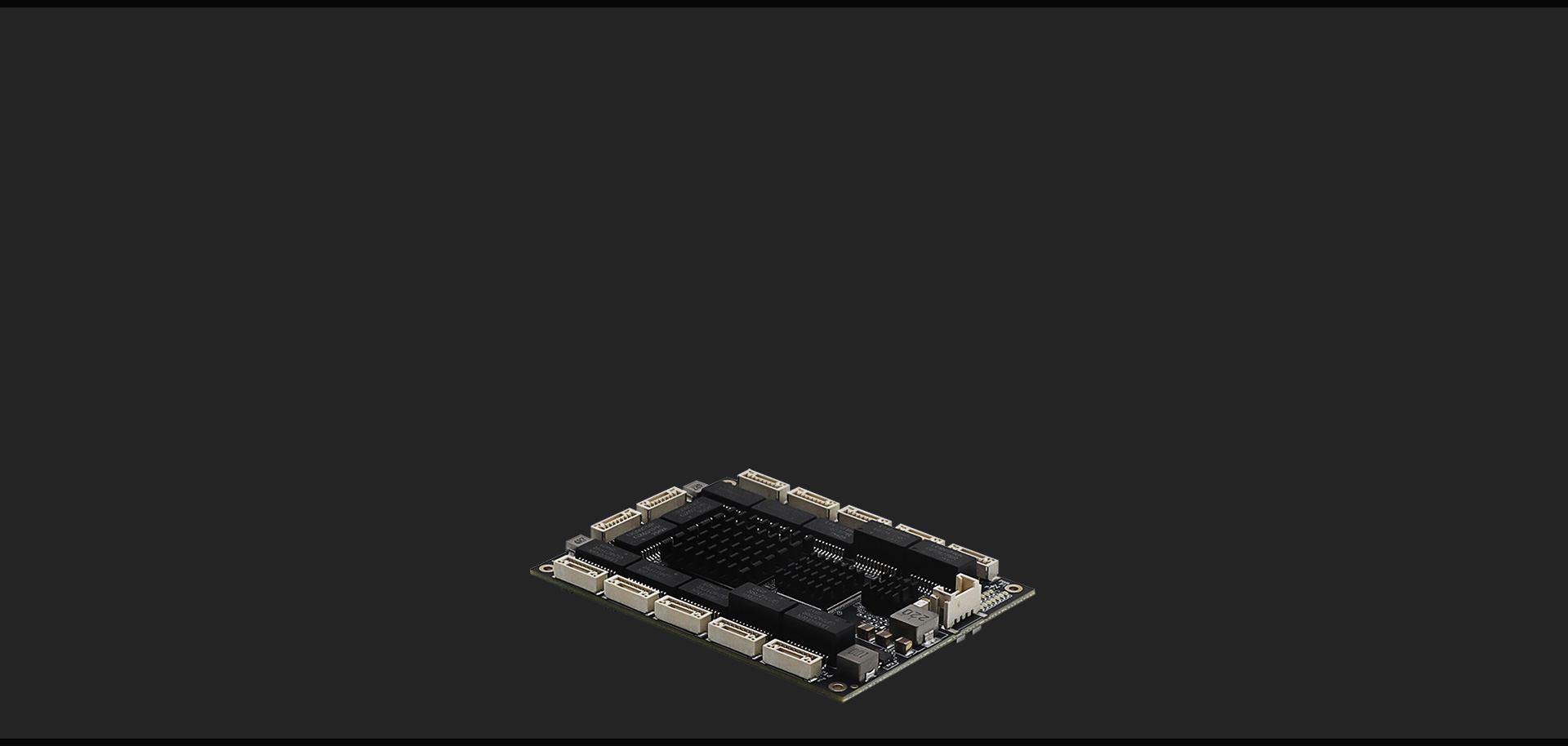

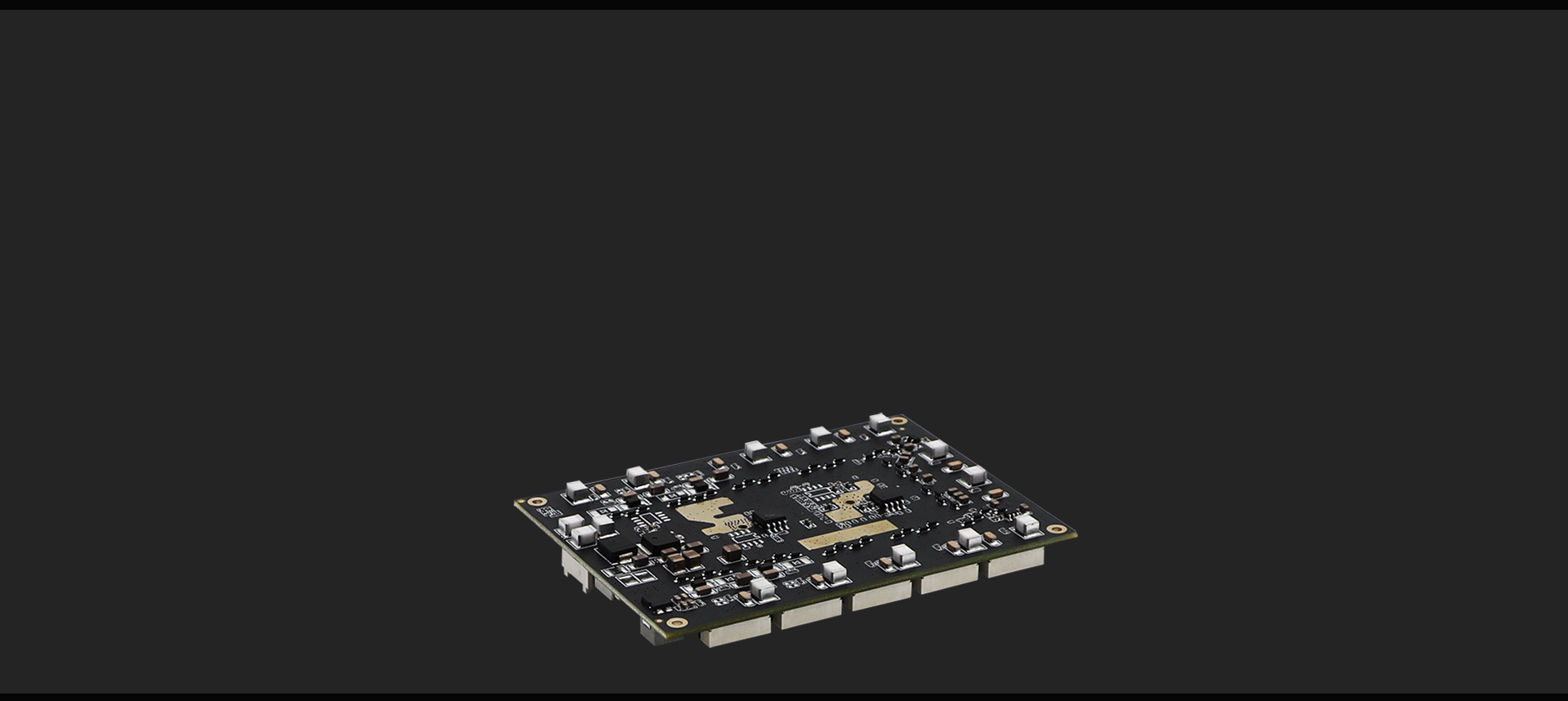

YN-IES101201 Industrial 12-Port Gigabit Mini PoE Switch Module

· Every components are made in China.

· Compact Structure and Small-Size Design.

· 12×10/100/1000Mbps Auto-Negotiation GH 1.25 8P Connectors (4 of which are PoE ports) .

· Supports IEEE 802.3af/at standards, with a maximum PoE output of 30W per port.

· Fanless design ensures quiet operation.

· Auto-Negotiation: Ensures the maximum speed for each port.

· Full-duplex mode adopts the IEEE 802.3x standard, while half-duplex mode adopts the Backpressure standard.

· Auto MDI/MDIX: Eliminates the need for crossover cables.

· Wide voltage range: 9~60V (supports reverse protection without power supply), surge 2KV.

· Supports 8KV contact electrostatic discharge (ESD) protection.

· Industrial-grade operating temperature: - 40℃~85℃

· High EMC protection rating, withstanding all harsh environments.

· Dimensions: 93 x 68 x 12.6mm

Services

Overview
Specifications

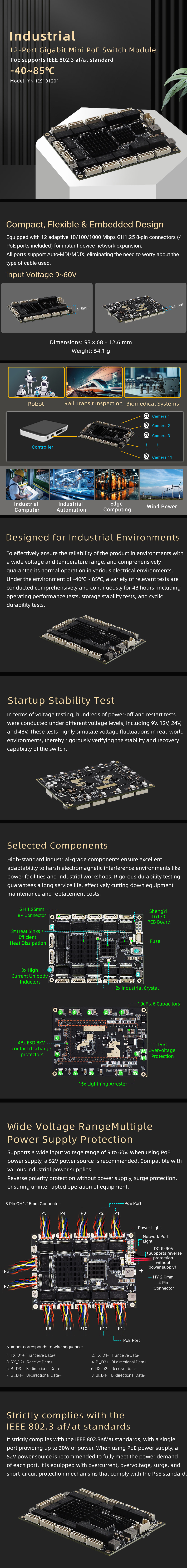

Industrial

12-Port Gigabit Mini PoE Switch Module

PoE supports IEEE 802.3 af/at standard

-40~85℃

Model: YN-IES101201

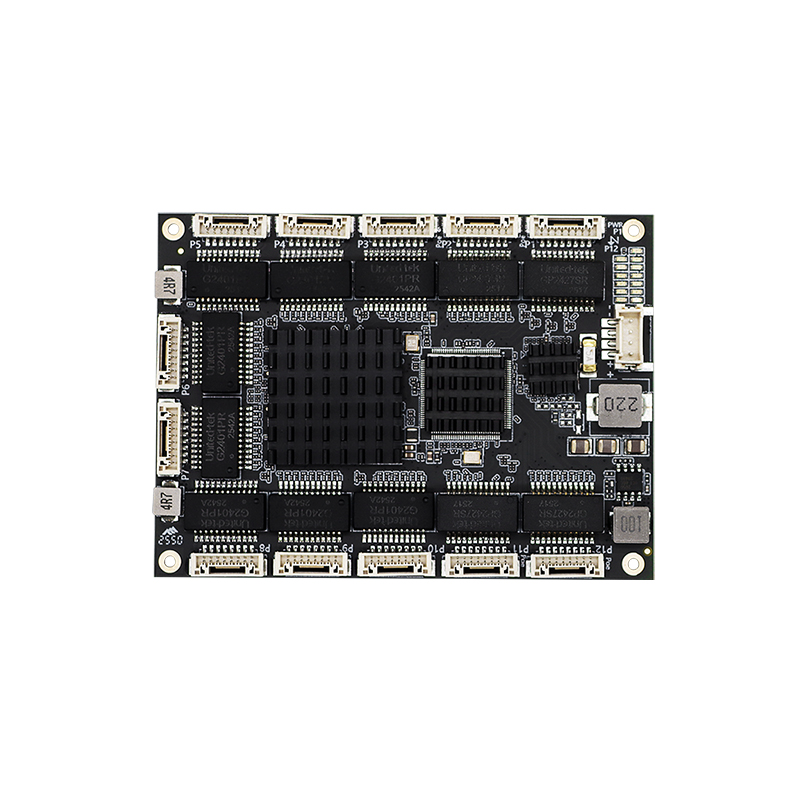

Compact, Flexible Embedded Design

Equipped with 12 adaptive 10/100/1000 Mbps GH1.25 8-pin connectors (4PoE ports included) for instant device network expansion.

All ports support Auto-MDI/MDIX, eliminating the need to worry about the type of cable used.

Input Voltage 9~60V

Dimensions: 93 × 68 × 12.6 mm

Weight: 54.1 g

Designed for Industrial Environments

To effectively ensure the reliability of the product in environments with a wide voltage and temperature range, and comprehensively guarantee its normal operation in various electrical environments. Under the environment of -40℃ ~ 85℃, a variety of relevant tests are conducted comprehensively and continuously for 48 hours, including operating performance tests, storage stability tests, and cyclic durability tests.

Startup Stability Test

In terms of voltage testing, hundreds of power-off and restart tests were conducted under different voltage levels, including 9V, 12V, 24V, and 48V. These tests highly simulate voltage fluctuations in real-world environments, thereby rigorously verifying the stability and recovery capability of the switch.

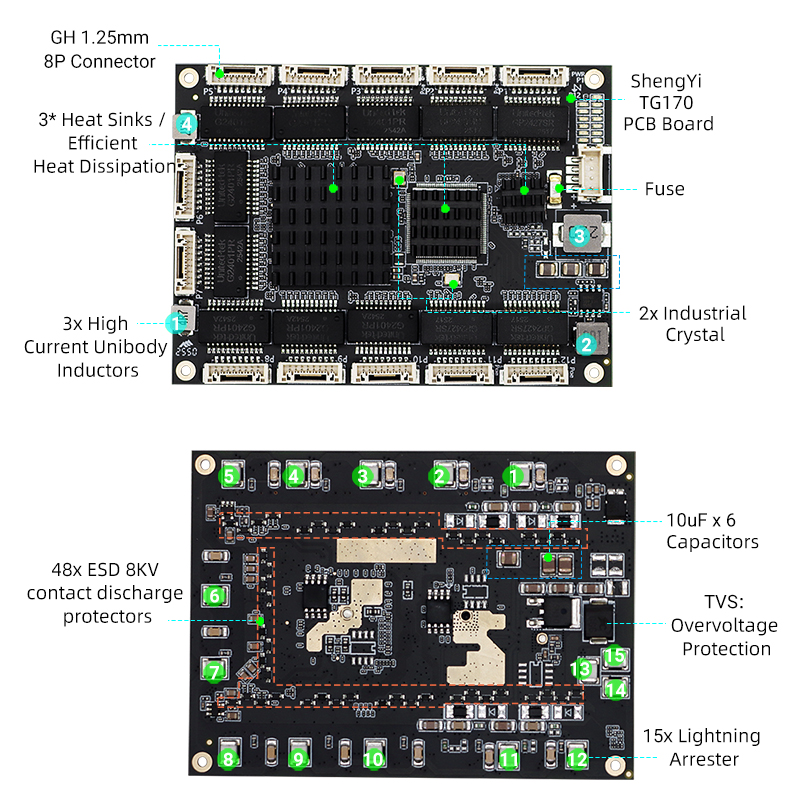

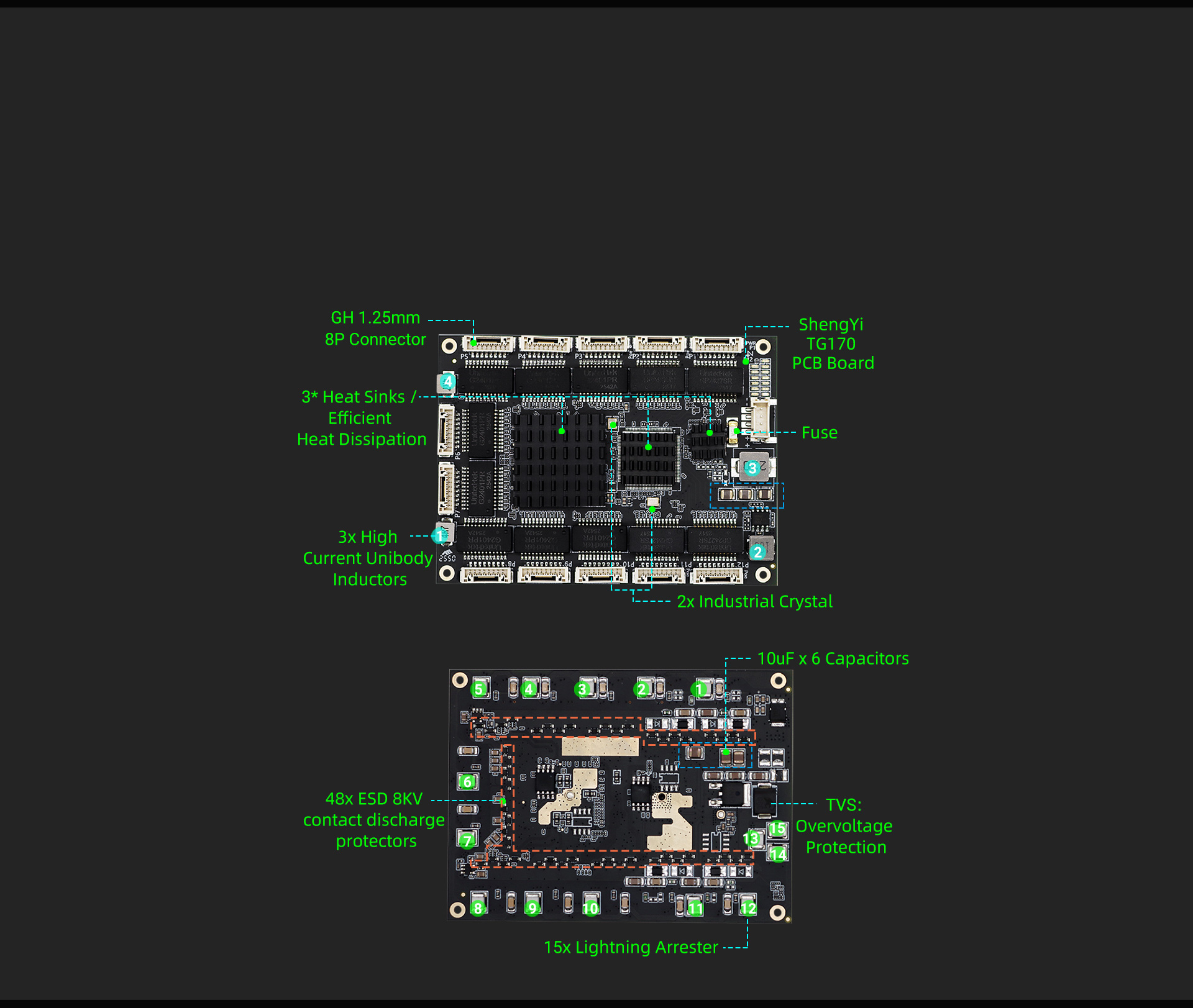

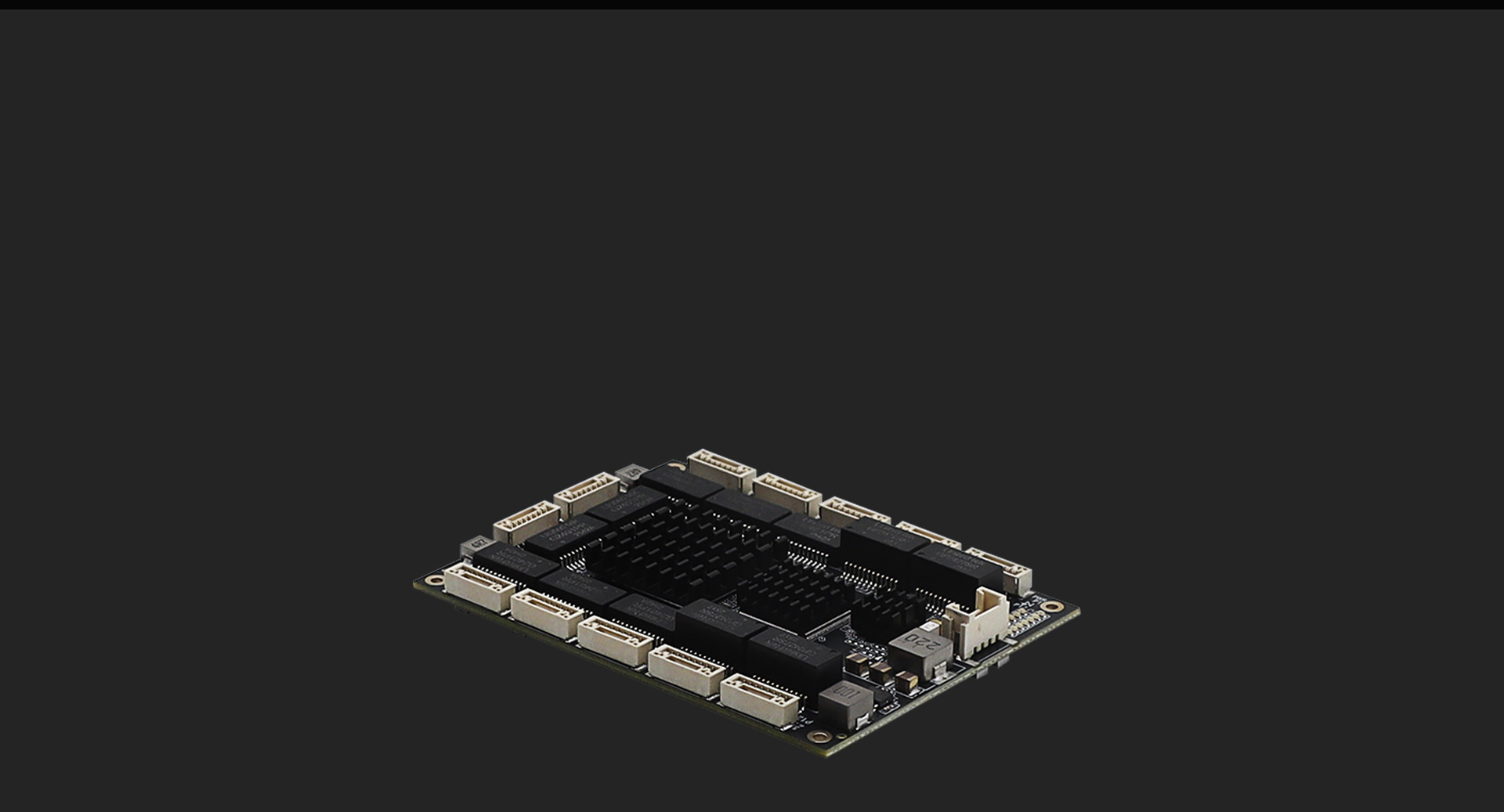

Selected Components

High-standard industrial-grade components ensure excellent adaptability to harsh electromagnetic interference environments like power facilities and industrial workshops. Rigorous durability testing guarantees a long service life, effectively cutting down equipment maintenance and replacement costs.

Wide Voltage RangeMultiple

Power Supply Protection

Supports a wide input voltage range of 9 to 60V. When using PoE power supply, a 52V power source is recommended. Compatible with various industrial power supplies.

Reverse polarity protection without power supply, surge protection, ensuring uninterrupted operation of equipment.

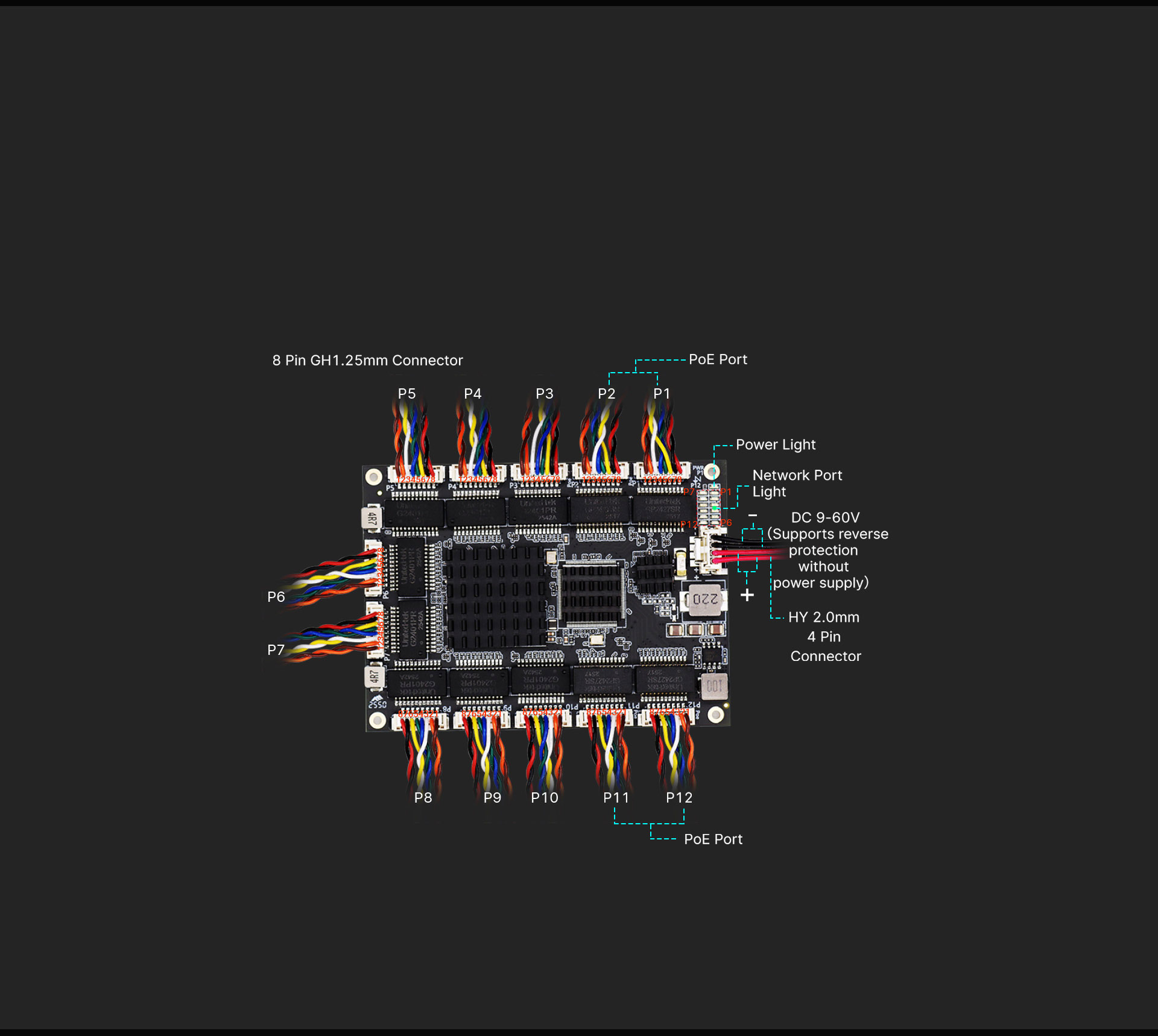

Number corresponds to wire sequence:

1. TX_D1+ Tranceive Data+ 2. TX_D1- Tranceive Data-

3. RX_D2+ Receive Data+ 4. BI_D3+ Bi-directional Data+

5. BI_D3- Bi-directional Data- 6. RX_D2- Receive Data-

7. BI_D4+ Bi-directional Data+ 8. BI_D4- Bi-directional Data-

Strictly complies with the

IEEE 802.3 af/at standards

It strictly complies with the IEEE 802.3af/at standards, with a single port providing up to 30W of power. When using PoE power supply, a 52V power source is recommended to fully meet the power demand of each port. It is equipped with overcurrent, overvoltage, surge, and short-circuit protection mechanisms that comply with the PSE standard.

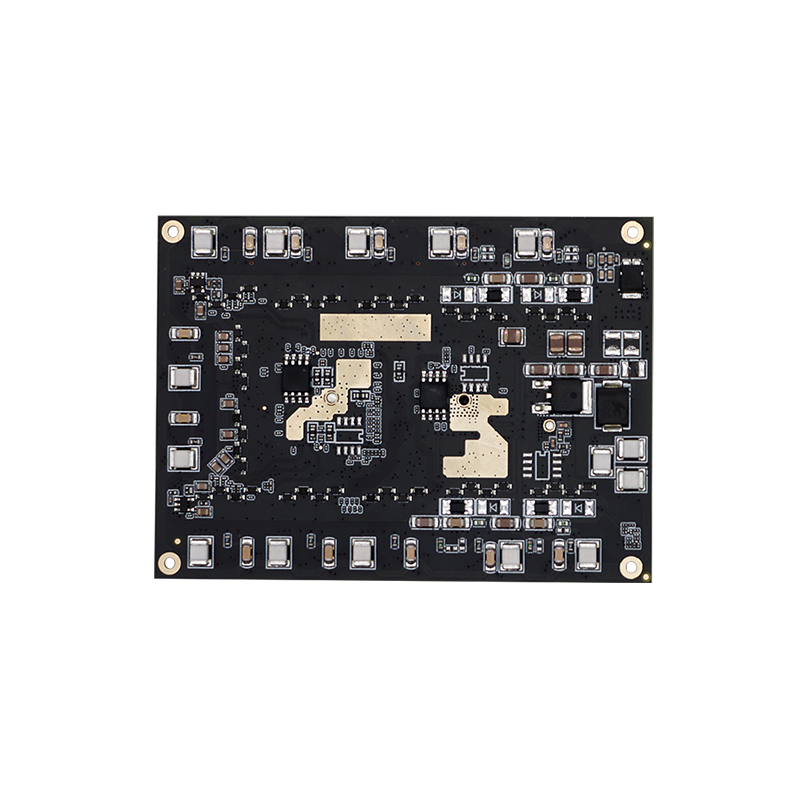

YN-IES101201 Industrial 12-Port Gigabit Mini PoE Switch Module

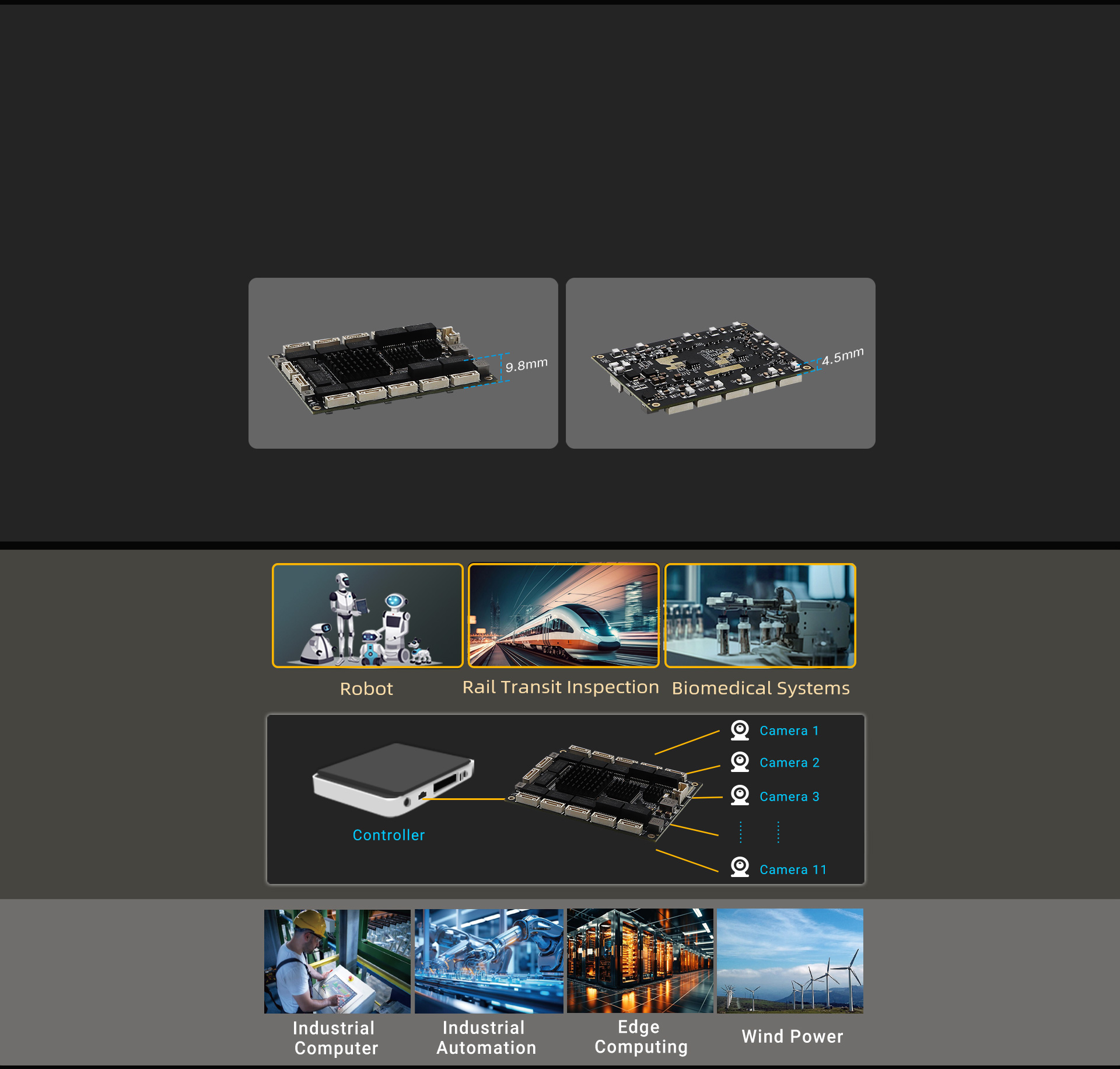

Wide Range of Applications,

Adaptable to Many Fields

Standard: IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3AF/AT

Ports: 12 x 10/100/1000Mbps auto-sensing GH 1.25 8P connectors（4 of which are PoE ports, when using PoE power supply, it is recommended to use a 52V power source.）

Single-port maximum PoE output up to 30W

Protocol: CSMA/CD

LED Indicators: Power, Link/Act

Input Voltage: 9~60V HY2.0 4-Pin Connector（Supports reverse protection without power supply, surge 2KV）

Electrostatic Discharge (Contact): 8KV

Average Power Consumption: 6.5W

Max. Power Consumption: 12W

No-load Power Consumption: 2W

Transmission Method: Store and Forward

MAC Address Learning: Automatic Learning, Automatic Aging

Dimensions: 93 × 68 × 12.6 mm

Environmental: Operating Temperature: -40℃ ~ 85℃

Storage Temperature: -40℃ ~ 85℃

Operating Humidity: 10%RH ~90%RH(non-condensing)

Storage Humidity: 5%RH ~ 90%RH(non-condensing)
