Every component are made in China

IEEE 802.3, 802.3u, 802.3abIEEE 802.3x

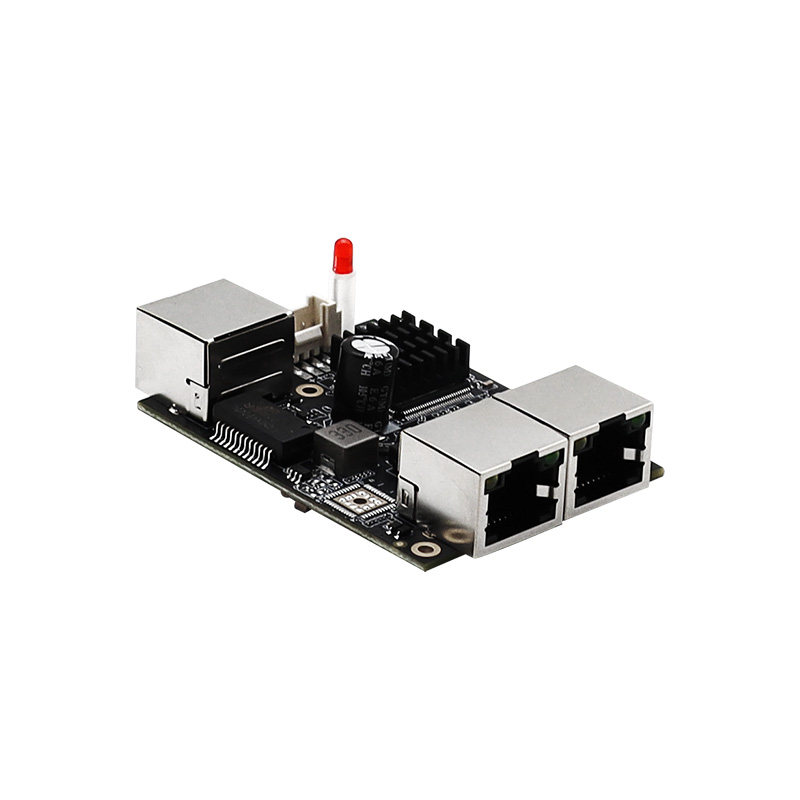

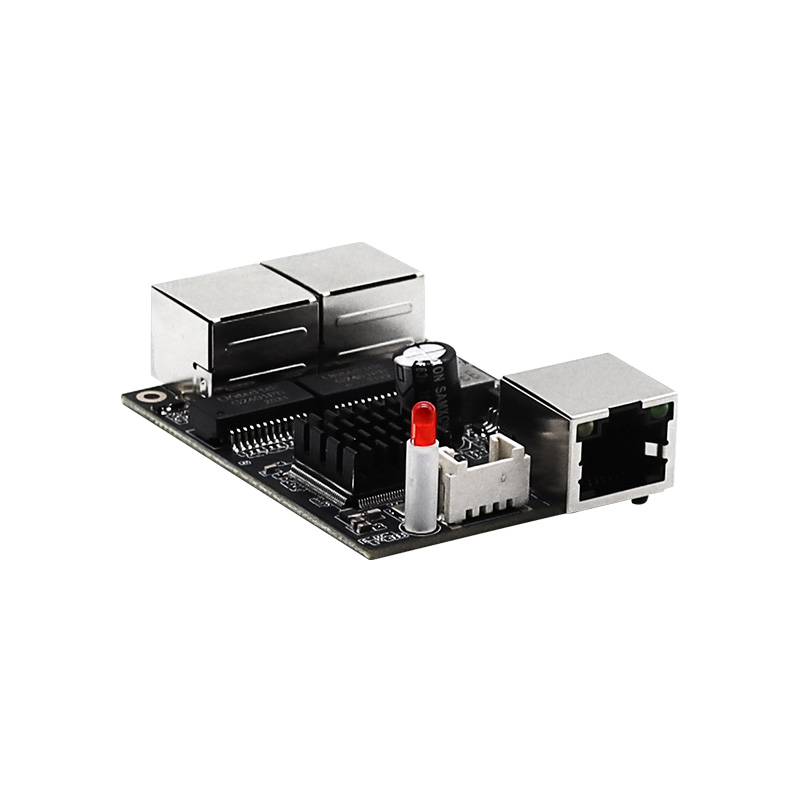

Model: YN-IES103

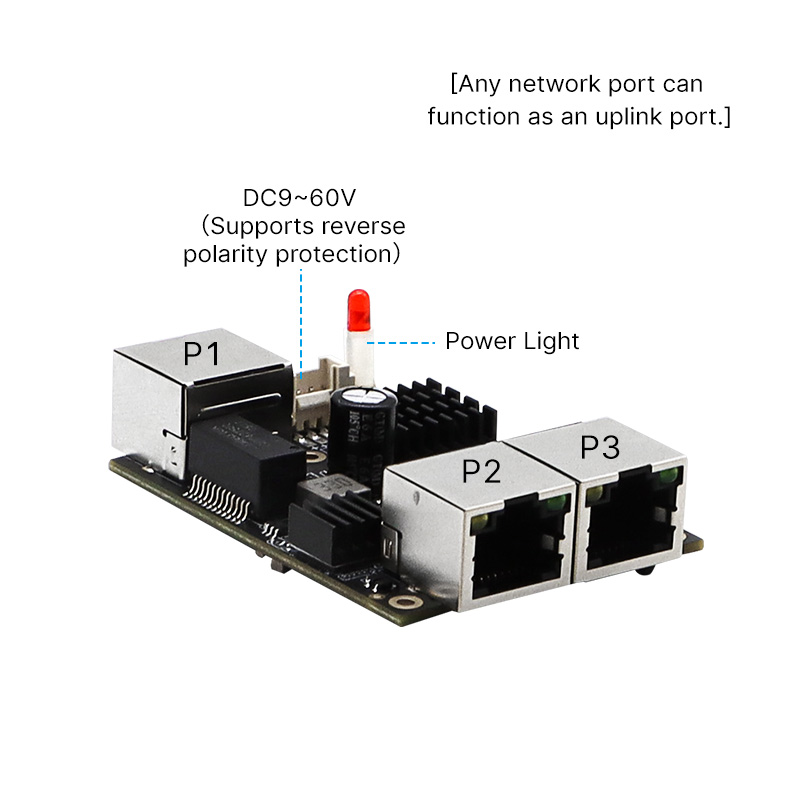

Equipped with 3 auto-negotiation 10/100/1000Mbps RJ45 ethernet port, it supports plug-and-play functionality, enabling immediate expansion of network connections to multiple devices.Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Input Voltage 9~60V

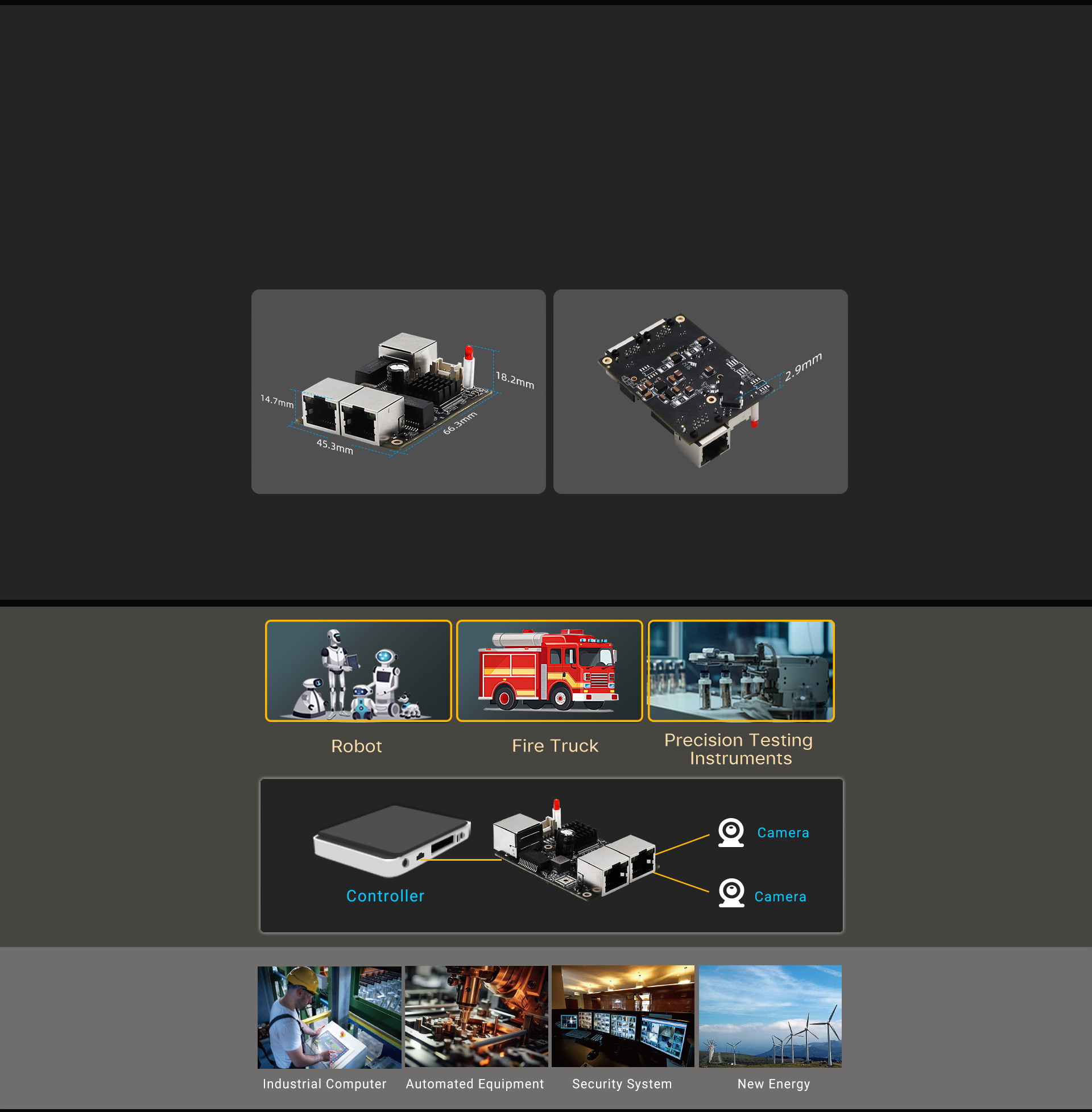

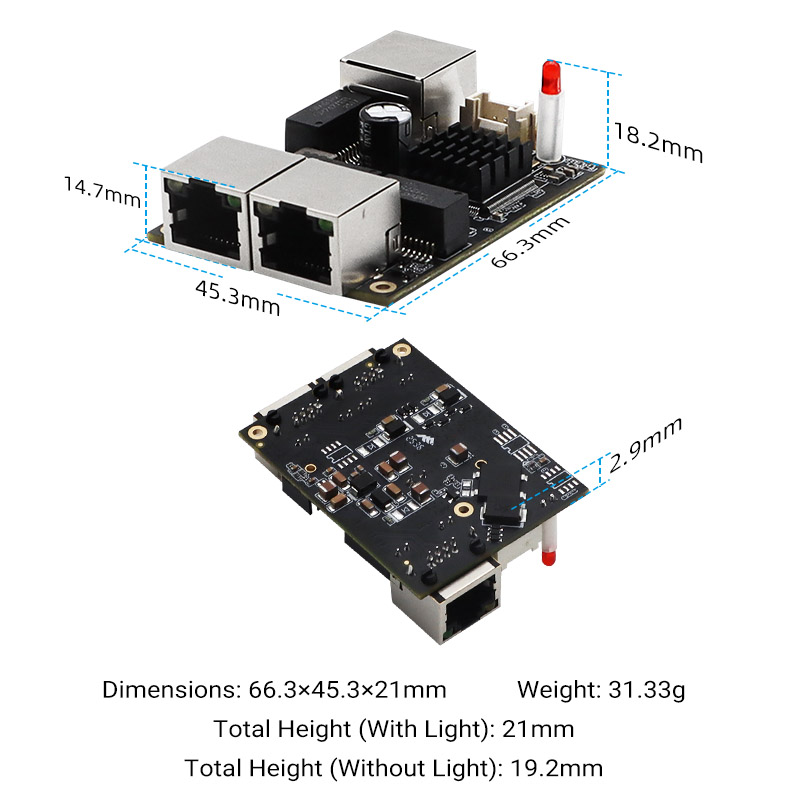

Dimensions: 66.3×45.3×21mm           Weight: 31.33g

Total Height (With Light): 21mm

Total Height (Without Light): 19.2mm

To effectively ensure the reliability of the product in environments with a wide voltage and temperature range, and comprehensively guarantee its normal operation in various electrical environments. Under the environment of -40℃ ~ 85℃, a variety of relevant tests are conducted comprehensively and continuously for 48 hours, including operating performance tests, storage stability tests, and cyclic durability tests.

In terms of voltage testing, hundreds of power-off and restart tests were conducted under different voltage levels, including 9V, 12V, 24V, and 48V. These tests highly simulate voltage fluctuations in real-world environments, thereby rigorously verifying the stability and recovery capability of the switch.

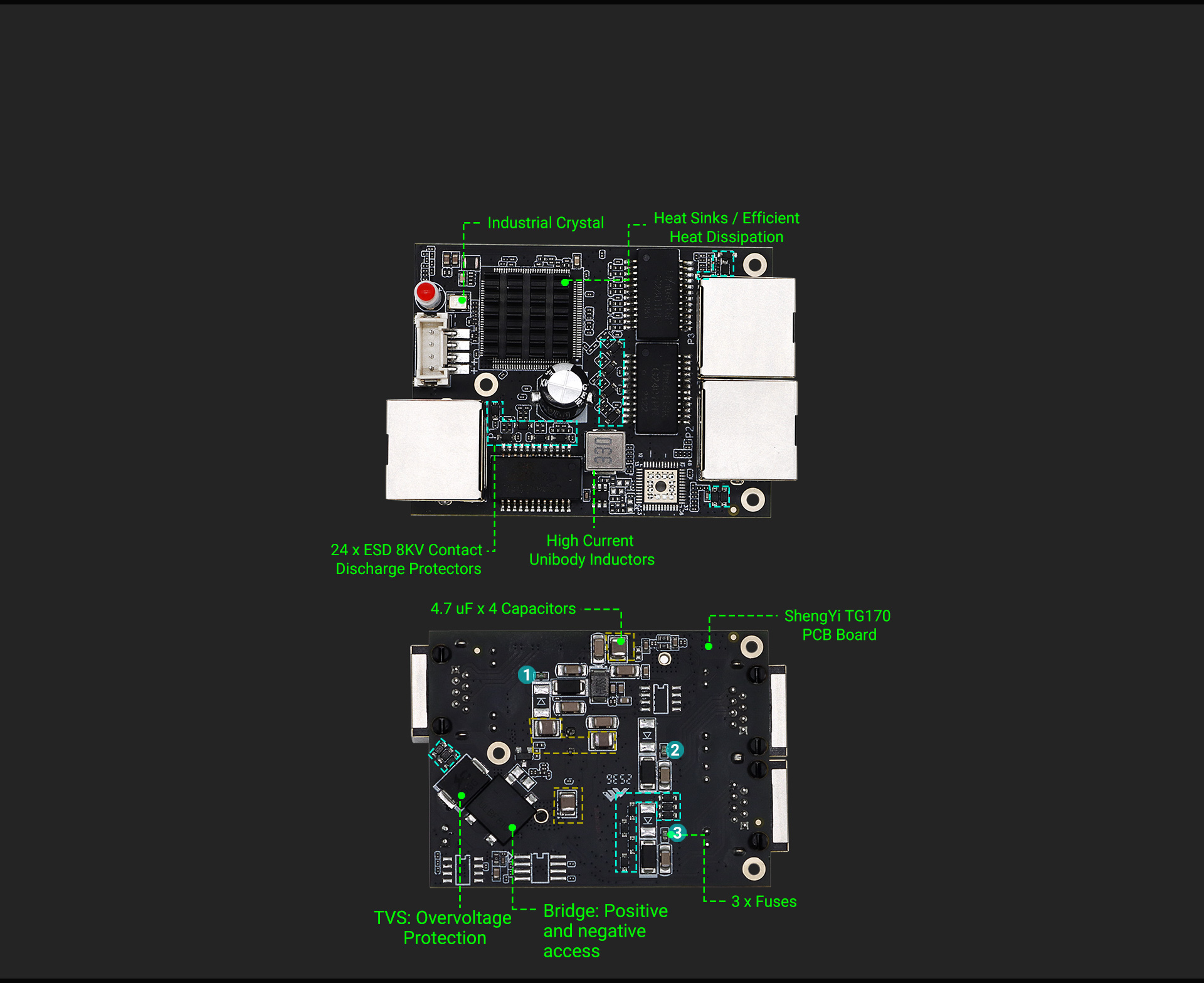

High-standard industrial components, which have undergone rigorous durability testing, feature a long service life and help reduce equipment maintenance and replacement costs.

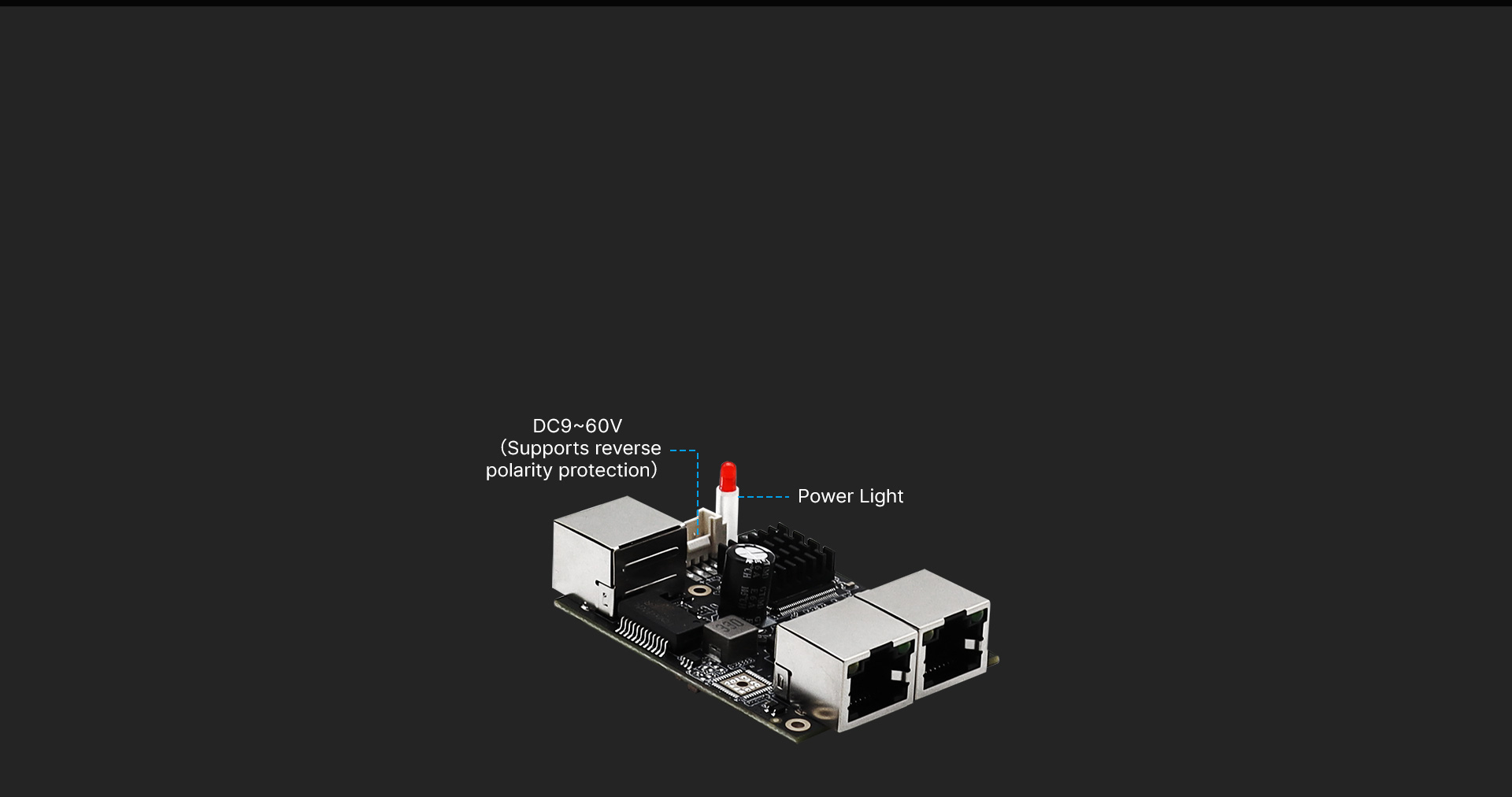

It supports a wide input voltage range of 9~60V. Making it compatible with various industrial power sources.

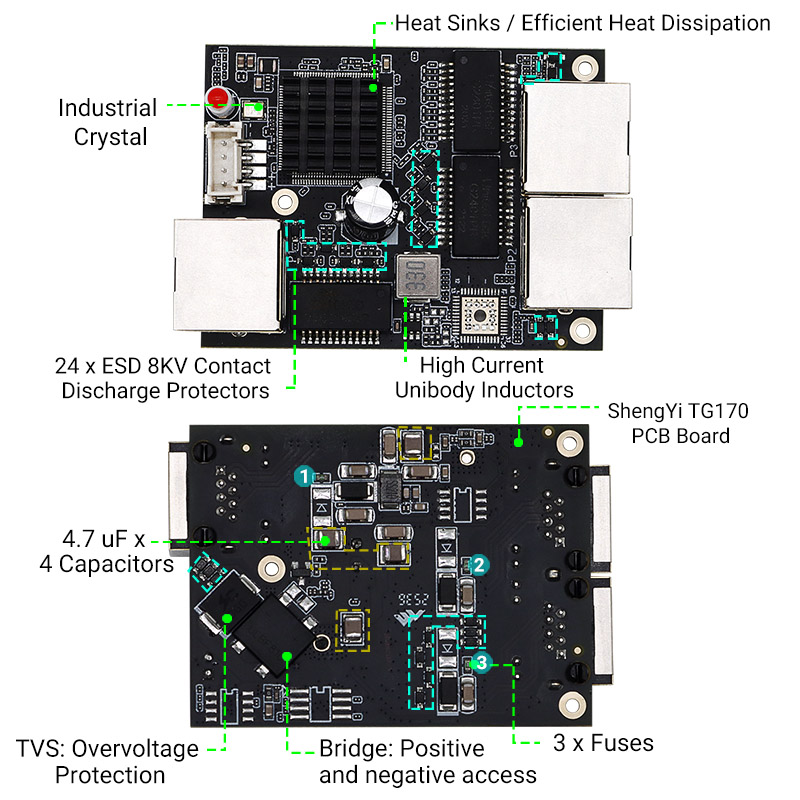

It features reverse connection protection, short-circuit and overcurrent protection, and surge protection to ensure the device operates continuously.
