YN-IES103P Industrial 3-Port Gigabit Mini PoE Switch Module

Ethernet Switch Module

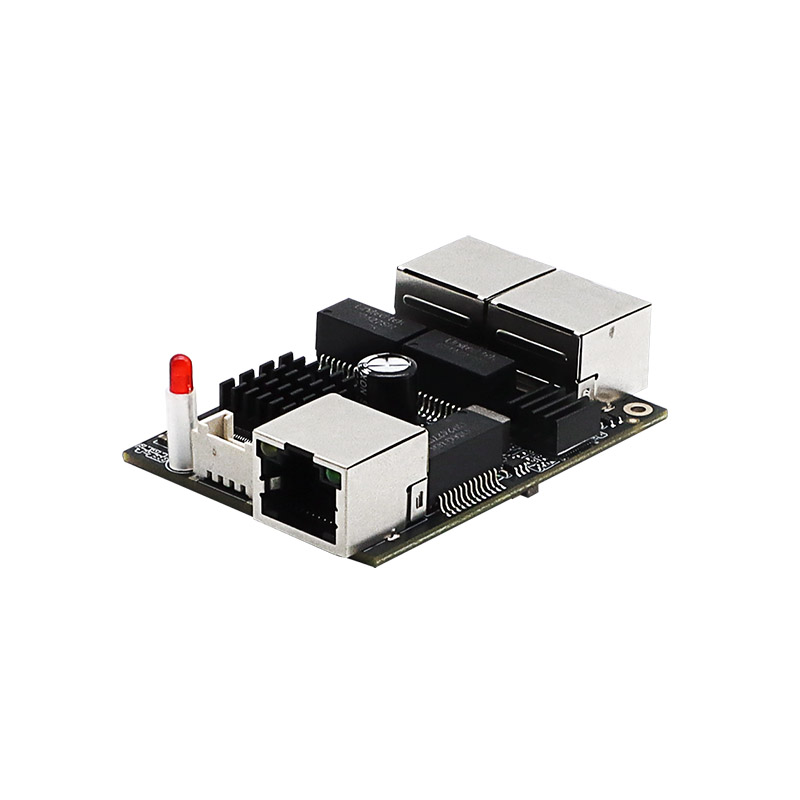

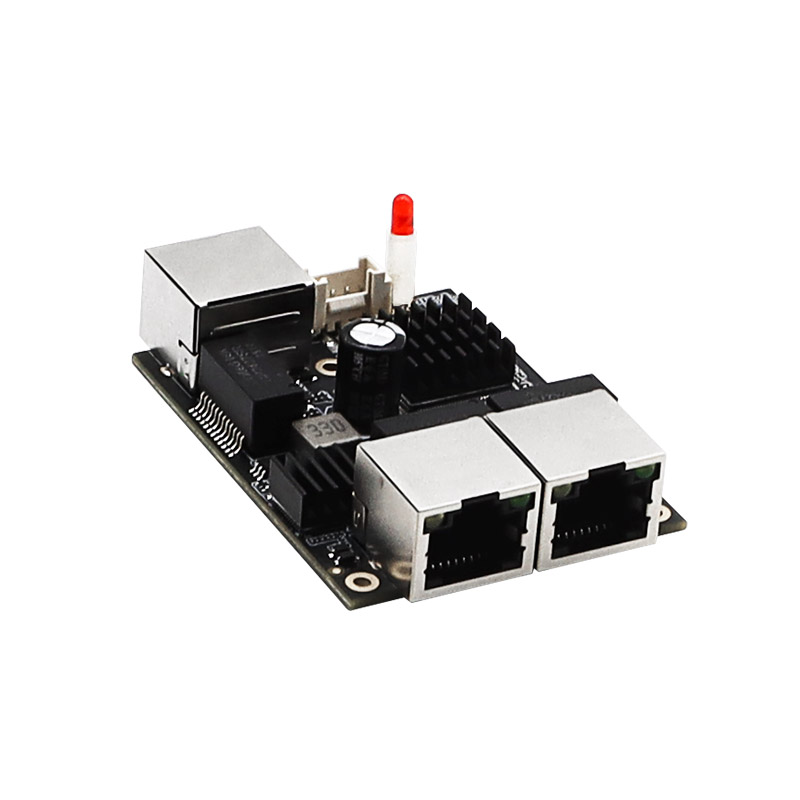

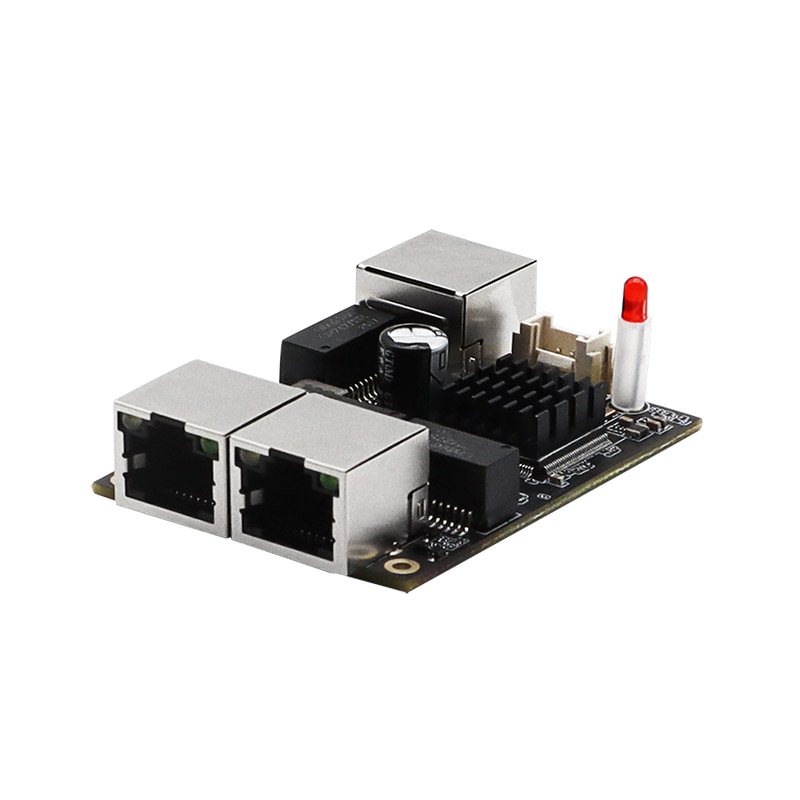

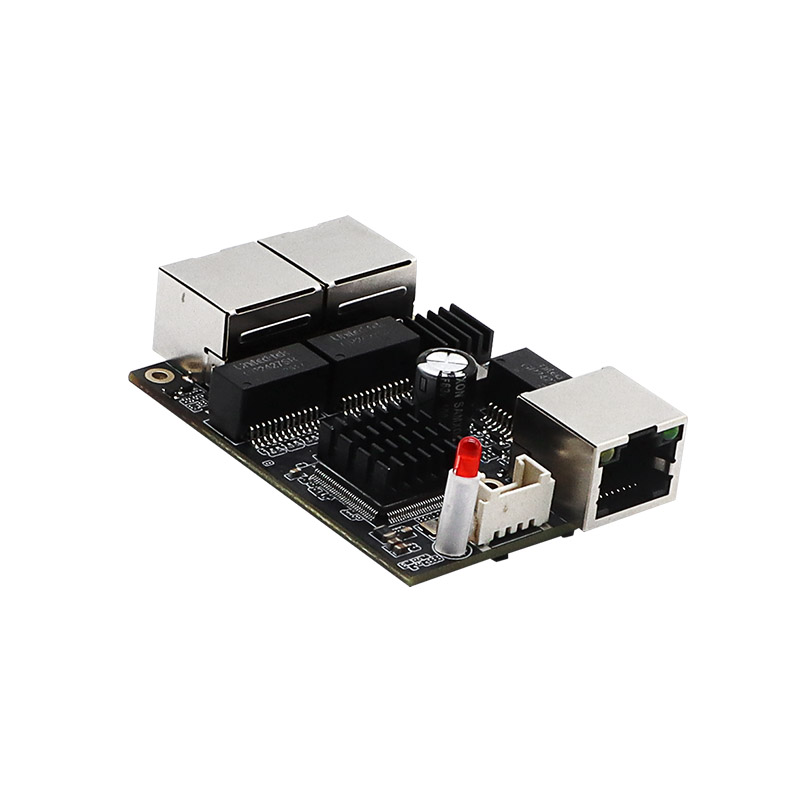

YN-IES103P Industrial 3-Port Gigabit Mini PoE Switch Module

· Every components are made in China.

· Compact Structure and Small-Size Design.

· 3 x 10/100/1000Mbps auto-sensing RJ45 Ethernet ports

· Fanless design ensures quiet operation.

· Auto-Negotiation: Ensures the maximum speed for each port.

· Full-duplex mode adopts the IEEE 802.3x standard, while half-duplex mode adopts the Backpressure standard.

· Auto MDI/MDIX: Eliminates the need for crossover cables.

· Wide voltage range: 9~60V (Supports reverse polarity protection), surge 2KV.

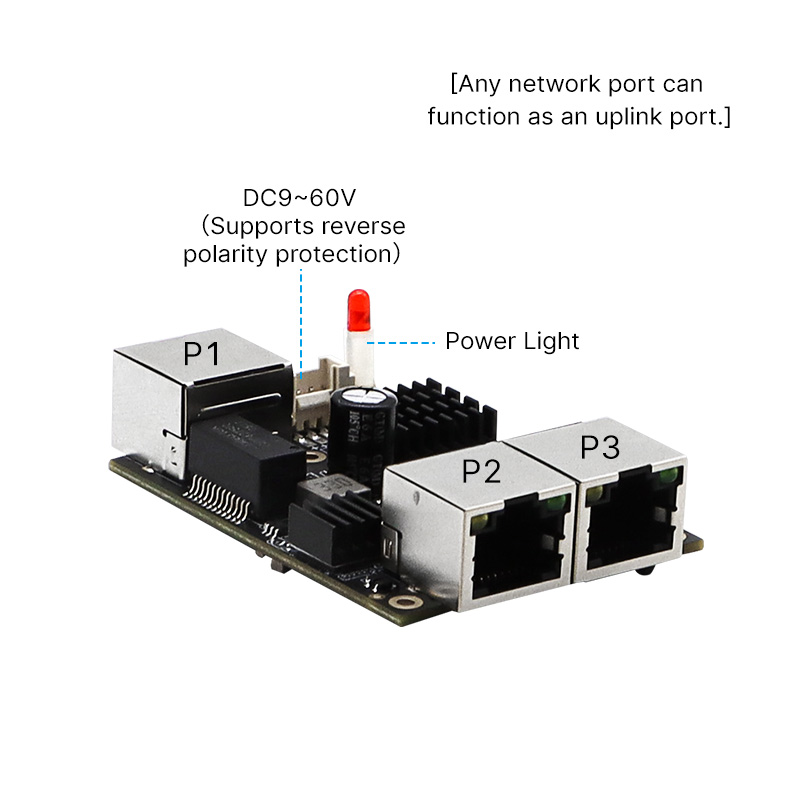

· Any network port can be used as an uplink port.

· Supports IEEE 802.3af/at standards, with a maximum PoE output of 30W per port.

· Supports 8KV contact electrostatic discharge (ESD) protection.

· Industrial-grade operating temperature: - 40℃~85℃

· High EMC protection rating, withstanding all harsh environments.

Services

Overview
Specifications

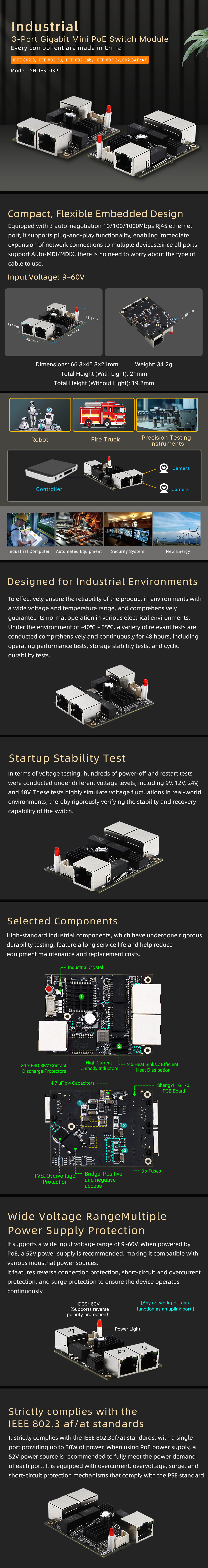

Industrial

3-Port Gigabit Mini PoE Switch Module

Every component are made in China

IEEE 802.3, 802.3u, 802.3abIEEE 802.3x, 802.3AF/AT

Model: YN-IES103P

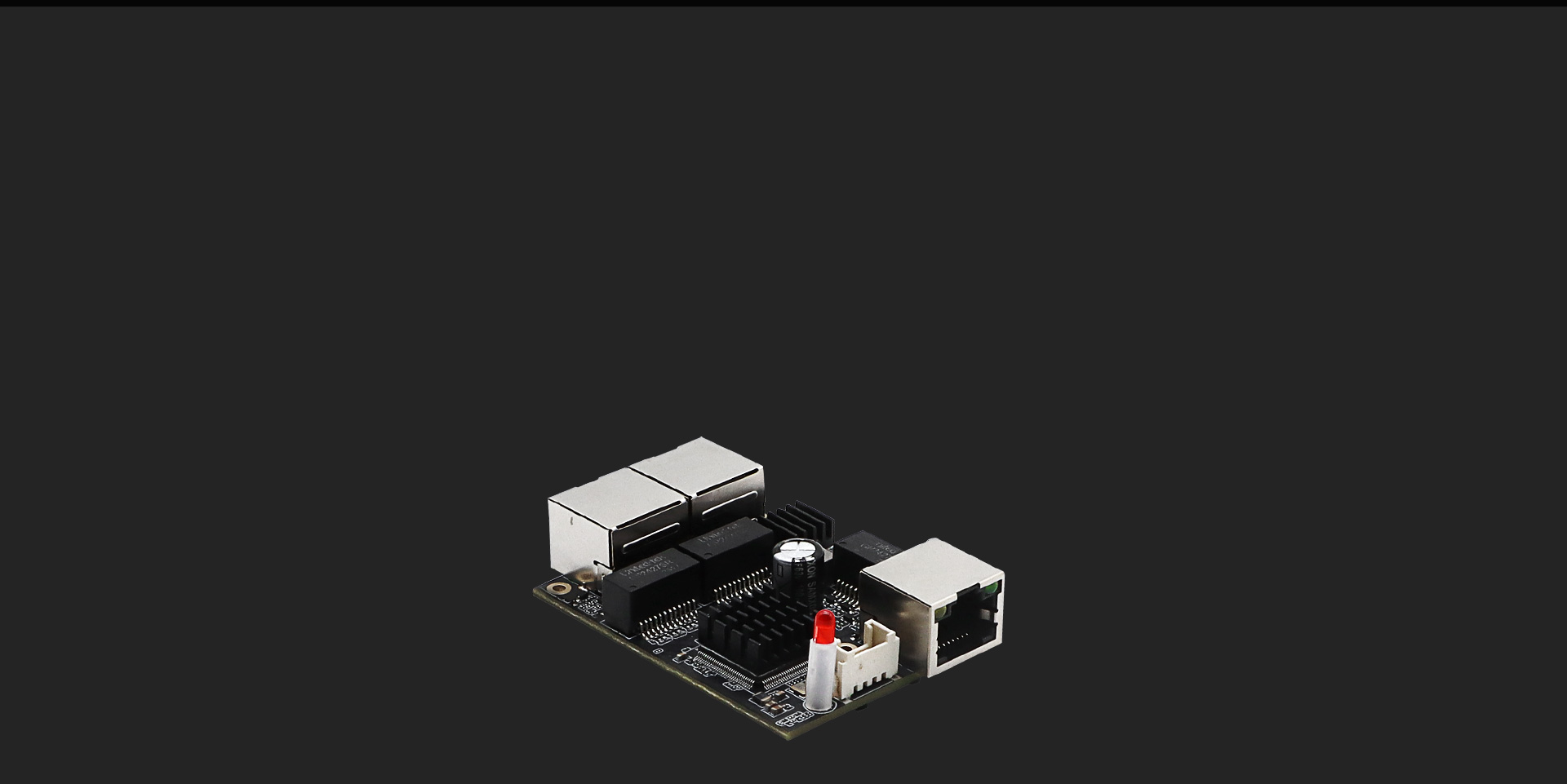

Compact, Flexible Embedded Design

Equipped with 3 auto-negotiation 10/100/1000Mbps RJ45 ethernet port, it supports plug-and-play functionality, enabling immediate expansion of network connections to multiple devices.Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

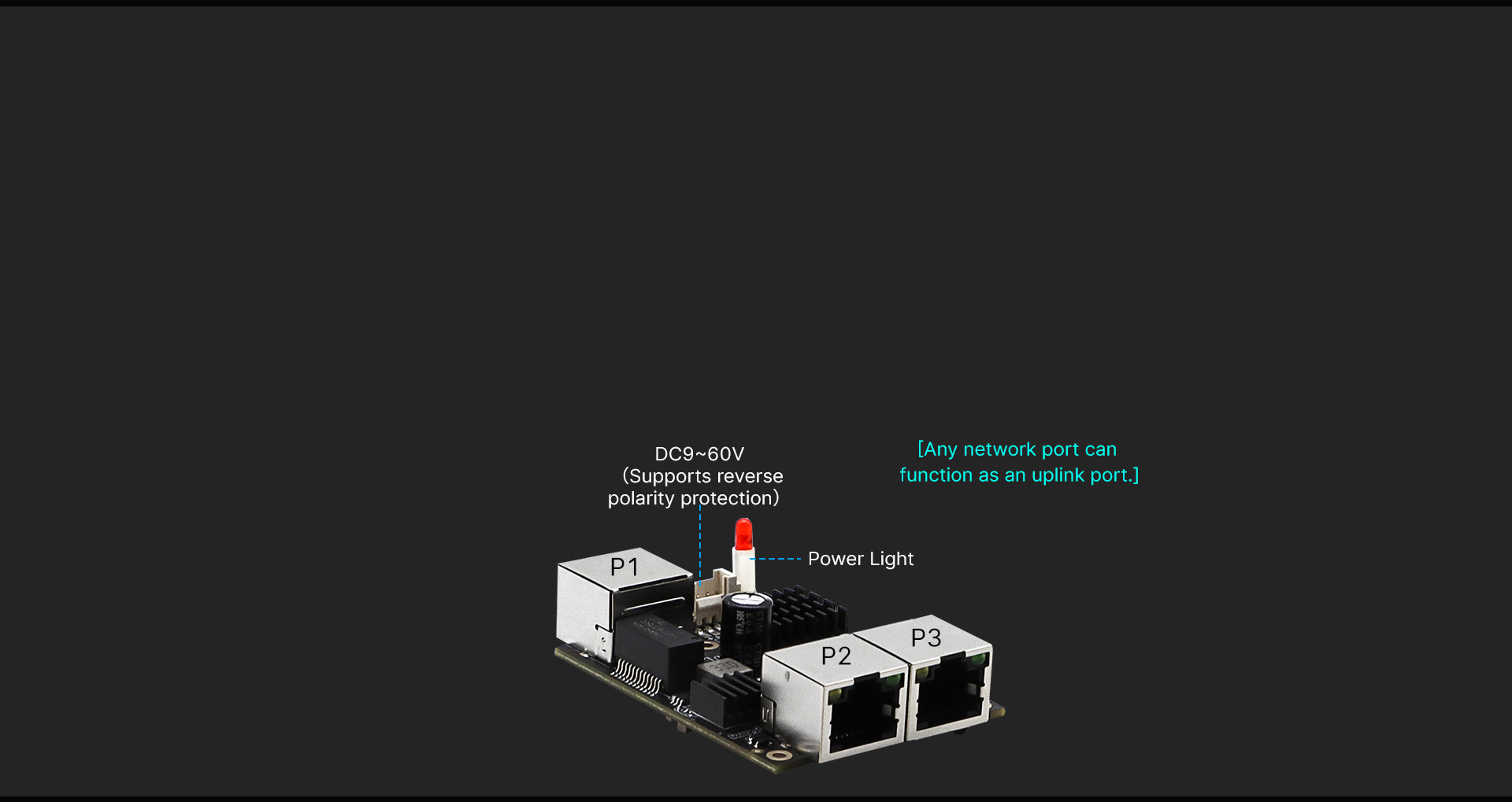

Input Voltage 9~60V

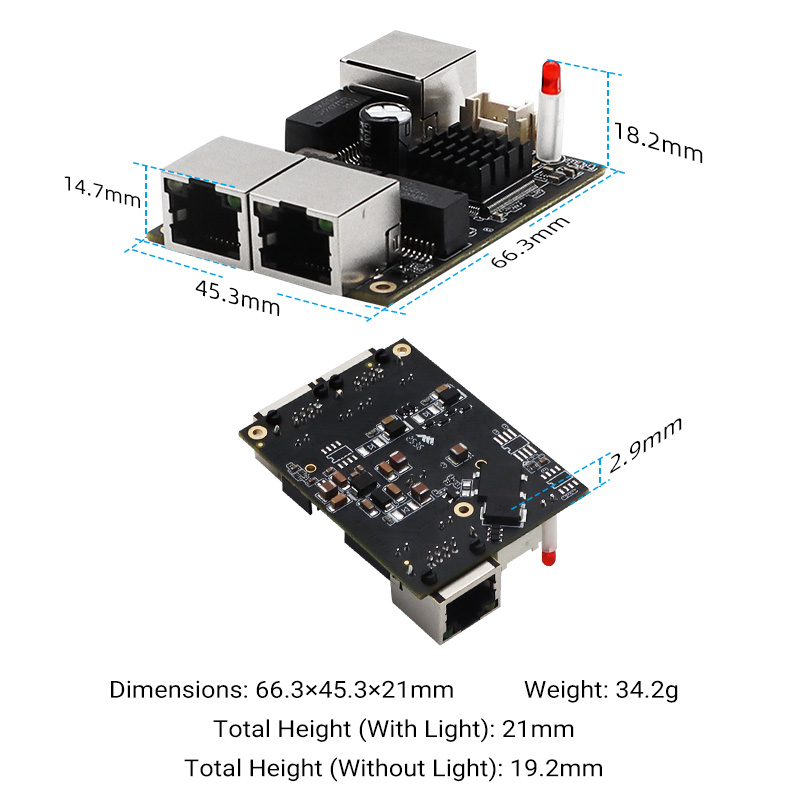

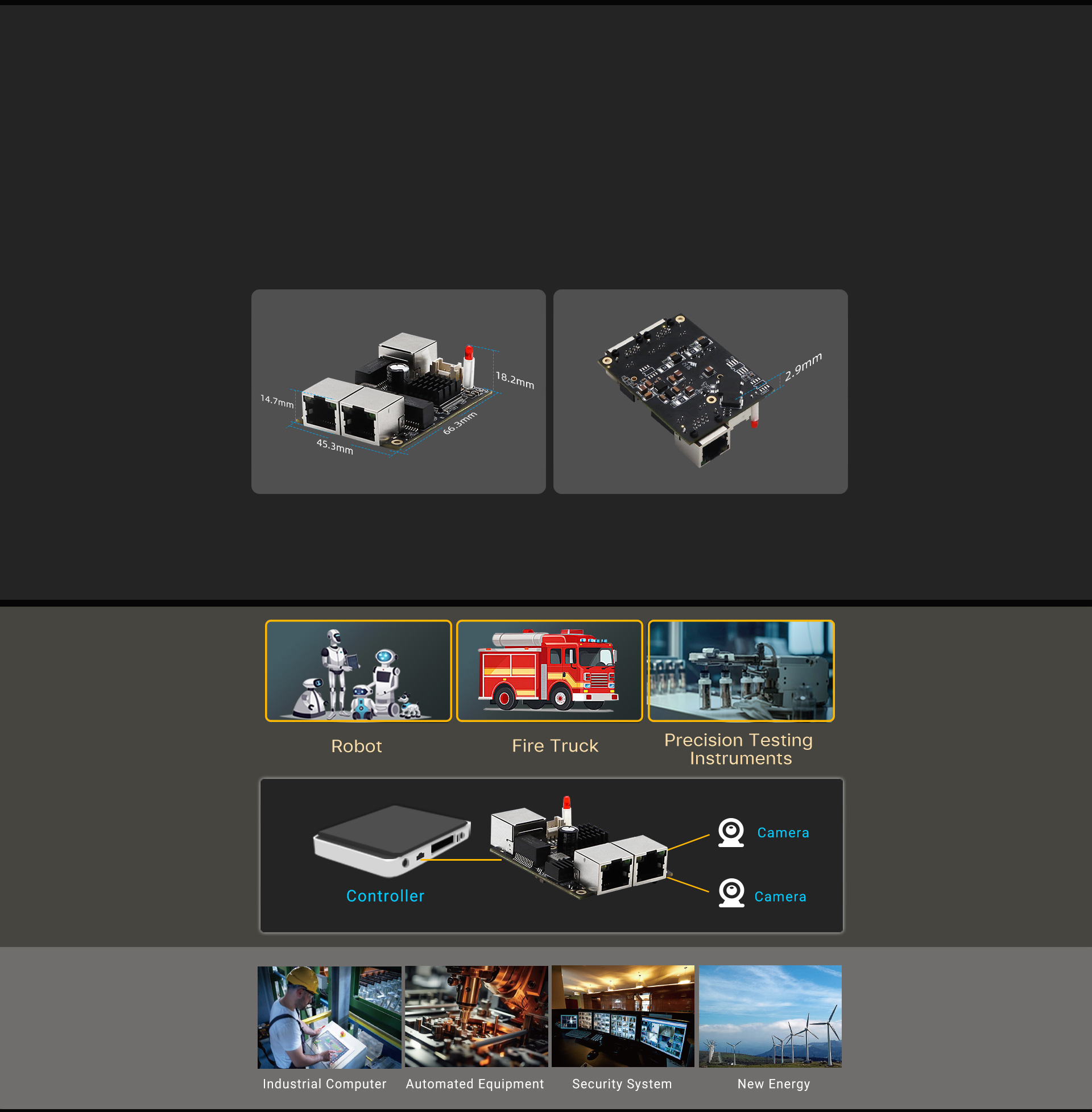

Dimensions: 66.3×45.3×21mm Weight: 34.2g

Total Height (With Light): 21mm

Total Height (Without Light): 19.2mm

Designed for Industrial Environments

To effectively ensure the reliability of the product in environments with a wide voltage and temperature range, and comprehensively guarantee its normal operation in various electrical environments. Under the environment of -40℃ ~ 85℃, a variety of relevant tests are conducted comprehensively and continuously for 48 hours, including operating performance tests, storage stability tests, and cyclic durability tests.

Startup Stability Test

In terms of voltage testing, hundreds of power-off and restart tests were conducted under different voltage levels, including 9V, 12V, 24V, and 48V. These tests highly simulate voltage fluctuations in real-world environments, thereby rigorously verifying the stability and recovery capability of the switch.

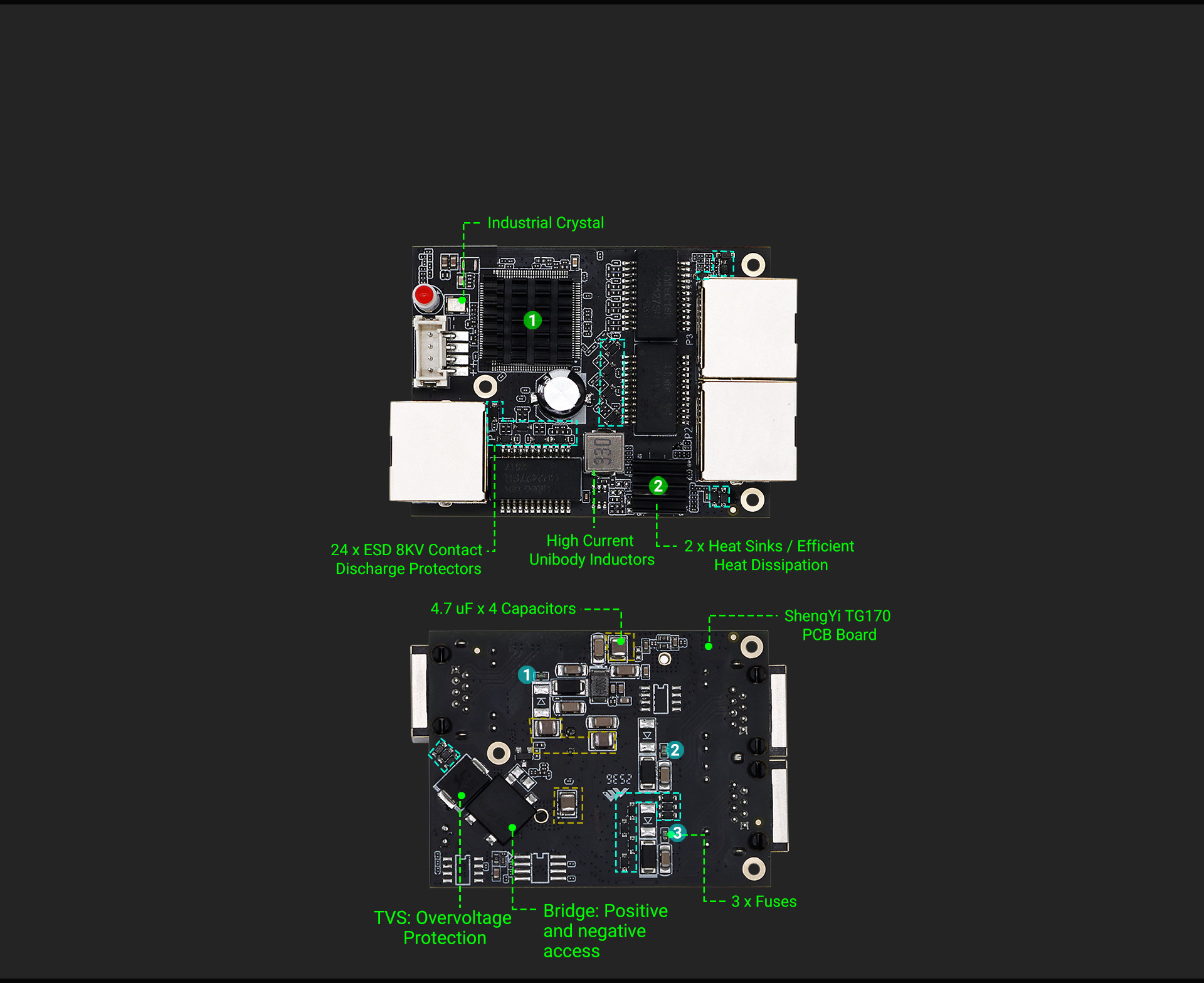

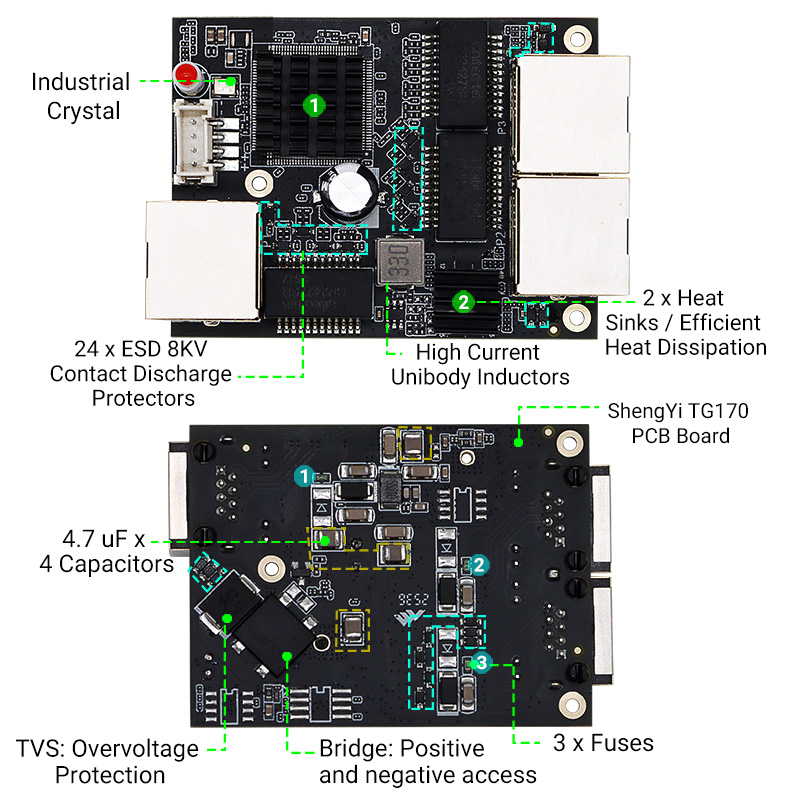

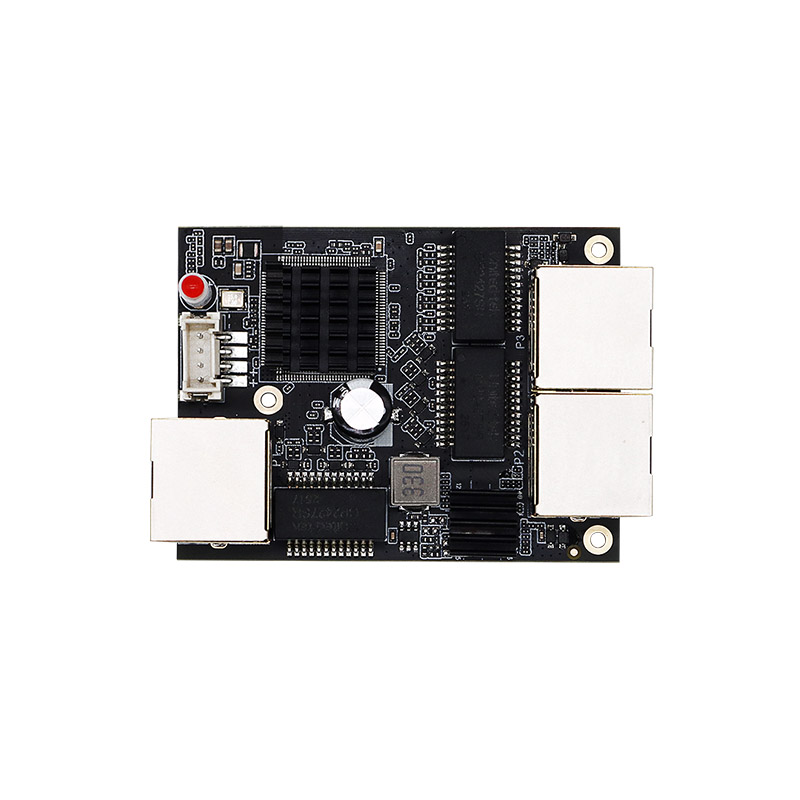

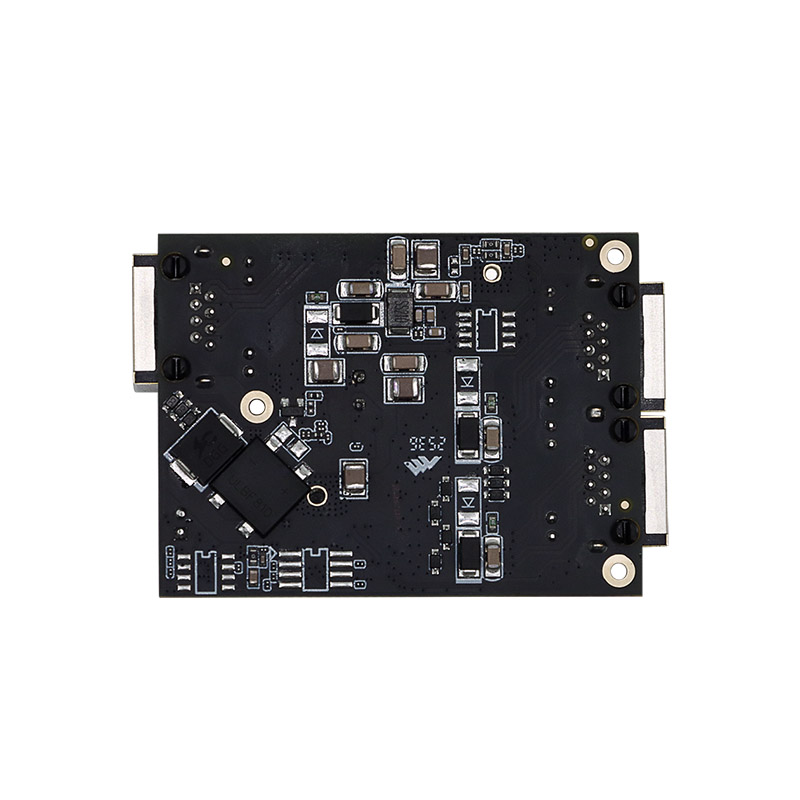

Selected Components

High-standard industrial components, which have undergone rigorous durability testing, feature a long service life and help reduce equipment maintenance and replacement costs.

Wide Voltage RangeMultiple

Power Supply Protection

It supports a wide input voltage range of 9~60V. When powered by PoE, a 52V power supply is recommended, making it compatible with various industrial power sources.

It features reverse connection protection, short-circuit and overcurrent protection, and surge protection to ensure the device operates continuously.

Strictly complies with the

IEEE 802.3 af/at standards

It strictly complies with the IEEE 802.3af/at standards, with a single port providing up to 30W of power. When using PoE power supply, a 52V power source is recommended to fully meet the power demand of each port. It is equipped with overcurrent, overvoltage, surge, and short-circuit protection mechanisms that comply with the PSE standard.

YN-IES103P Industrial 3-Port Gigabit Mini PoE Switch Module
