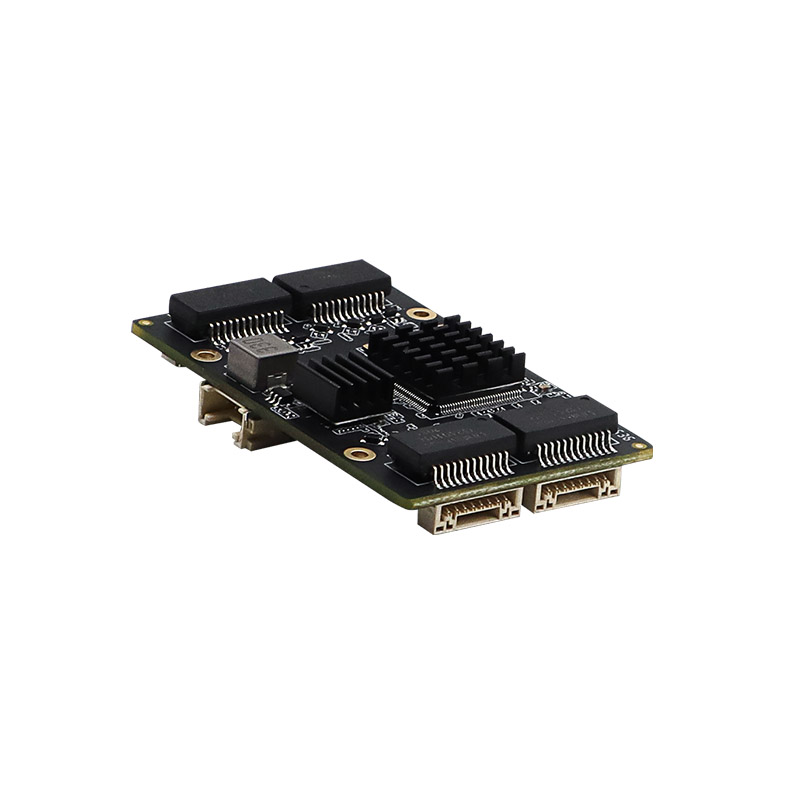

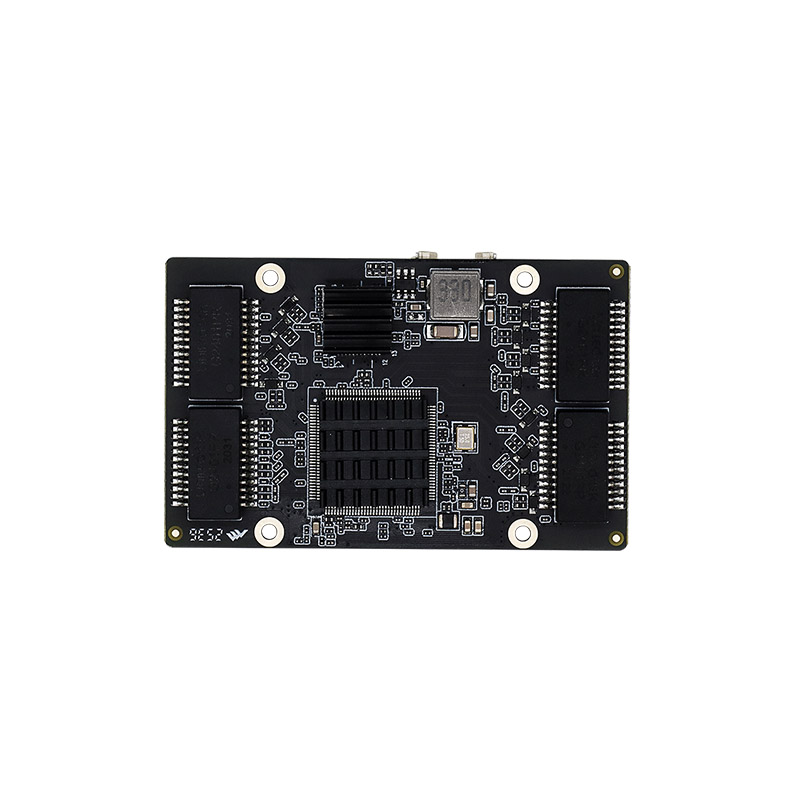

YN-IES104P Industrial 4-Port Gigabit Mini PoE Switch Module

Ethernet Switch Module

Online Purchase

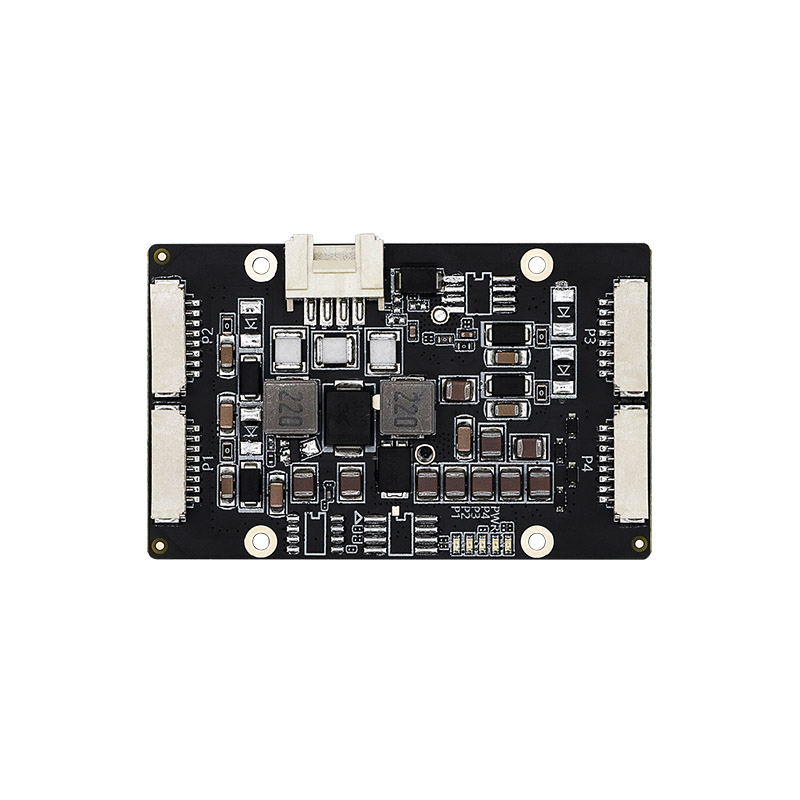

YN-IES104P Industrial 4-Port Gigabit Mini PoE Switch Module

· Every components are made in China.

· Compact Structure and Small-Size Design.

· 4×10/100/1000Mbps Auto-Negotiation GH 1.25 8P Connectors.

· Fanless design ensures quiet operation.

· Auto-Negotiation: Ensures the maximum speed for each port.

· Full-duplex mode adopts the IEEE 802.3x standard, while half-duplex mode adopts the Backpressure standard.

· Auto MDI/MDIX: Eliminates the need for crossover cables.

· Wide voltage range: 9~60V (supports reverse protection without power supply), surge 2KV.

· Any network port can be used as an uplink port.

· Supports IEEE 802.3af/at standards, with a maximum PoE output of 15W per port.

· Supports 8KV contact electrostatic discharge (ESD) protection.

· Industrial-grade operating temperature: - 40℃~85℃

· High EMC protection rating, withstanding all harsh environments.

Services

Overview
Specifications

Industrial

4-Port Gigabit Mini PoE Switch Module

Every component are made in China

IEEE 802.3, 802.3u, 802.3abIEEE 802.3x, 802.3AF/AT

Model: YN-IES104P

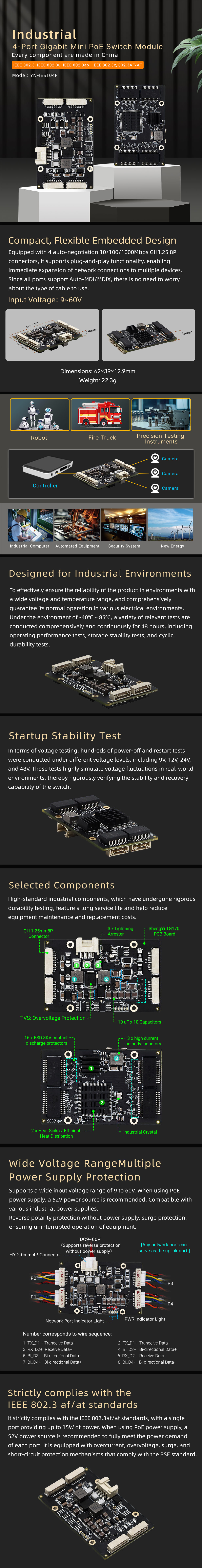

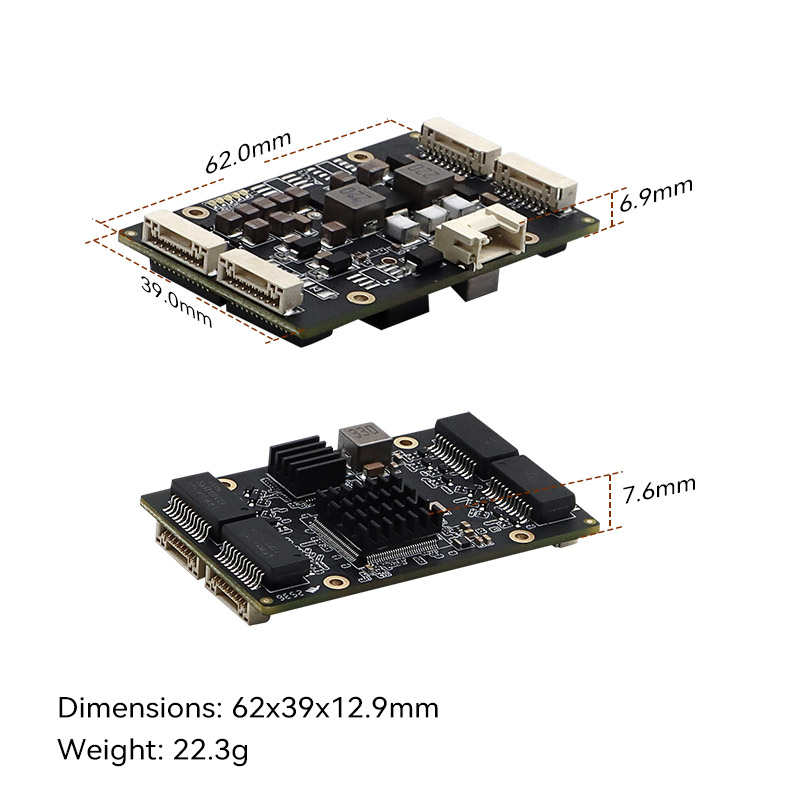

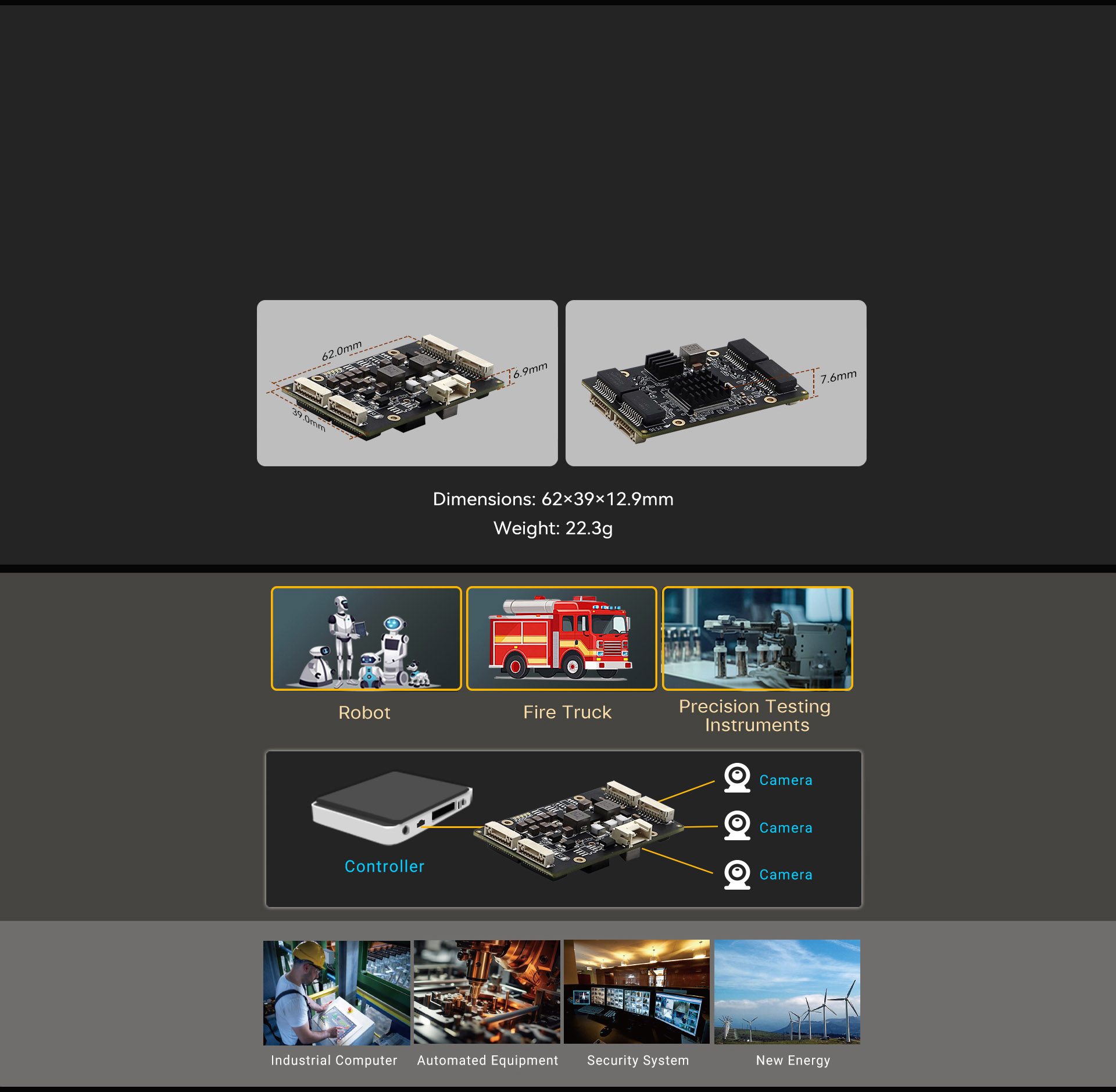

Compact, Flexible Embedded Design

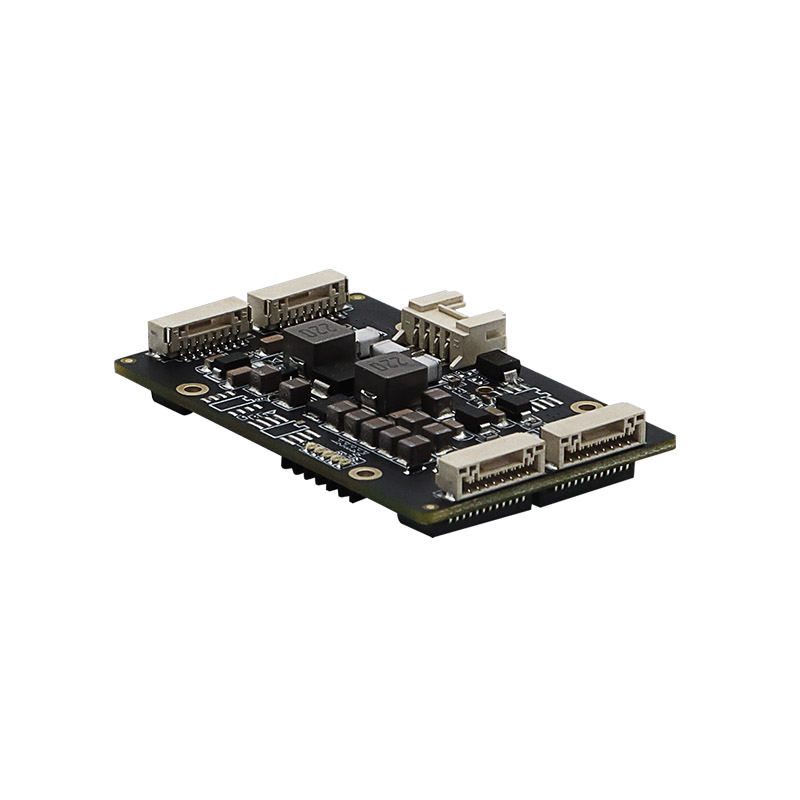

Equipped with 4 auto-negotiation 10/100/1000Mbps GH1.25 8P connectors, it supports plug-and-play functionality, enabling immediate expansion of network connections to multiple devices. Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Input Voltage 9~60V

Designed for industrial environments

To effectively ensure the reliability of the product in environments with a wide voltage and temperature range, and comprehensively guarantee its normal operation in various electrical environments. Under the environment of -40℃ ~ 85℃, a variety of relevant tests are conducted comprehensively and continuously for 48 hours, including operating performance tests, storage stability tests, and cyclic durability tests.

Startup Stability Test

In terms of voltage testing, hundreds of power-off and restart tests were conducted under different voltage levels, including 9V, 12V, 24V, and 48V. These tests highly simulate voltage fluctuations in real-world environments, thereby rigorously verifying the stability and recovery capability of the switch.

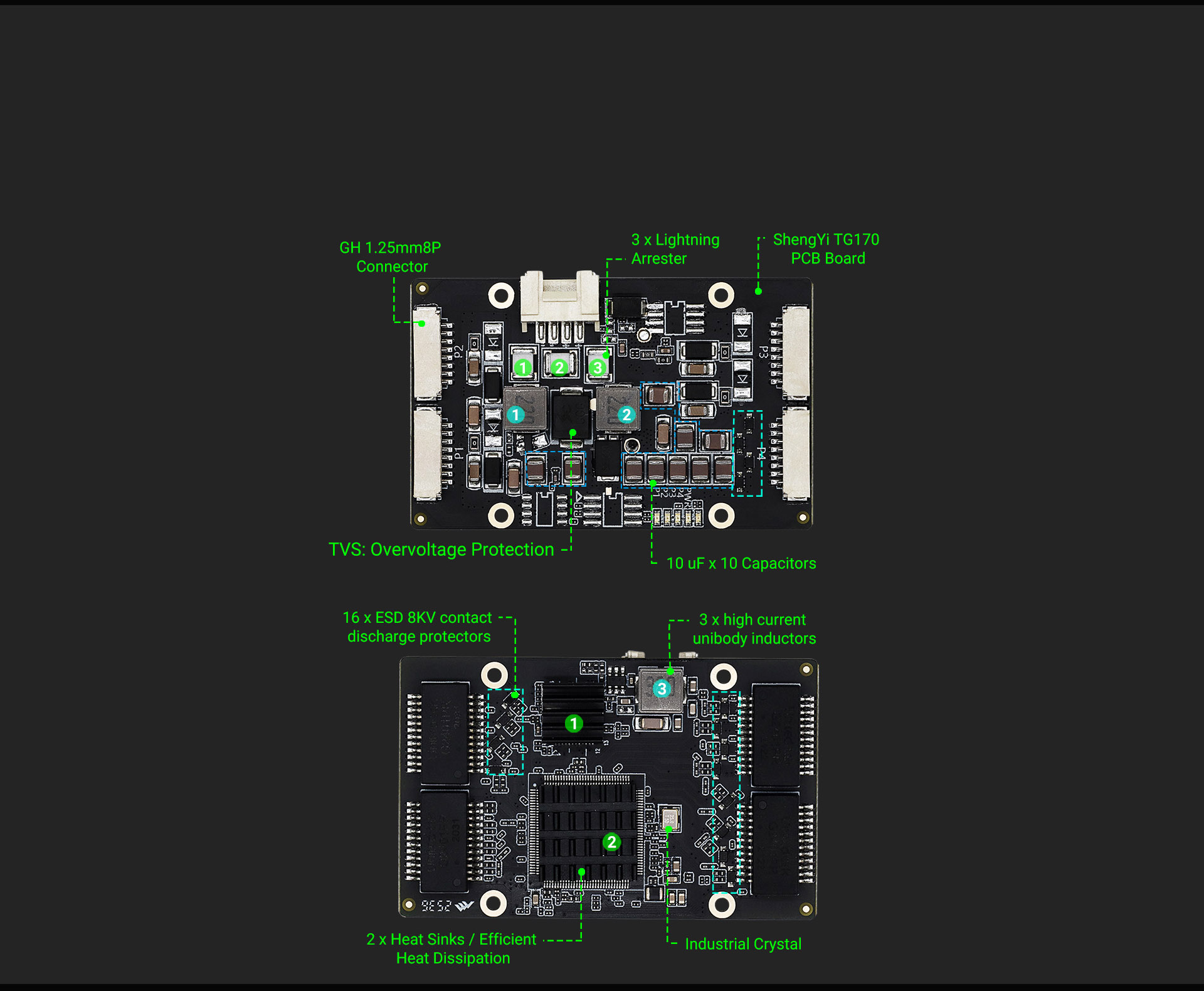

Selected Components

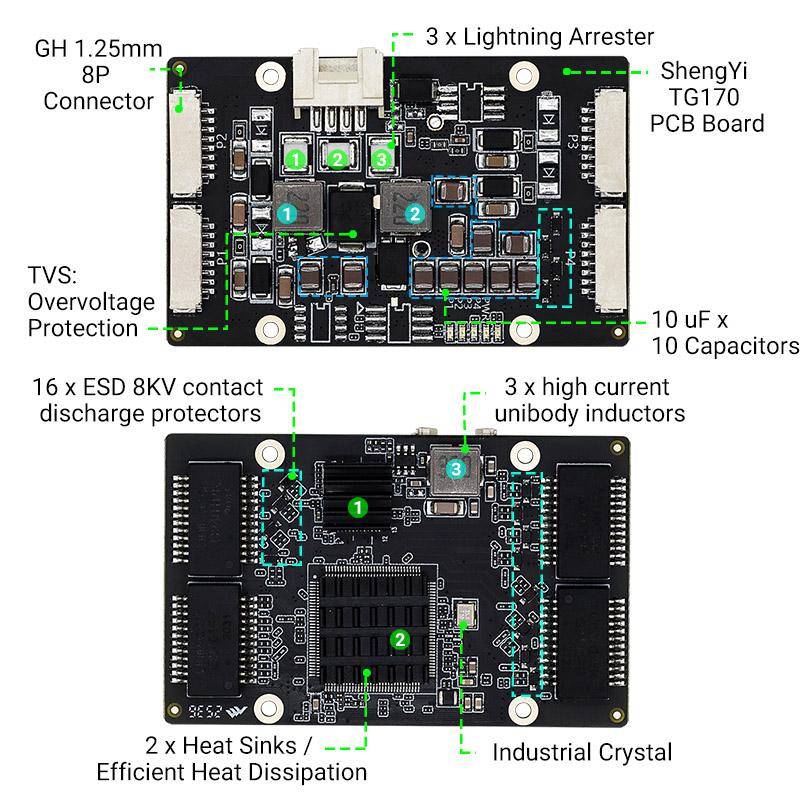

High-standard industrial components, which have undergone rigorous durability testing, feature a long service life and help reduce equipment maintenance and replacement costs.

Wide Voltage RangeMultiple

Power Supply Protection

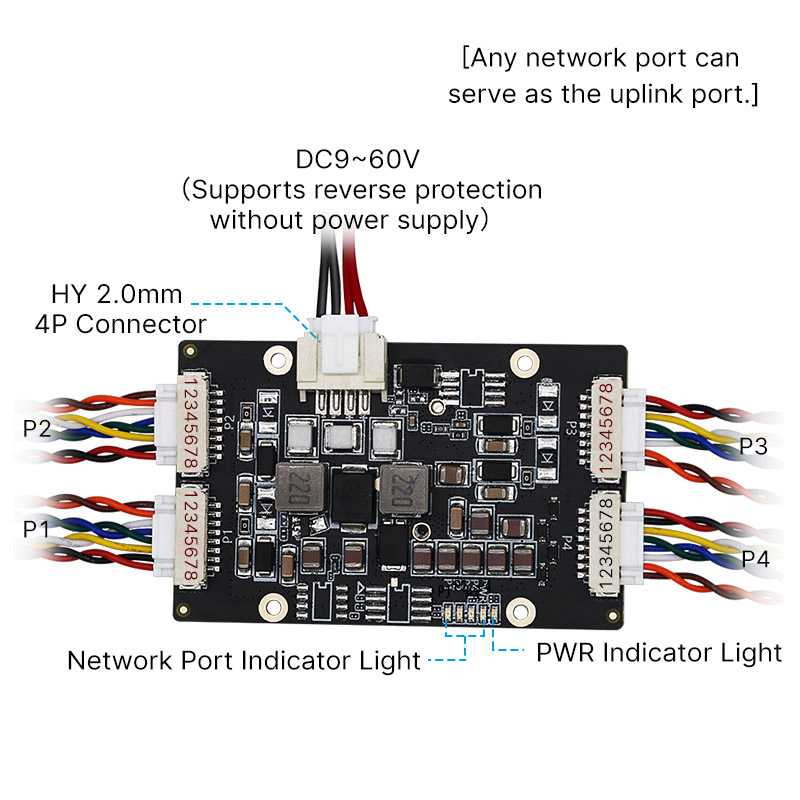

Supports a wide input voltage range of 9 to 60V. When using PoE power supply, a 52V power source is recommended. Compatible with various industrial power supplies.

Reverse polarity protection without power supply, surge protection, ensuring uninterrupted operation of equipment.

Number corresponds to wire sequence:

1. TX_D1+ Tranceive Data+ 2. TX_D1- Tranceive Data-

3. RX_D2+ Receive Data+ 4. BI_D3+ Bi-directional Data+

5. BI_D3- Bi-directional Data- 6. RX_D2- Receive Data-

7. BI_D4+ Bi-directional Data+ 8. BI_D4- Bi-directional Data-

Strictly complies with the

IEEE 802.3 af/at standards

It strictly complies with the IEEE 802.3af/at standards, with a single port providing up to 15W of power. When using PoE power supply, a 52V power source is recommended to fully meet the power demand of each port. It is equipped with overcurrent, overvoltage, surge, and short-circuit protection mechanisms that comply with the PSE standard.

YN-IES104P Industrial 4-Port Gigabit Mini PoE Switch Module
