N1 Industrial 4G Wireless Router Module

· 27dB/500mW

· Long-range coverage of 200~300 m (In Open Areas)

· Support LTE/WCDMA/GSM mobile communication protocol, support advanced LTE Cat4 technology.

· Support 4G full Netcom, you can connect to the Internet by inserting a card (Standard card).

· Adapt to harsh industrial-grade working environments at temperatures ranging from -20°C to 75°C.

· Support RS232/RS485 standard communication serial protocol.

· Support to turn on 2.4GHz Wi-Fi to provide wireless access to peripheral devices.

· Support wide voltage 9-36V design.

· Industrial design, compact size, multiple connection interface.

· The network port supports passive POE power supply.

· Support VPN: OpenVPN/PPTP/L2TP.

· Support DTU: TCP-UDP( Server, Client ).

Services

Overview
Specifications

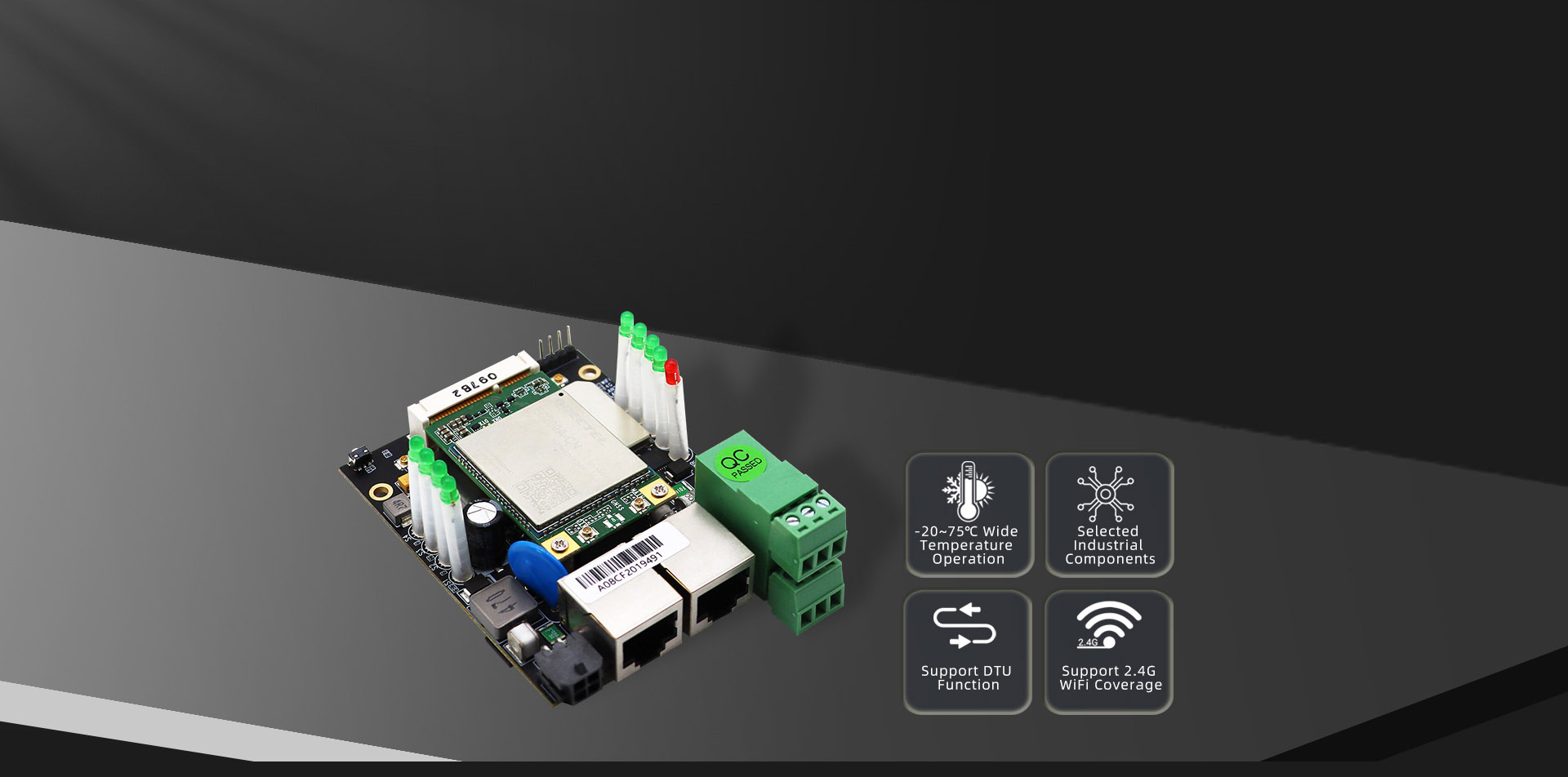

Industria

4G Wireless Router Module

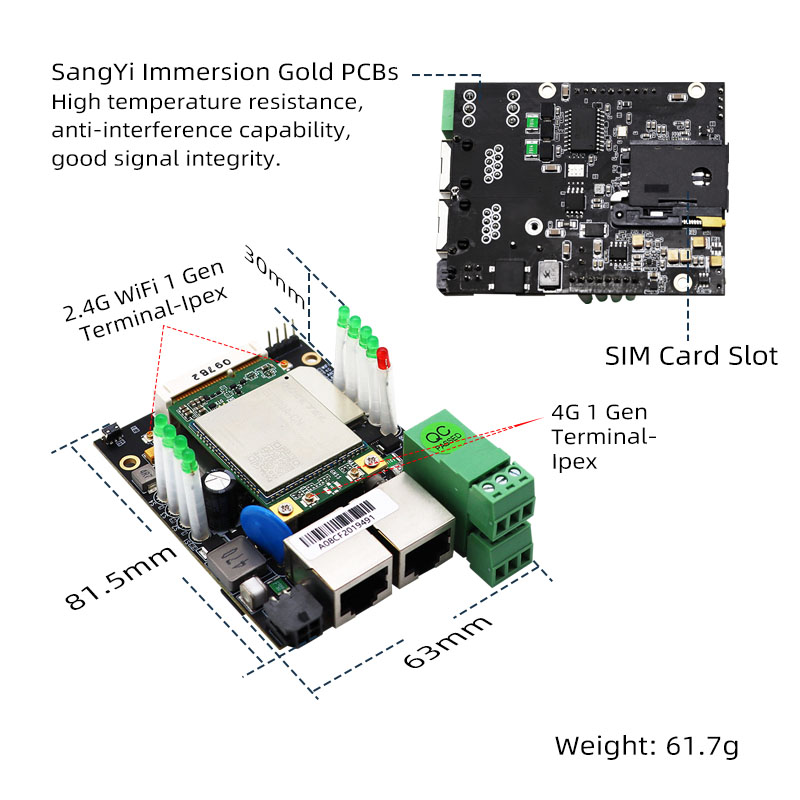

Small and Flexible Embedded

MODEL：N1

Industrial Grade Design,-20℃~75℃

Wide Temperature Operation

Designed for reliable operation within

-20°C to 75°C temperatures, this

device utilizes industrial-grade

components and passive thermal

dissipation to ensure long-term

stability in harsh environments.

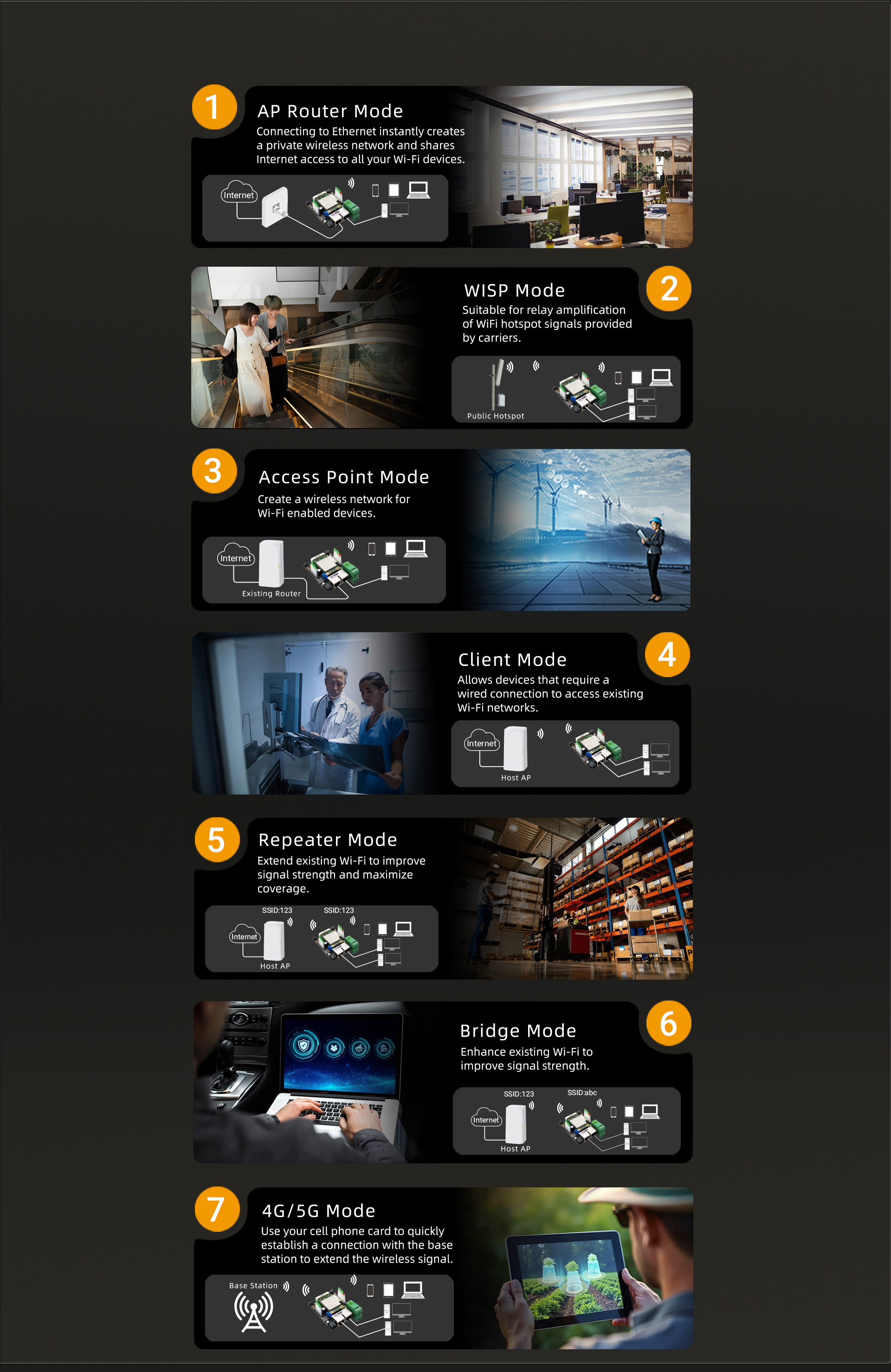

7 Working Modes

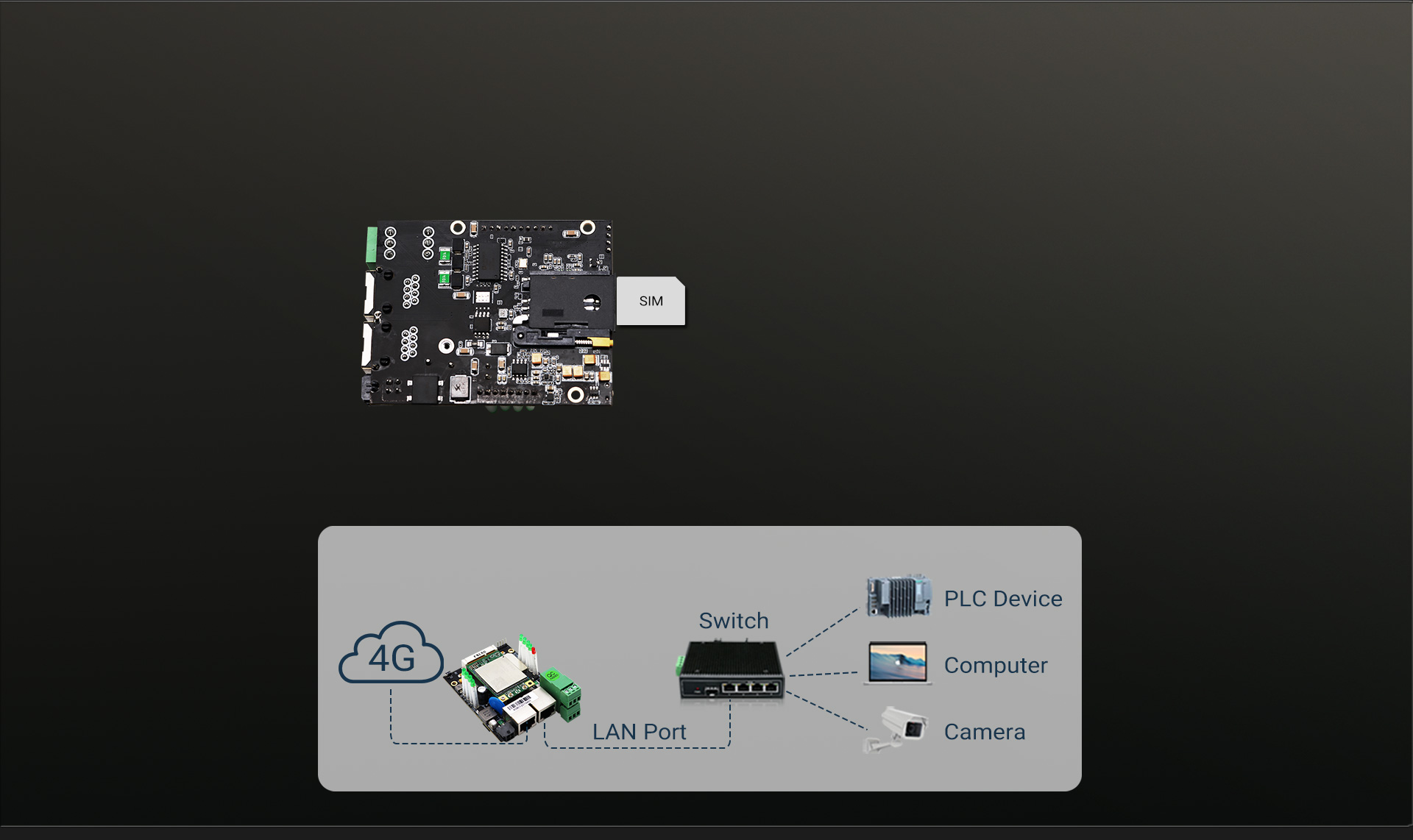

Global 4G LTE Plug-and-

Play Router

Industrial-grade 4G wireless router, support global 4G network, support 4G to wired, 4G to Wi-Fi, plug in the card (standard SIM card) to access the Internet, easy to manage and maintain, can effectively reduce the cost of deployment, to help users to set up a digital IOT network.

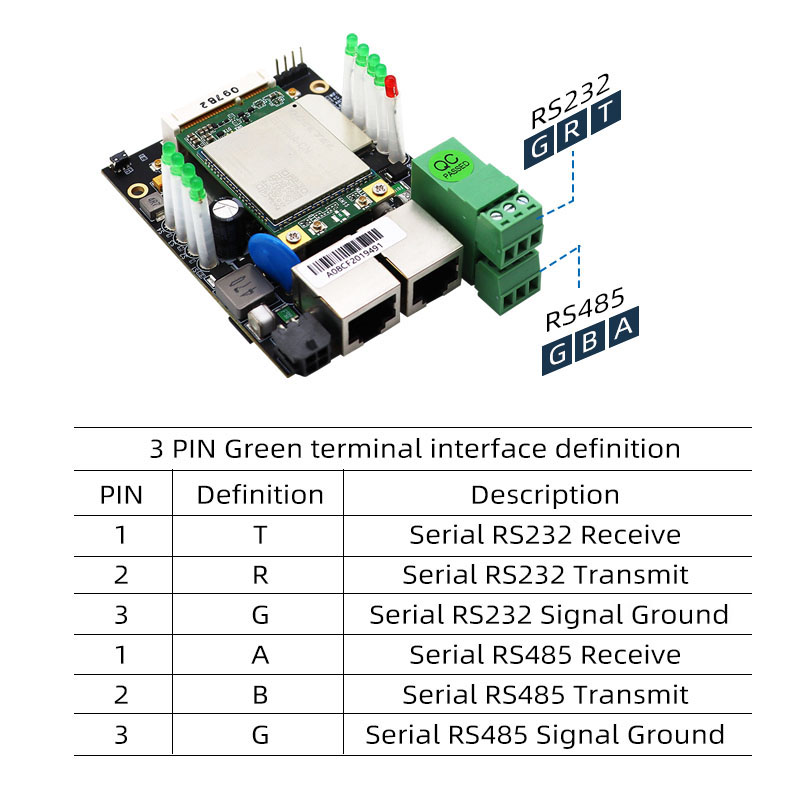

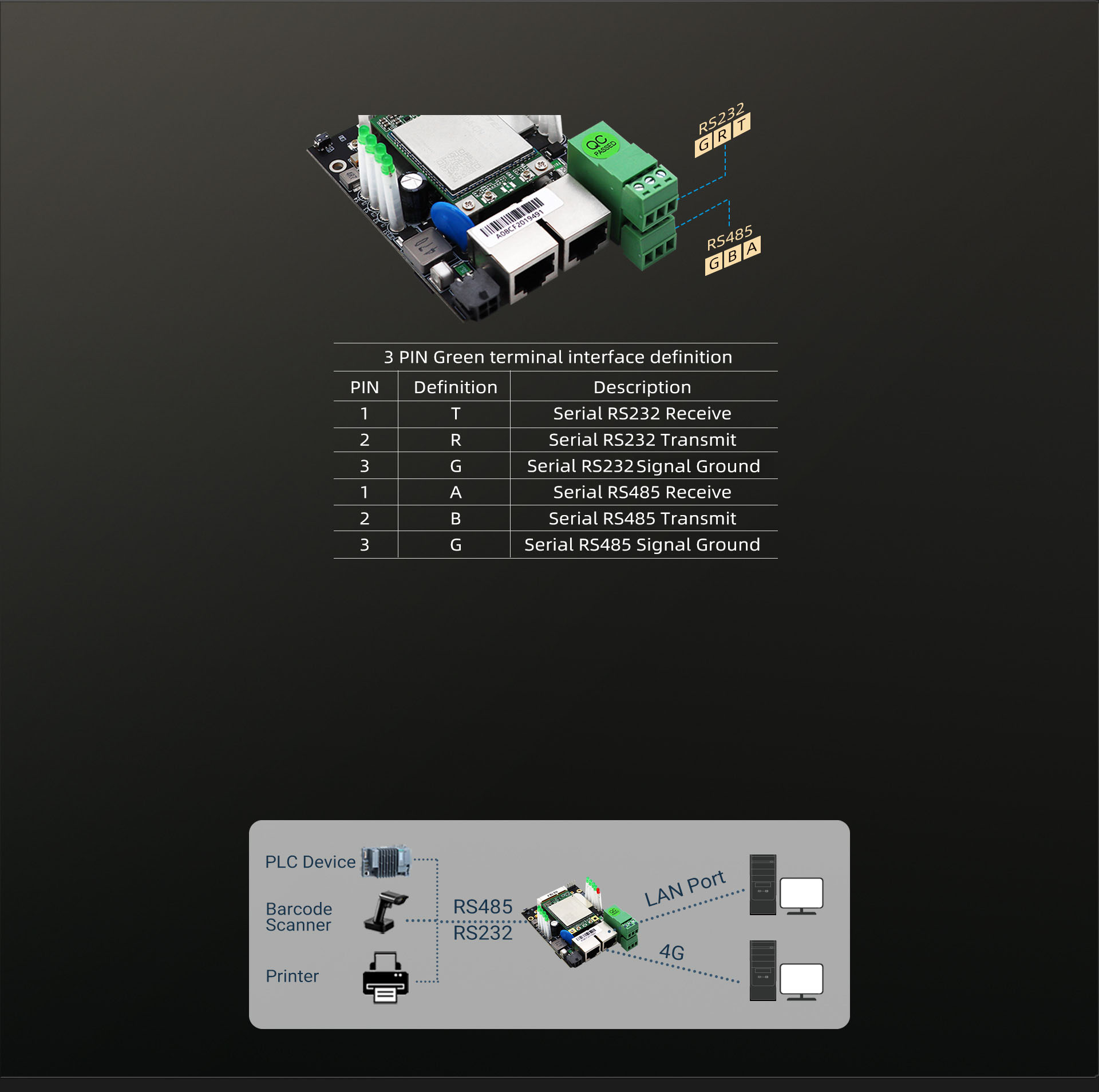

Industrial Serial Port

Meet specialized communications

with back-end devices

Supporting RS 232/RS 485 protocols, it can carry out wired communication with router back-end devices (such as PLC programmable logic controllers, etc.) in TCP-UDP (client and server) mode, which can satisfy the interactions of common data and control commands in industrial control scenarios.

Stronger signal

through walls without

attenuation

High-power Wi-Fi design, 32

devices connect at the same

time, high-speed stable and

smooth without lagging,

strong signal.

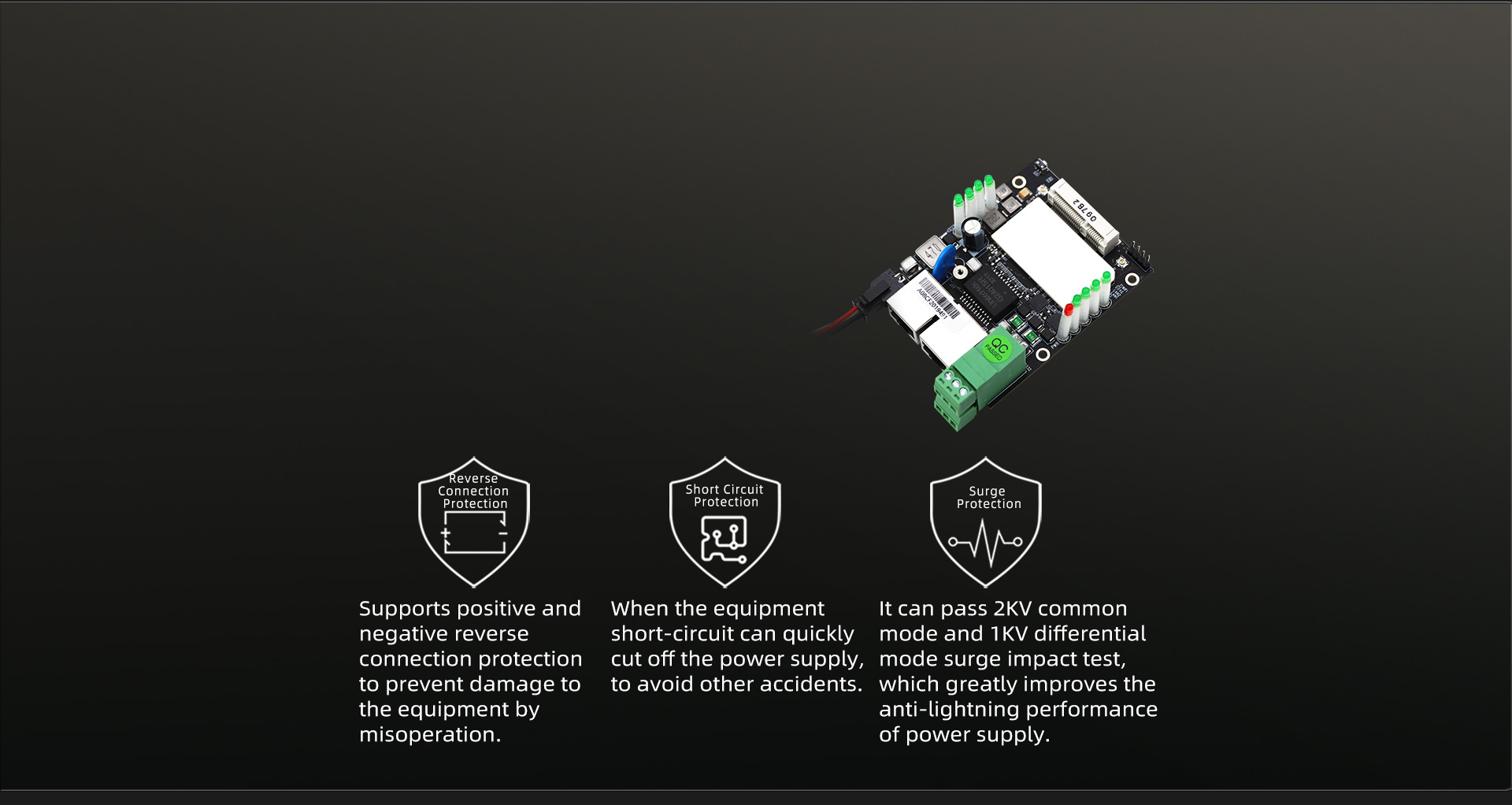

Selected Industrial-grade

Components

High-standard industrial-grade components, suitable for various harsh electromagnetic interference environments such as power plants and industrial plants.

After rigorous durability testing, it has a long service life, reducing equipment maintenance and replacement costs.

Startup and

Network Connection Stability

Comprehensive coverage testing, 100 devices were tested by cycling them on and off 10,000 times in one minute. 4G operator speed test, 2.4G flow tests were conducted at distances of 1 m, 5 m, 15 m, and 20 m. Ensure that the software runs accurately and flawlessly in all operating scenarios, with no bugs or obstacles, providing users with a convenient and efficient operating experience.

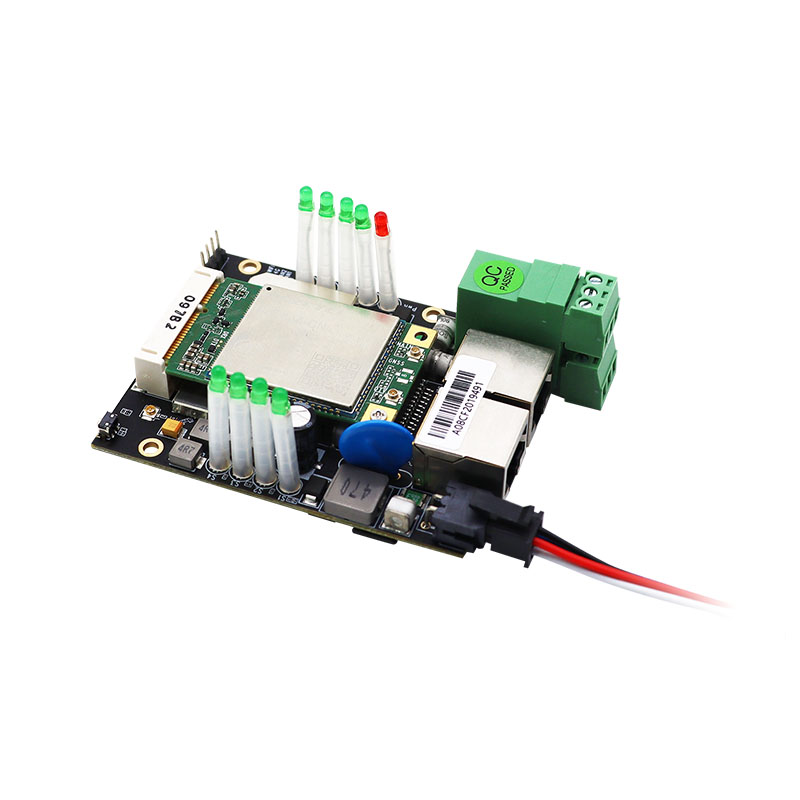

N1 Industrial 4G Wireless Router Module

Suitable For Large-scale Machine Networking

For example: Smart Manufacturing,Industrial Automation,Smart Power,Intelligent Medical,Intelligent Transportation,Security and criminal investigation,Oil and Gas Energy, Industrial robotics,Wilderness Big Data,Intelligent agriculture,Digital production equipment, etc.
