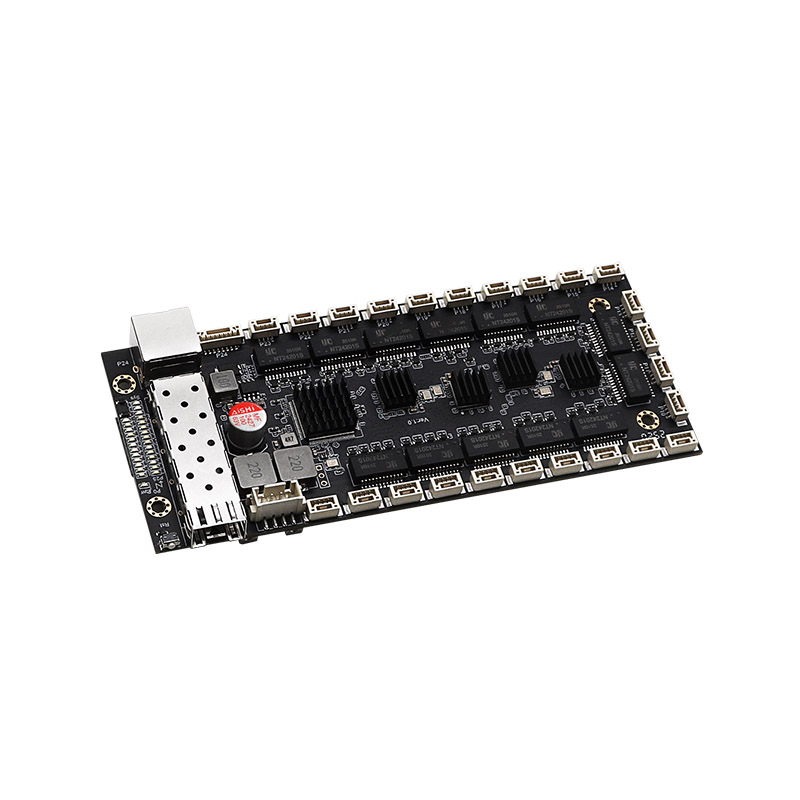

24x100M port + 1x1000M RJ45 port + 1x1000M SFP port

Every component are made in China

IEEE 802.3i,802.3u,802.3ab,802.3x

Model: YN-IES2026F

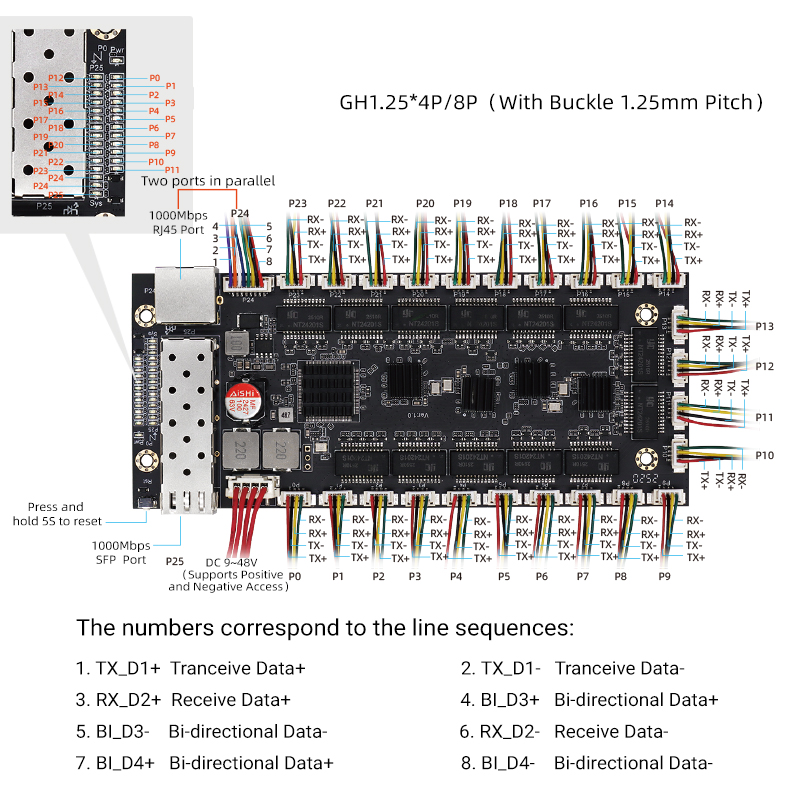

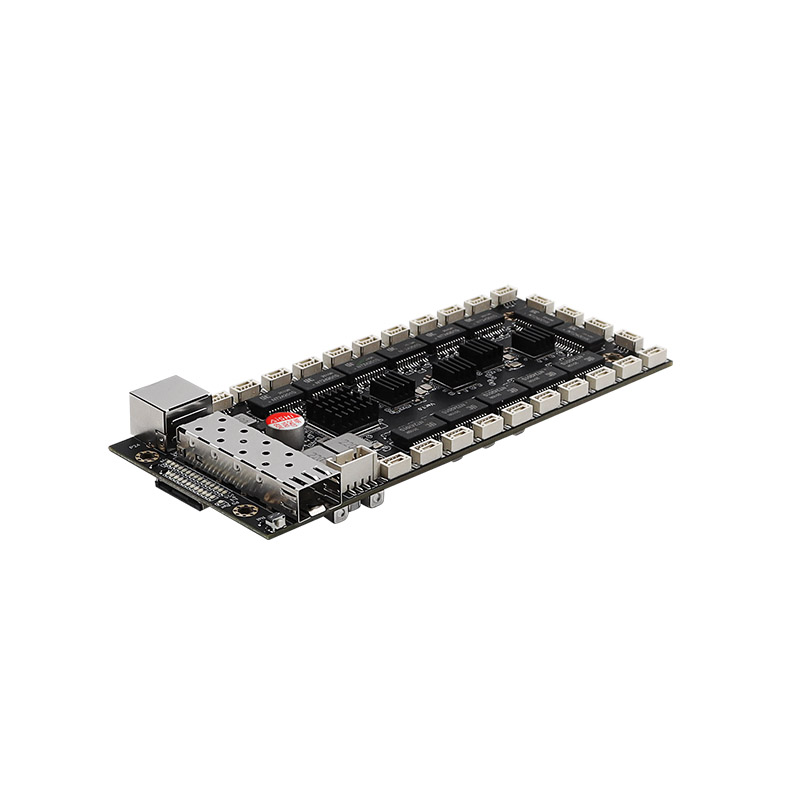

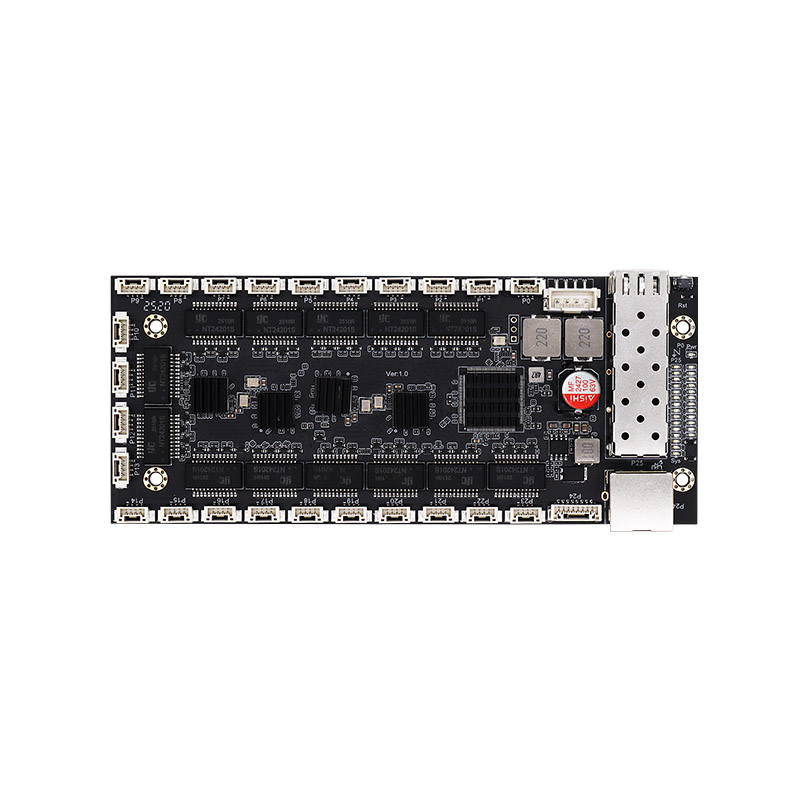

Provides 24 x 100M Adaptive Ethernet GH1.25mm with locking cradle. 1 x 1000M RJ45 network port and 1 x 1000M SFP port to instantly extend network connectivity to multiple devices.Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Input Voltage 9~48V

This is a 26-port easy smart switch module designed for industrial environments.Strictly designed in accordance with the operating temperature of -40℃~85℃, selected industrial-grade devices and natural heat dissipation method are adopted to ensure the stable operation of the equipment for a long time in this temperature range and satisfy various kinds of harsh environments.

High standard industrial-grade devices, adapting to various harsh electromagnetic interference environments such as electric power and industrial plants.

Undergoes rigorously tested for durability, long service life, reduced equipment maintenance and replacement costs.

This device supports a wide voltage input range (9-48V), making it compatible with various industrial power supplies.

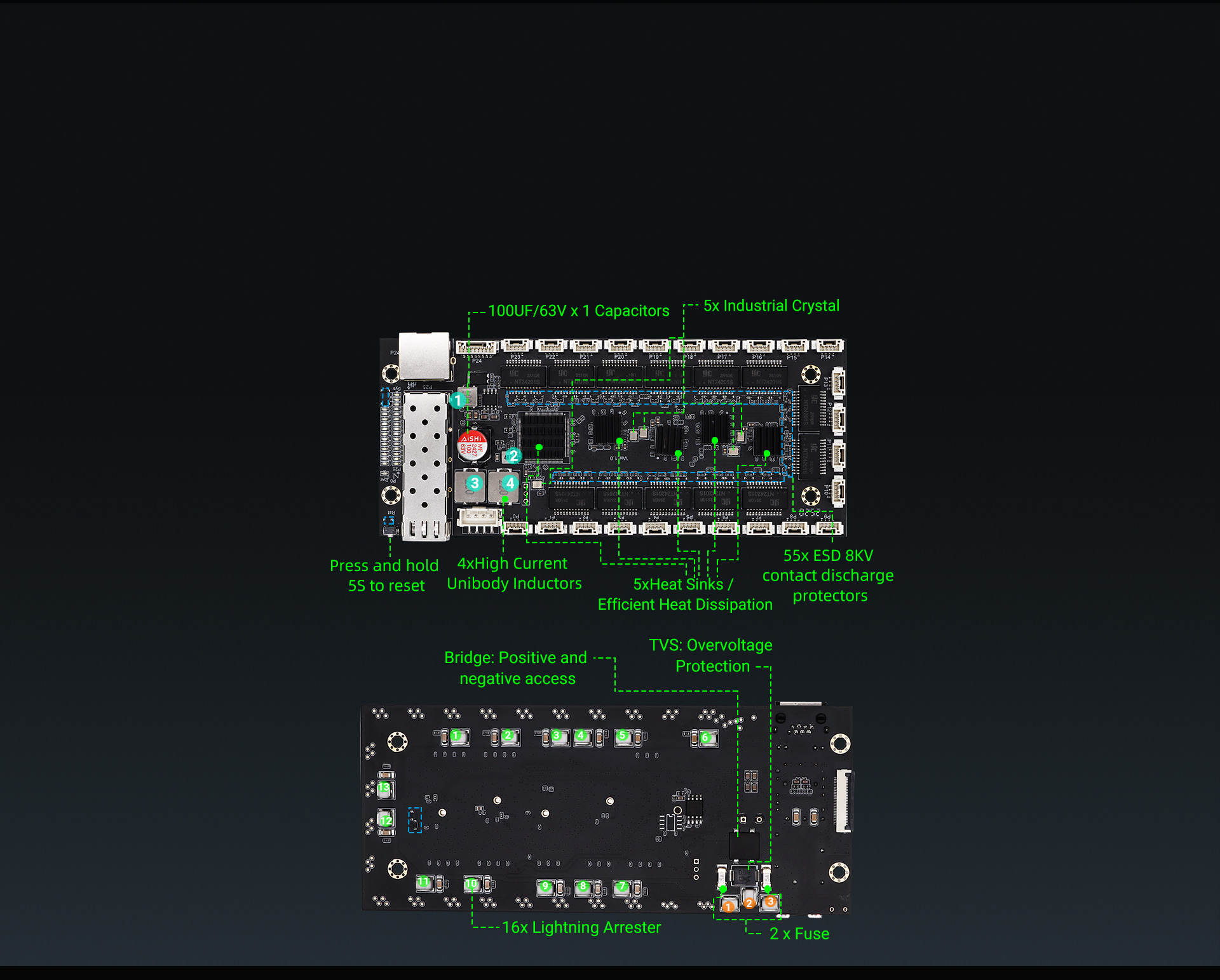

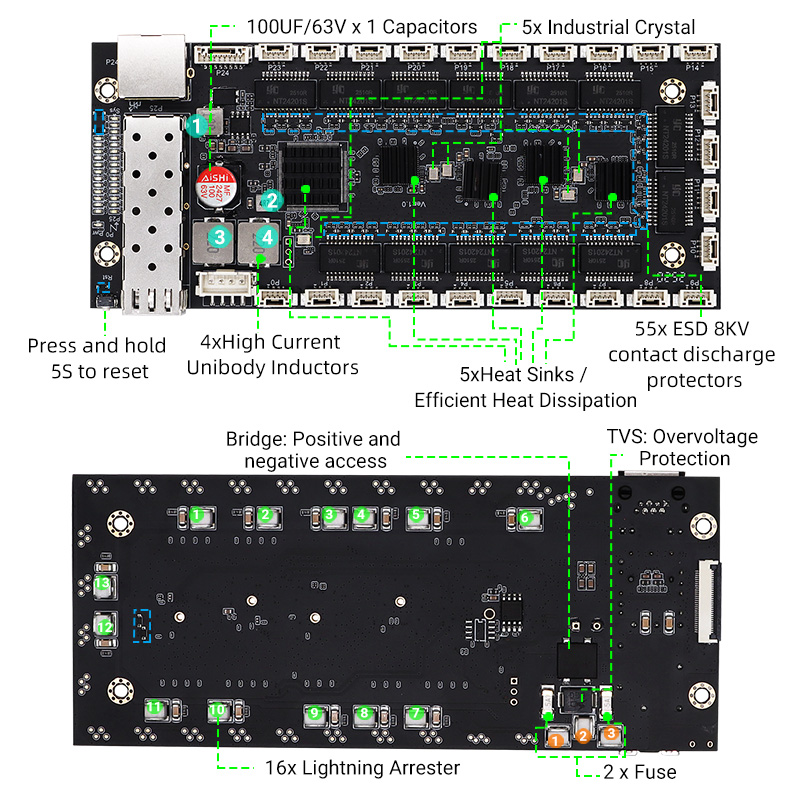

It integrates reverse-connection protection, short-circuit/overcurrent protection, and surge protection to ensure reliable and uninterrupted operation.

In terms of voltage testing, hundreds of power-off and restart tests were conducted at different voltage levels, including 12V in series and individual 9V, 12V, 24V, and 48V. 20 units of the product underwent 10,000 cycles of power cycling and restarting in a 3-minute serial loop test. Highly simulates voltage fluctuations in actual environments to rigorously test the stability and recovery capabilities of switches.
