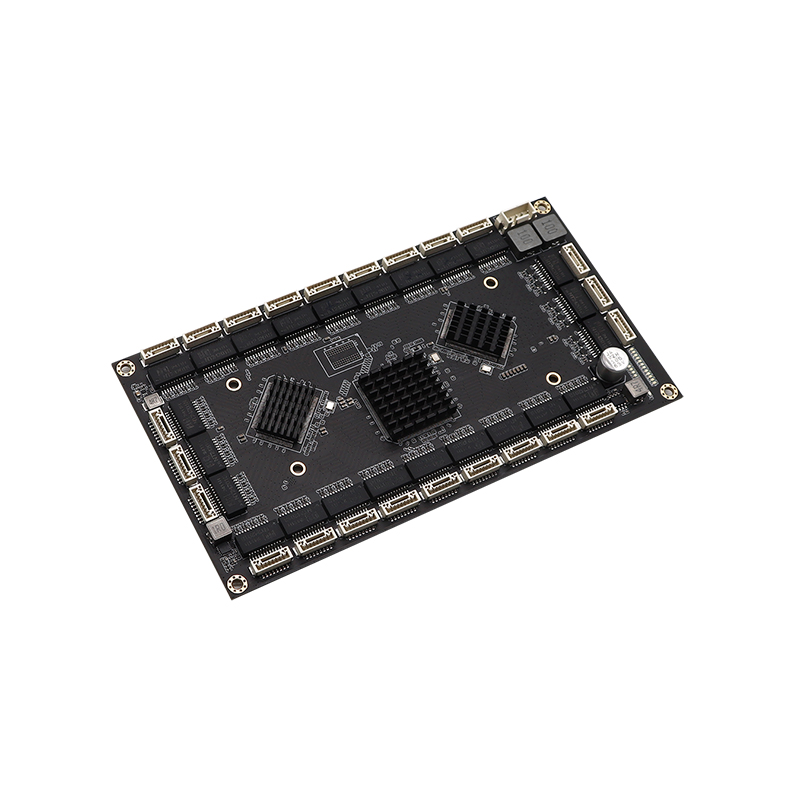

YN-IES1024 Industrial 24-Port 10/100/1000Mbps Ethernet Switch Module

Ethernet Switch Module

Online Purchase

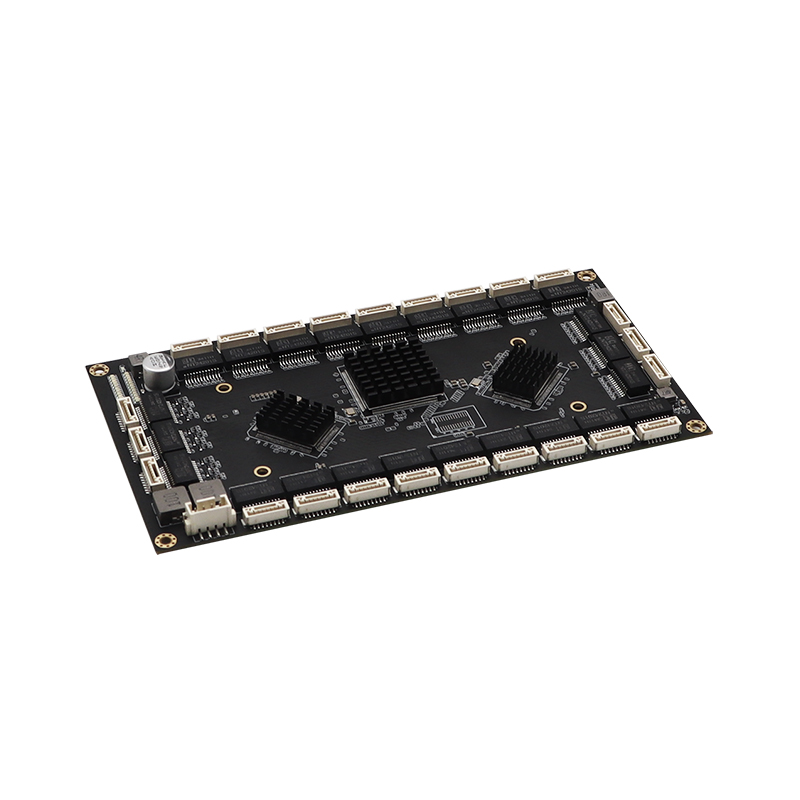

YN-IES1024 Industrial 24-Port 10/100/1000Mbps Ethernet Switch Module

· Plug and play

· IEEEE 802.3x Flow Control Provides Reliable Data Transmission

· Compact structure and small-size design

· 12~48V Wide-voltage

· Fanless design ensures quiet operation

· Automatic: MDI/MDIX Eliminates Need for Crossover Cables

· Auto-negotiation: guarantees maximum speed on each port

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

· Lightning surge machine static full protection; static support 8KV, surge 4KV

· Power supply support positive and negative access protection

· Provides 24 10/100/1000M adaptive ethernet locking socket

· Industrial-grade operating temperature: -40℃~85℃

· Support reverse protection, short circuit overcurrent protection, and surge protection, to ensure uninterrupted work of the device

· High EMC protection level, can work in various harsh environments

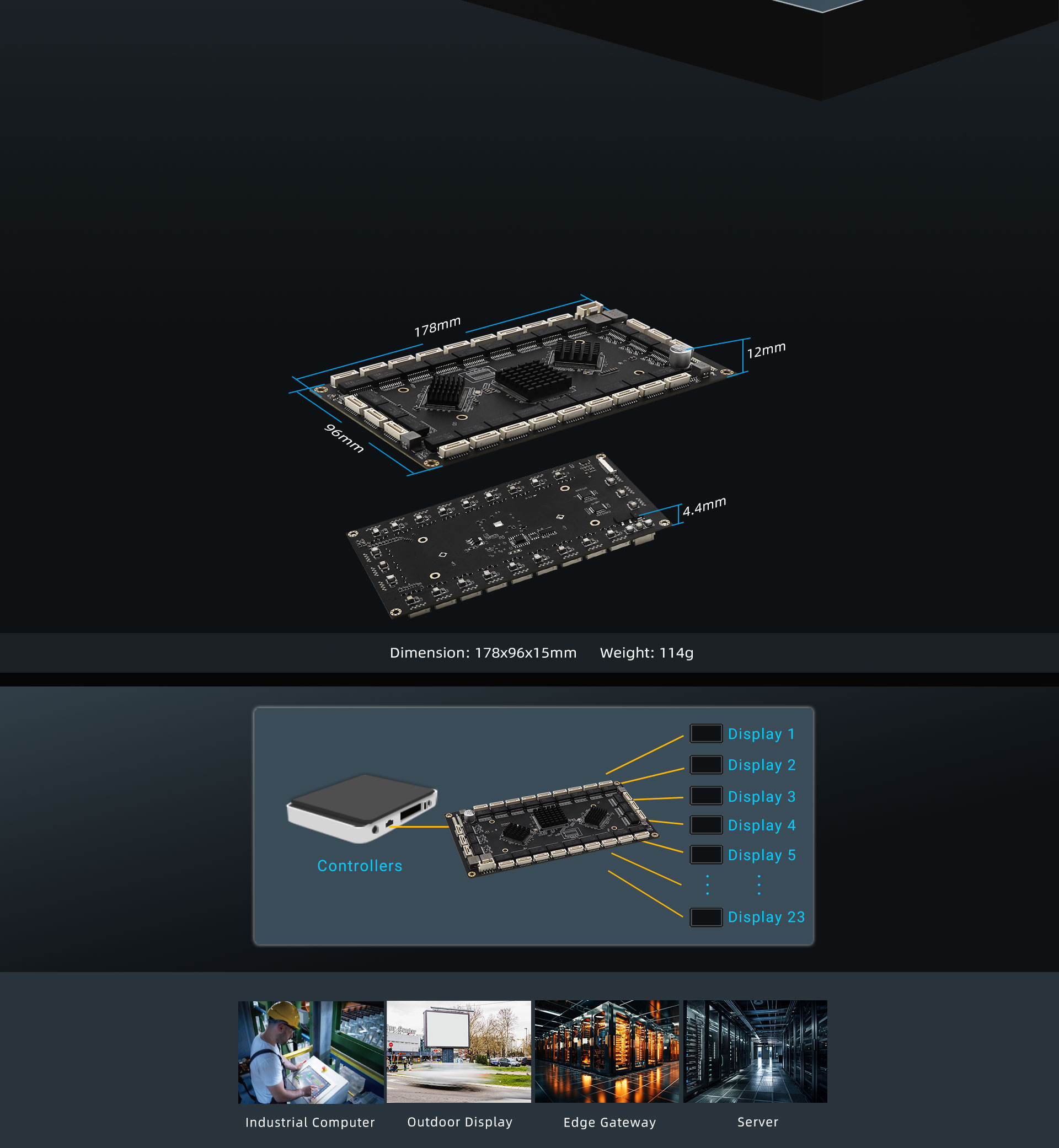

· Small size（178 ×96×15mm）, better adapted to industrial environments

Services

Overview
Specifications

Industrial

24-Port Gigabit Ethernet Switch Module

IEEE 802.3i,802.3u,802.3ab,802.3x

Model: YN-IES1024

Small Size Designs

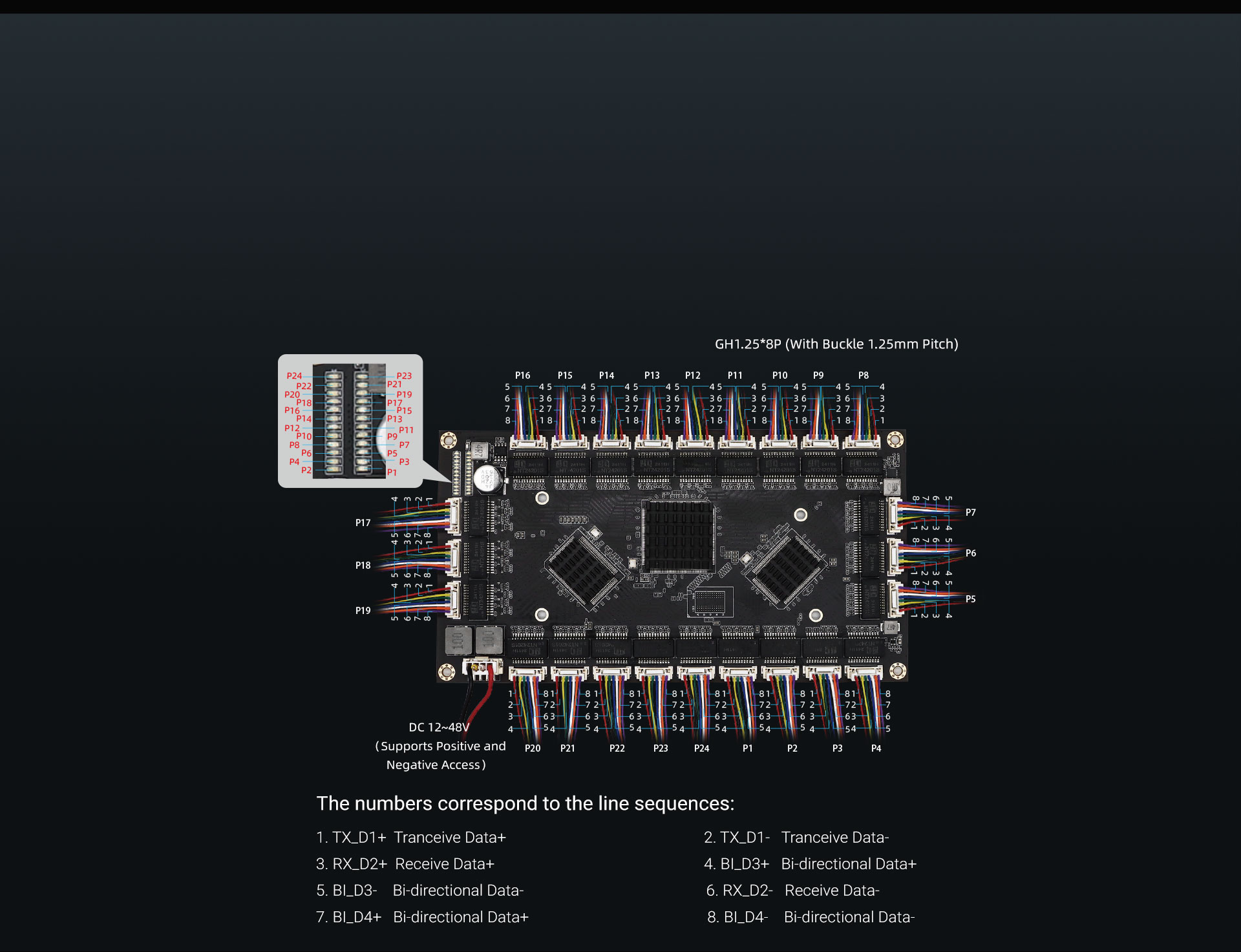

Provides 24 1000M Adaptive Ethernet 1.25mm pitch locking connector that are plug-and-play to instantly extend network connectivity to multiple devices.

Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

Input Voltage 12~48V

Designed for industrial environments

This is a 24-port Gigabit Ethernet Switch Module designed for industrial environments.It provides self-adapting 24 1000M Ethernet lockable connector, strictly designed for -40℃~85℃ operating temperature, selected industrial-grade devices, and natural heat dissipation to ensure stable operation for a long time in this temperature range and satisfy all kinds of harsh environments.

Selected Industrial Grade Devices

High standard industrial-grade devices, adapting to various harsh electromagnetic interference environments such as electric power and industrial plants.

Undergoes rigorously tested for durability, long service life, reduced equipment maintenance and replacement costs.

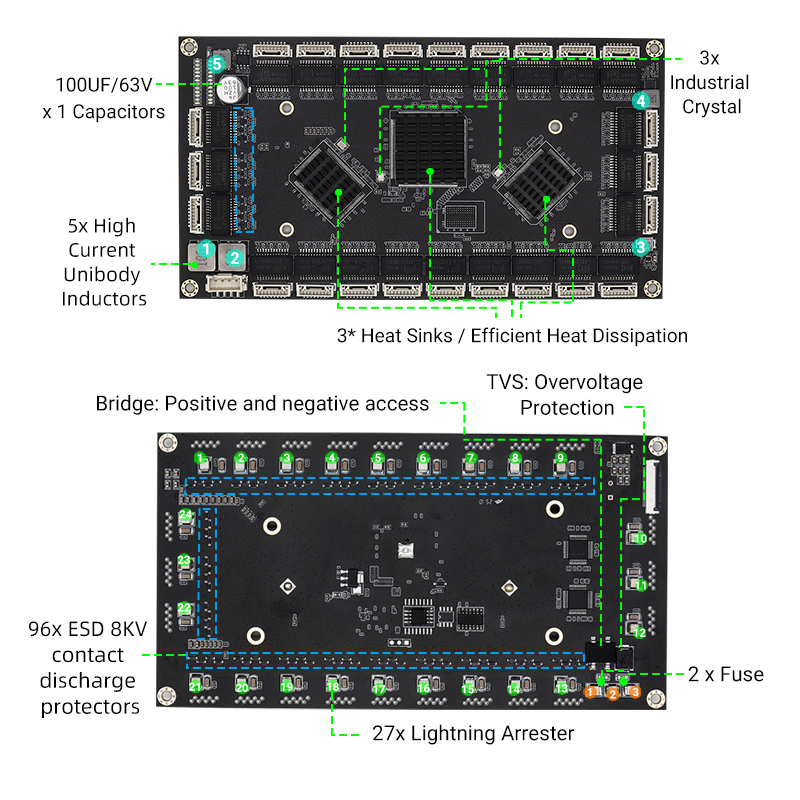

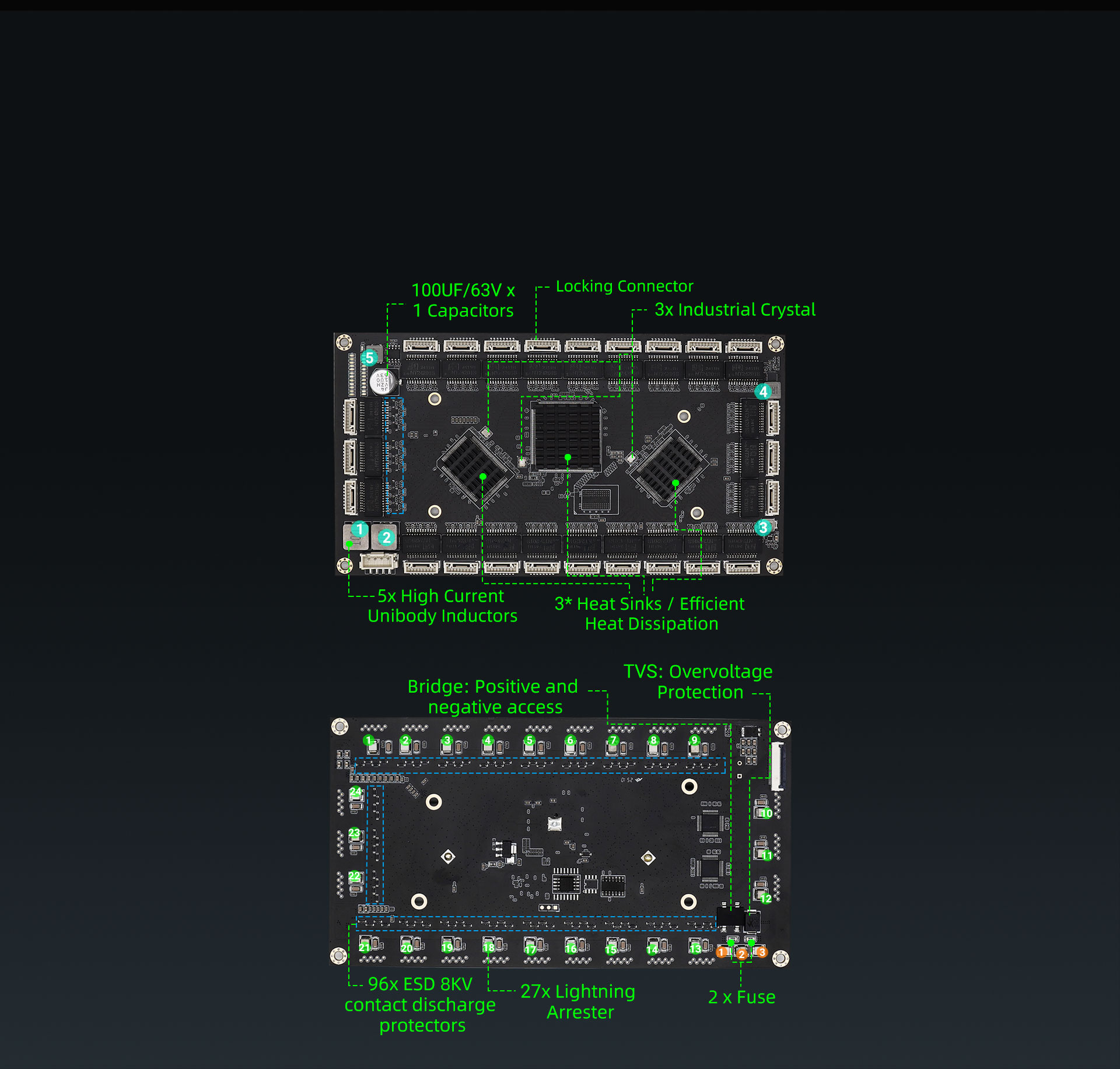

Wide Voltage Multiple Power Protection

This device supports a wide voltage input range (12-48V), making it compatible with various industrial power supplies.

It integrates reverse-connection protection, short-circuit/overcurrent protection, and surge protection to ensure reliable and uninterrupted operation.

Start Stability Performance Test

In terms of voltage testing, hundreds of power-off and restart tests were conducted under different voltage ranges, including 12V in series and individual 12V, 24V, and 48V, to closely simulate voltage

fluctuations in actual environments and rigorously test the stability and recovery capabilities of the switches.
