Every component are made in China

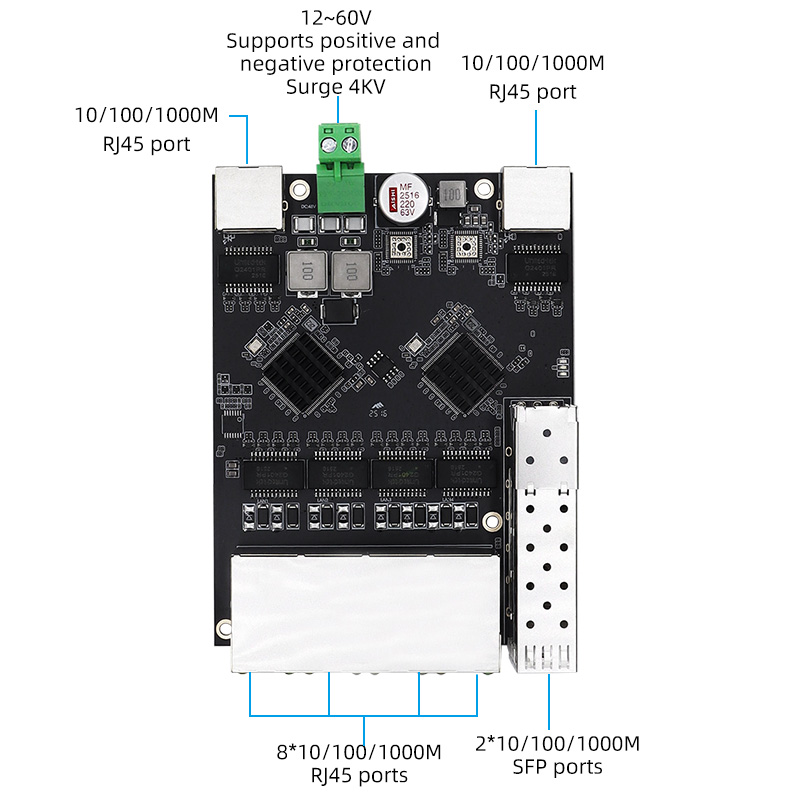

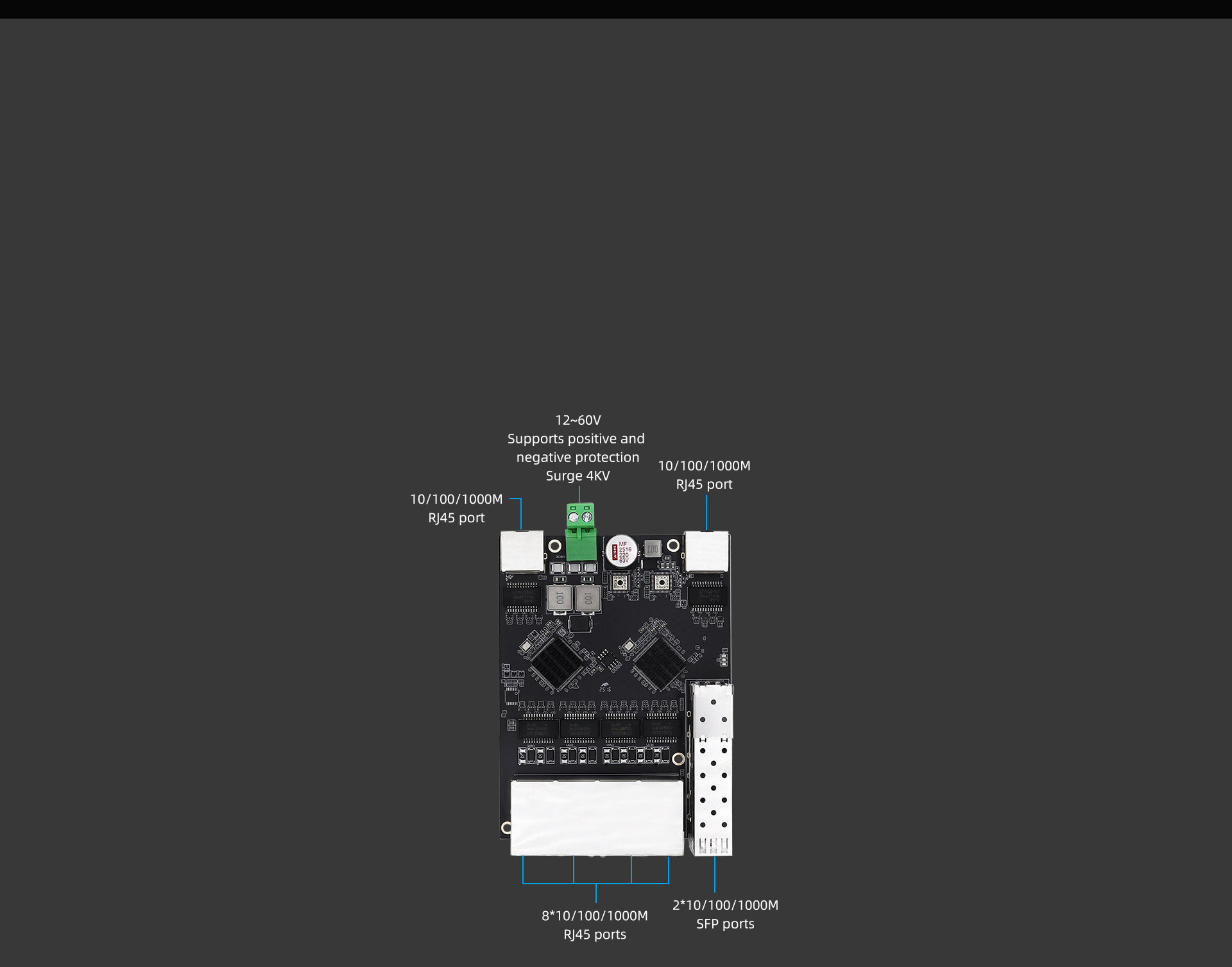

10 Gigabit RJ45 ports + 2 Gigabit SFP ports

Model: YN-IES1012

-40~85℃ Wide                           IP30                              Selected

  Temperature                         Protection                         Industrial

    Operation                                                                Grade Devices

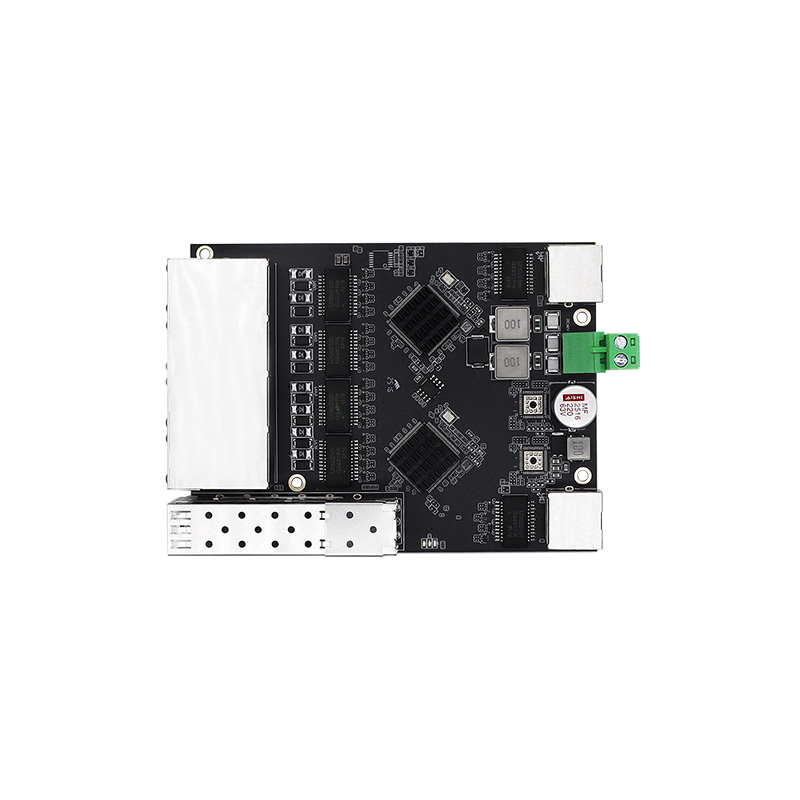

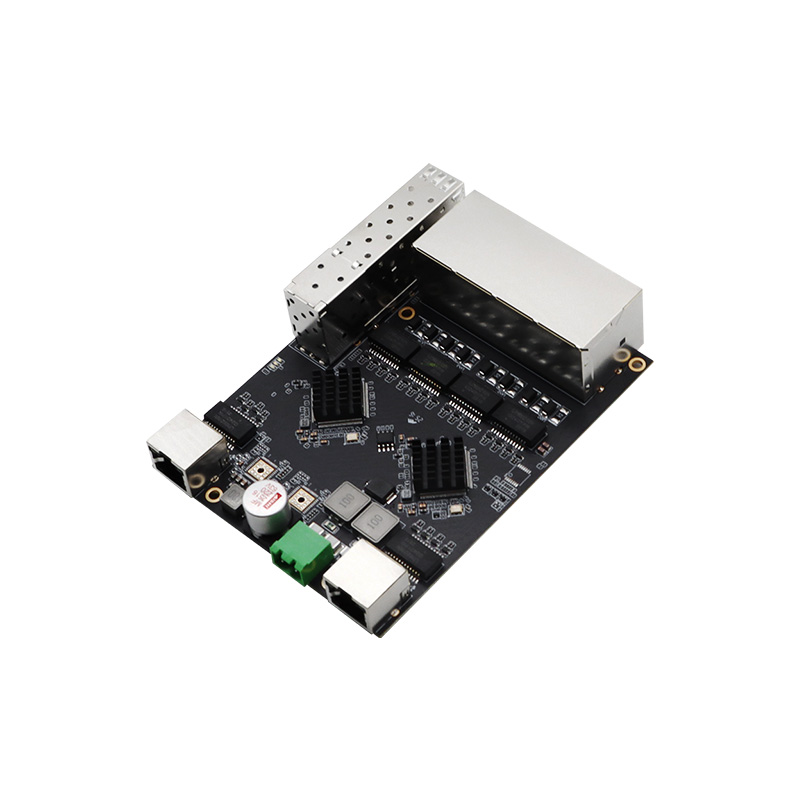

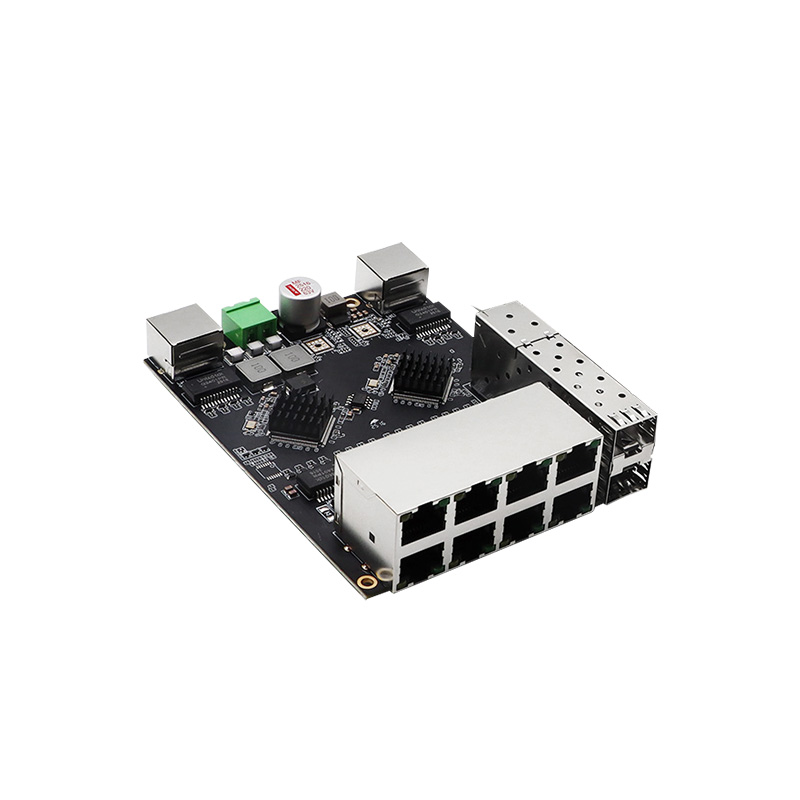

This is a 10-electric, 2-optical Gigabit switch module designed for industrial environments.Adaptive 10 RJ45 outlets and 2 SFP outlets are provided. Strictly designed according to the operating temperature of -40~85℃, industrial-grade components are selected and natural heat dissipation method is adopted to ensure the stable operation of the equipment for a long time in this temperature range. High-standard electromagnetic interference protection design, adapting to various harsh electromagnetic environments such as power stations and workplaces.

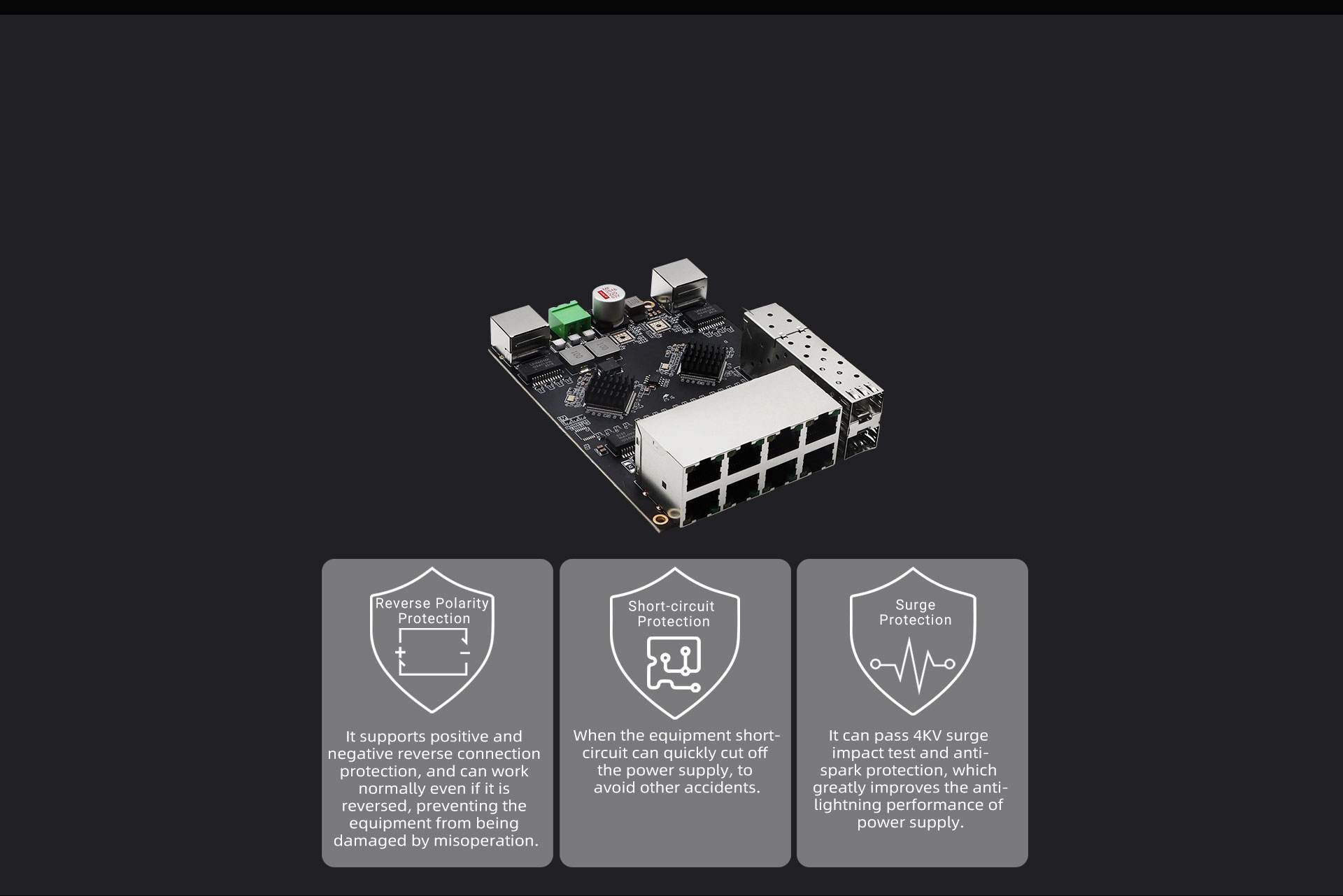

Reverse connection protection, short-circuit over-current protection, surge protection, to ensure uninterrupted work of the equipment. Supports 12~60V input, suitable for all kinds of industrial power supply.

The PCB boards are made of electroless nickel, which provides high corrosion and oxidation resistance, as well as superior electrical performance. Highly redundant system circuit design to avoid sudden changes in the external environment affecting the normal operation of the equipment. Selection of high-specification, long-life capacitors greatly enhances product life.

In terms of voltage testing, hundreds of power failure restart tests were conducted under different voltage widths such as series 12V and single 12V, 24V, 48V, etc., which highly simulate voltage fluctuations in the actual environment, so as to rigorously check the stability and recovery capability of the switch.
