· Every components are made in China

· 4 x 10/100/1000M adaptive RJ45 ports

· 2* 2.5G SFPs

· Fanless design ensures quiet operation

· Auto-negotiation: guarantees maximum speed on each port

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

·  Wide voltage 12~48V

· Silicon Controlled Rectifier (SCR): Effective and precise regulation of voltage, to ensure the safe and stable operation of equipment, to avoid all kinds of faults and damage caused by abnormal voltage.

· Lightning surge machine electrostatic full protection, electrostatic support 8KV

· Power supply support positive and negative access protection

· Industrial-grade operating temperature: -40℃~85℃

· Reverse connection protection, short-circuit over-current protection, surge protection, to ensure that the equipment does not work uninterruptedly.

· EMC high protection level, no fear of harsh environments

· Dimension: 114x66x16.6mm

Services

  • Overview
  • Specifications

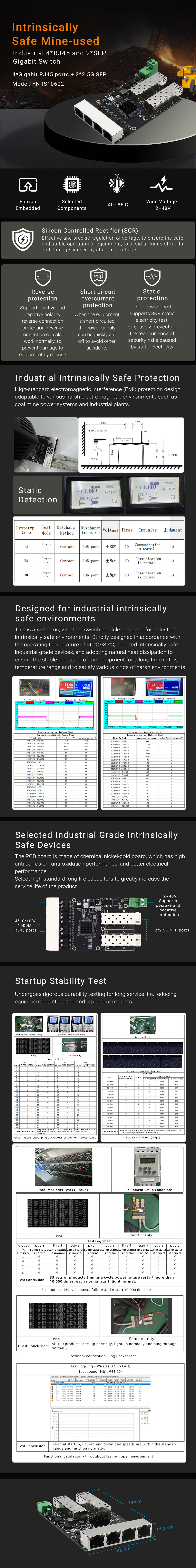

IS10601-1(1)



Intrinsically

Safe Mine-used

Industrial 4*RJ45 and 2* SFP

Gigabit Switch

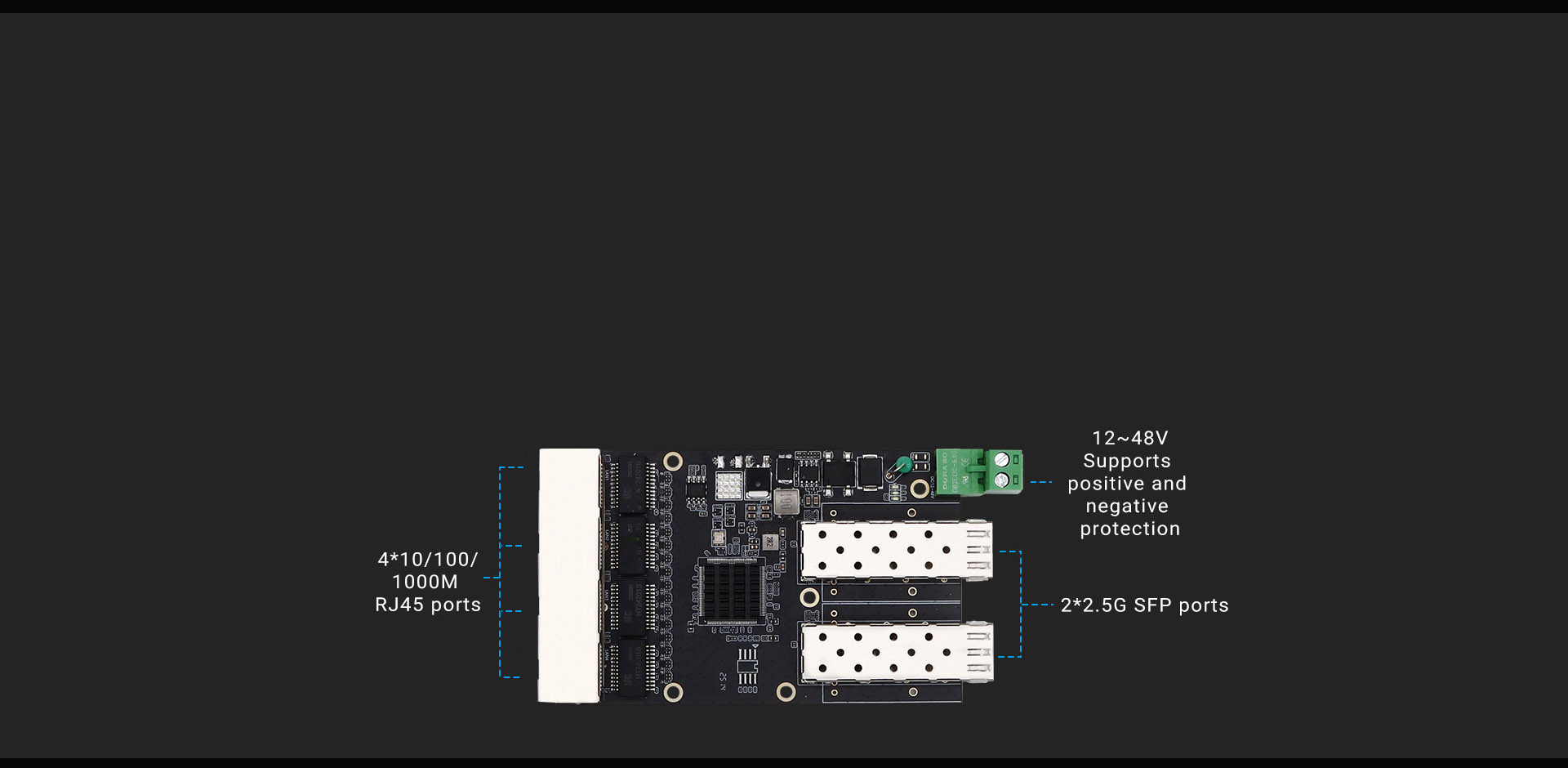

4*Gigabit RJ45 ports + 2*2.5G SFP

Model: YN-IS10602

IS10601-2(1)


  Flexible                Selected               -40℃-85℃           Wide Voltage

Embedded          Components                                           12~48V


IS10601-3(1)
IS10601-4(1)

Industrial Intrinsically Safe Protection

High-standard electromagnetic interference (EMI) protection design, adaptable to various harsh electromagnetic environments such as coal mine power systems and industrial plants.


IS10601-5(1)

Designed for industrial intrinsically safe environments

This is a 4-electric, 2-optical switch module designed for industrial intrinsically safe environments. Strictly designed in accordance with the operating temperature of -40℃~85℃, selected intrinsically safe industrial-grade devices, and adopting natural heat dissipation to ensure the stable operation of the equipment for a long time in this temperature range and to satisfy various kinds of harsh environments.

IS10601-6(1)

Selected Industrial Grade Intrinsically Safe Devices

The PCB board is made of chemical nickel-gold board, which has high anti corrosion, anti-oxidation performance, and better electrical performance.

Select high-standard long-life capacitors to greatly increase the service life of the product.

IS10601-7(1)

Startup Stability Test

Undergoes rigorous durability testing for long service life, reducing equipment maintenance and replacement costs.

IS10601-8(1)

YN-IS10602 Intrinsically Safe Mine-used Industrial 4*RJ45 and 2*SFP Gigabit Switch

Wide range of applications, easy to control multiple fields

Coal
Petrochemicals
Chemical Warehouse
Industrial Automation
Ports
Factories and Mines

Standard: IEEE 802.3,802.3i,802.3u,802.3x,802.3ab,802.3z

Ports: 4*Gigabit RJ45 ports + 2*2.5G SFP

Protocols: CSMA/CD

LED indication: Power, Link/Act

Input Voltage: 12~48V (Supports forward and reverse connection protection)

Static Electricity (Contact): 8KV

Power Wastage: 1~2W

Data Transmission Rate: Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)

Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)

Gigabit Ethernet: 2000 Mbps (full duplex)

Network Media (Wire): 10Base-T: UTP Category 3, 4, 5 cable (up to 100m), EIA/TIA-568 100Ω STP (up to 100m)

                                   100Base TX: UTP Category 5 5e cable (100m max), EIA/TIA-568 100Ω STP (100m max)

                                   1000Base-T: UTP Category 5e cable (100m max.), EIA/TIA-568 100Ω STP (100m max.)

Transmission Method: Store and forward

Frame Rate: 0Base-T: 14881pps/port

              100Base TX: 148810pps/port

              1000Base-T: 1488095pps/port

MAC Address Study:  Automatic learning, automatic aging

Environment: Operating Temperature: -40℃ ~ 85℃

                       Storage Temperature: -40℃ ~ 85℃

                       Operating Humidity: 10%RH ~90%RH(non-condensing)

                       Storage Humidity: 5%RH ~ 90%RH(non-condensing)
