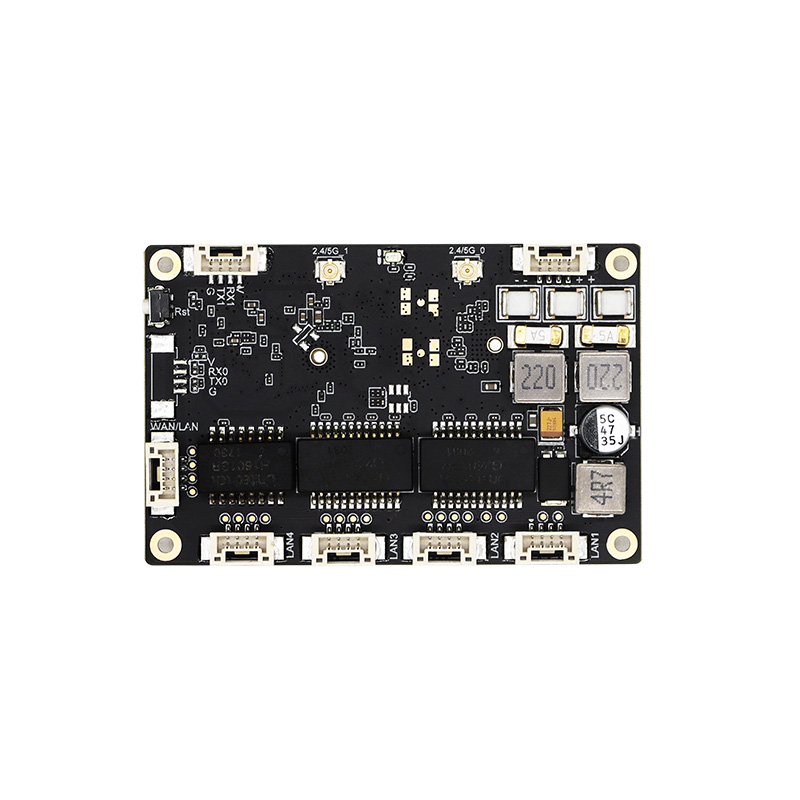

YN-IR10501 Industrial 5 Port 10/100Mbps Multi mode AC1200 Wi-Fi module

Online Purchase

YN-IR10501 Industrial 5 Port 10/100Mbps Multi mode AC1200 Wi-Fi module

· IEEEE 802.3x Flow Control Provides Reliable Data Transmission

· Compact and super mini design

· Automatic: MDI/MDIX Eliminates Need for Crossover Cables

· Auto-negotiation: guarantees maximum speed on each port

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

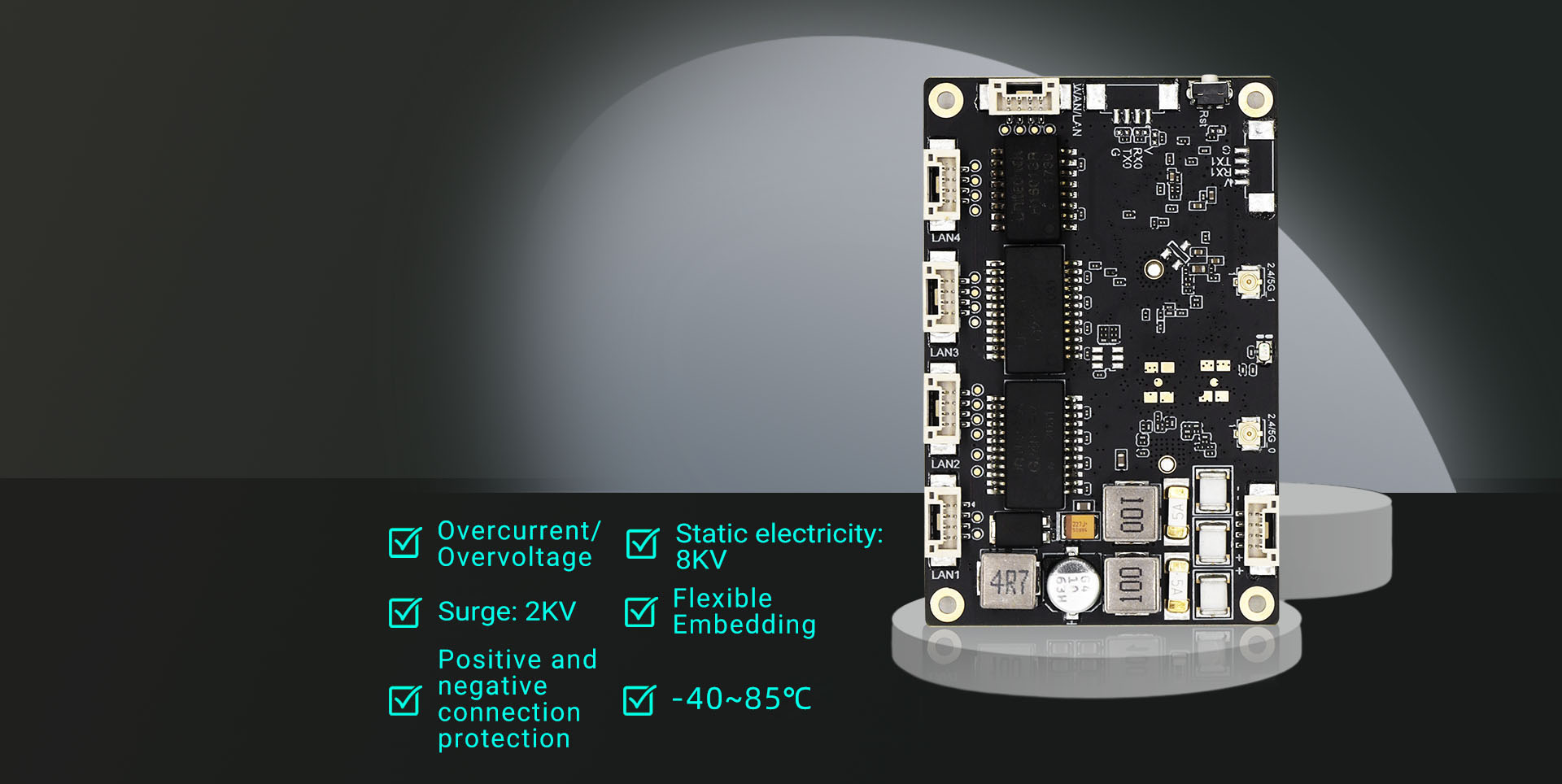

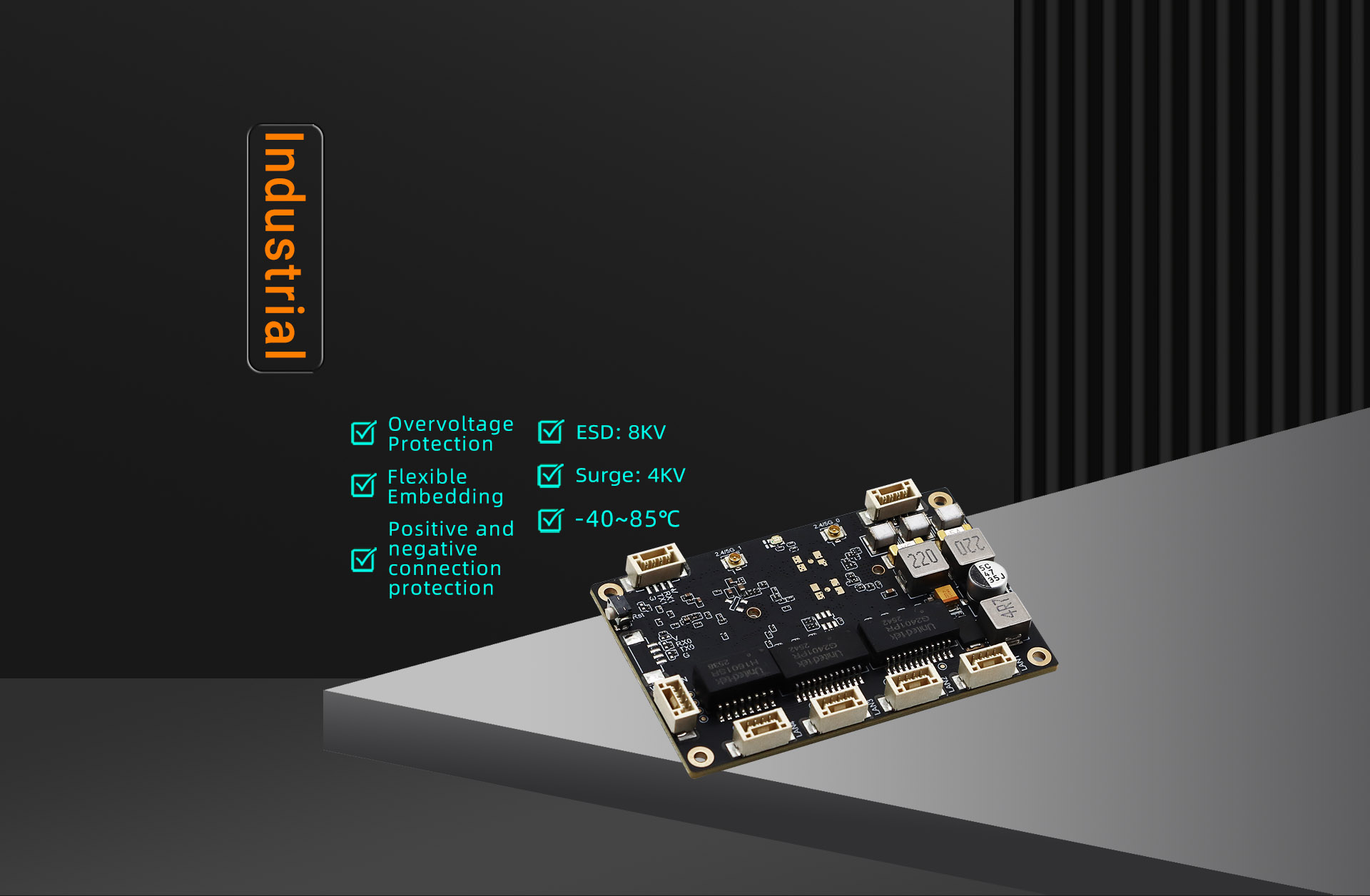

· Lightning surge machine static full protection, static support 8KV, surge 4KV

· Power supply support positive and negative access protection

· Provides five 10/100M adaptive ethernet locking socket

· Industrial-grade operating temperature: -40℃~85℃

· Support reverse protection, short circuit overcurrent protection, and surge protection, to ensure uninterrupted work of the device

· High EMC protection level, can work in various harsh environments

· Small size（65 ×42×11mm）、better adapted to industrial environments

· Multiple working modes: Access point, wireless router, client, repeater, bridge, WISP client.

Services

Overview
Specifications

AC1200

5-port 10/100Mbps

Multi-mode Wi-Fi Module

Supports UART serial port

MODEL: YN-IR10501

UART Small Multi- Selected

Serial Port Embedded mode Components

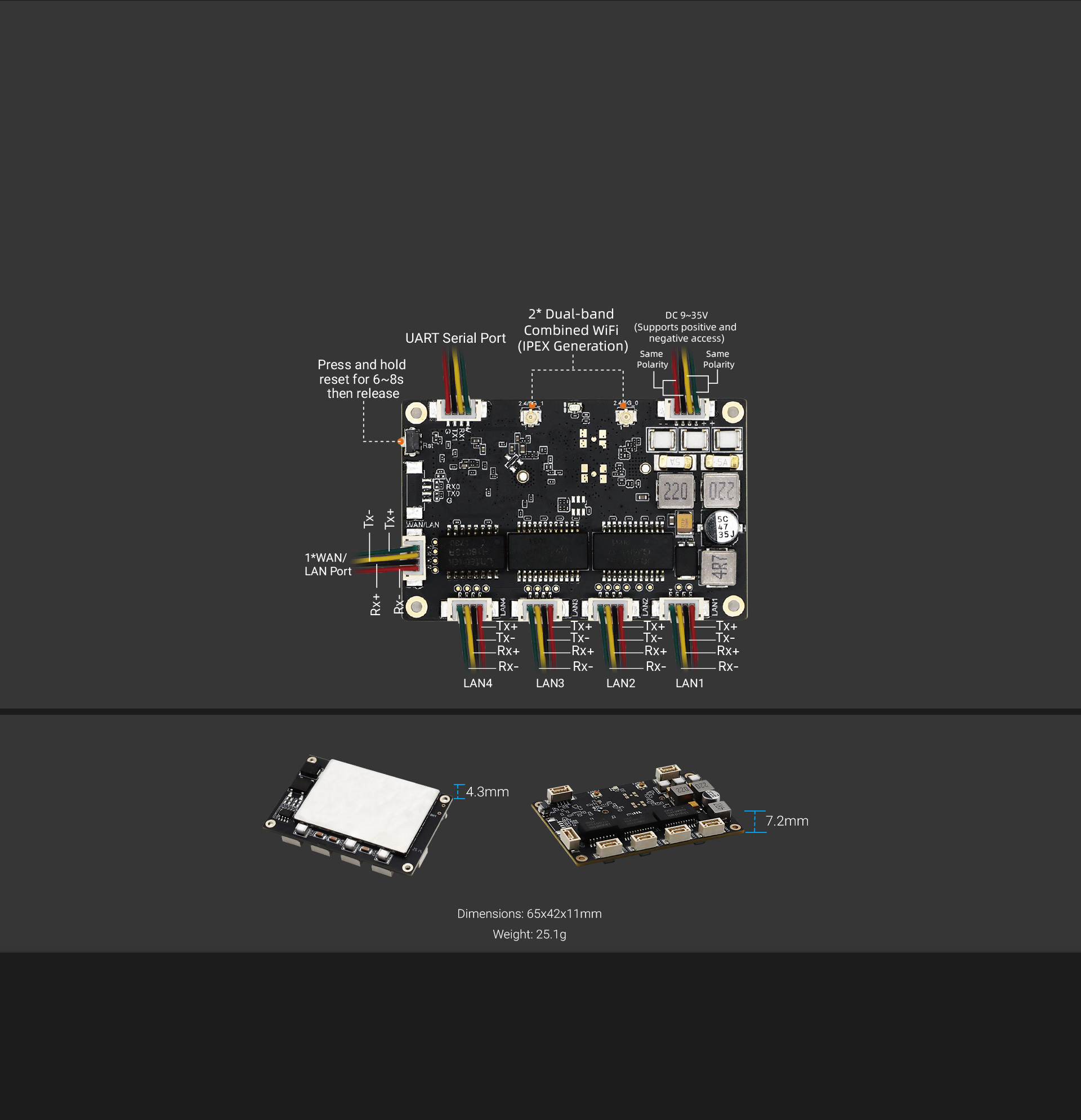

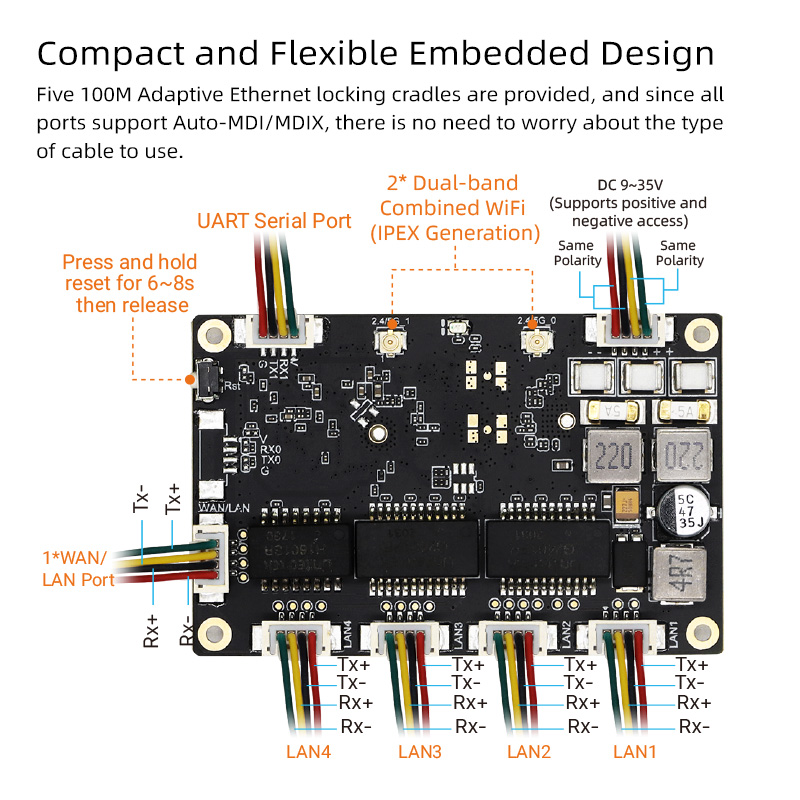

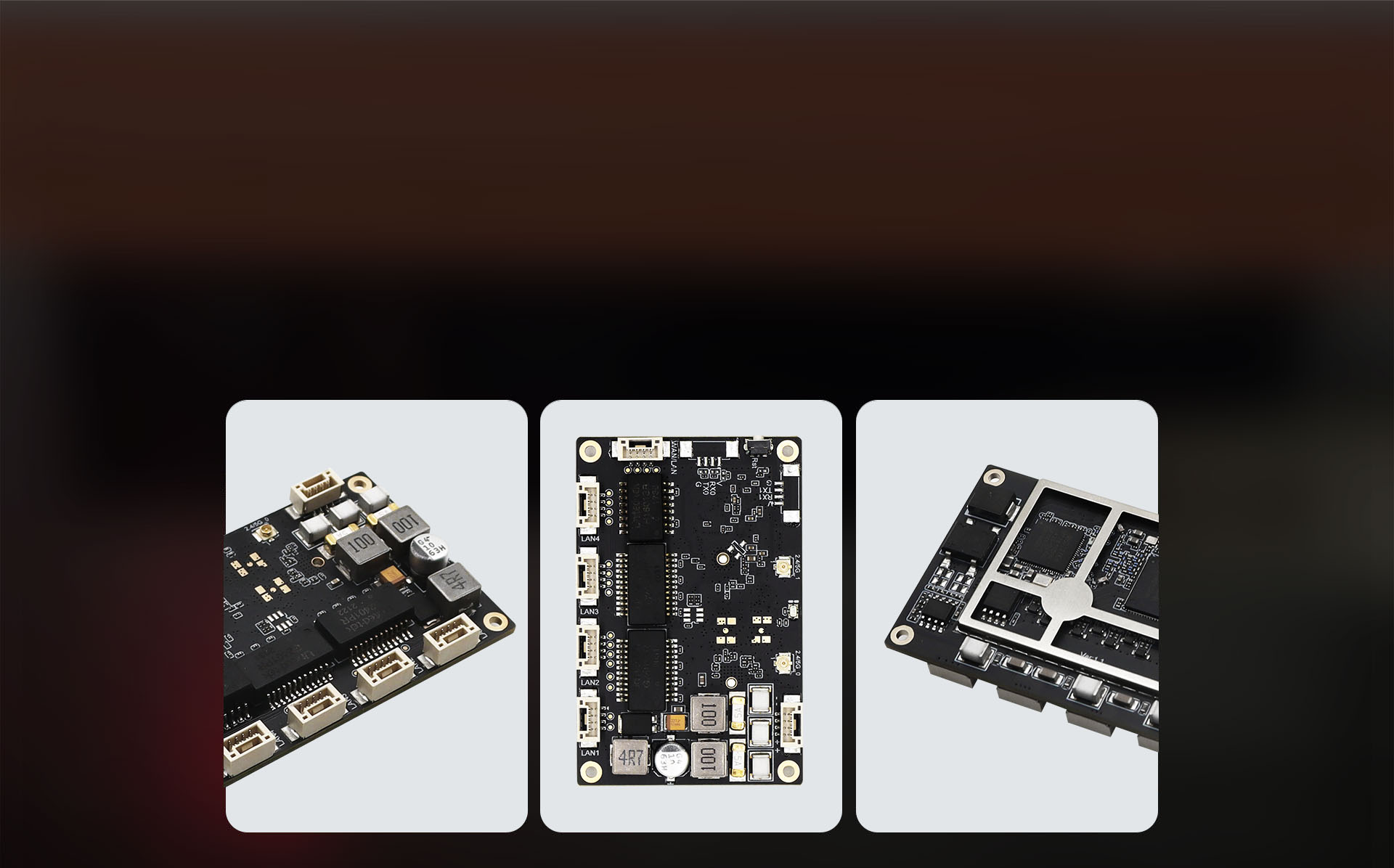

Compact and Flexible Embedded Design

Provide five 100M auto-negotiation Ethernet locking connectors. Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable used. The device supports multiple connectivity options, including Wi-Fi 2.4GHz (300Mbps) and 5GHz (867Mbps), as well as wired access, meeting users' diverse connection requirements for different devices.

Supports a wide voltage input of 9~48V, adapting to various industrial power supplies. Reverse connection protection, short-circuit over-current protection, surge protection, to protect the equipment uninterrupted work.

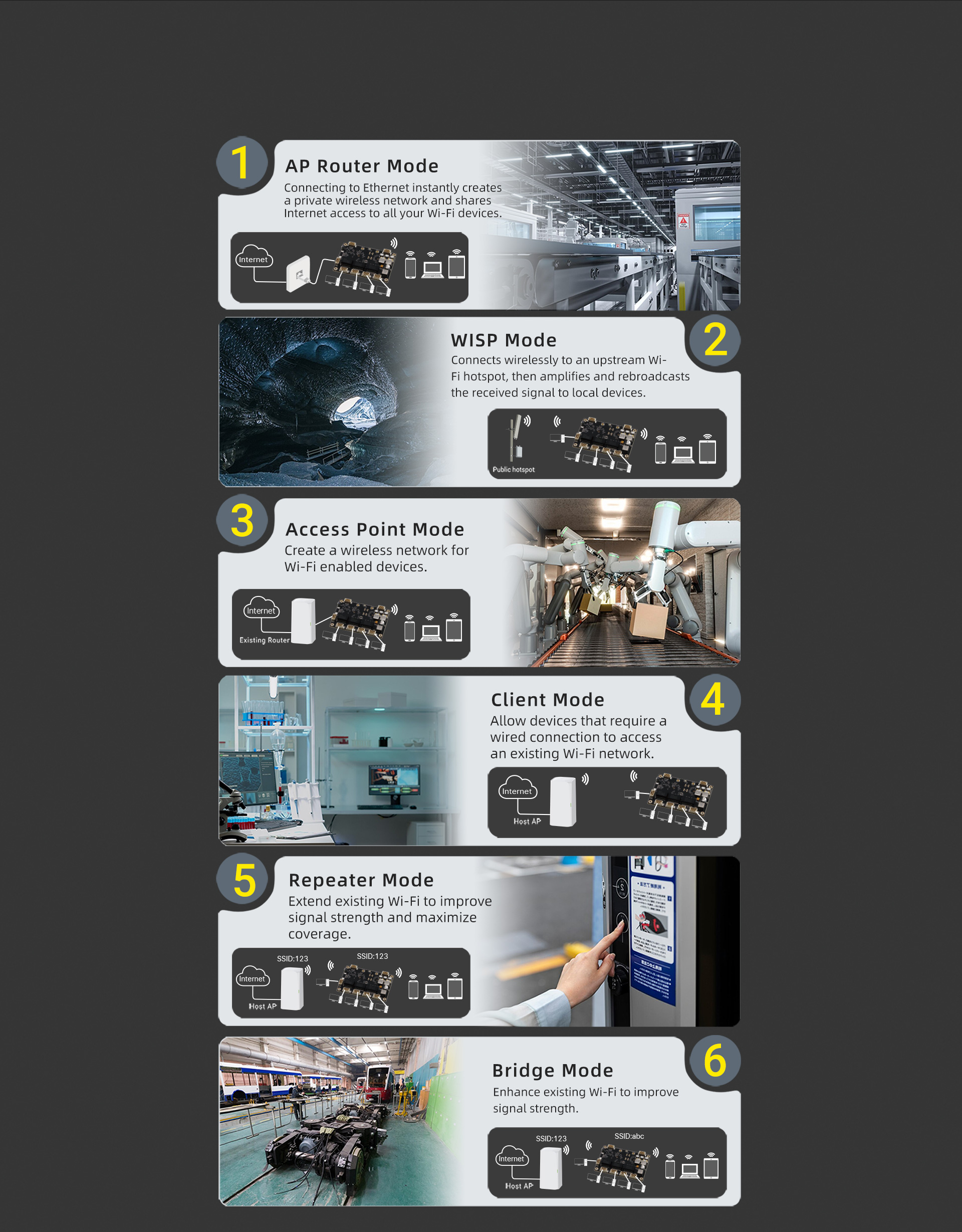

6 Working Modes

Whether you need a private Wi-Fi network or something to enhance your Wi-Fi, this device has a model for you.

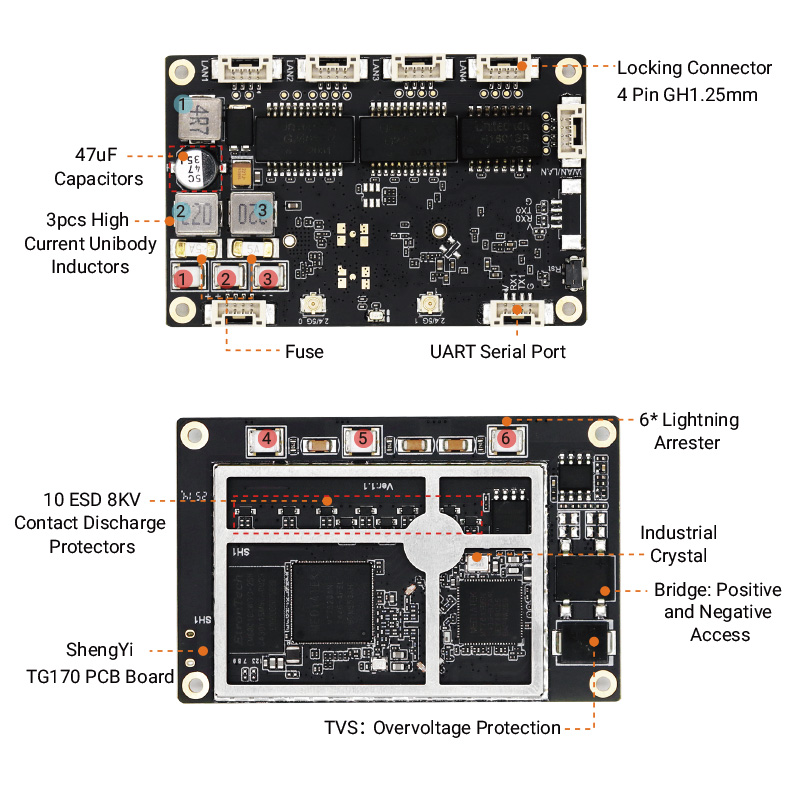

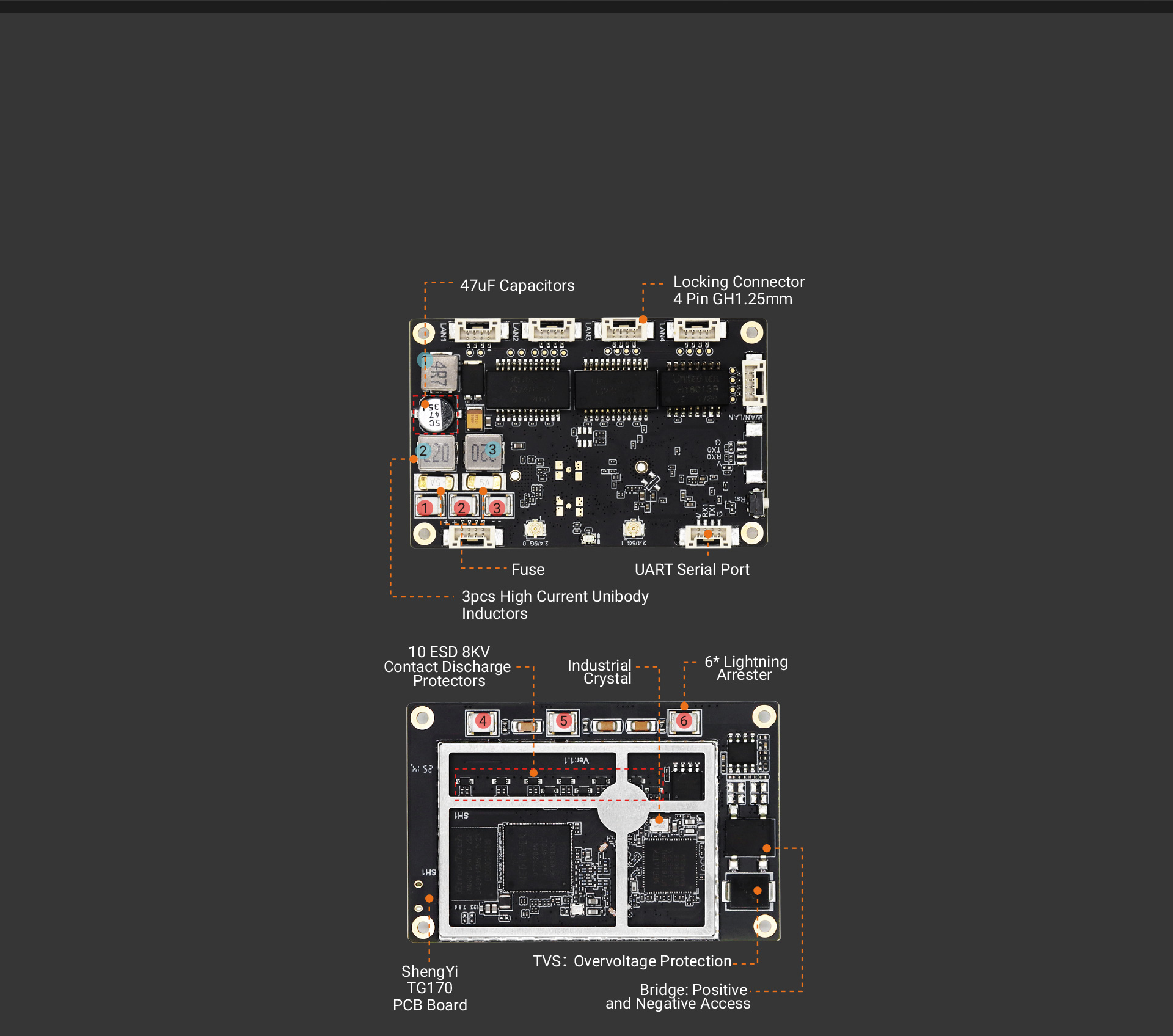

Selected Industrial Grade Devices

High-standard industrial-grade devices, adapting to various harsh electromagnetic interference environments such as electric power and industrial plants. Undergoes rigorous durability testing for long service life, reducing equipment maintenance and replacement costs.

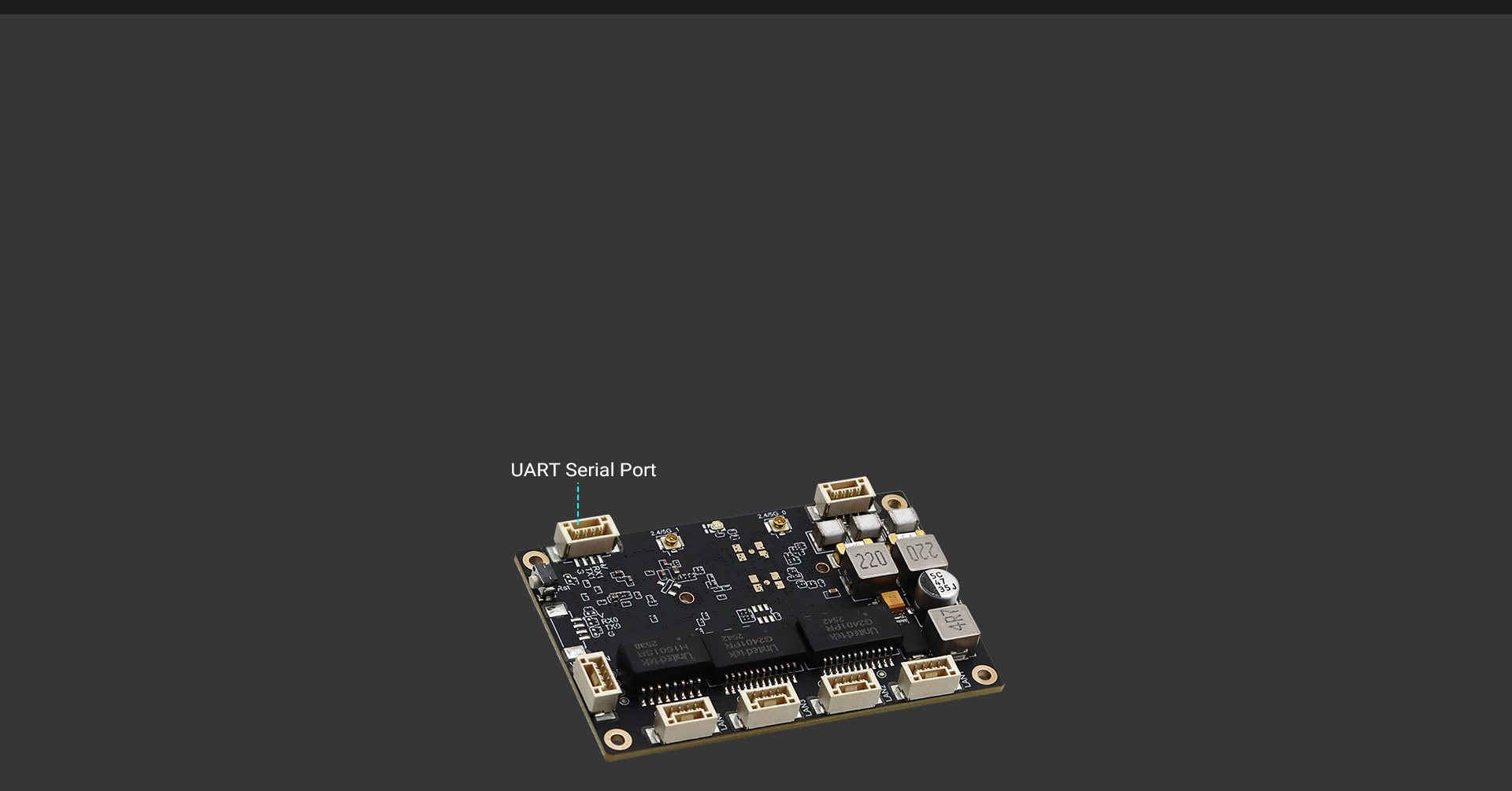

UART Serial Port

It adopts a UART-based serial communication mechanism, enabling full-duplex or half-duplex bidirectional data transmission with only one pair of transmission lines. Featuring strong anti-interference performance and long-distance transmission, it is widely used in industrial and IoT applications. The interface supports TCP/UDP, Modbus, and MQTT protocols, meeting various requirements for local control, remote data transmission, and cloud access.

Designed for industrial environments

This is a 5-port 100Mbps multi-mode wireless module designed for industrial environments. , adopting premium industrial-grade components and natural heat dissipation to ensure long-term stable operation at -40°C to 85°C and reliable performance in various harsh environments.

Startup and network connection stability

Comprehensive coverage testing, 100 units of the product underwent 100 power-off restart tests. Comparison test of similar products from a certain brand under AP mode at distances of 1M/5M/15M/20M, ensure the software operates flawlessly across all operational scenarios, free from bugs and obstacles, delivering a seamless and efficient user experience.

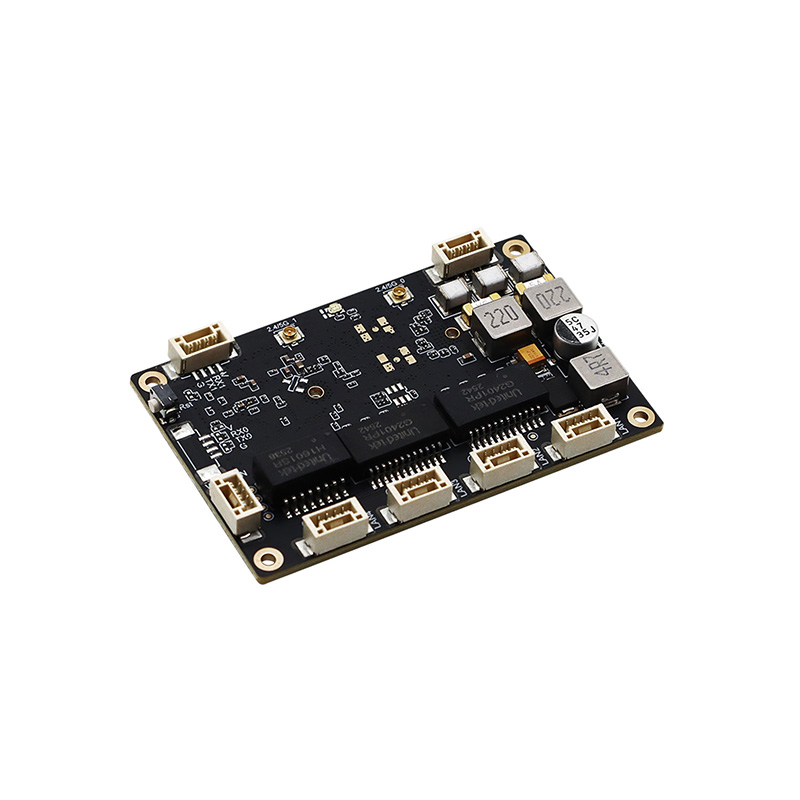

YN-IR10501 Industrial 5 Port 10/100Mbps Multi mode AC1200 Wi-Fi module

Typical Application Scenarios

Compact and flexible embedded design, widely used in a variety of application scenarios, Such as: Mine Robot, UAV, industrial robot arm, self-service machine, Automobile Chassis Inspection Instrument, Industrial Electronic Scale, Medical devices, Superstore, industrial security, Device-integrated wifi network, etc.
