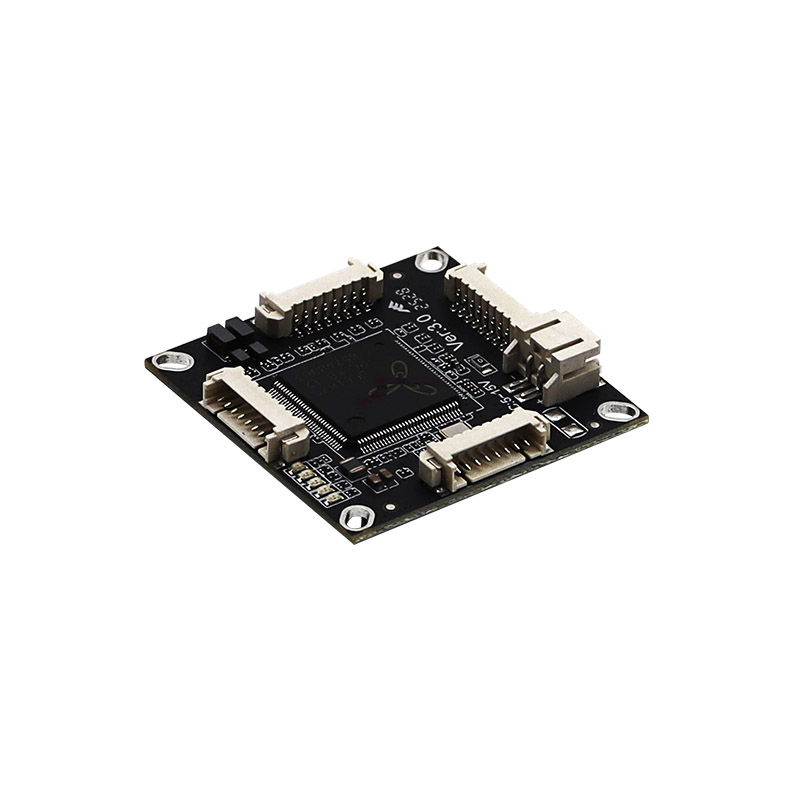

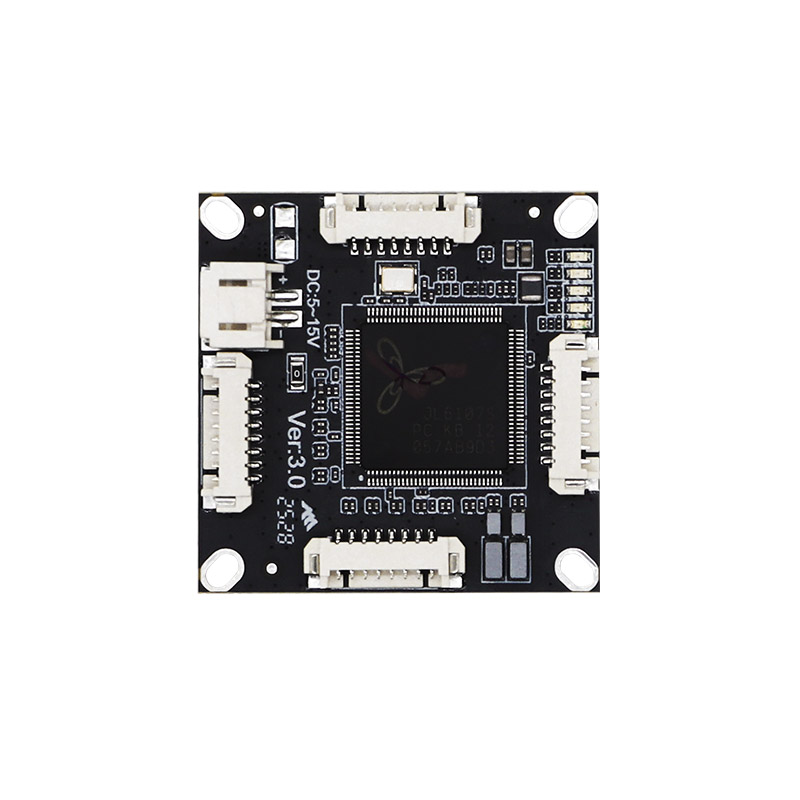

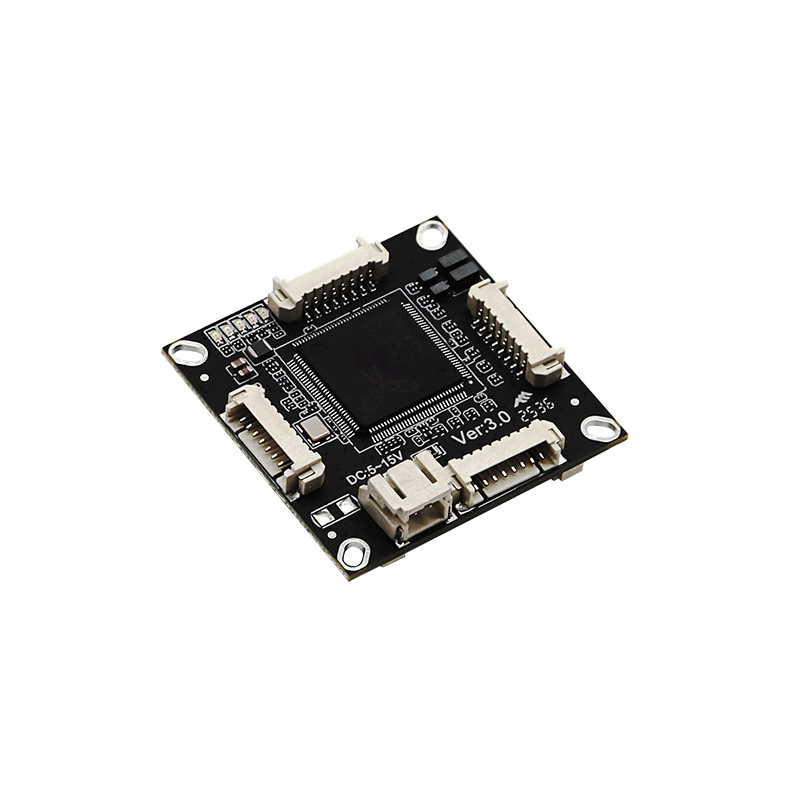

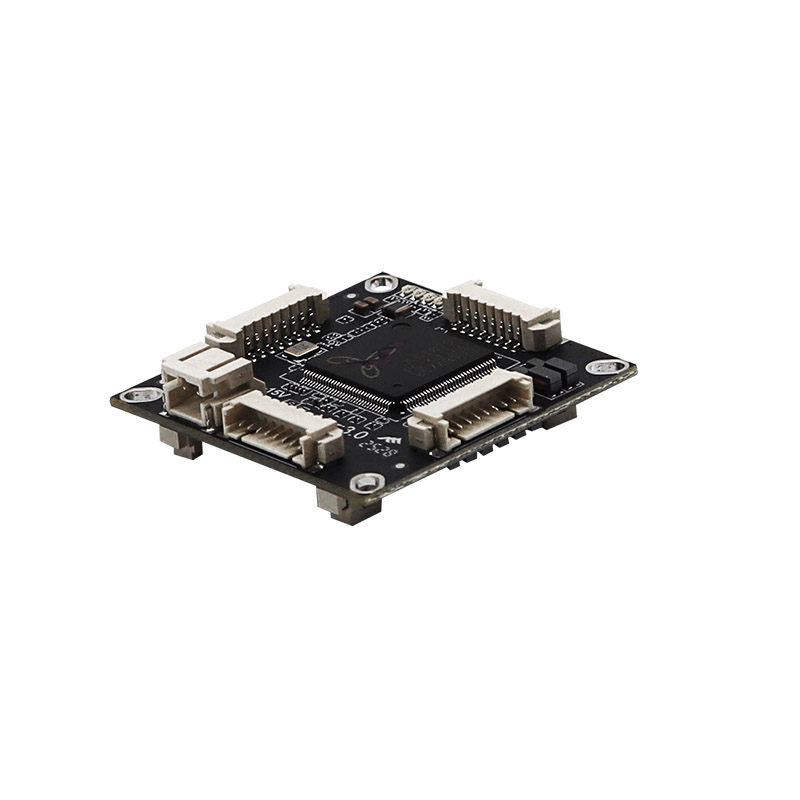

YN-S10403 4-Port 10/100/1000Mbps Mini Switch Module

· Every components are made in China

· Plug and play, no configuration required

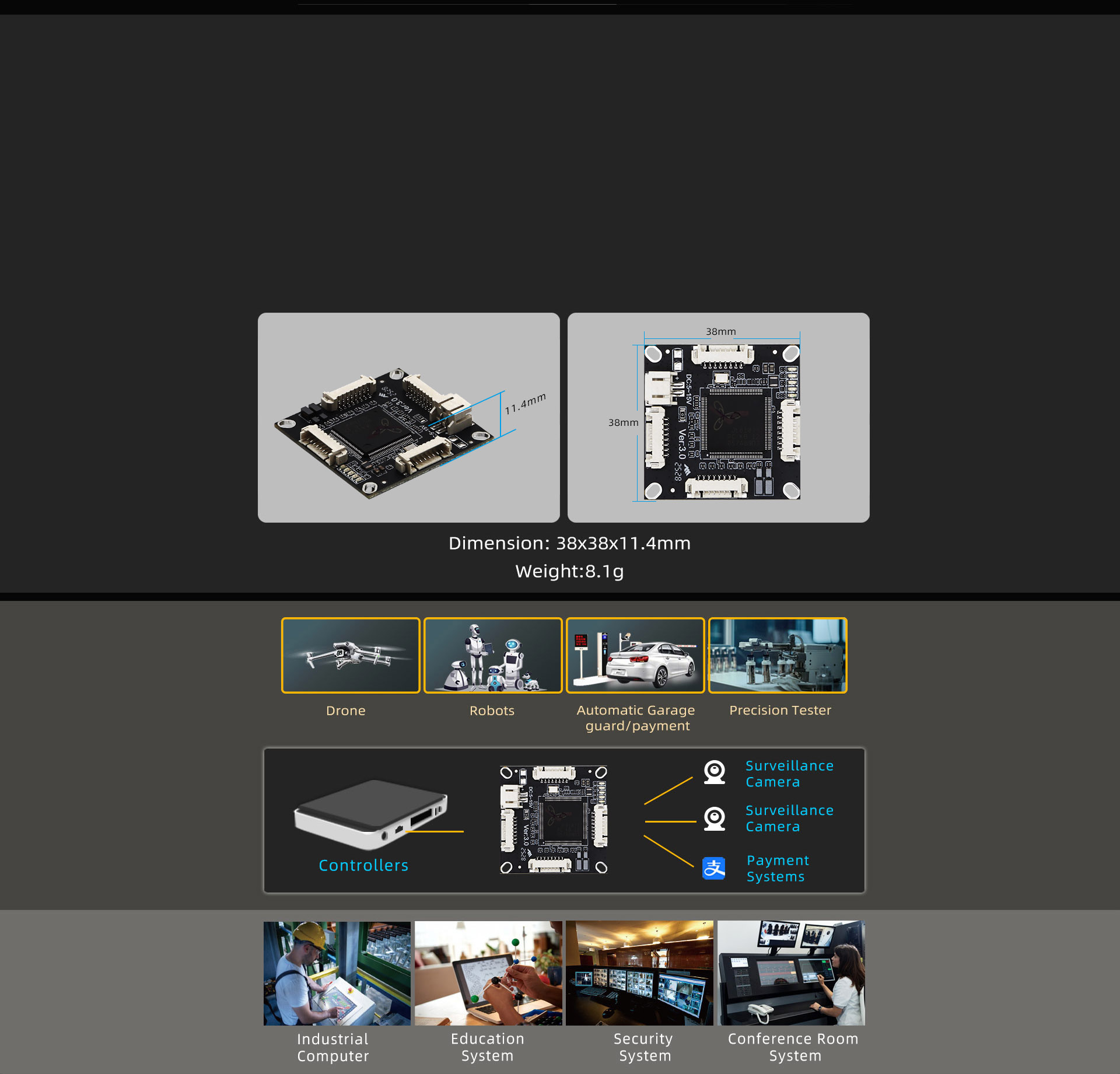

· Compact and small 38x38mm design

· Automatic: MDI/MDIX Eliminates Need for Crossover Cables

· Provides four 10/100/1000M adaptive Ethernet sockets

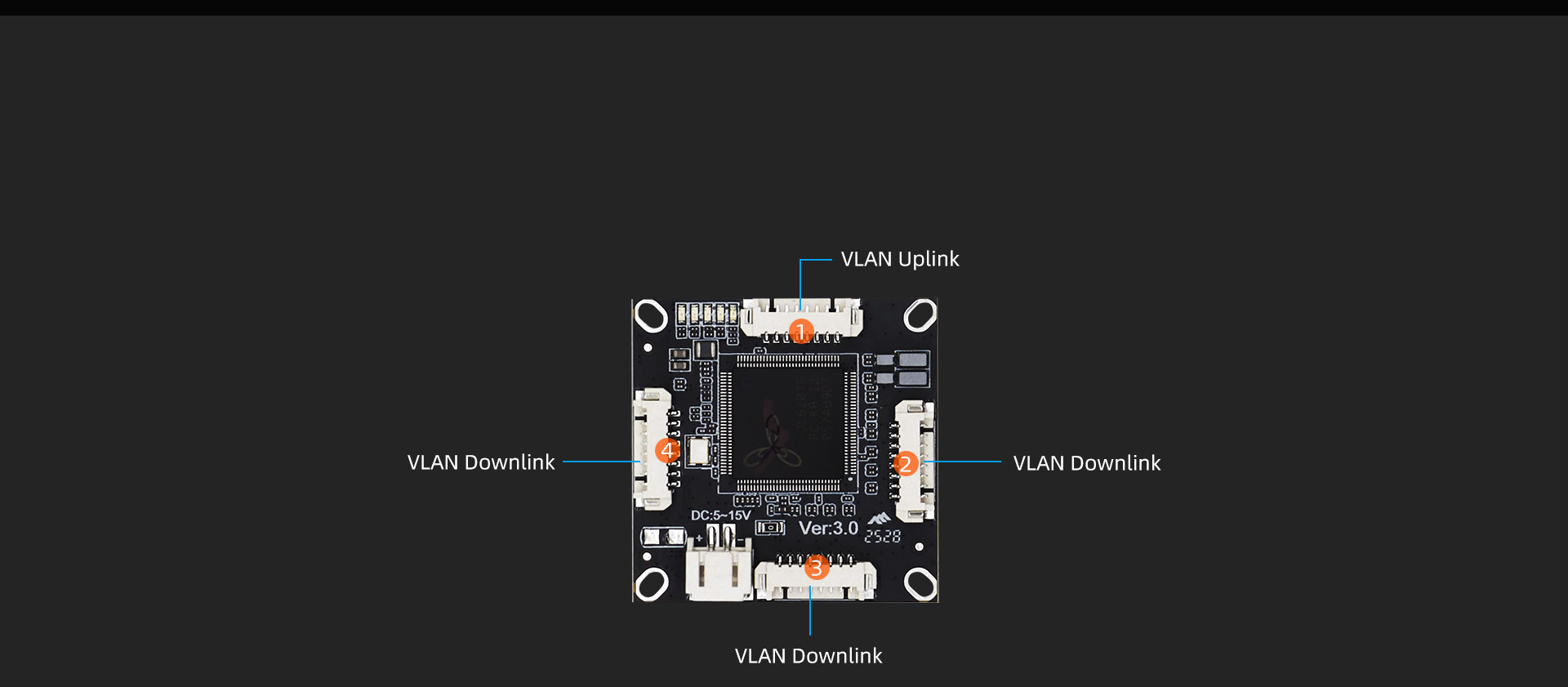

· VLAN support

· IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex

· Support 5~15V wide voltage input

· IEEEE 802.3x Flow Control Provides Reliable Data Transmission

· Fanless design ensures quiet operation

· Auto-negotiation: guarantees maximum speed on each port

· Operating Temperature: -40℃~85℃

Services

Overview
Specifications

Every component are made in China

4-Port 10/100/1000Mbps

Mini-Switch Module

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab，IEEE 802.3x

Model: YN-S10403

Compact and flexible embedded design

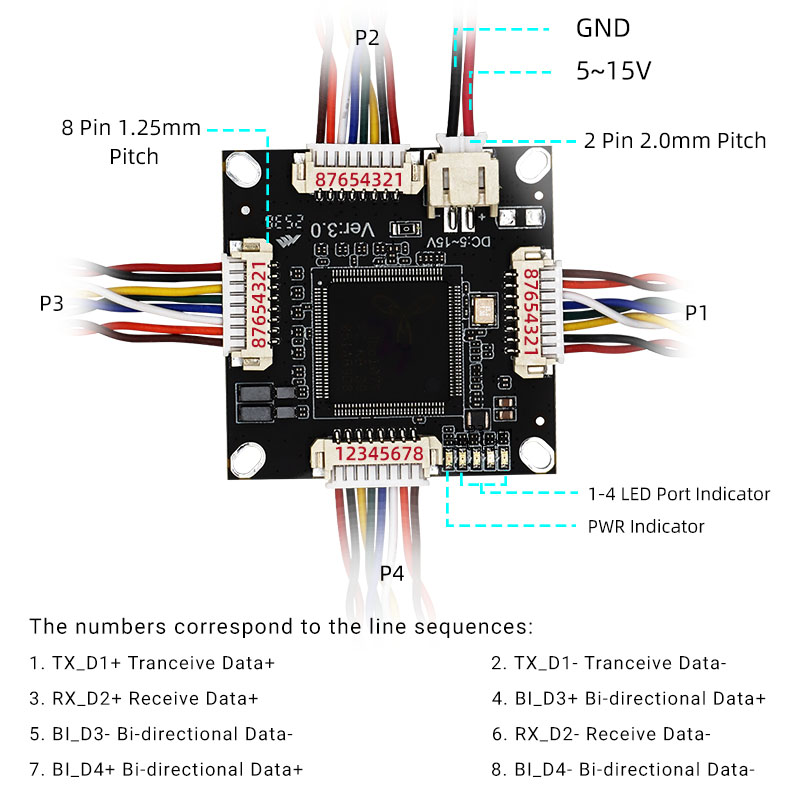

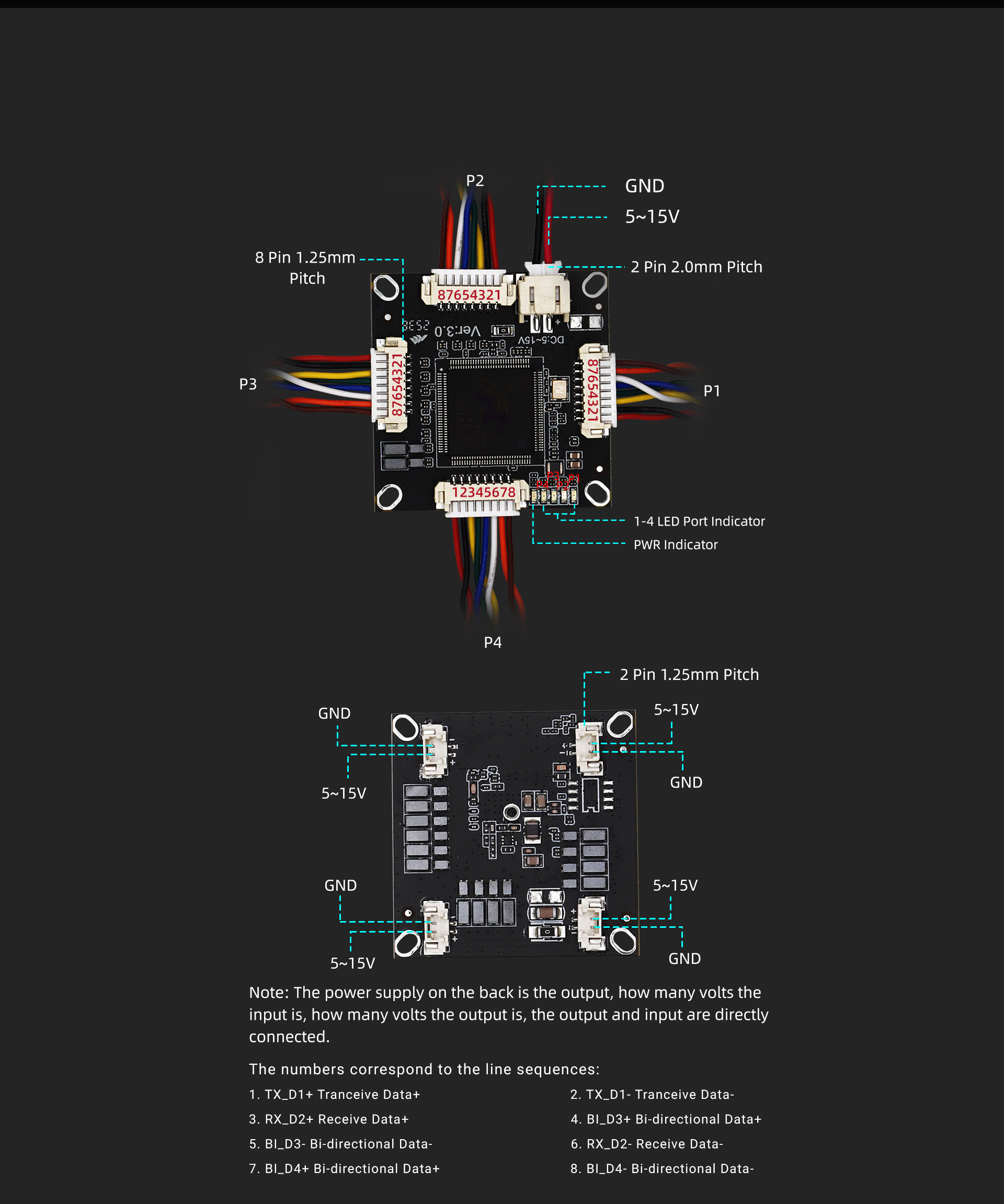

Provides four 1000M Adaptive Ethernet 1.25mm pitch connector that are plug-and-play to instantly extend network connectivity to multiple devices. Since all ports support Auto-MDI/MDIX, there is no need to worry about the type of cable to use.

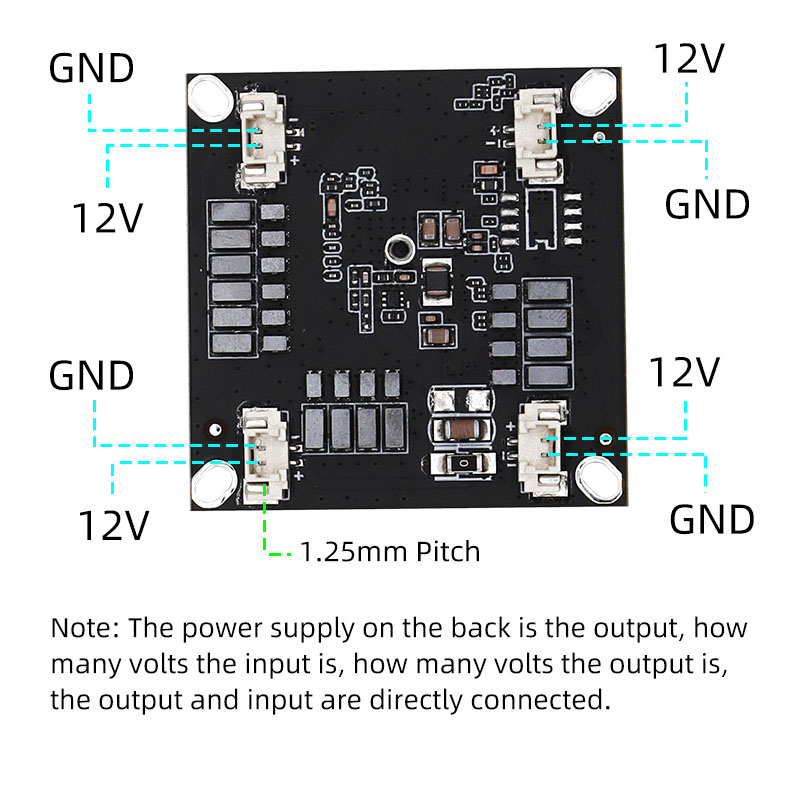

Input Voltage 5~15V

Designed for industrial environments

In order to ensure the reliability of the product under wide voltage and wide temperature environments, it is guaranteed that it can operate normally in all kinds of electrical environments. Under the environment of -40℃~85℃, a number of related tests were conducted, such as operating performance test, storage stability test and cycle durability test, which lasted for 48 hours in all directions.

Startup and Network Connection Stability

In terms of voltage testing, hundreds of power failure restart tests were conducted under different voltage widths such as 5V, 9V, 12V, etc. to highly simulate the voltage fluctuations in the actual environment, so as to strictly check the stability and recovery capability of the switch.
