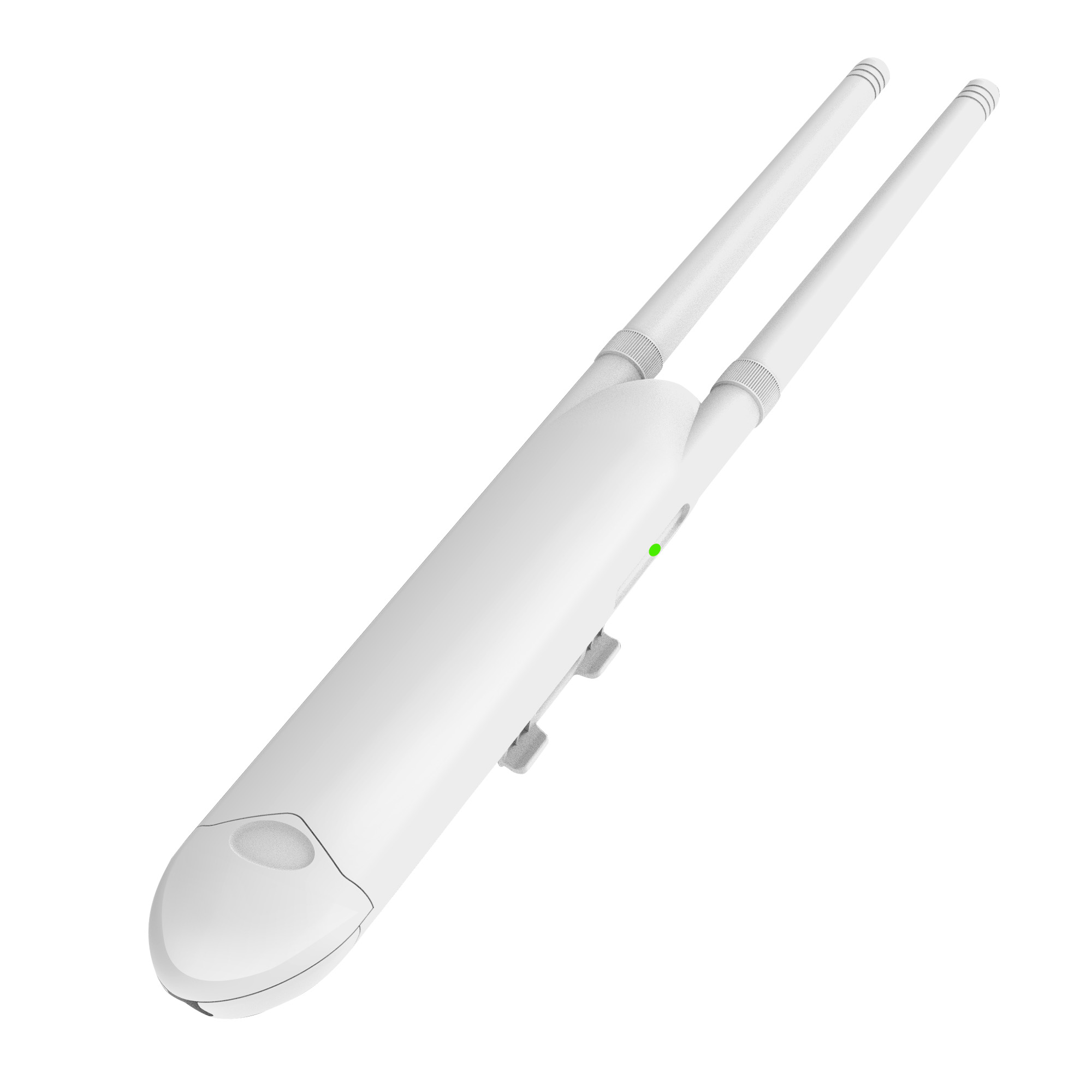

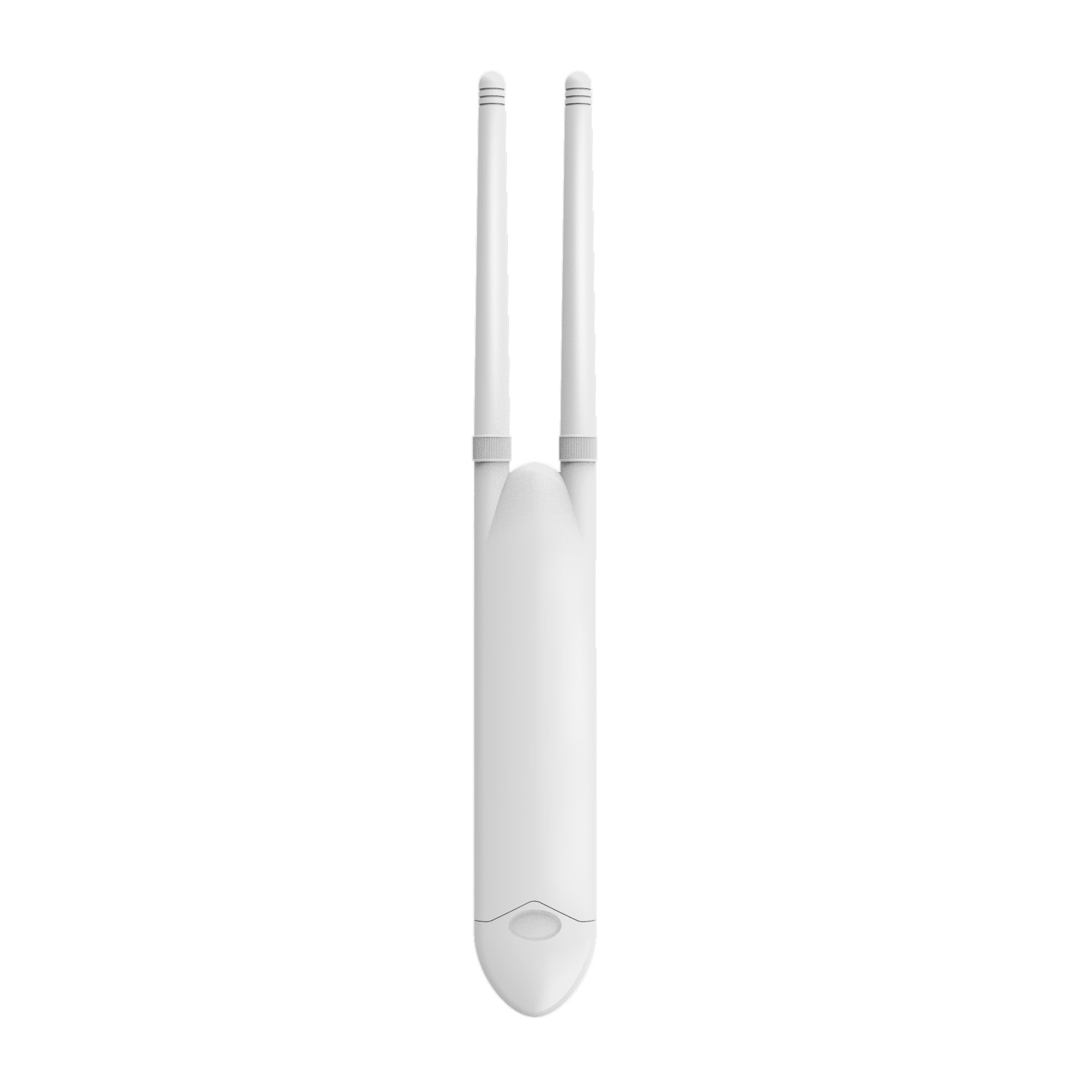

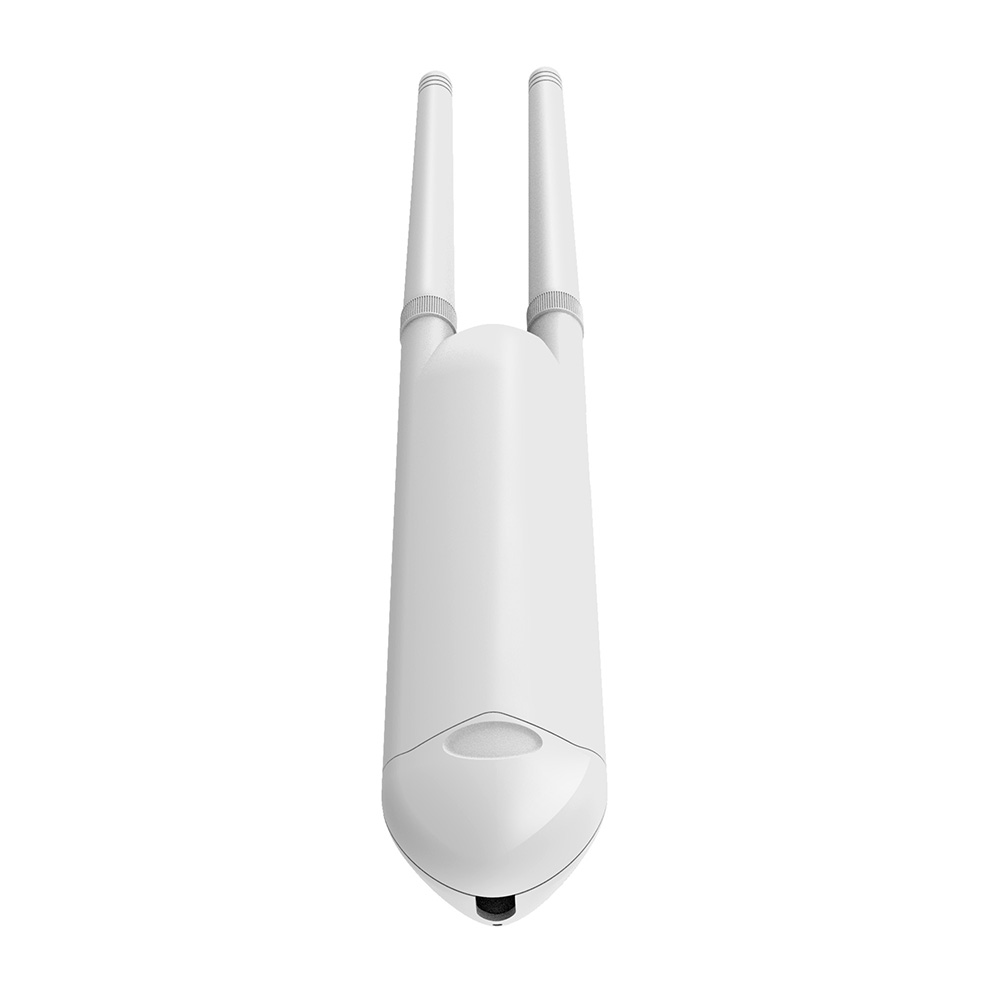

Y11 Outdoor 4G CPE
Y11 Outdoor 4G CPE
Y11 Outdoor 4G CPE
Y11 Outdoor 4G CPE
Y11 Outdoor 4G CPE
Y11 Outdoor 4G CPE
Y11 Outdoor 4G CPE

· 300M wireless, external 5dBi omnidirectional waterproof antenna, outdoor professional omnidirectional wireless coverage.

· Professional outdoor shell design, suitable for various harsh environments.

· Automatically select the appropriate channel, the network is smooth and stable.

· The power is linearly adjustable, effectively reducing mutual interference between APs.

· Automatically eliminate weak signal devices to avoid dragging down the entire network and improve wireless network performance.

· Independent hardware protection circuit, can automatically restore abnormal AP.

· Support Passive PoE power supply mode, flexible layout.

· Pole/wall installation, flexible and easy.

· Plug and play.

· Reliable superfast 4G LTE Wi-Fi speeds.

  • Overview
  • Specifications

Outdoor 4G CPE

Get Outdoor Wi-Fi with Outdoor

Wi-Fi Access Points



        Rain IP65                            Extreme                  High Temperature

        Protection                            Cold                          -30℃~75℃

     4G(TDD&FDD)                    Hot                           50Mbps UL

     /3G Compatible                                                       150Mbps DL

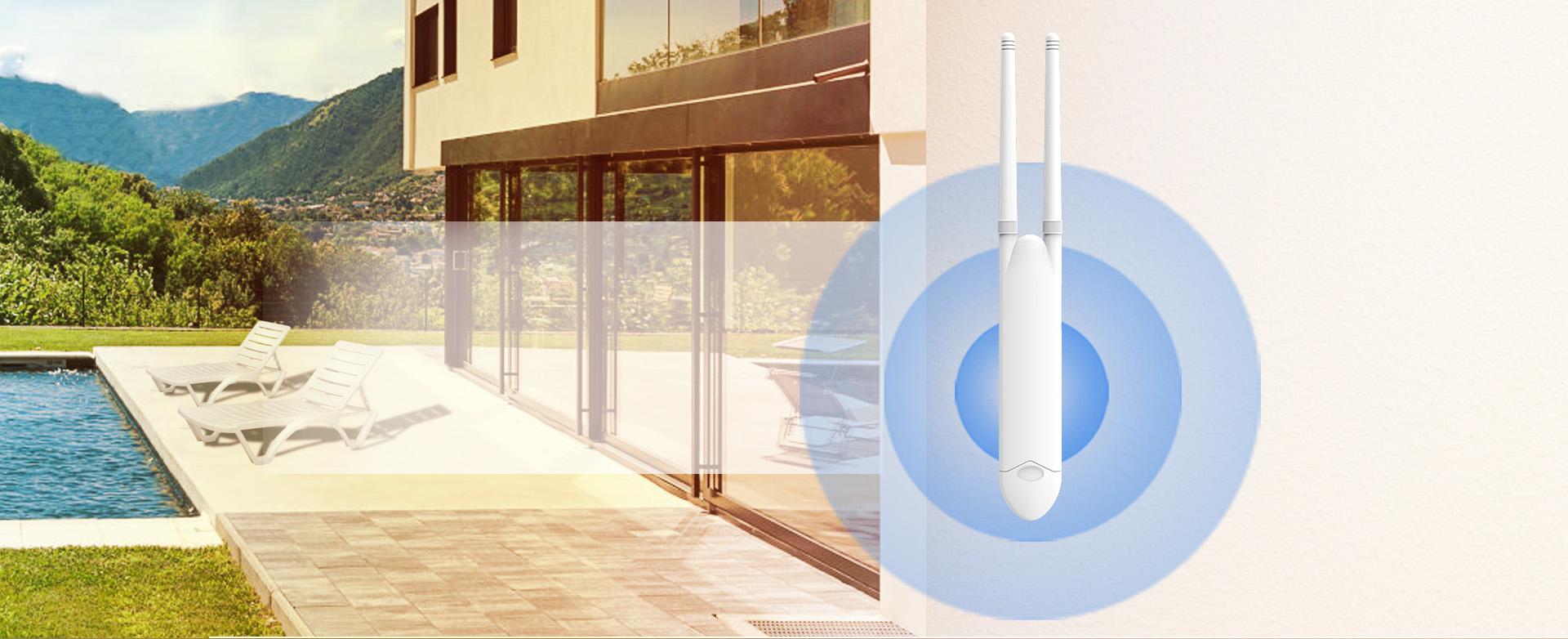

High-speed wireless transmission, 360° omni-directional coverage

With 2x2MIMO technology, it can provide 300Mbps wireless transmission rate and external 5dBi omni-directional waterproof antennas, enabling 360° outdoor all-round wireless coverage and fully meet the demand for wild coverage in squares, stadiums, communities, scenic spots, parks, playgrounds and other environments.

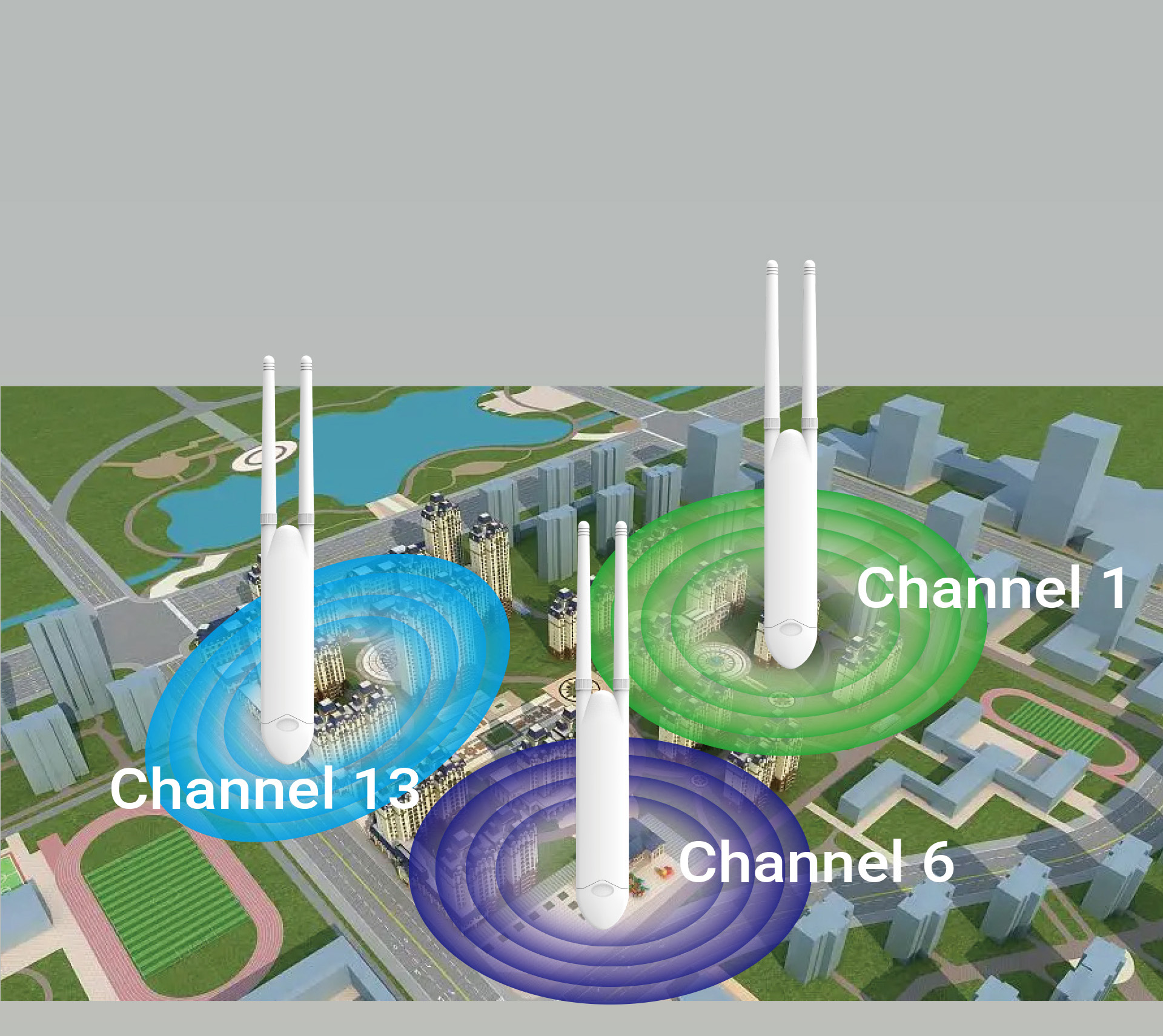

Automatic channel selection, smooth and stable network

According to the wireless channel usage of the environment where the AP is located, it automatically selects the appropriate channel to avoid co-channel interference and ensure wireless stability.

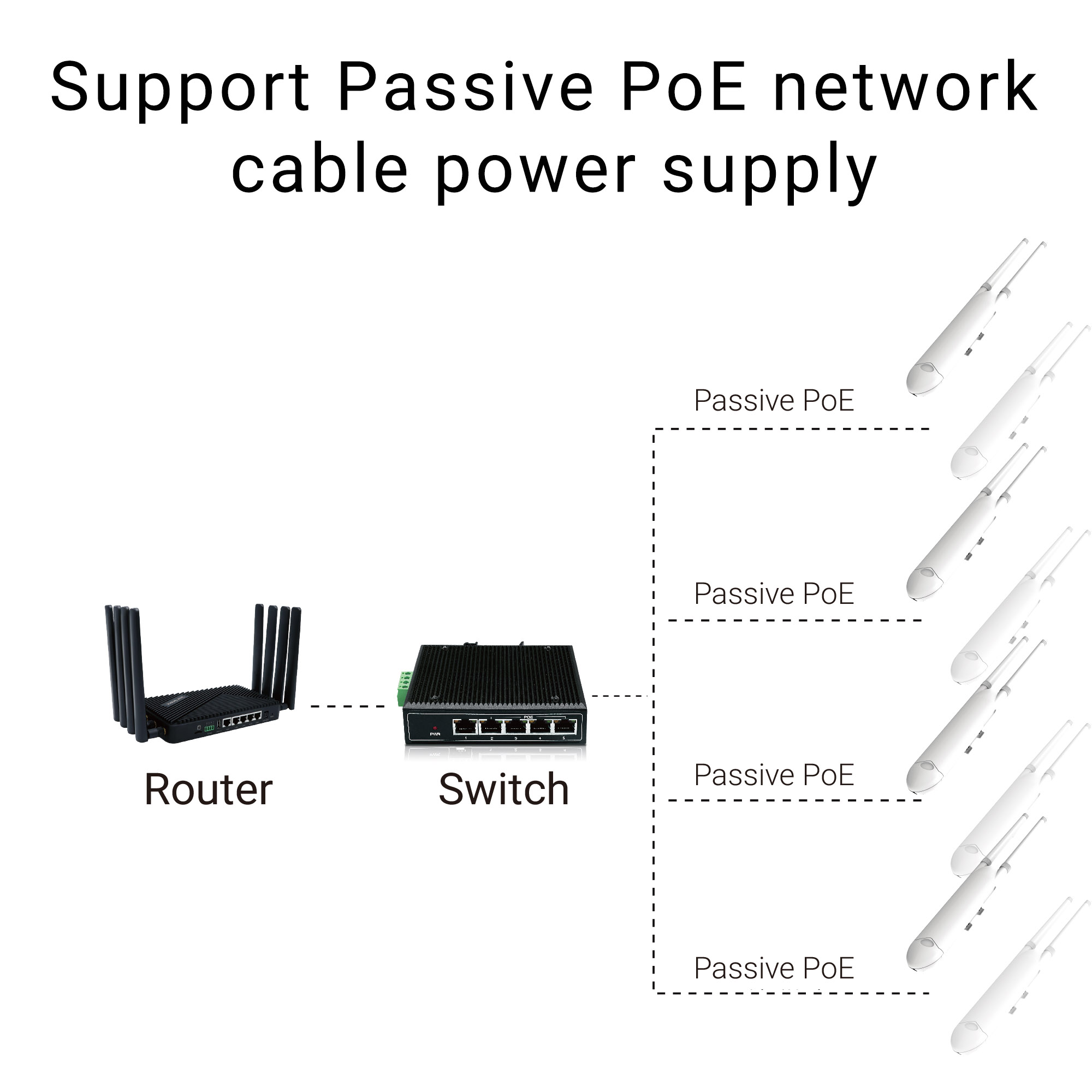

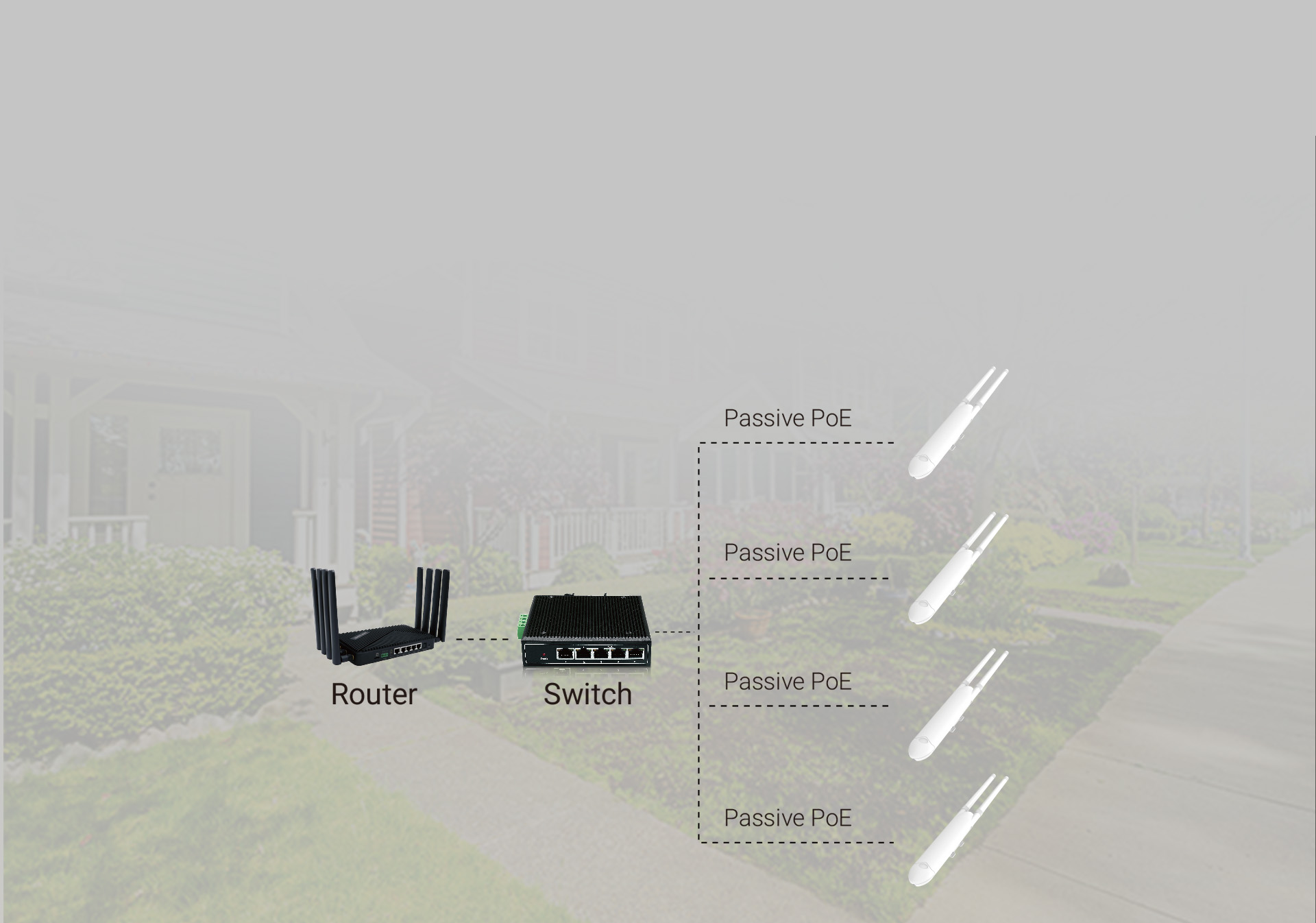

Support passive PoE network cable power supply

Adopt Passive PoE, transmission distance can reach 60 meters, which solve the problem of difficult power access in outdoor environment and can be flexibly deployed according to demand.

*Power supply distance is for reference only, please subject to actual conditions.

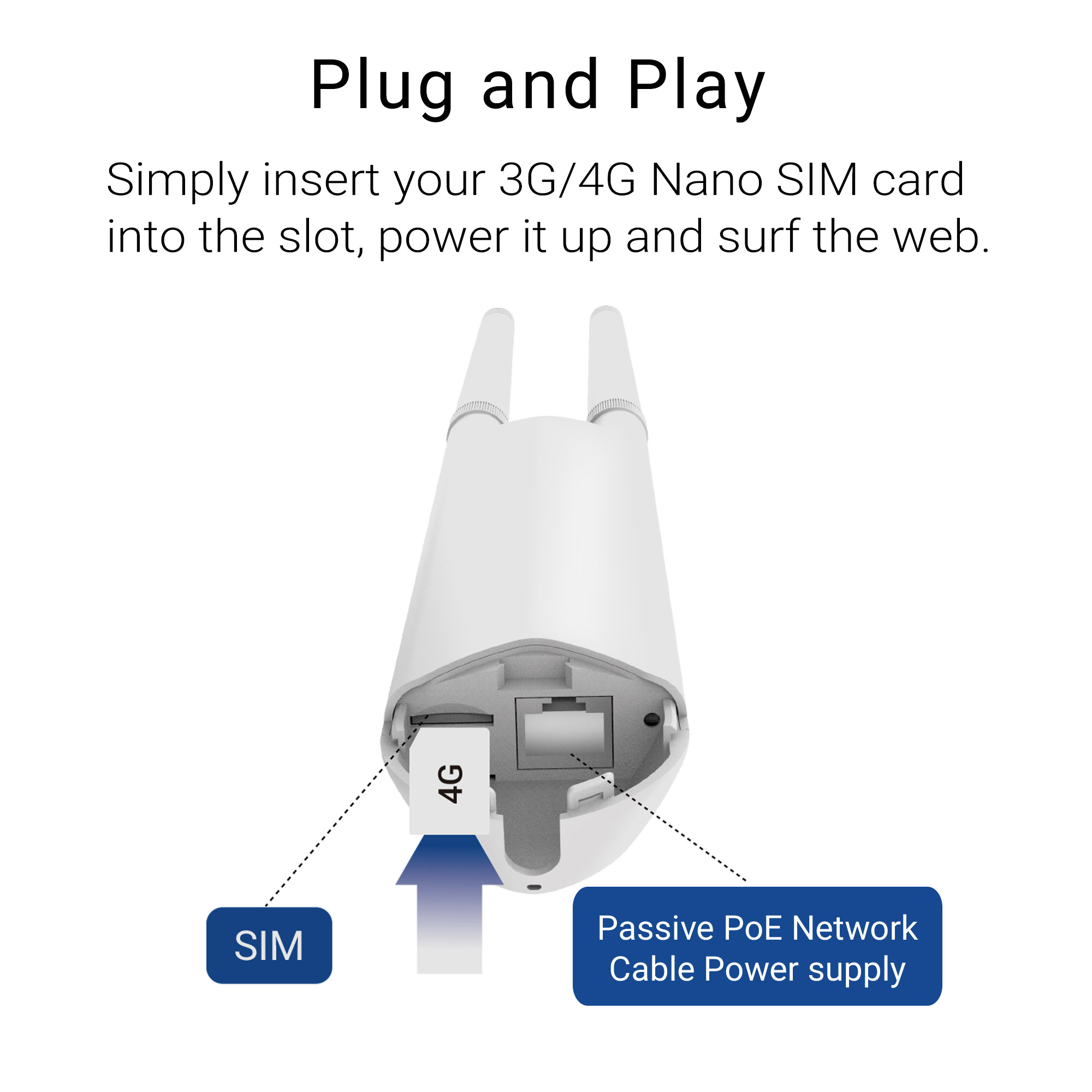

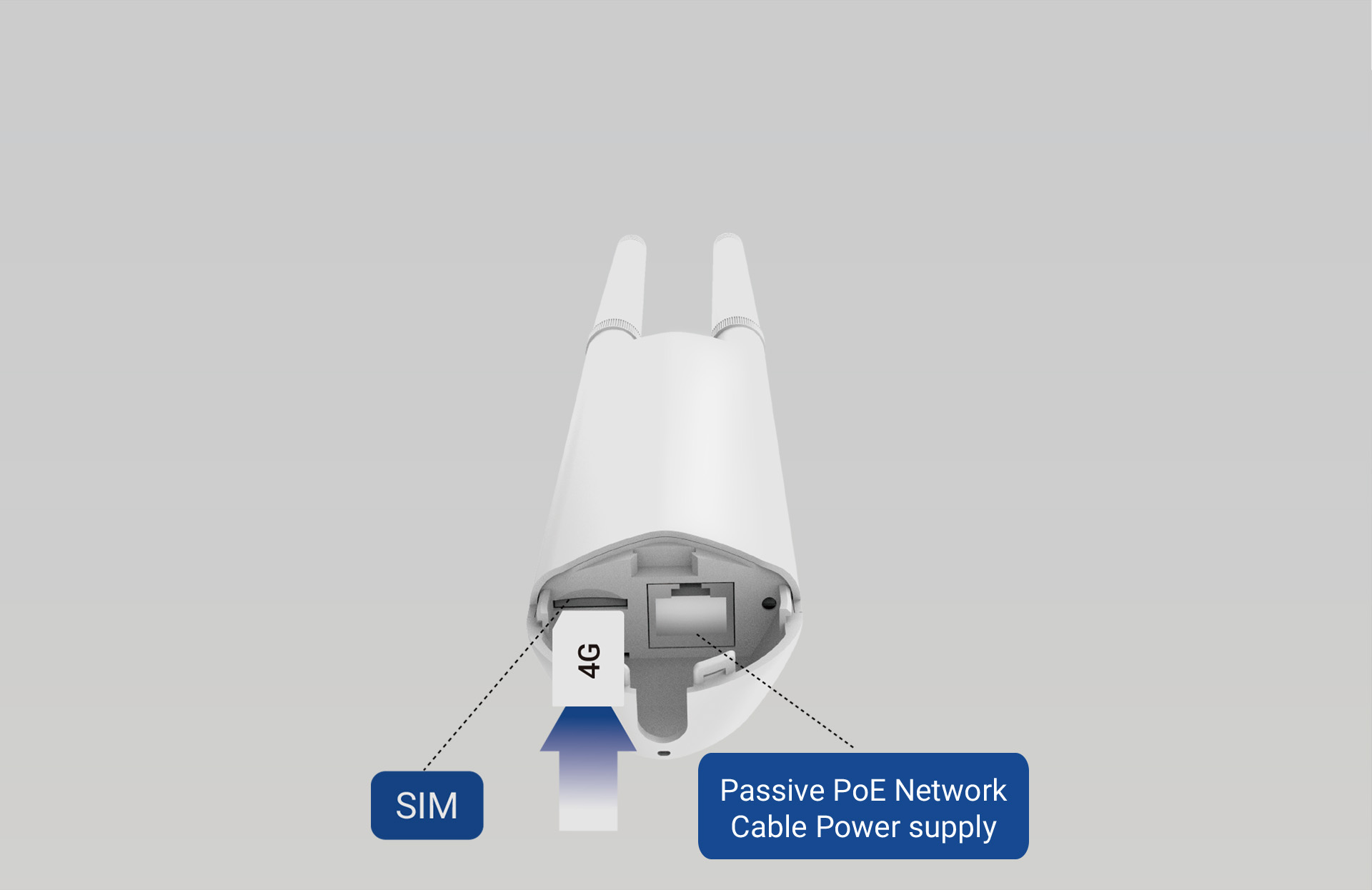

Plug and Play

Simply insert your 3G/4G Nano SIM card into the slot, power it up and surf the web.


Professional outer cover

design, suitable for various

harsh environments

Using outdoor engineering plastic,

providing IP65 level dust-proof and

waterproof capability, it can work

normally in extreme environments

as low-30°C and as high as 75°C.

Without fear of wind, sun, rain

and snow.


Reliable, ultra-fast 4G LTE

Wi-Fi speeds

4G LTE technology for downloads of up to 150Mbps and uploads of up to 50Mbps. It also shares a Wi-Fi network that operates at up to 300Mbps and runs at 2.4GHz for gaming, streaming, monitoring coverage and more.

Y11 Outdoor 4G CPE

Applicable to various scenarios

Such as: Scenic area coverage, community coverage, park coverage, school coverage, factory coverage, commercial street coverage, village coverage, driving school coverage and other application scenarios.

Commercial Streets
Scenic Areas


Port: 1* Passive PoE network cable power supply port, 1 Nano SIM card slot

Antenna: External high-gain detachable antenna, 2* Internal Wi-Fi antenna

Power: 500 mW


Network Type: LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71

                         WCDMA: B2/B4/B5

Wireless Standards: IEEE 802.11b, 802.11g, 802.11n

Frequency: 2.4 GHz

Signal Rate: 300 Mbps , 2.4 GHz

CE EIRP:<27 dBm (2.4 GHz)

Reception Sensitivity:11n HT40: -70dBm 11n HT20: -72dBm

                                  11g 54Mbps: -75dBm 11b 11Mbps: -87dBm

Wireless Features: Enable/disable wireless radio, wireless scheduler, WMM, wireless statistics

Wireless Security: 64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise

Working Mode: Access Point, Client , Repeater, Bridge , AP Router , AP Client Router , 4G/5G


Operating Mode: 3G/4G router, wireless router

WAN Type: Dynamic IP/Static IP/PPPoE

DHCP: server, client, DHCP client list, address reservation

Service Quality: WMM、QoS

Port Forwarding: Virtual Server, Port Triggering, Plug and Play, DMZ


Access Control: Local Admin Control, Host List, Access Control

Firewall security: IP and MAC address binding

Protocol: IPv4

Administration: Access Control, Local Administration

Guest Network: 2.4 GHz Guest Network


Certification: FCC, CE, SRRC, RoHS

Requirements: Microsoft Windows98SE, NT, 2000, XP, Vista™ or ™7, 8, 8.1, 10, MAC OS, NetWare, NNIX or Linuxie11, Firefox 12.0, Chrome20.0, Safari 4.0 Browser or higher version, or other browsers that support java, Nano SIM card

Environment: Operating Temperature: -30°C ~ 75°C

                       Operating Humidity:10%~90%RH non-condensing

                       Storage Humidity: 5%~90%RH non-condensing
